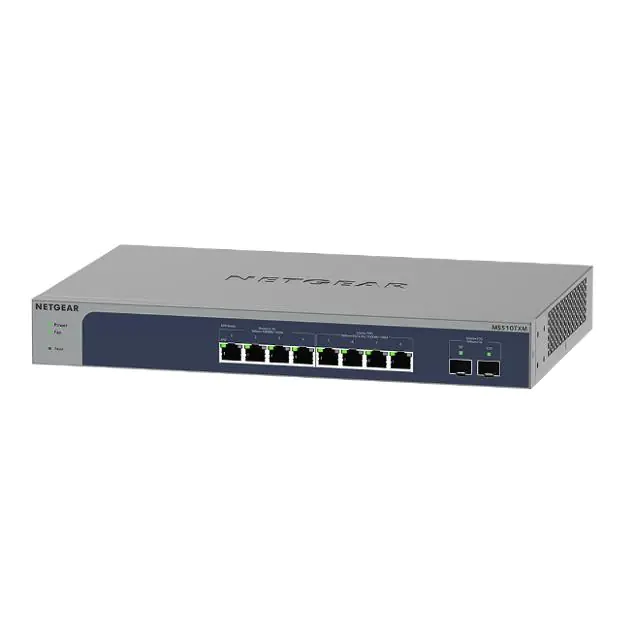

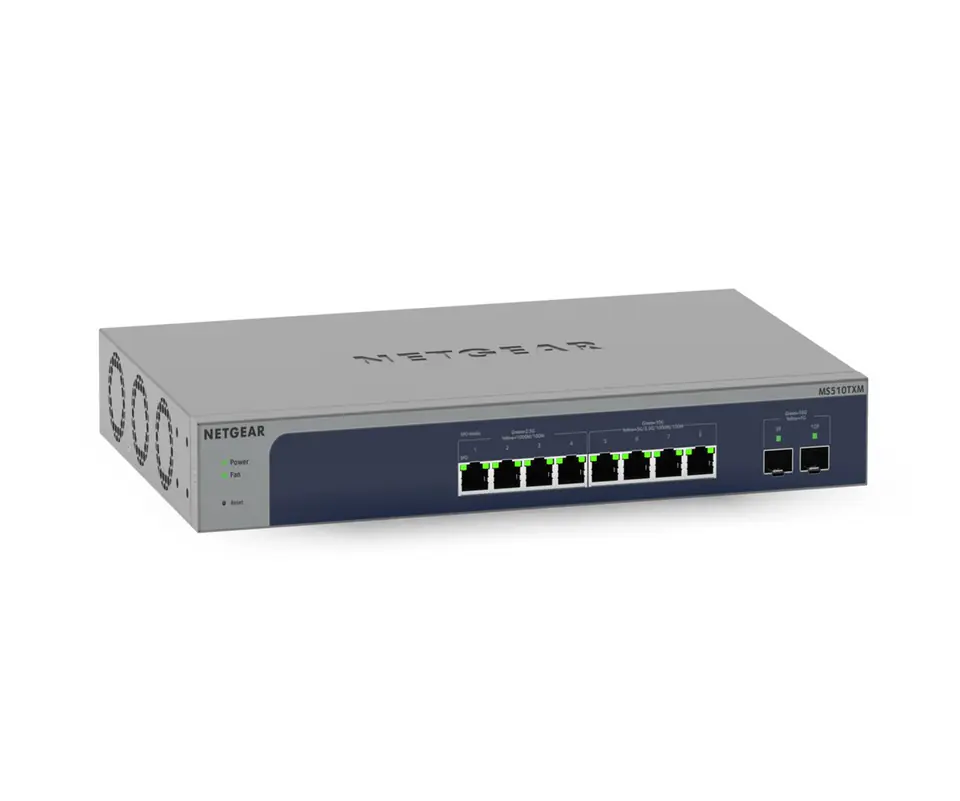

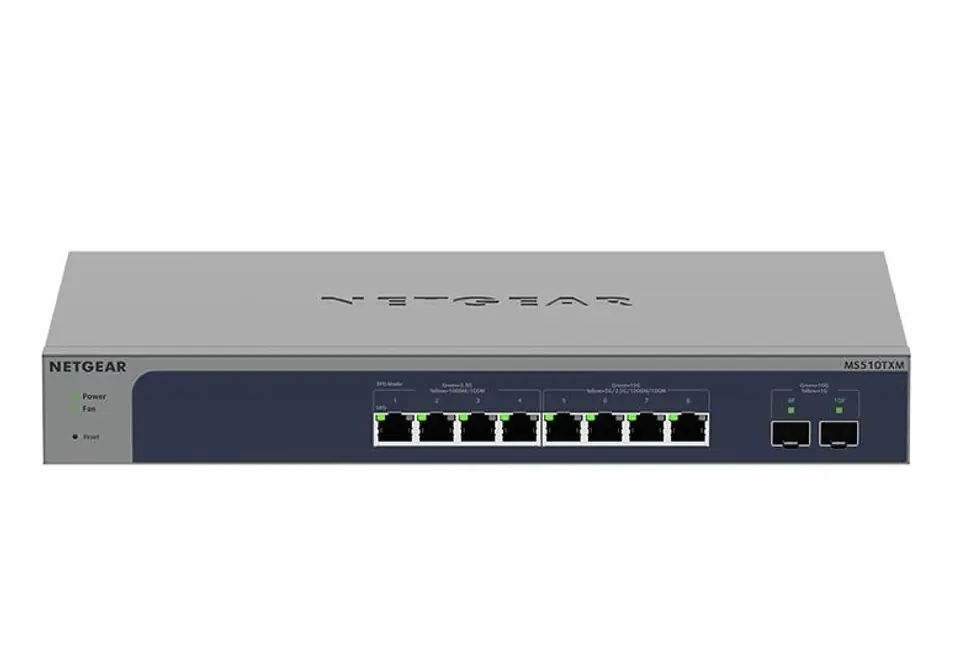

8-port Multi-Gigabit/10G Ethernet Smart Switch with 2 SFP+ ports
Provides 4 1G/2.5G and 4 Multi-GIG/10G ports with 2 dedicated 10 Gigabit fibre ports for WiFi 6 AP connections, IP surveillance and mobility. Includes a one-year subscription to Insight Premium or Pro.
Activity management
- Automatic adjustment of speed and duplex modes
- IEEE 802.3x data flow control
- Dynamic MAC address management
- IEEE 802.1Q VLAN
- QoS based on WRR algorithm and/or strict priority
- Port-based QoS based on IEEE 801.2p protocol
- QoS based on TCP/UDP protocol
- DiffServ function
- DSCP support
- Bandwidth limiting (input or output)
- Connection aggregation and LACP function
Network switch management
- Insight mobile app or Insight Cloud portal
- Browser-based management via a graphical interface
- Smart Control Center software for easy management of multiple switches
- IP address access list
- IPv6 management
- Configurable VLAN management
- SNMP protocol: v1, v2c, v3
- MIB standards (RFC1213, RFC1643, RFC1493)
- RMON standard groups 1, 2, 3, 9
- Firmware update via Smart Control Centre (TFTP)
- Firmware download (to the switch) and upload (to the server) using TFTP/HTTP
- Configuration and upload (to PCs) using HTTP
- Firmware download (to the switch) using TFTP/HTTP and upload (to the server)
- Logging of memory and FLASH status
- System (server) log
- System password protection
Security
- MAC address blocking
- MAC address blocking by number
- IEEE 802.1x port authentication
- Dynamic VLAN assignment
- Guest VLAN
- TACACS+
- 3 versions of HTTPS/SSL
- TLS session
- Trusted MAC addresses
- ACLs for IPv4, L4
Multicast performance
- IGMP Snooping filter protocol in v1, v2 and v3 versions
- IGMP Snooping request generator
- Blocking of unidentified multicast distribution activity
- MLD protocol recognition
Extended tree, routing and linking
- IEEE 802.1D, IEEE 802.1w RSTP and MSTP
- BPDU overflow on/off capability when STP is disabled
Reliability, performance and troubleshooting
- Port mirroring support for inbound and outbound traffic
- Jumbo frame support
- Broadcast storm control
- Cable diagnostics
- Loop detection
- DoS attack prevention
- IEEE 802.1ab LLDP protocol
- LLDP-MED protocol
- Two images
- SNTP protocol
- EAPOL protocol overflow switching option when 802.1x mode is disabled
- Protected ports
- DNS client
- DHCP clients
- DHCP Snooping method
- Ping and traceroute client
