| ~ 400 v: | Voltage insulation: |
|---|---|
| 0.57 kg: | Scales: |
| 1: | Number of segments: |
| 2 years: | Warranty: |
| 50 ... 200 mm: | Thickness of the insulating layer: |
| 60 mm: | Spacing of mounting holes: |

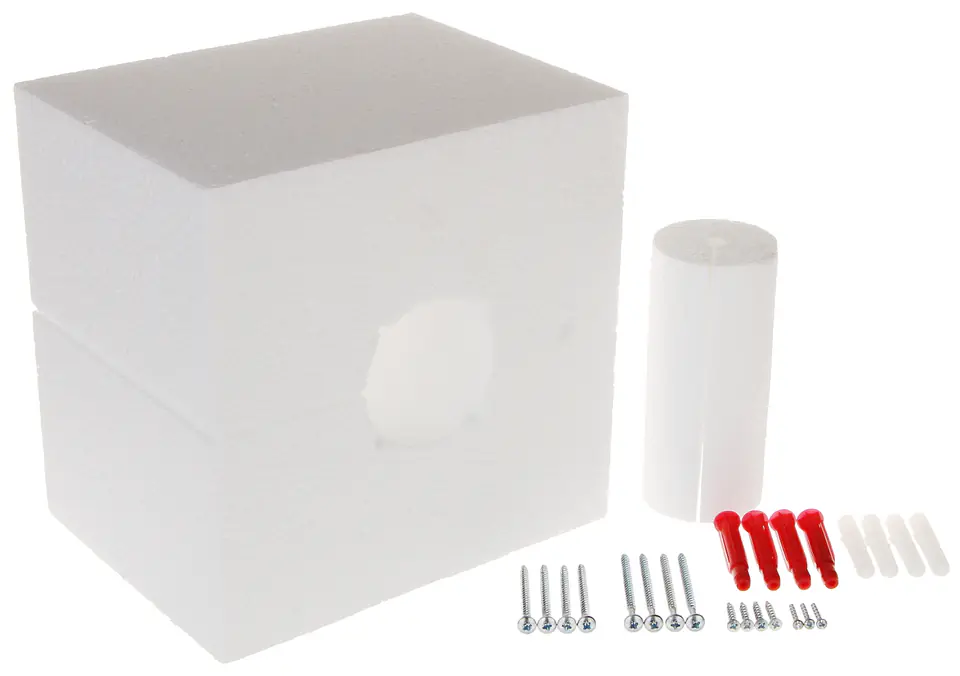

| For thermal insulation systems temperature range: -25 °c ... 60 °c load capacity 40 n - 180 mm from the wall flammability index : 850 °c 4 attachment points (box) dowels, mounting screws, facing cover with the box - included: | Selected features: |
| Light grey: | Colour: |

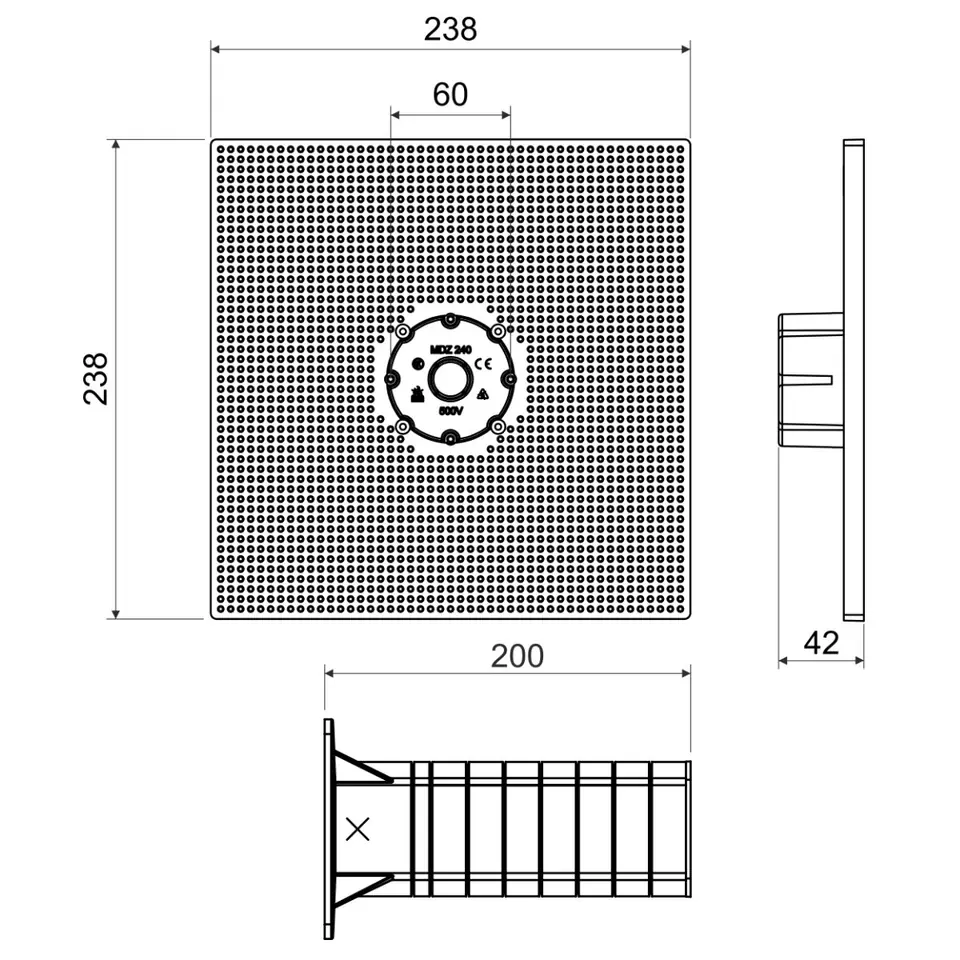

| Ø 63 x 39 mm (box)238 x 238 x 42 mm (mounting plate)120 x 120 x 200 mm (media): | Dimensions: |
| Self-extinguishing material: | Material: |

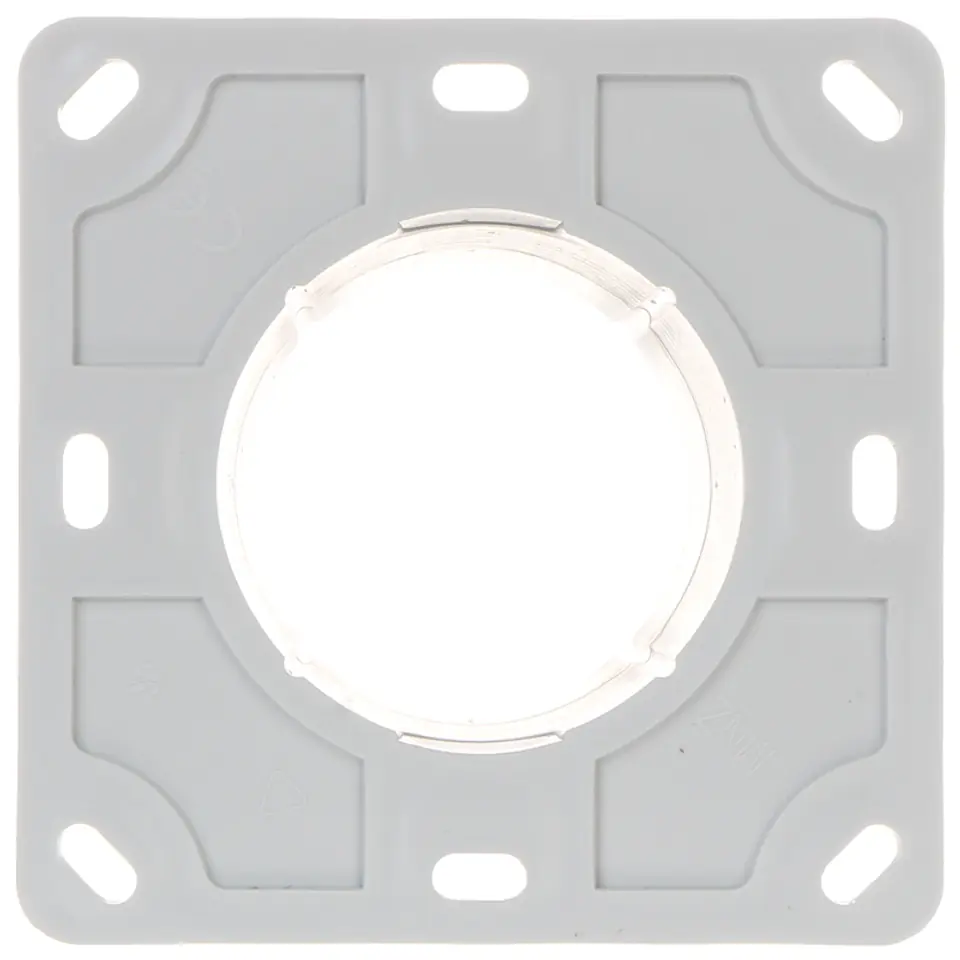

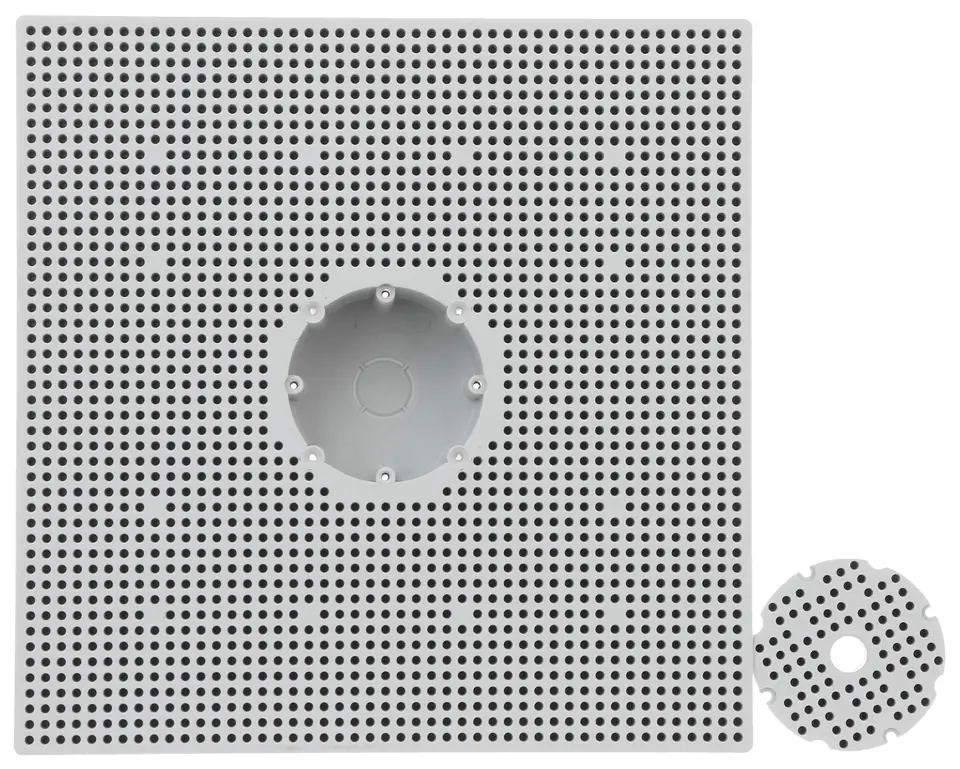

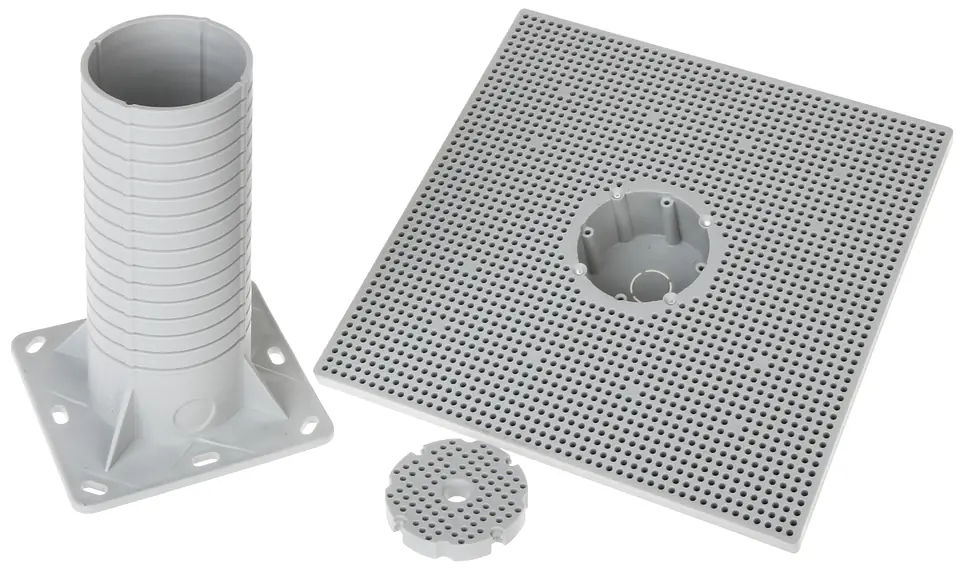

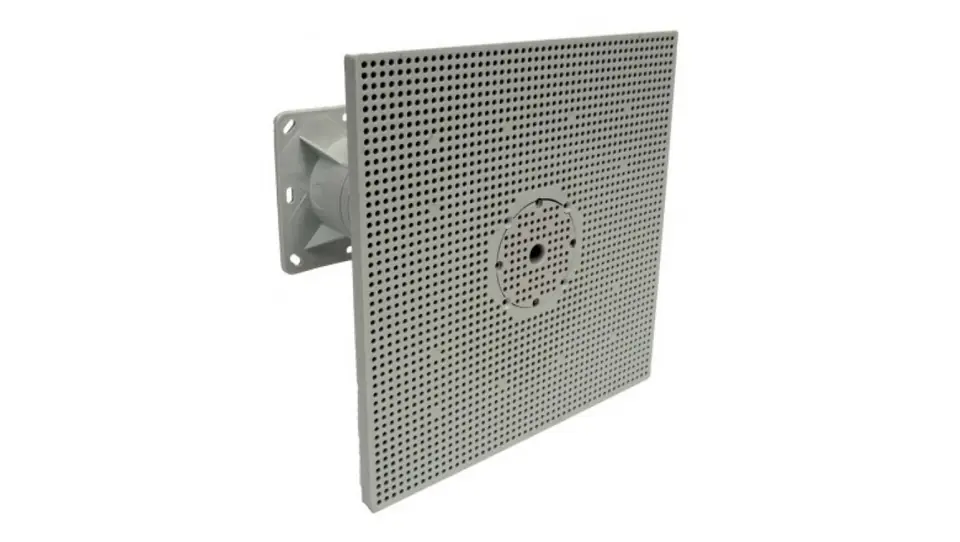

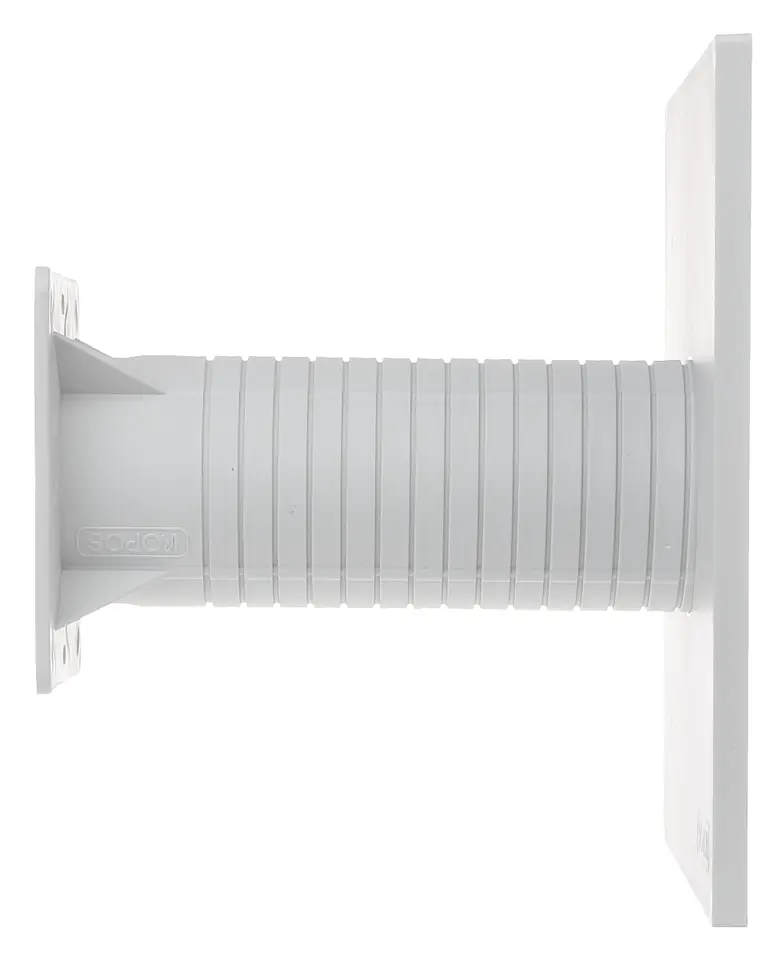

Mounting plate with an electrical installation box for installing electrical equipment (e.g. outdoor lighting, motion detectors, etc.) on insulated facades of buildings with a thickness of 50 to 200 mmResistive constructionElimination of thermal bridges

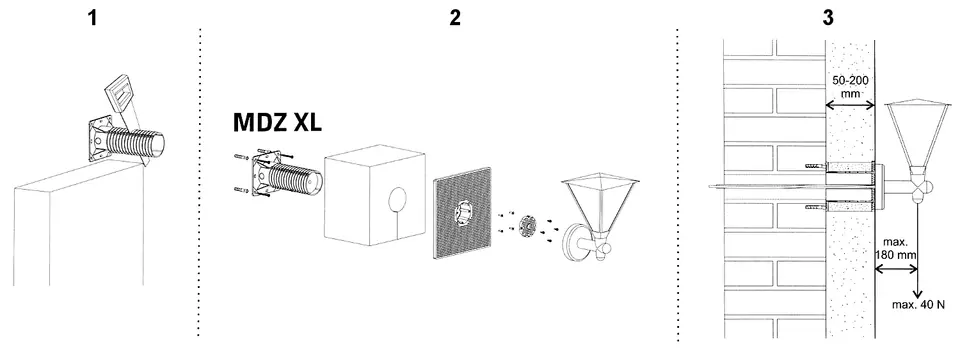

Before installation, it is necessary to cut the carrier, including the attached insulation, to the required length, according to the thickness of the insulating layer
