Manufacturer number: MSW 10060189

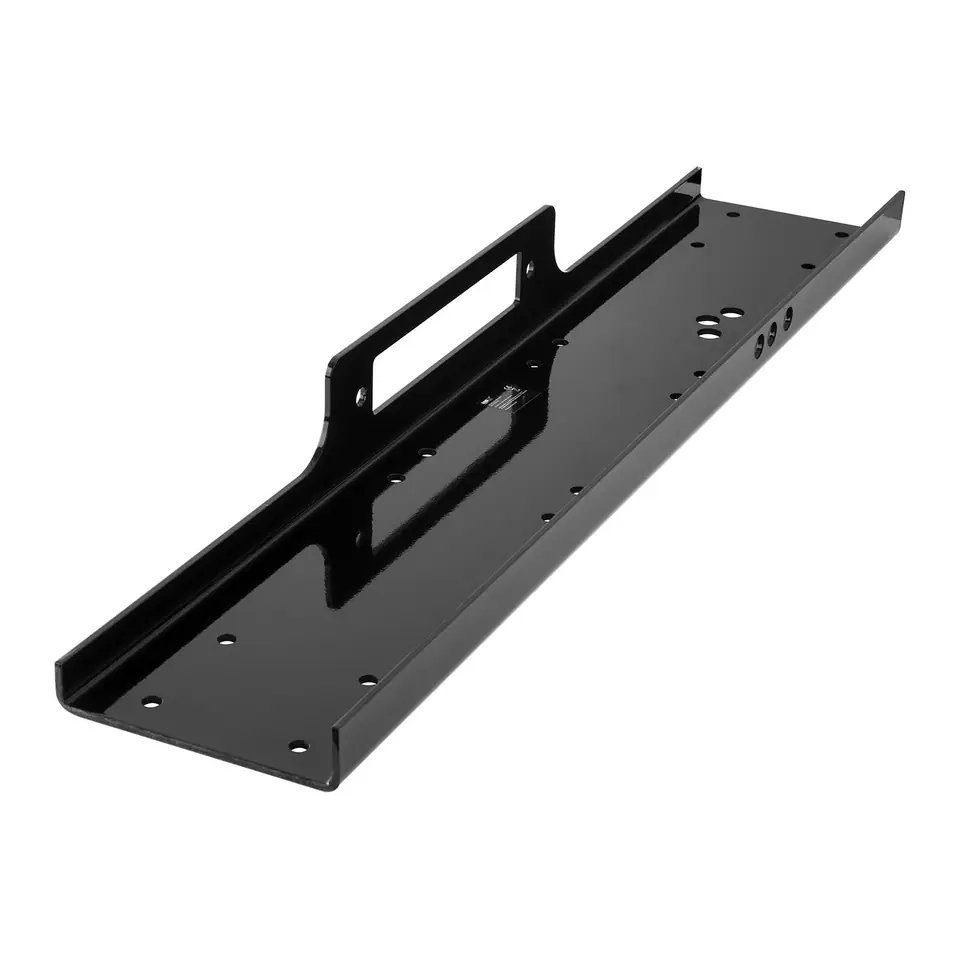

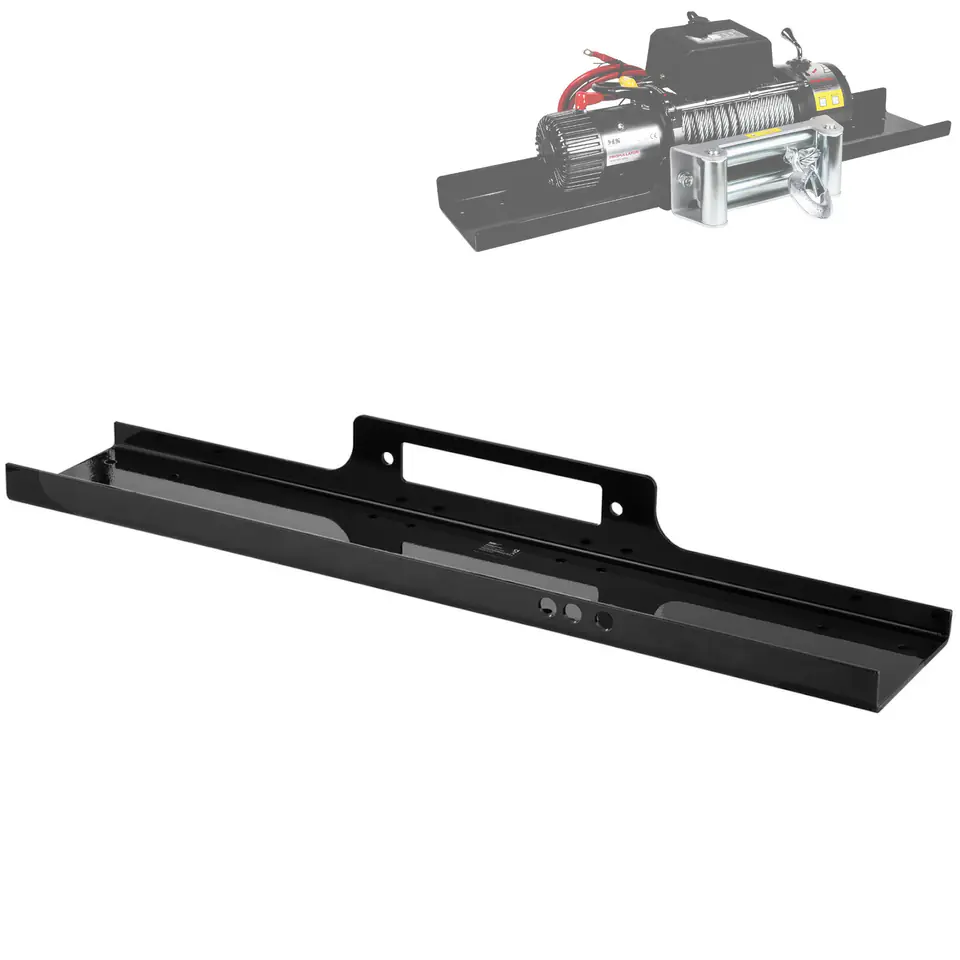

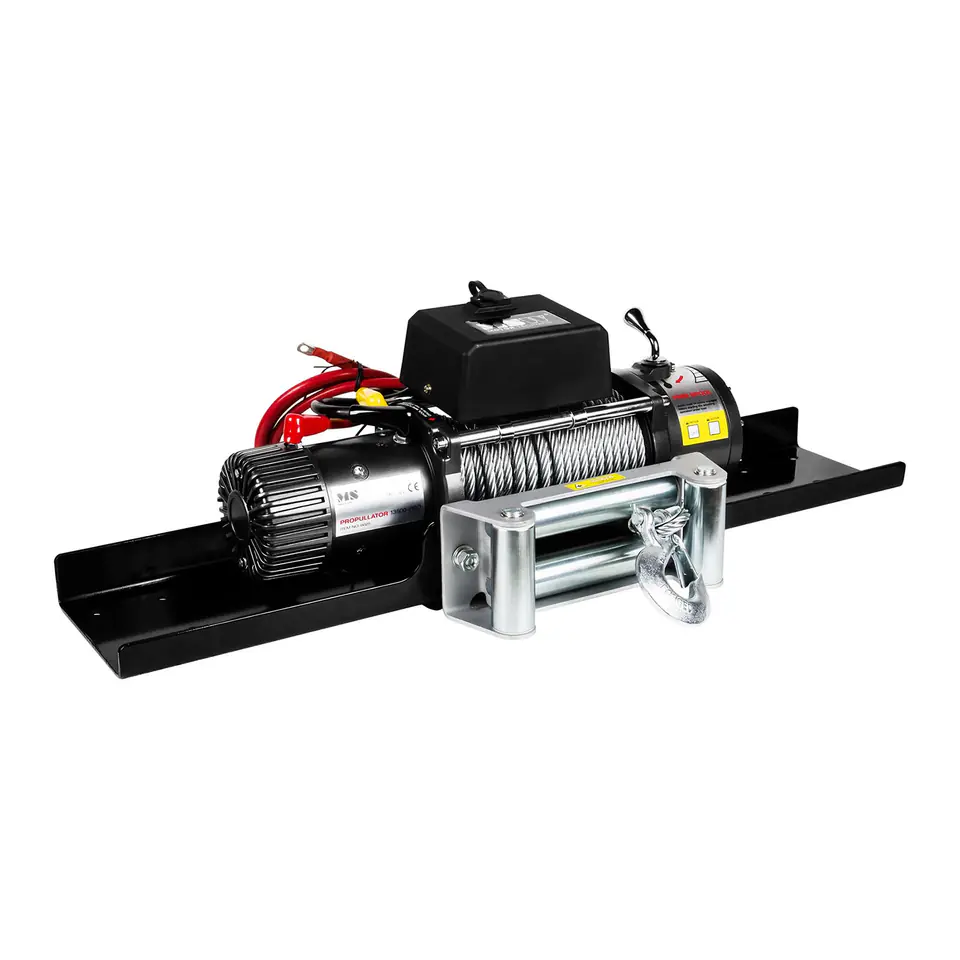

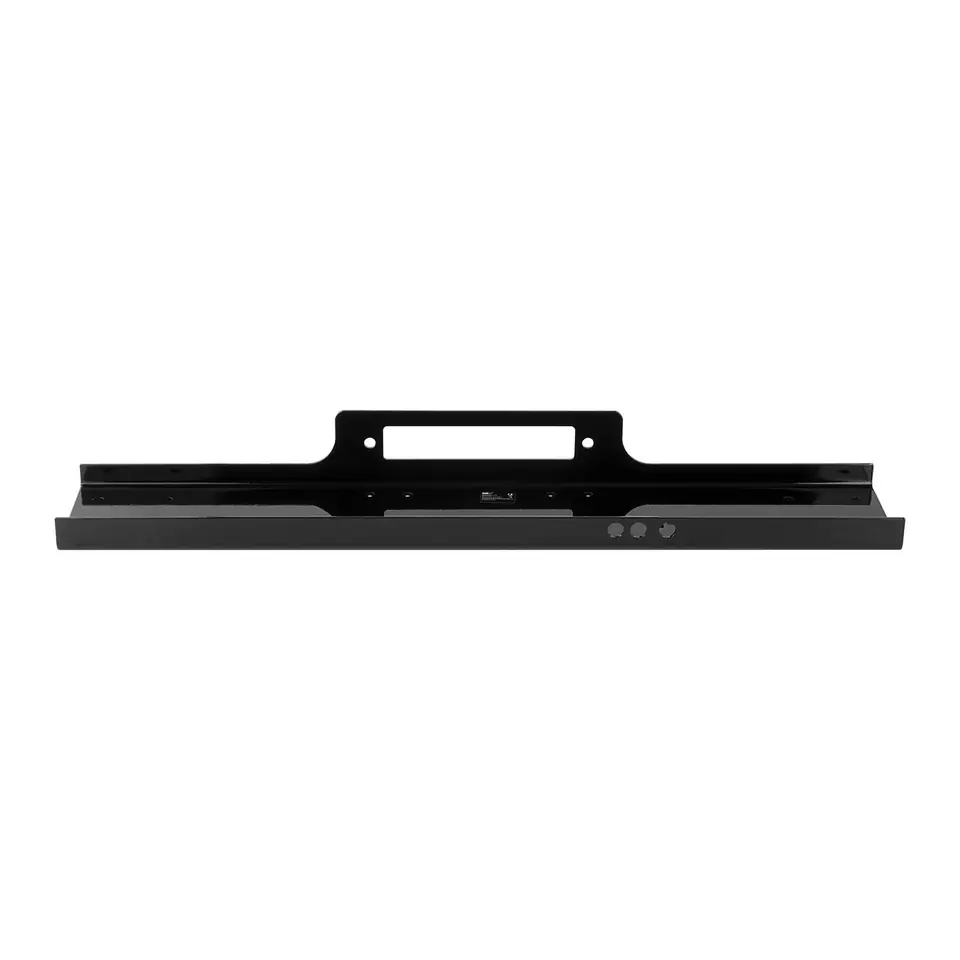

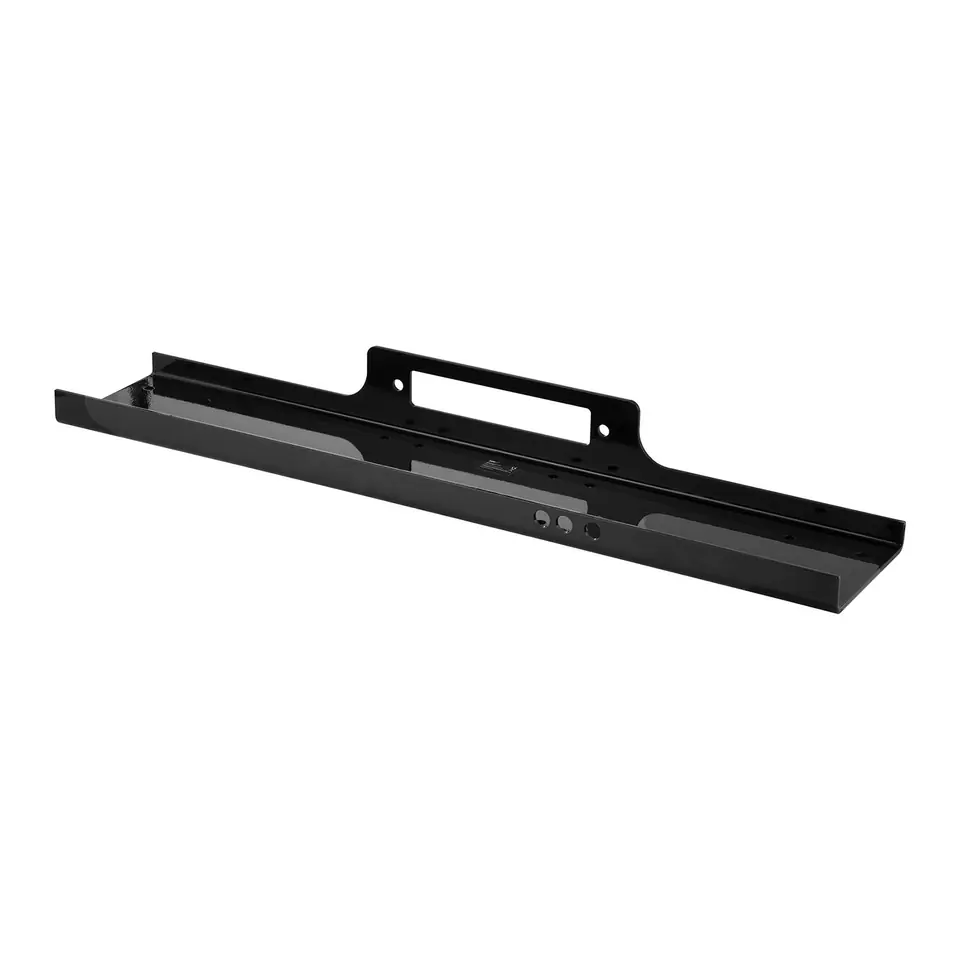

The practical mounting plate for electric winches will work well for devices with a pull from 4310 to 6136 kg. The screw holes have been arranged to fit many popular models of MSW winches. The plate can be easily mounted to a wall, car or other flat surface.
The product is made of steel with a thickness of 5 mm, which is characterized by high resistance to mechanical damage. It has been covered with black paint, which protects the metal against corrosion and changing weather conditions.
Product features:
- - Versatility - fits various models of winches with a pull from 4310 to 6136 kg,
- - Durability - made of steel sheet covered with black paint,
- - Lightness - trouble-free transport and storage.
- - Model - PROMOUNT 9500/13500
- - Catalogue number - 10060189
- - Article status - New
- - Material - Steel
- - Coating - Black paint
- - Plate size - 920 x 182 mm
- - Plate thickness - 5 mm
- - Screw hole spacing - 254 x 114.3 mm
- - Requirements for compatible winches - Matching bolt hole spacing
- - Pull - 9500-13500 lbs (4310-6136 kg)
- - Dimensions (LxWxH) - 91.9 x 18 x 10 cm
- - Weight - 8.5 kg
- - Shipping dimensions (LxWxH) - 95 x 22 x 12 cm
- - Shipping weight - 9 kg
- Mounting plate
