Mounting pin XPA M12x35,30mm MITEE-BITE

€172.70
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Wed, Nov 13 - Mon, Nov 18
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
MITEE-BITE
Product code:
X38250 / 4046368382507

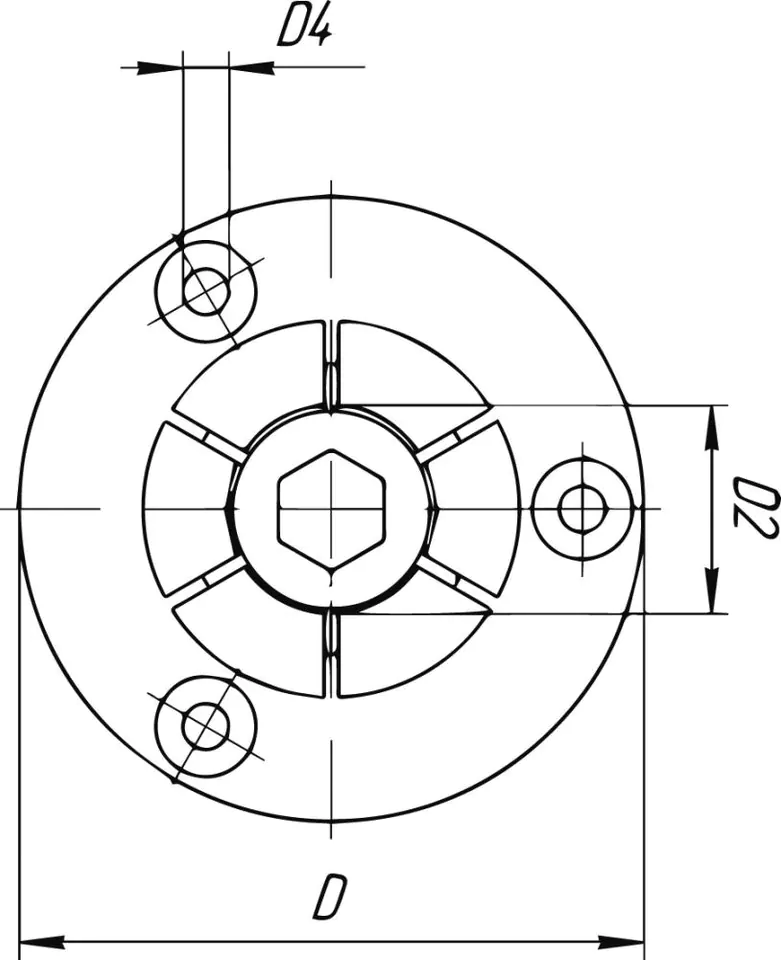

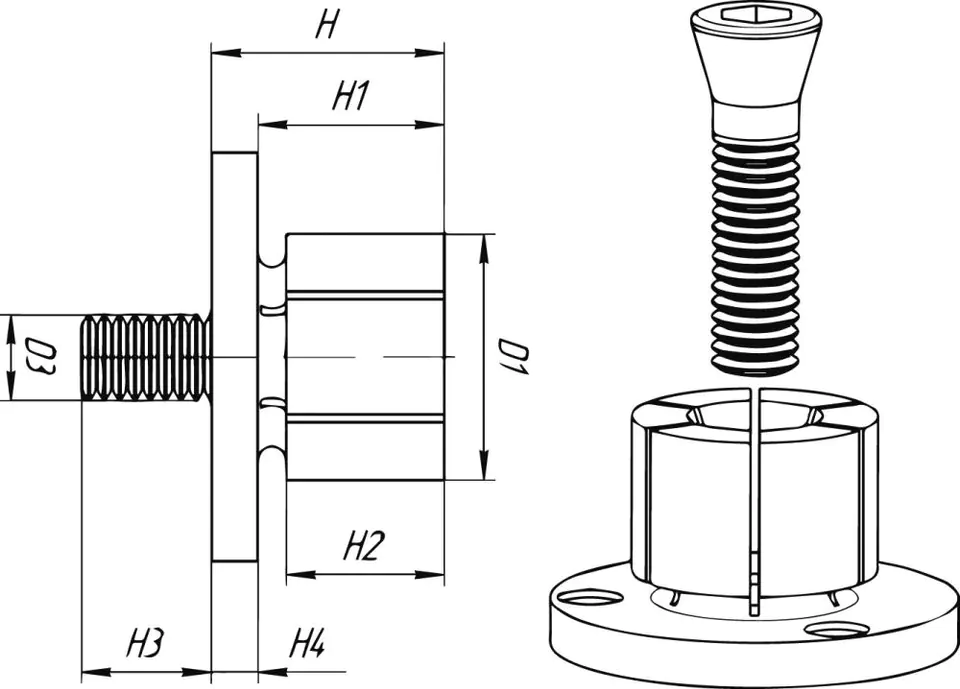

Specification

Clamping force:26.3 kN
Diameter d h9:56 mm
Dimension d3:M12
Dimension d4:M4 mm
Dimension h:31.8 mm
Dimension h1:25.4 mm
Dimension h2:20.6 mm
Dimension h3:21 mm
Dimension h4:6.4 mm
Mounting range d1:23 to 35.3 mm

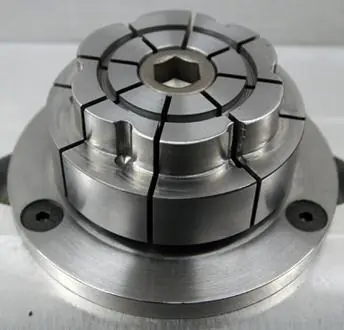

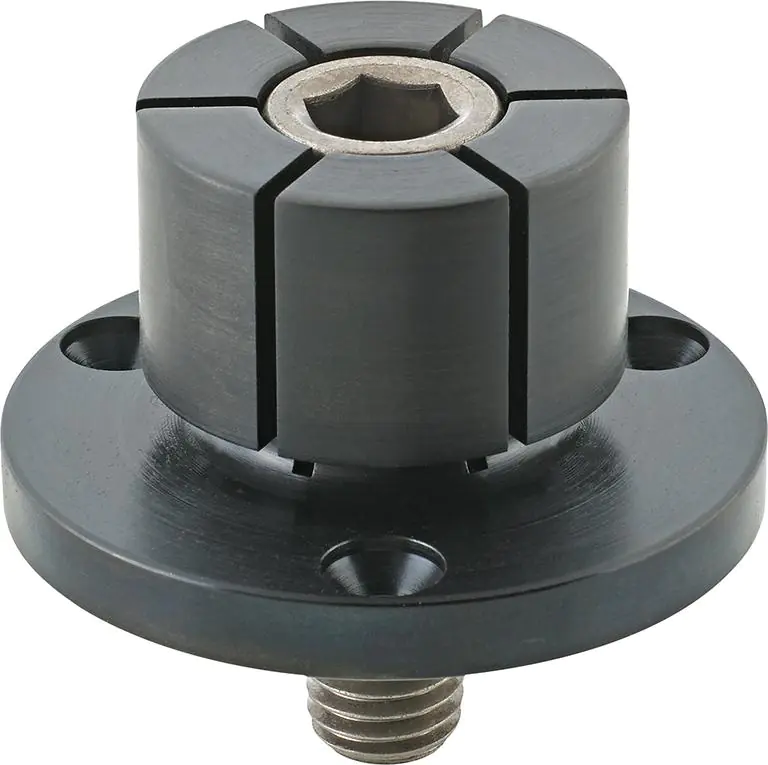

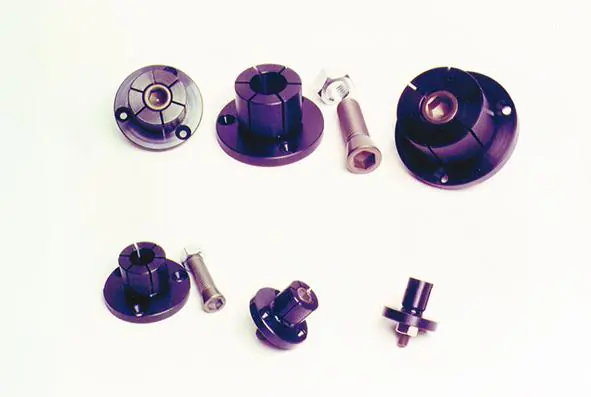

XPA mounting pin

Universal pressure system for pressing workpieces of various shapes and forms, square, inclined, concave or convex.
Design: the special feature of these clamps is a steel screw (with a strength of 10.9) with an eccentric head. Eccentricity causes a pressure movement with a very high clamping force. The clamping element is a brass hexagonal plate.
Application: with the help of thrust pins and 1 or 2 mounting screws, each element can be fixed in the most diverse forms. The low construction height enables trouble-free machining of the workpiece surface. In this way, it is not necessary to take into account the position of the clamping feet when programming the CNC. In addition, the small design dimensions allow ergonomic multiple mounting. The mounting clamps can also be used as stops.

Made of: structural steel, with hardened and coated mounting screw. The diameter of the clamping flange is concentric with respect to the clamping diameter, thanks to which the accuracy of repeatability of the elements is achieved.
Application: almost every workpiece (e.g. turned, milled, drilled, etc.) has at least one hole that can be used to secure the workpiece with the XPA clamping pin. Thus, the fastening is made from the inside, which allows for trouble-free processing of the other side. The small design dimensions allow multi-sided machining, without interfering edges. The clamping mandrel can be machined by turning and milling, adjusting it to the required diameter. Possibility of automation based on hydraulic and pneumatic systems.
Kit contents: XPA mounting pin with 3 mounting screws.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
