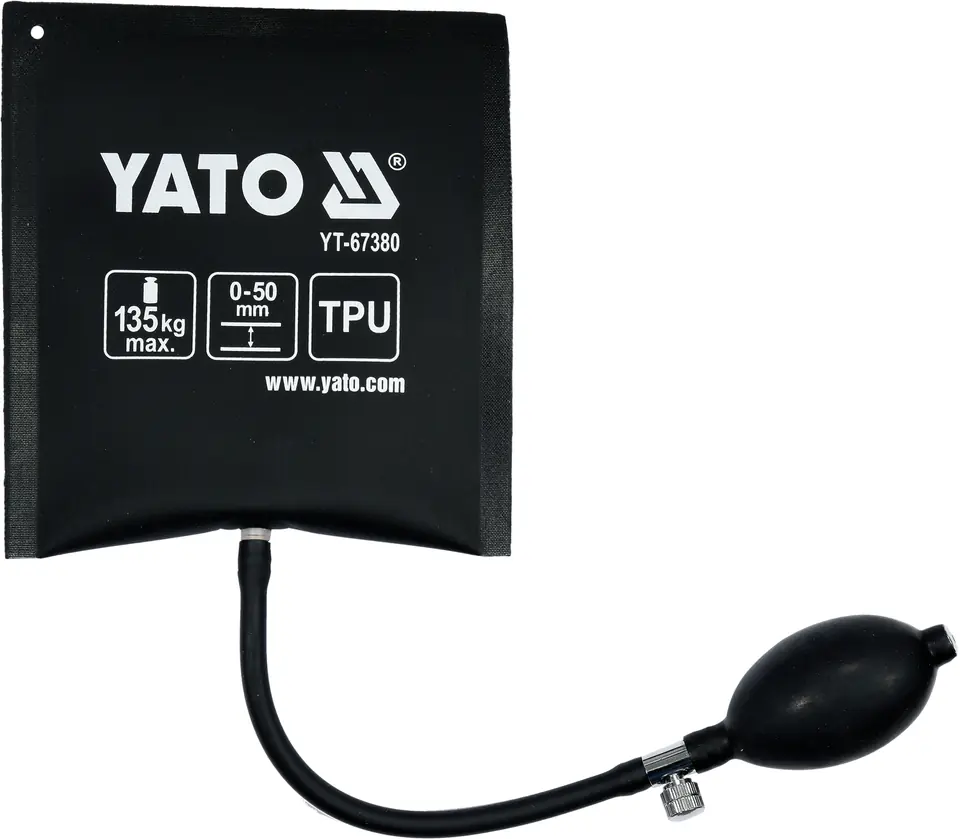

Inflatable cushion for lifting elements weighing up to 135 kg.
Made of fabric based on reinforced synthetic fiber. Dimensions 150 x 160 mm .
Hose with pump and safety valve length approx. 290 mm.
Lifting height about 50 mm.
The thickness of the unpunished pillow is about 2 mm.
Purpose / Application
For lifting heavy elements when leveling them, e.g. when embedding windows or doors, leveling furniture, refrigerators or washing machines.
Pillows are also used in workshops for emergency opening of car doors.
How to use
Insert the empty pillow into the gap under the lifted object, turn off the valve and, rhythmically pressing the pump, fill the pillow gradually, lifting the object upwards.
When lowering, unscrew the valve, releasing air gradually.
Specifications
Index NumberYT-67380
EAN5906083024023
Markayato
Weight in Kg (packaged)0.1670
Master Carton MC24
Pal432
Maximum height [mm]50
Base dimensions [mm]150 x 160
Height min [mm]2
Lifting capacity [kg]135
