Manufacturer no: 10060775

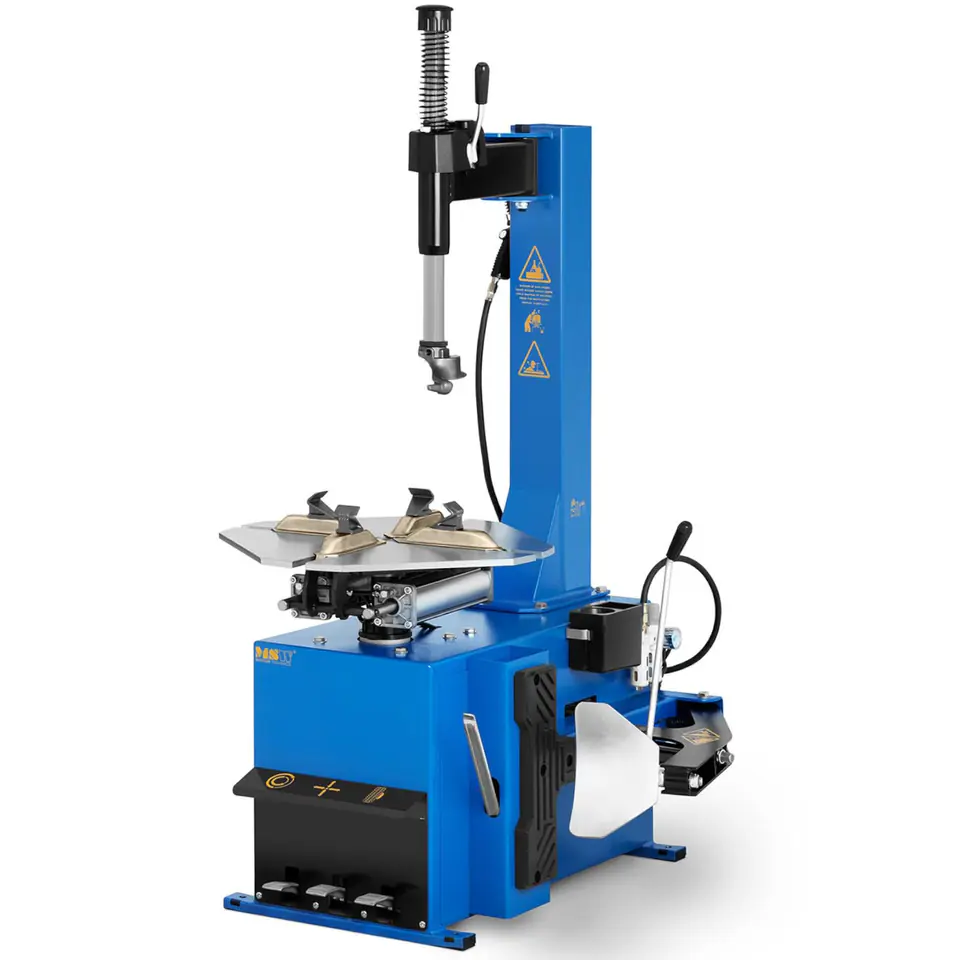

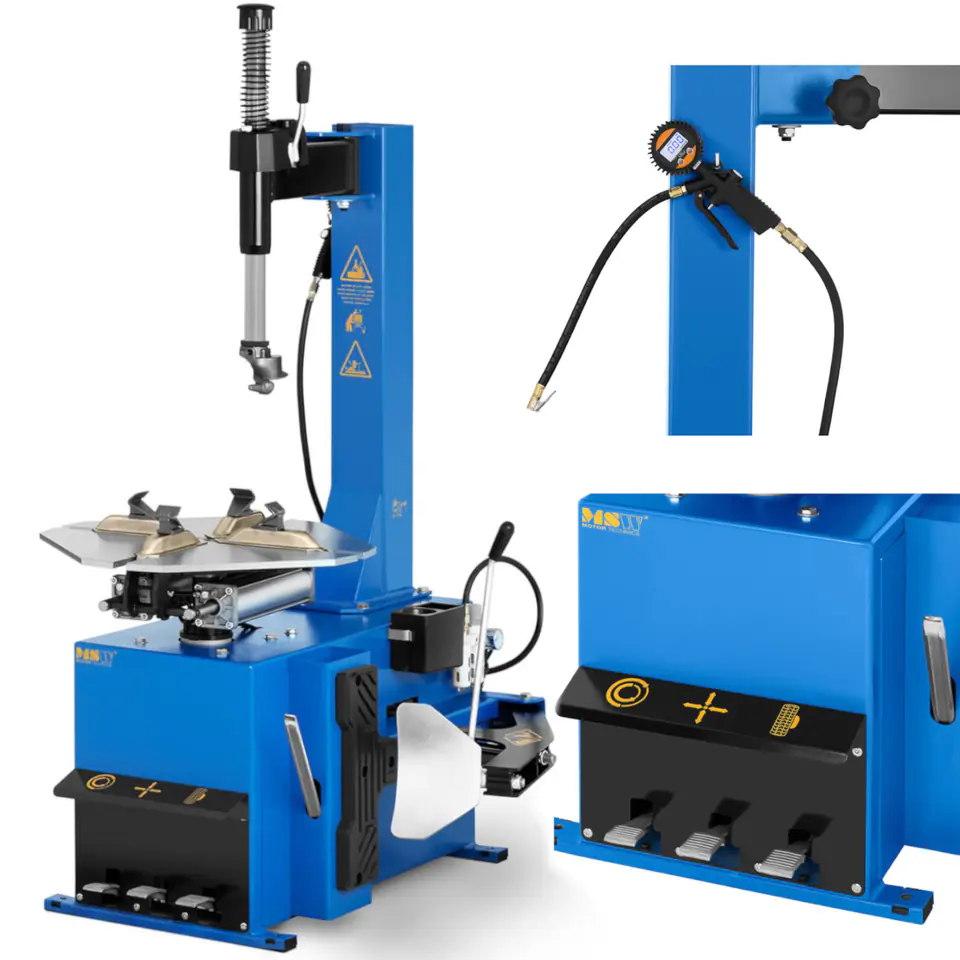

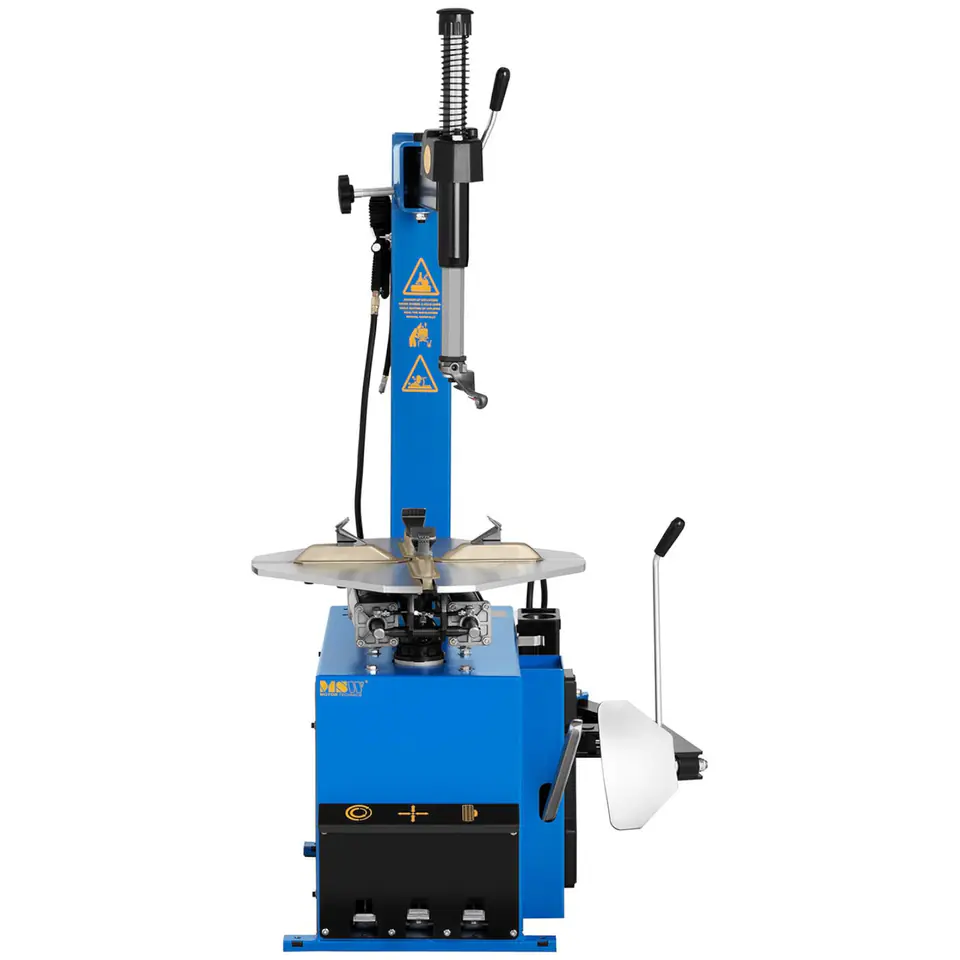

The tire mounting machine of the German brand MSW is perfect for workshops or car services. It will make it easier to remove and put on tires for trucks, cars and motorcycles.

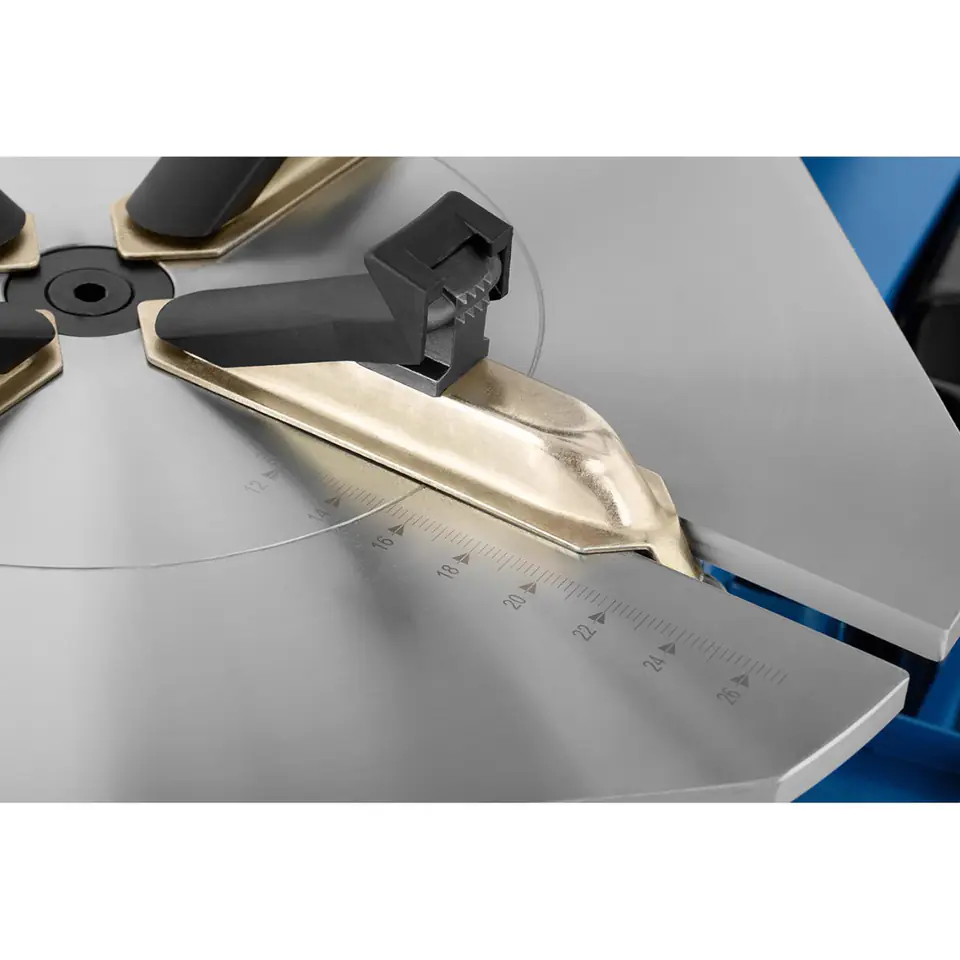

The device allows you to change tires on rims with a diameter of 11-22''. The mounting machine has a 4-jaw self-centering system that stabilizes the rim in the desired position. A 2500 kg compactor tears the tire away from the rim. The shape of the head and the overlay protect the rim from damage during disassembly. The pneumatic gun quickly inflates the wheel. Pedal operation leaves hands free. The working surface is 540 x 540 mm , which allows you to work comfortably with rims up to 22 inches in size. The ergonomic table rotates with a force of 1100 Nm, improving the assembly and disassembly of the tire. The device has a rubber cover that protects the rim and the machine from damage.
Product features:
- - Versatility - efficient replacement of tires of most passenger cars, vans,

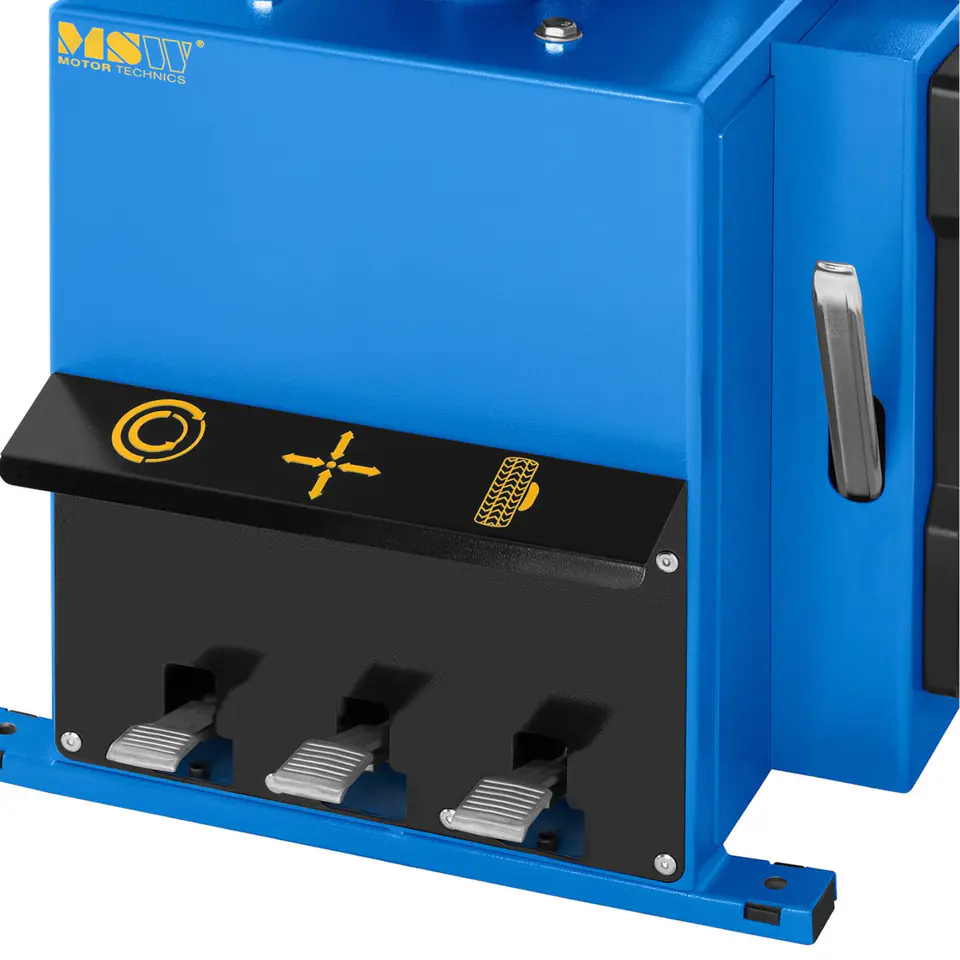

- - Comfort of use - free hands thanks to the use of pedals for operation,
- - Effectiveness - applied solutions for difficult cases, e.g. flat tires,

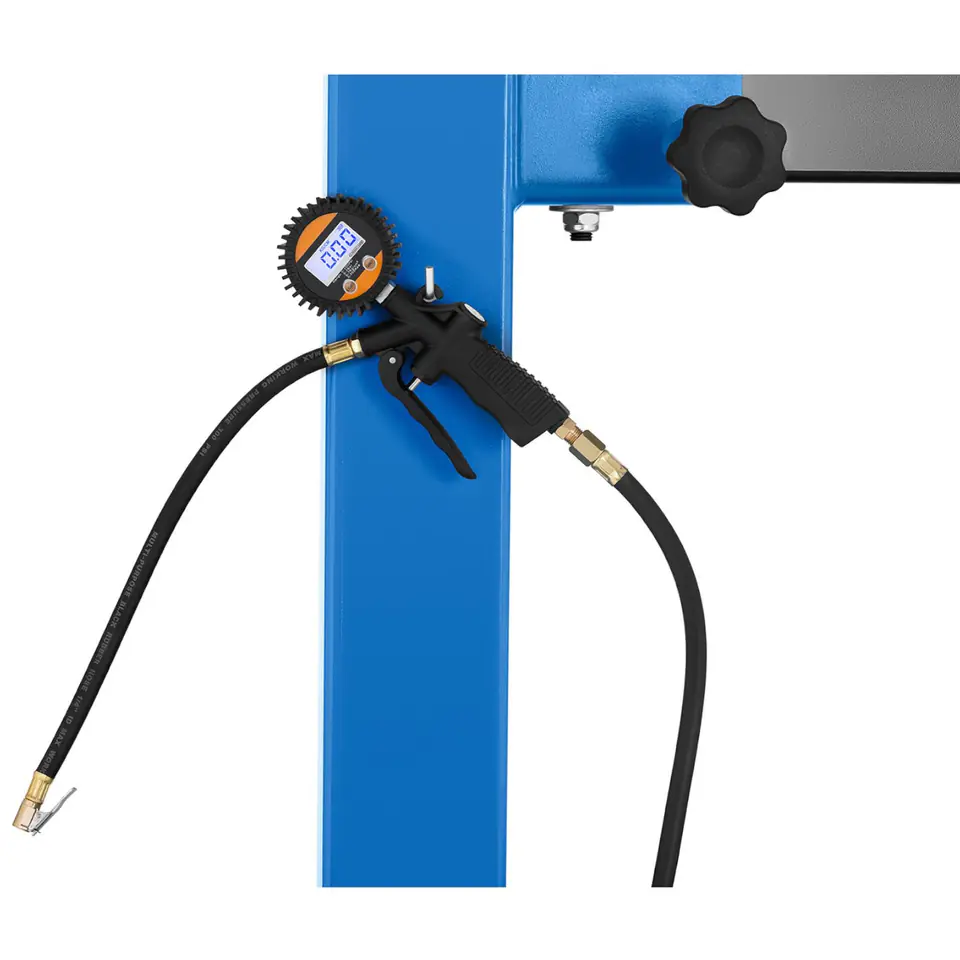

- - Completeness - the set includes a gun with a pressure gauge for inflating the wheels,
- - Safety - rubber jaw guards prevent damage to both the machine and the rim.
- - Model - MSW-TC-750
- - Catalog no. - 10060775
- - Article status - New
- - Maximum tire diameter - 1000 mm
- - Maximum tire width - 310 mm
- - Working pressure - 6 – 8 bar
- - Input voltage - 230 V
- - Power - 750 W
- - Sound intensity - 0 - 60 dB
- - Rim dimensions (internal locking) - 11 - 18
- - Rim dimensions (external locking) - 13 - 22
- - Breaker force - 2500 kg
- - Power cord length - 1.8 m
- - Table torque - 1100 Nm
- - Maximum table speed - 9 rpm
- - Protection class - I
- - Degree of protection of electrical components - IP2X
- - User Manual - Yes
- - Dimensions (LxWxH) - 95 x 105 x 183 cm
- - Weight - 169 kg
- - Shipping dimensions (LxWxH) - 97 x 76 x 88 cm
- - Shipping weight - 189 kg
- - Tire mounter
- - Plastic basket
- - Air hose
- - Air pistol
- - Tire bucket
