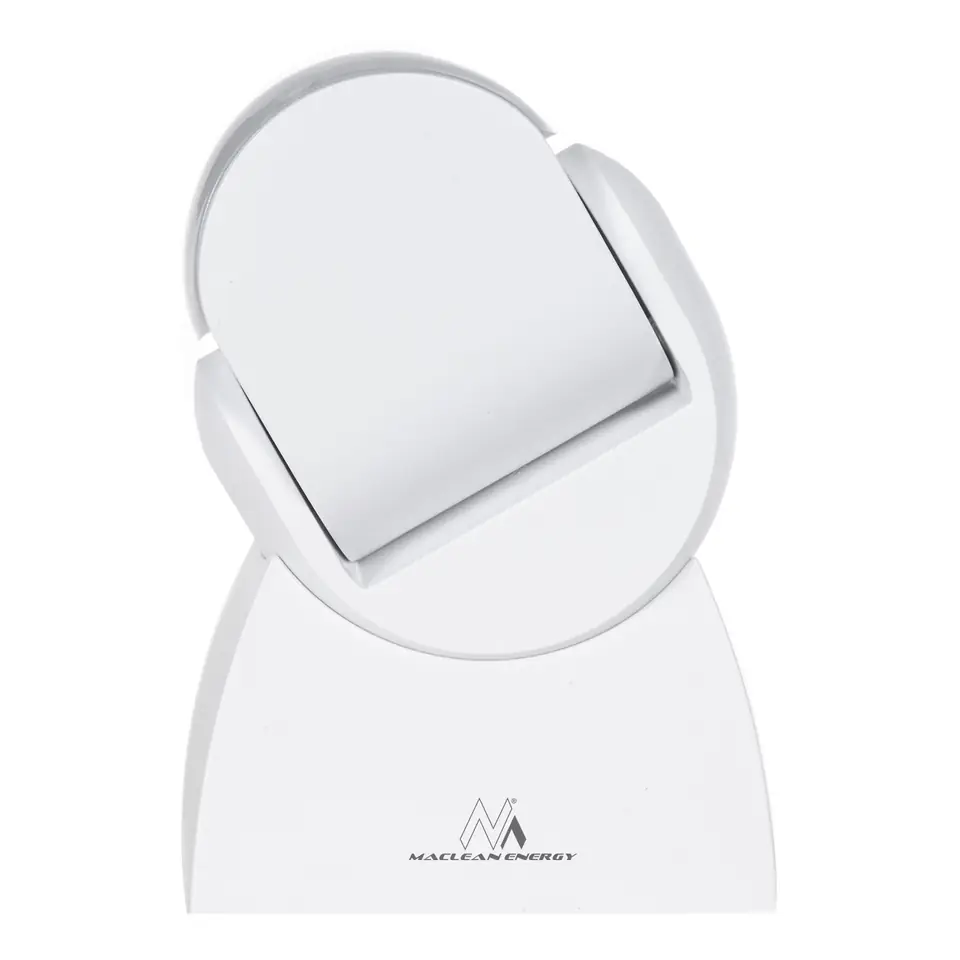

The product is distinguished by high sensitivity through the use of an integrated circuit. It combines automatism, convenience of use, safety, energy saving and practical functions. This device uses infrared radiation emitted by a person as a signal to start work when someone is within the detection range. It automatically detects day and night and is easy to install and use.
Note: 1OS short signal mode means that the voltage after 1 second will start the device and after 9s it will turn off.

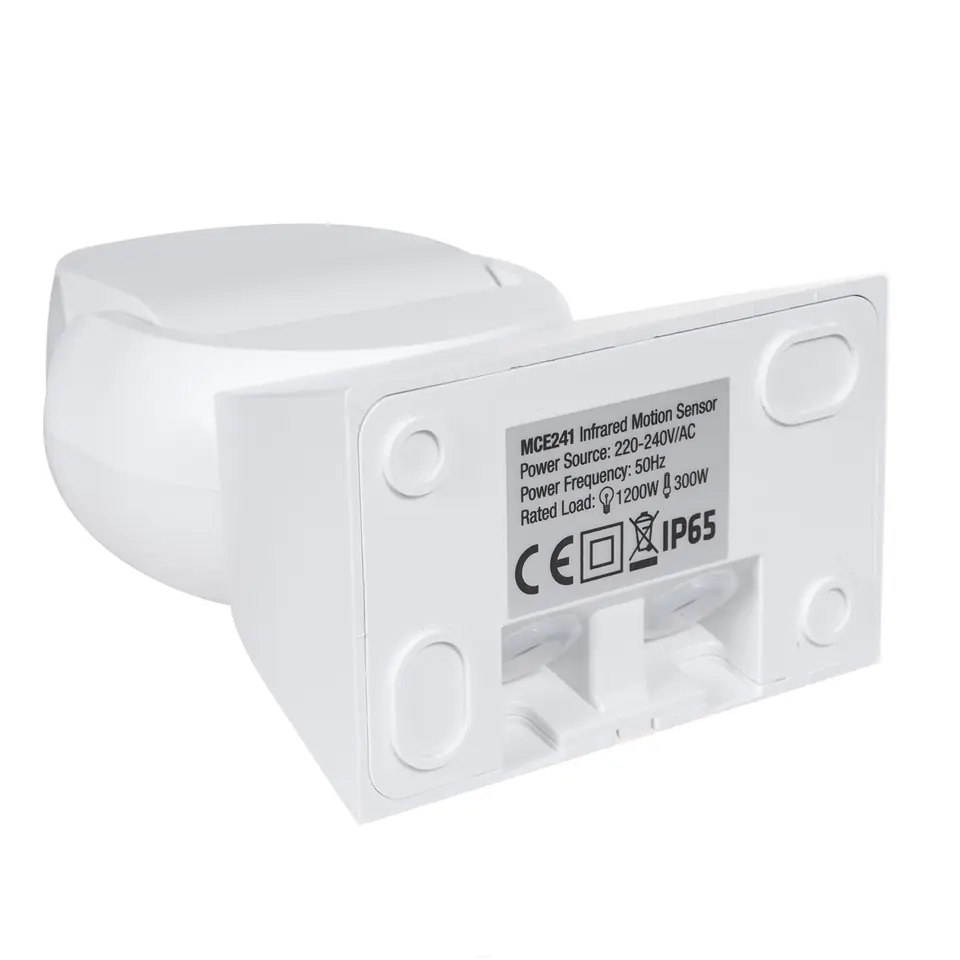

Specification
- Power supply: 220-240V/AC
- Detection angle: 180°
- Power frequency: 50/60Hz
- Detection range: 12m max (<24°C)
- Light intensity: <3-2000LUX (regulation)
- Time delay: Min.10sec±3sec / Max.30min±3min
- Operating temperature: -20/+40°C
- Operating humidity: <93%RH
- Power consumption: ~0.5W
- Max. load: for incandescent bulbs 1200W/ 300W for energy-saving bulbs
- Mounting height: 1.8-2.5m
- Detected motion speed: 0.6-1.5m/s
- Detection range: 50/75/100% (selectable)

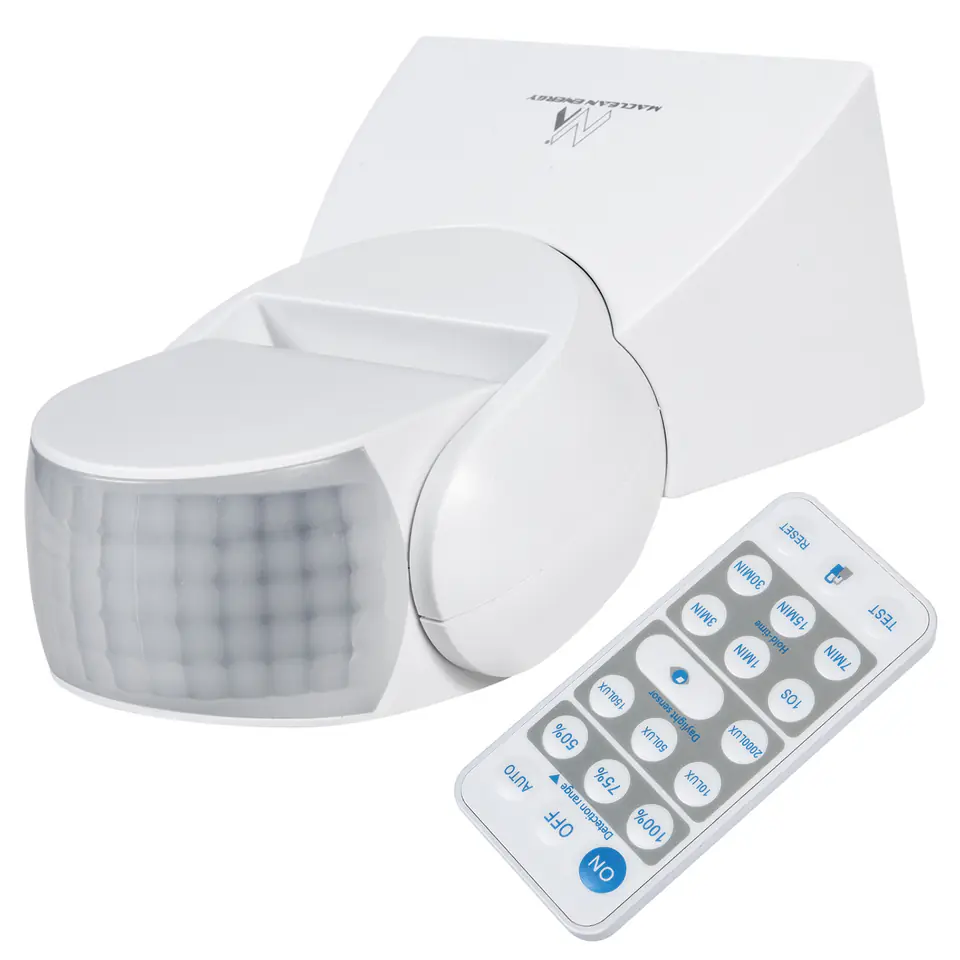

Includes
- Infrared motion sensor with IP65 remote control, max 800W (bulb), max 1200W (LED) MCE241 Maclean Energy
- Remote control
- User Manual
- Original packaging
- Proof of purchase

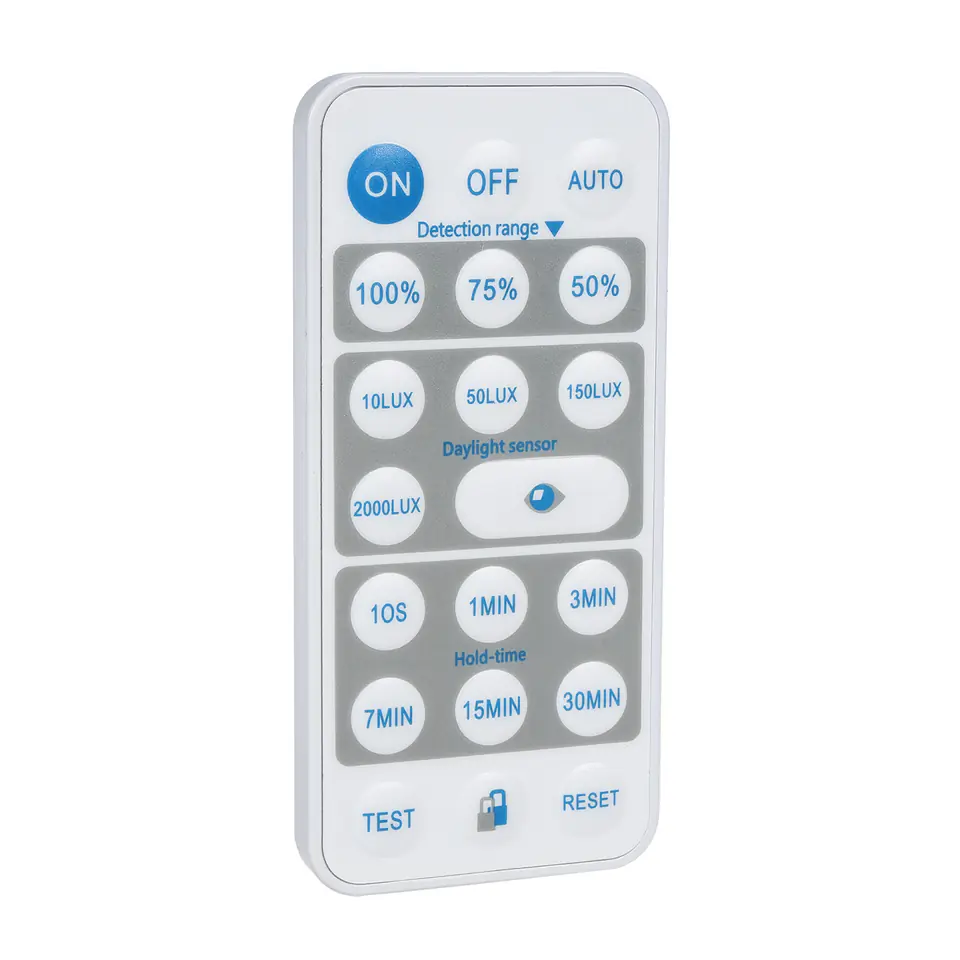

REMOTE CONTROL:
ON - power on, after 8h returns to AUTO mode
OFF - power off, after 8h returns to AUTO mode
AUTO - automatic setting depending on the movement
100%/75%/50% - Adjust detection range
10/50/150/2000LUX - Set LUX sensitivity range
EYE - Automatically reads the current ambient light level, and the sensor works according to the stored LUX value, range 3-2000 LUX
1min-30min Set Temporary Delay
1OS - short signal mode means that the voltage after 1 sec. will start the device and after 9s it will turn off.
TEST - Test mode
LOCK - Lock and unlock remote control buttons
RESET - The sensor works according to the knob setting
Features
- Infrared motion sensor with IP65 remote control, max 800W (bulb), max 1200W (LED) MCE241 Maclean Energy
- Convenient control via the included remote control
- The device distinguishes between day and night
- The user can adjust the operation of the device depending on the ambient light
- The device can work both during the day and at night when it is set in the "sun" position (max)
- It can also work in environments where the light is lower than 3 LX when the device is set to the "moon" position
- As for the adjustment pattern, refer to the testing scheme
- The time delay is added continuously: after receiving the second motion signal, still during the first one, the device counts down the time from the moment the second signal is recorded
