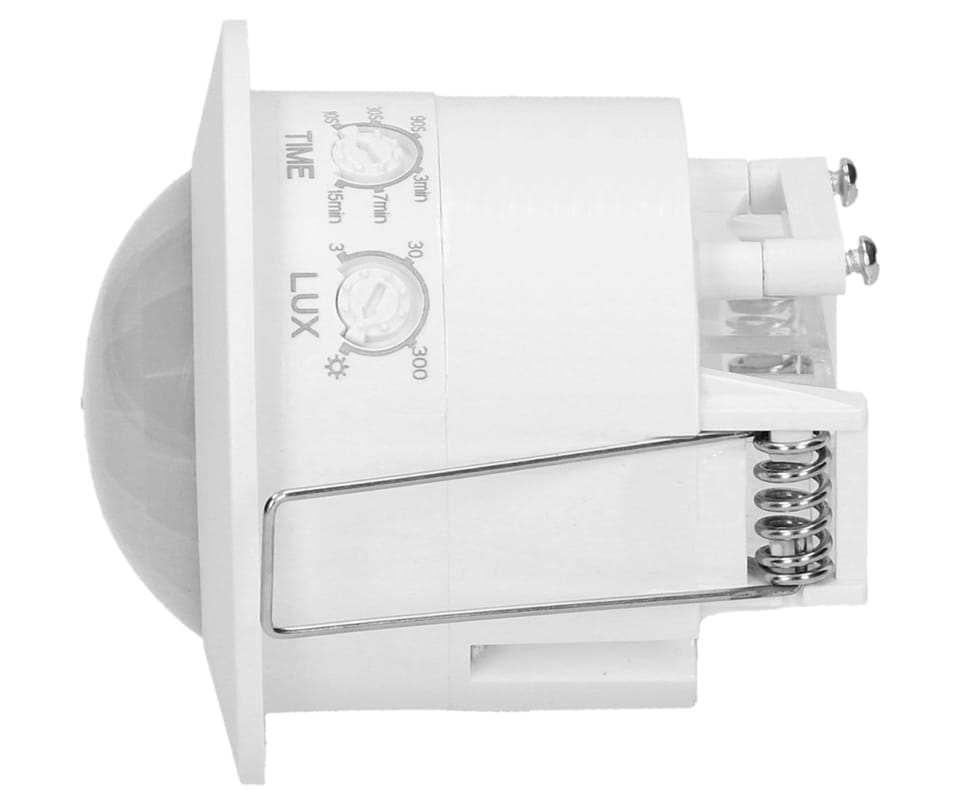

The sensor is adapted for installation in suspended ceilings, it is used to control lighting or other electrical devices. Potentiometers for adjusting: lighting time and sensitivity of light intensity. The sensor works with LED lighting.

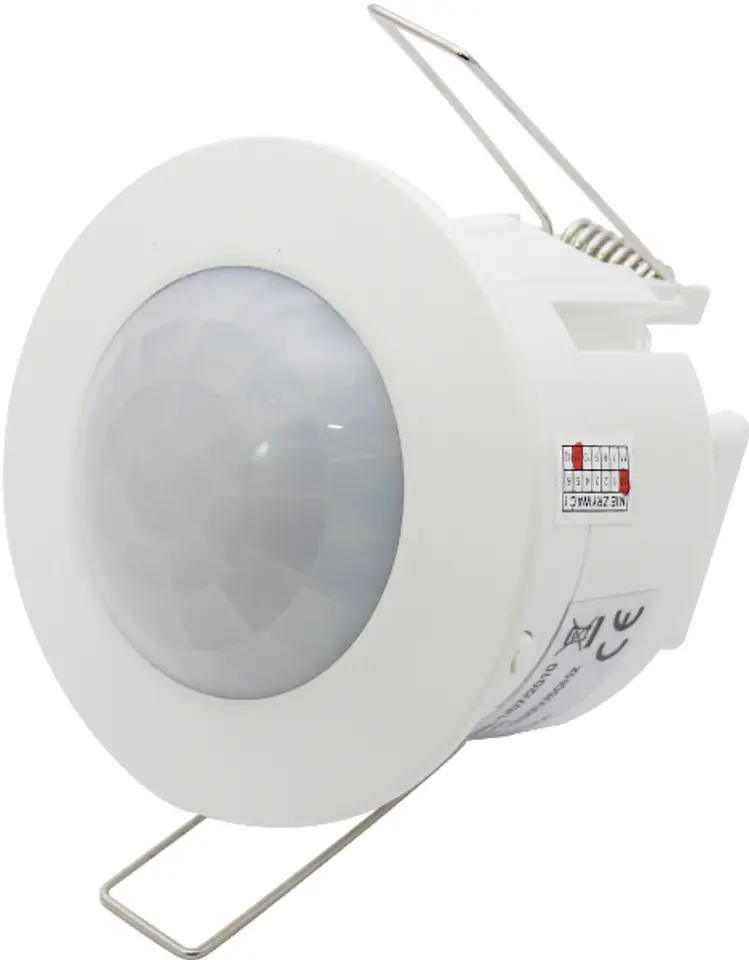

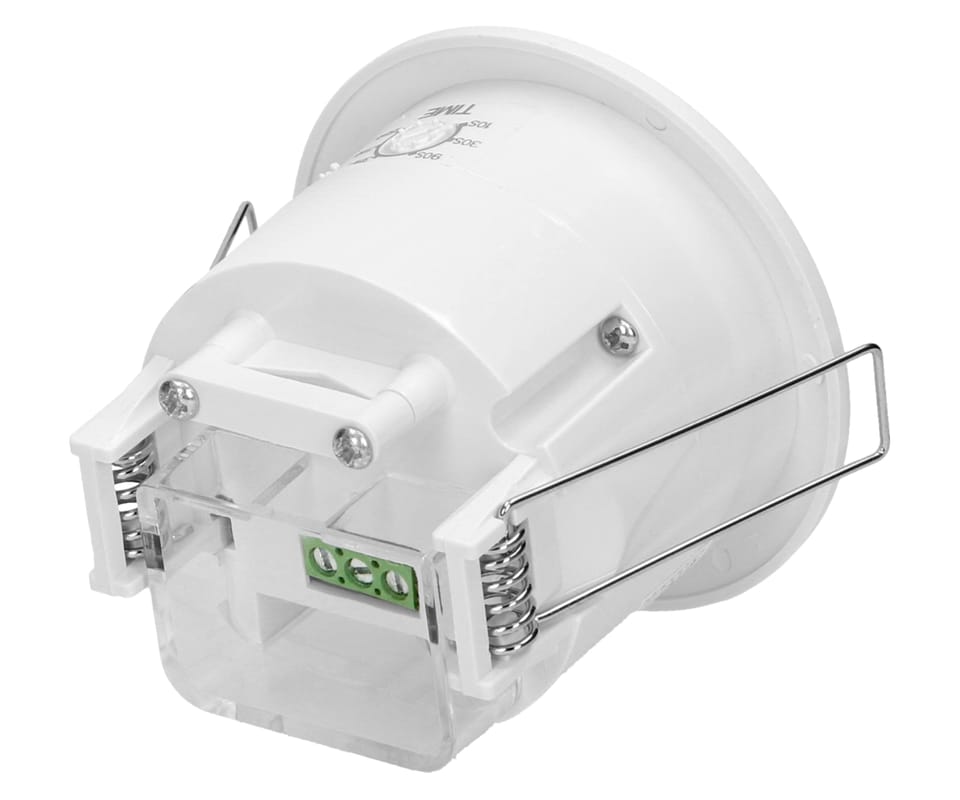

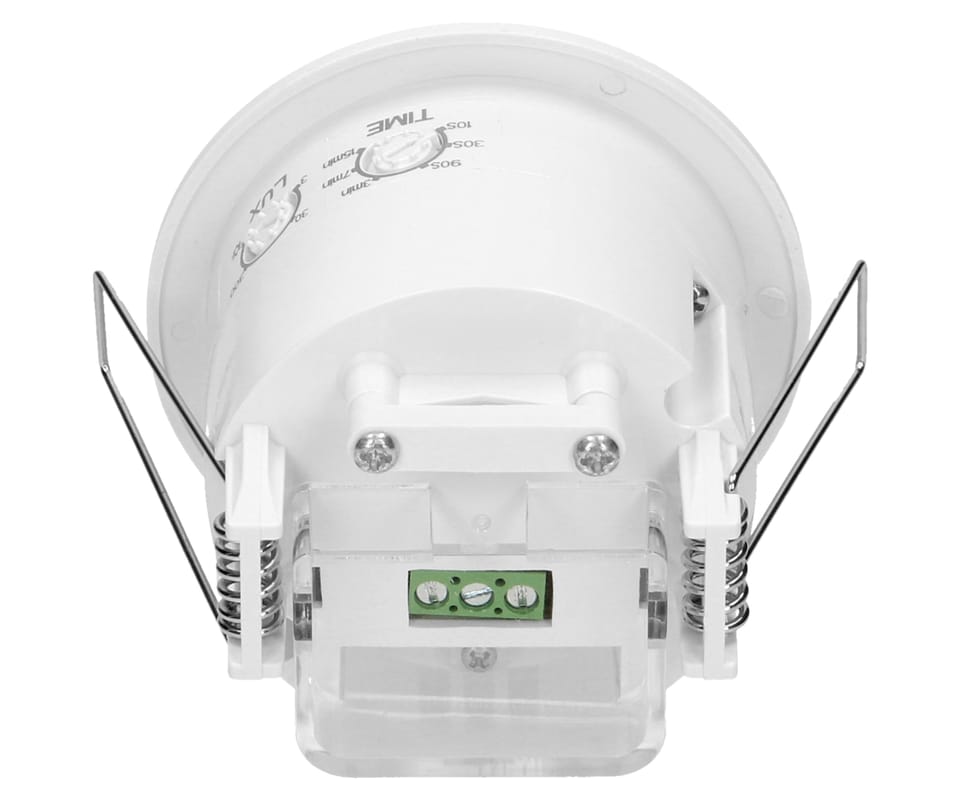

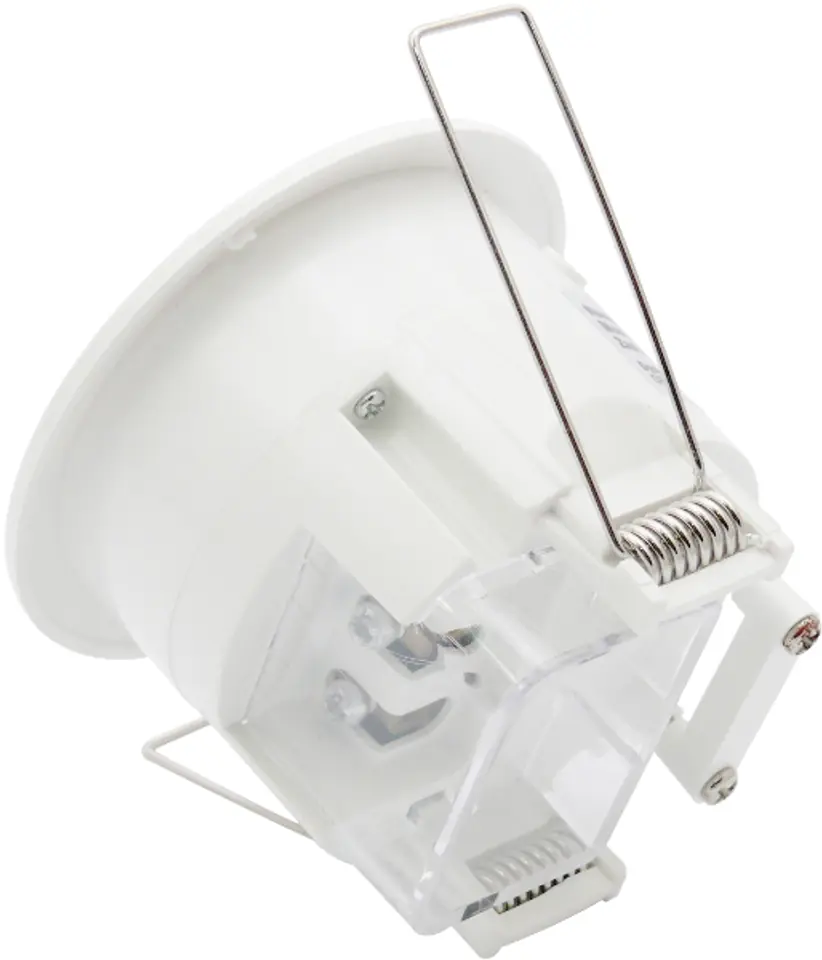

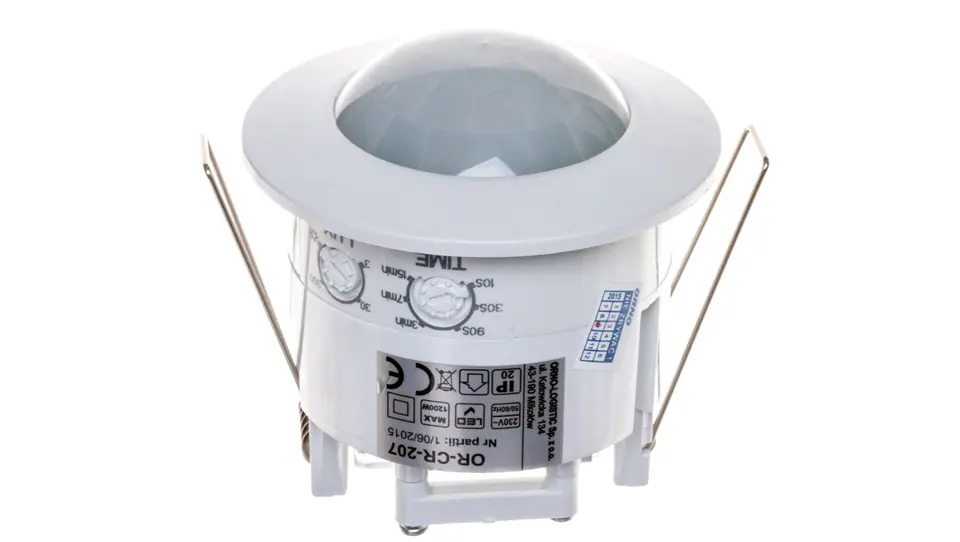

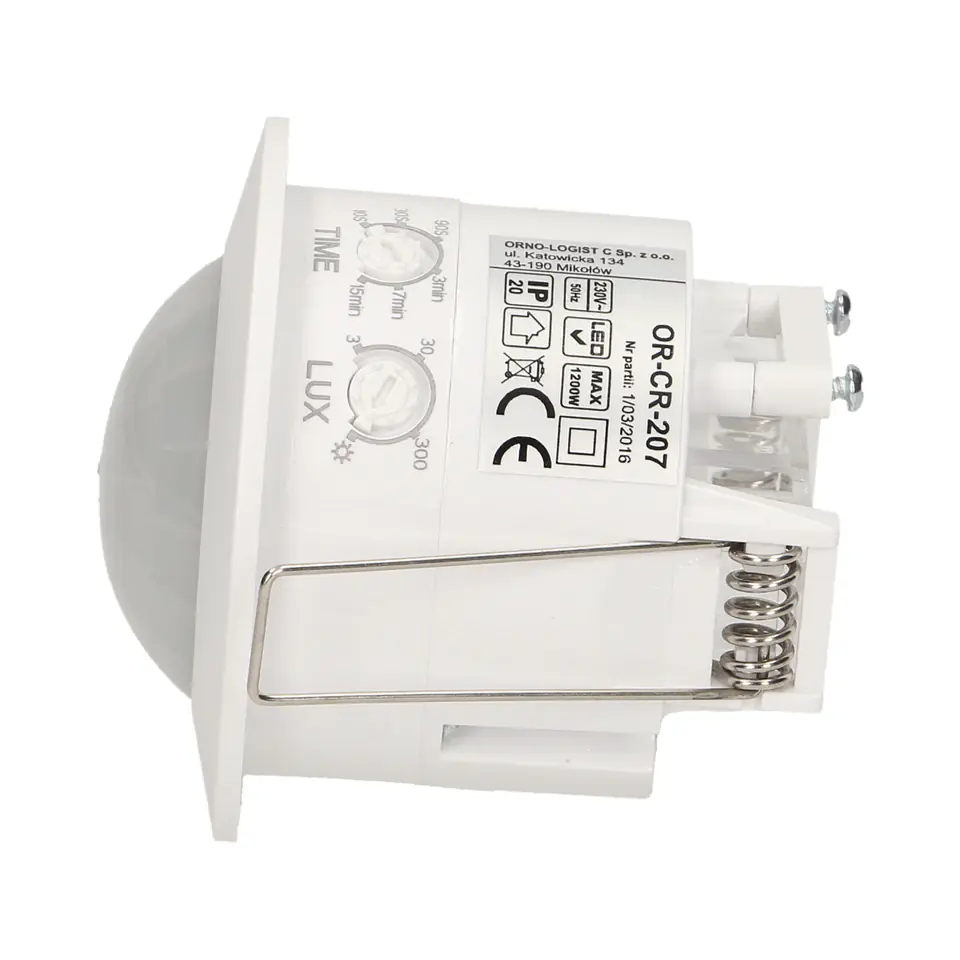

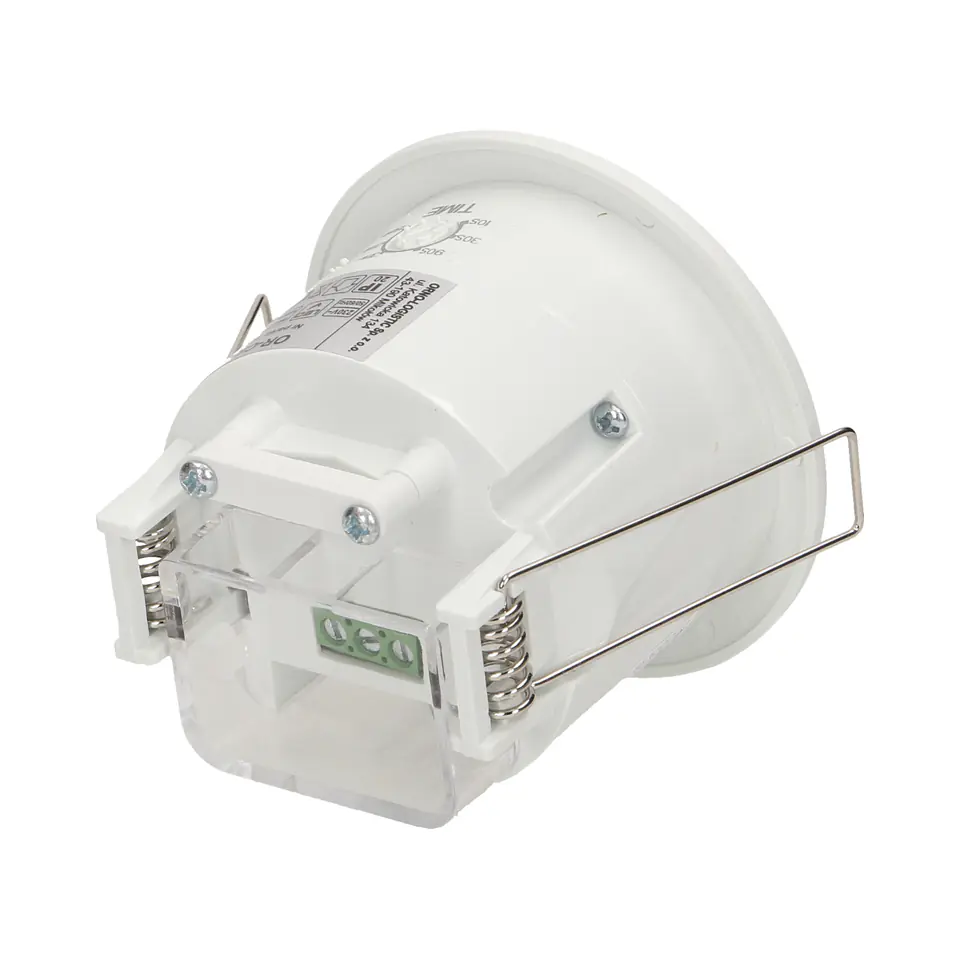

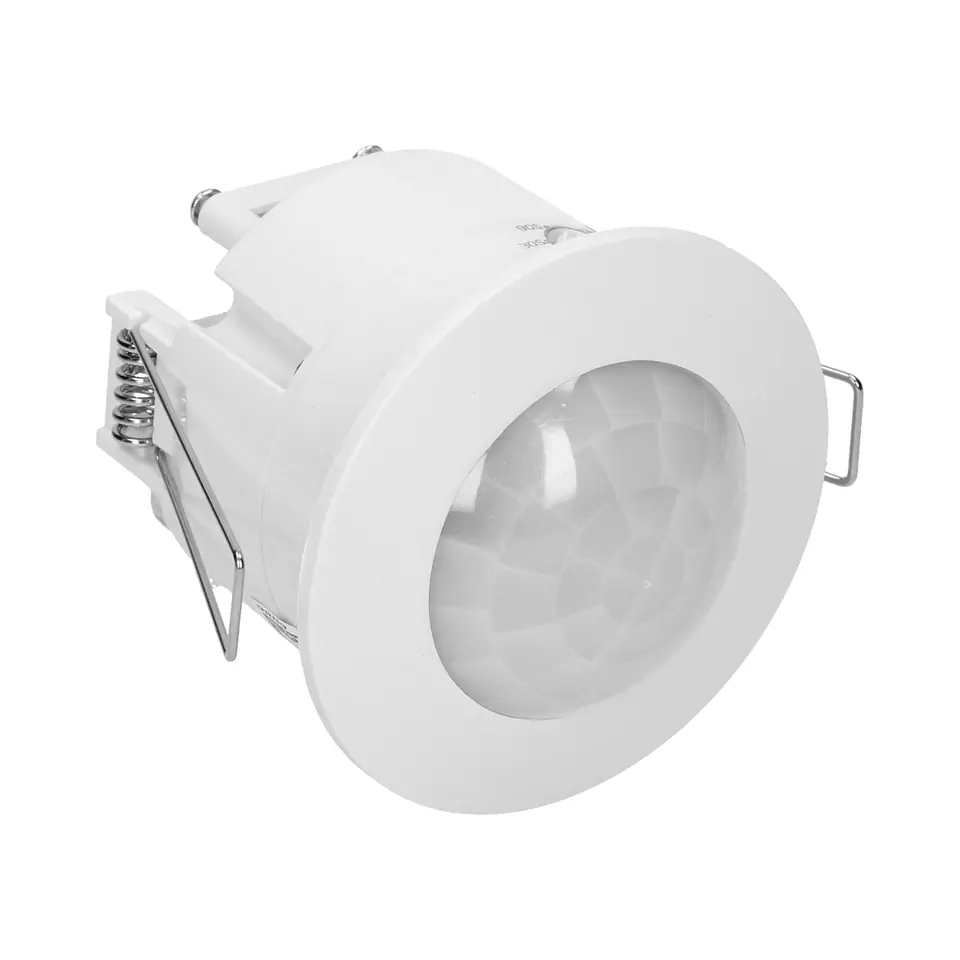

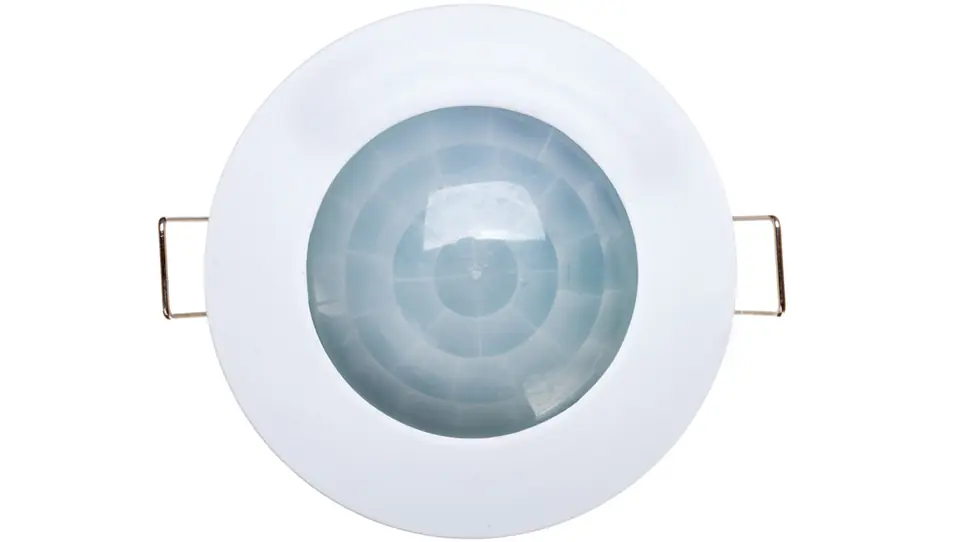

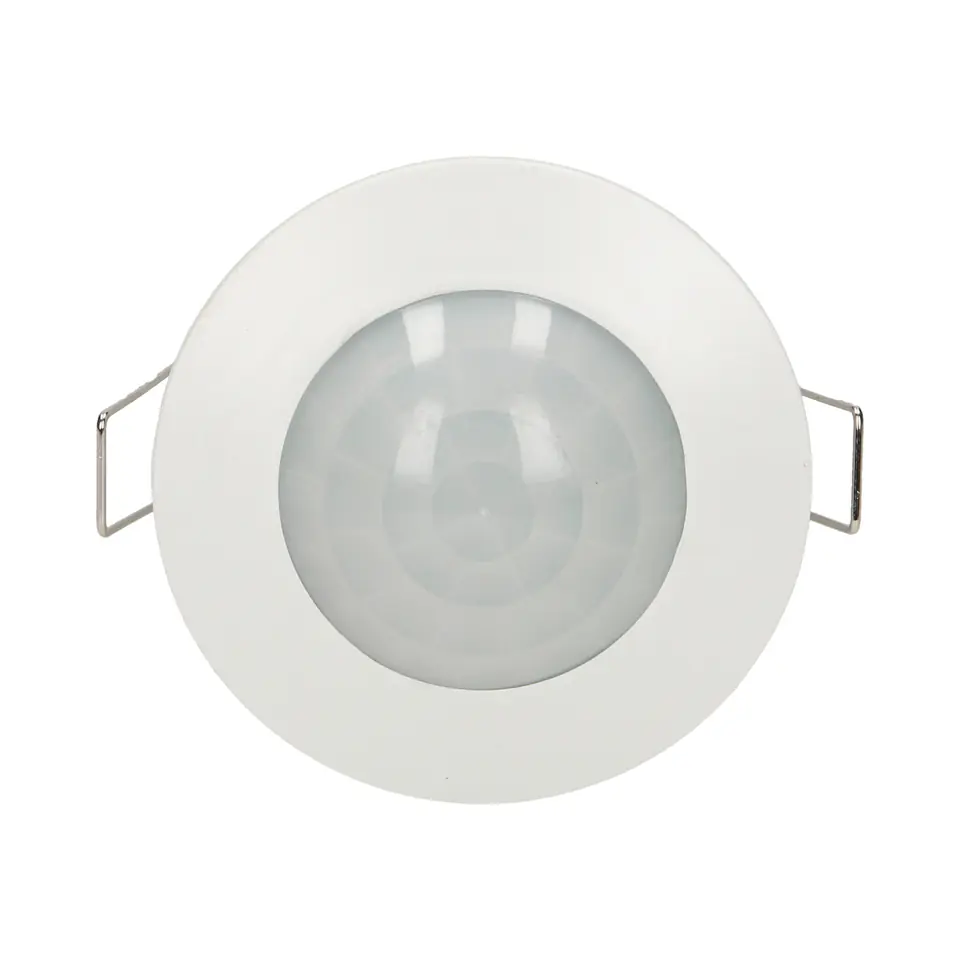

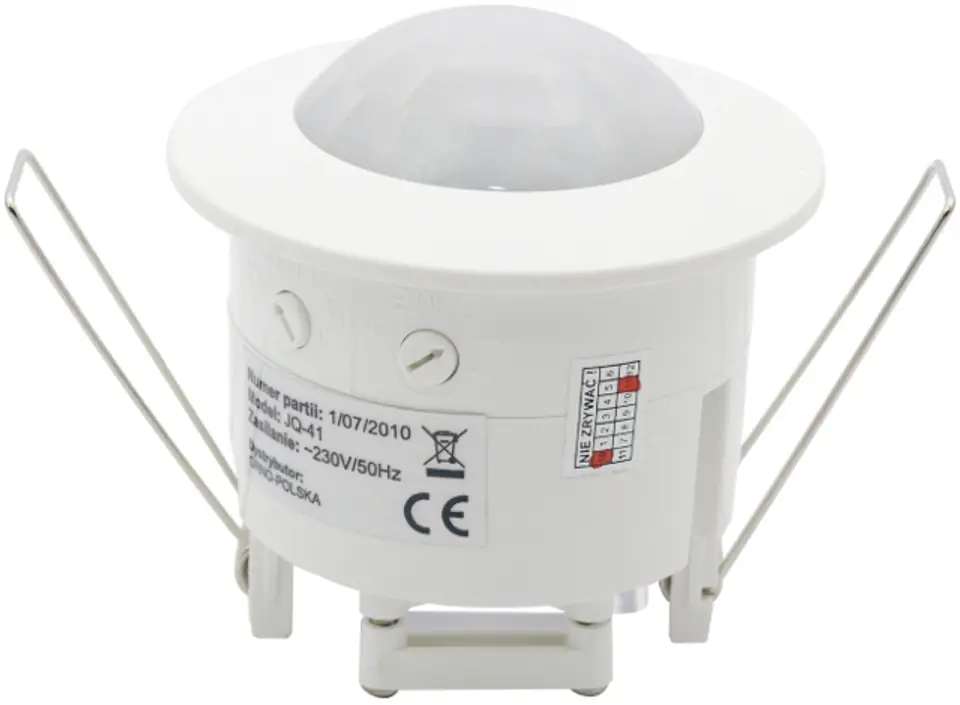

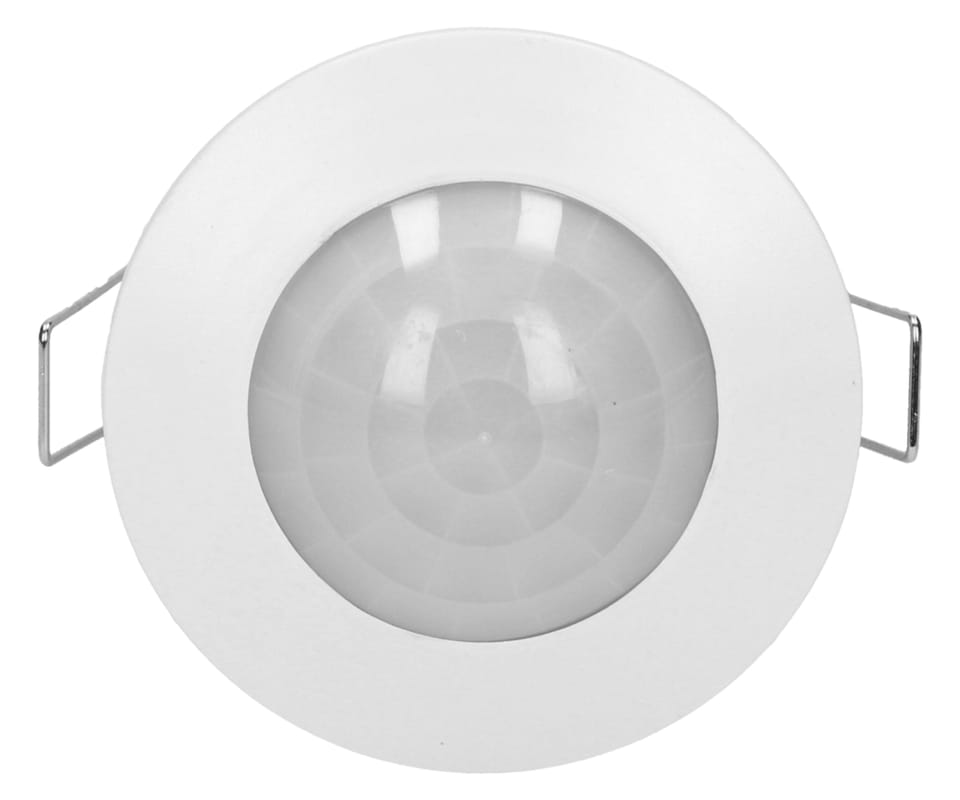

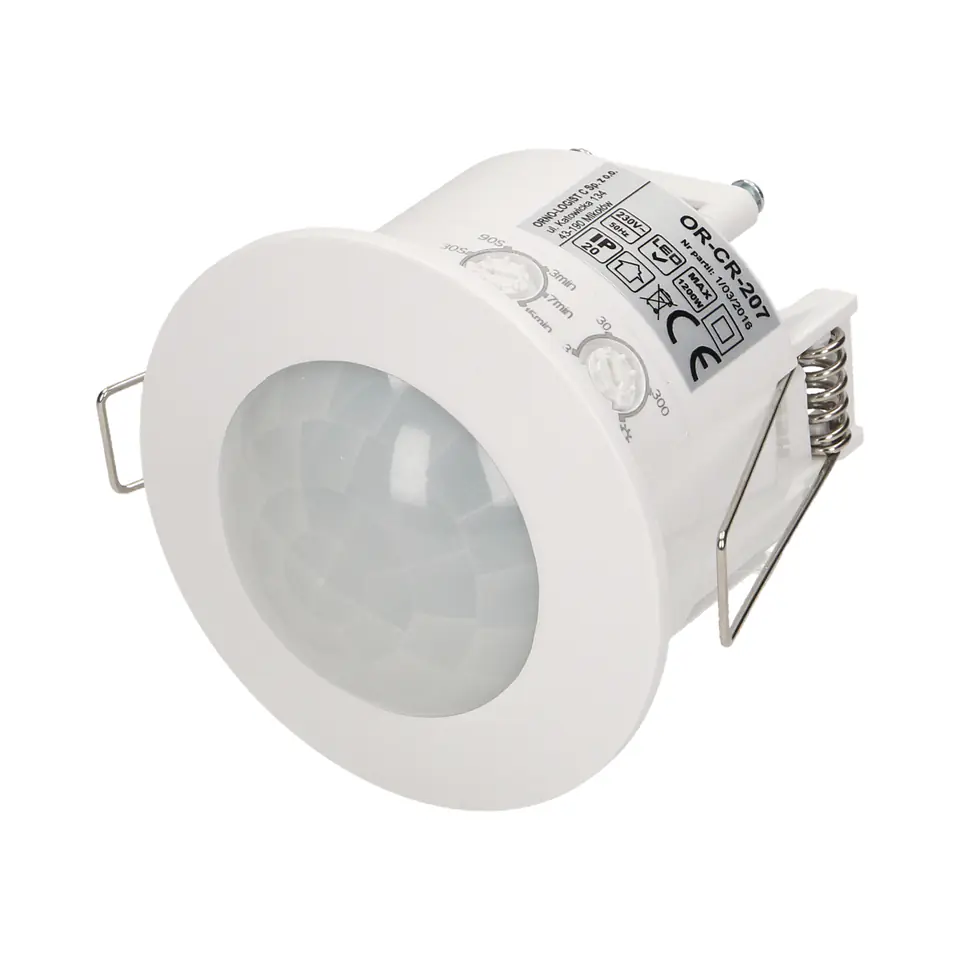

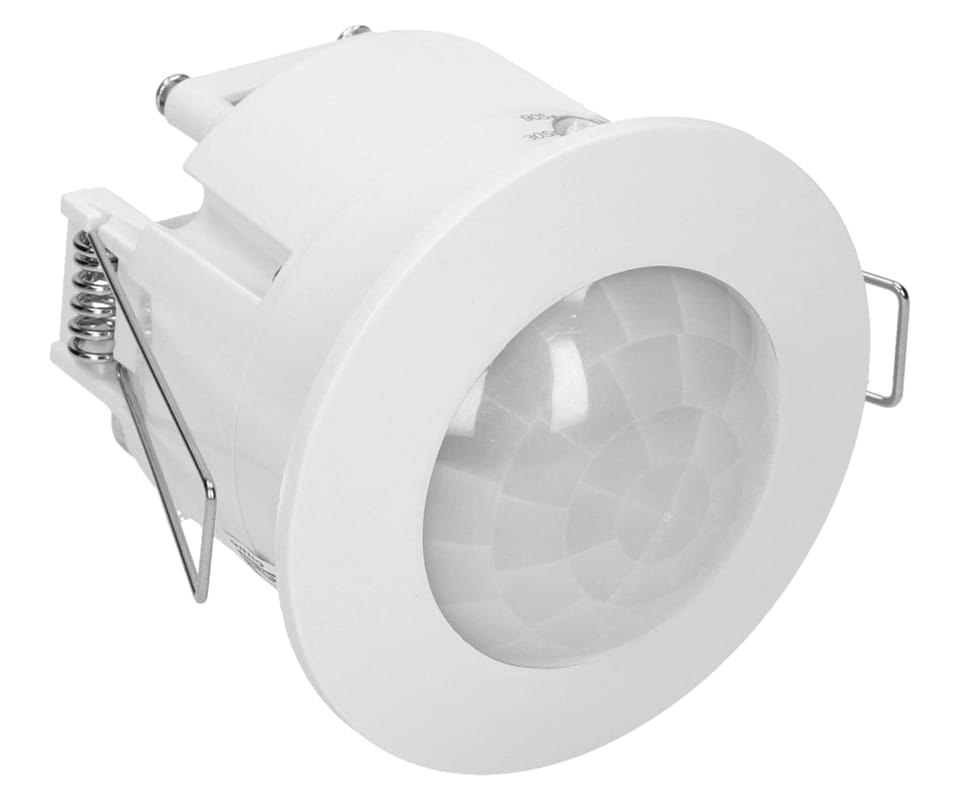

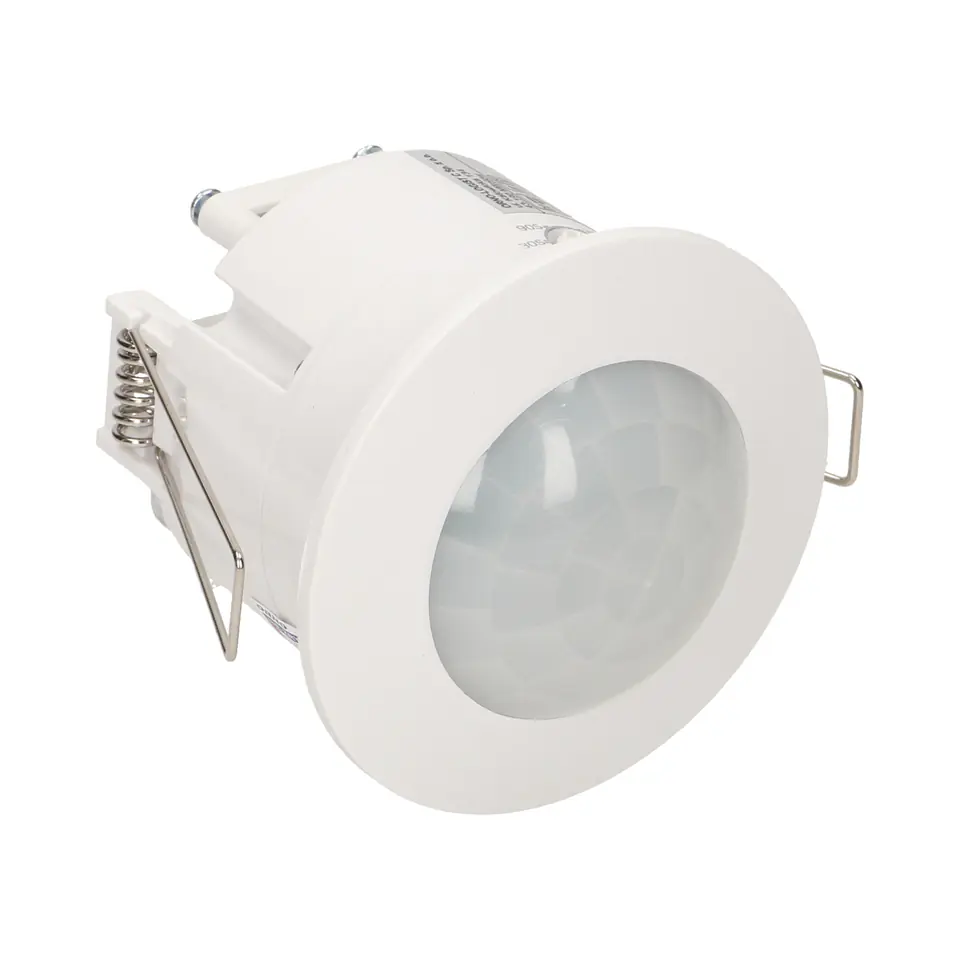

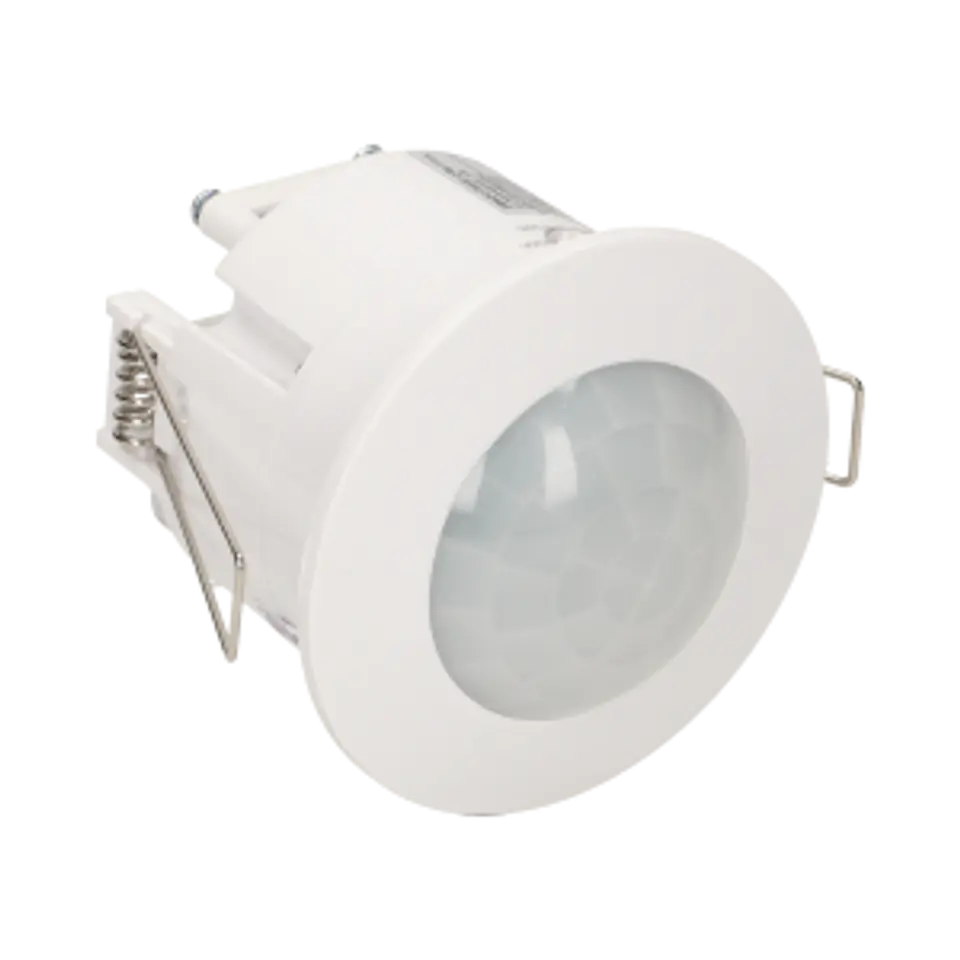

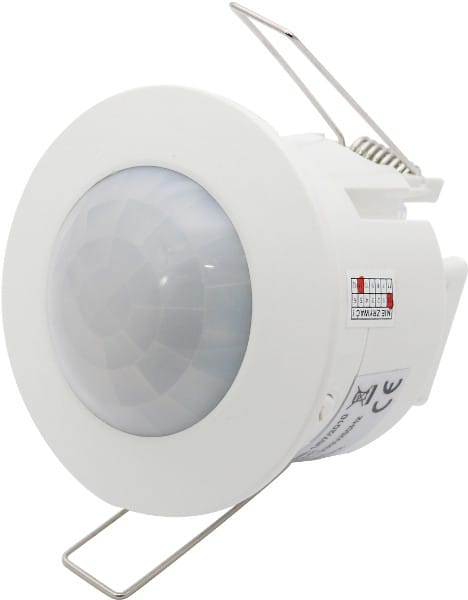

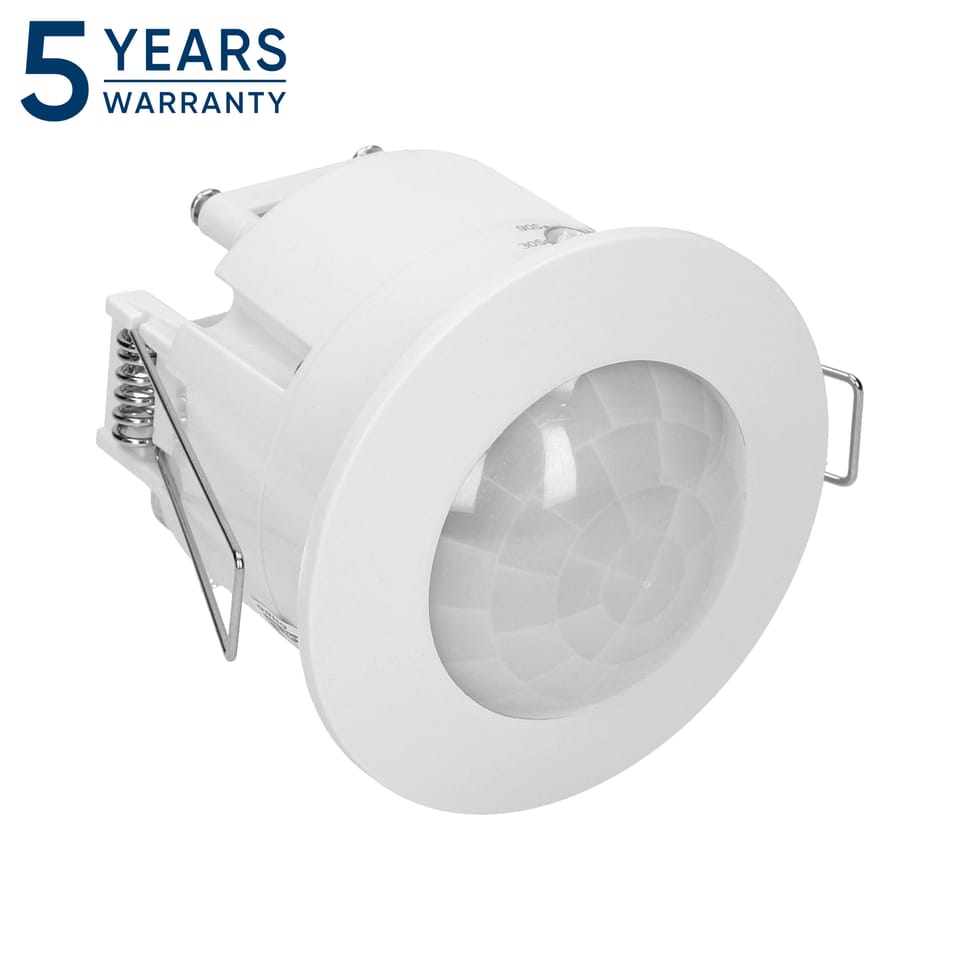

Motion sensor 360st. IP20, 1200W for suspended ceilings
€8.85
Shipping from warehouse: H7
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Orno
- Product code:
- OR-CR-207 / 5907565612950
Share this product:
Specification
| Adjustable constant lighting level: | No |
|---|---|
| Adjustable sensitivity setting: | Yes |
| Adjustable threshold value of light intensity: | Yes |
| Alarm function: | No |
| Animal zone: | No |
| Bridging switch: | No |
| Brightness threshold sensitivity [lx] from: | 3 |
| Brightness threshold sensitivity [lx] up to: | 2000 |
| Color shade: | White |
| Colour: | White |
| Degree of protection (ip): | IP20 |
| Dimming function: | No |
| Forced shutdown: | No |
| Frequency range [hz] from: | 50 |
| Frequency range [hz] to: | 60 |
| Halogen-free: | No |
| Horizontal detection angle from/to [°] to: | 360 |
| Hvac control: | No |
| Input of add-on modules: | No |
| Light intensity threshold learning function: | No |
| Material: | Plastic |
| Material type: | Thermoplastic |
| Maximum lateral reach [m]: | 6 |
| Maximum switching power [w]: | 1200 |
| Maximum switching time [min]: | 9 |
| Minimum switching time [s]: | 7 |
| Model: | Motion sensor |
| Mounting method: | Flush-mounted installation |
| Networkable: | No |
| Optimal installation height [m]: | 2.5000 |
| Rated voltage [v]: | 230 |
| Remote control: | No |
| Staircase surveillance: | No |
| Stealth protection: | No |
| Suitable for wireless transmission: | No |
| Surface finish: | Matte |
| Surface protection: | Untreated |
| Temperature range [°c] from: | -20 |
| Temperature range [°c] to: | 40 |
| With signaling element: | No |
