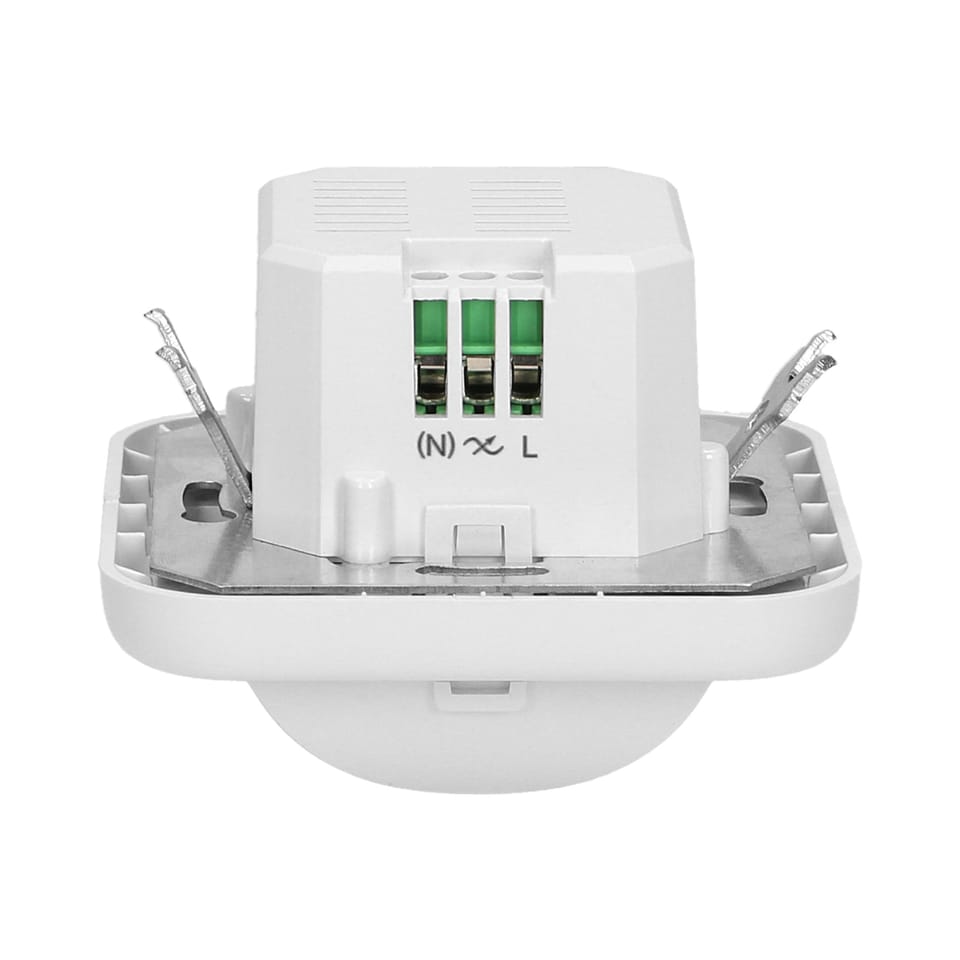

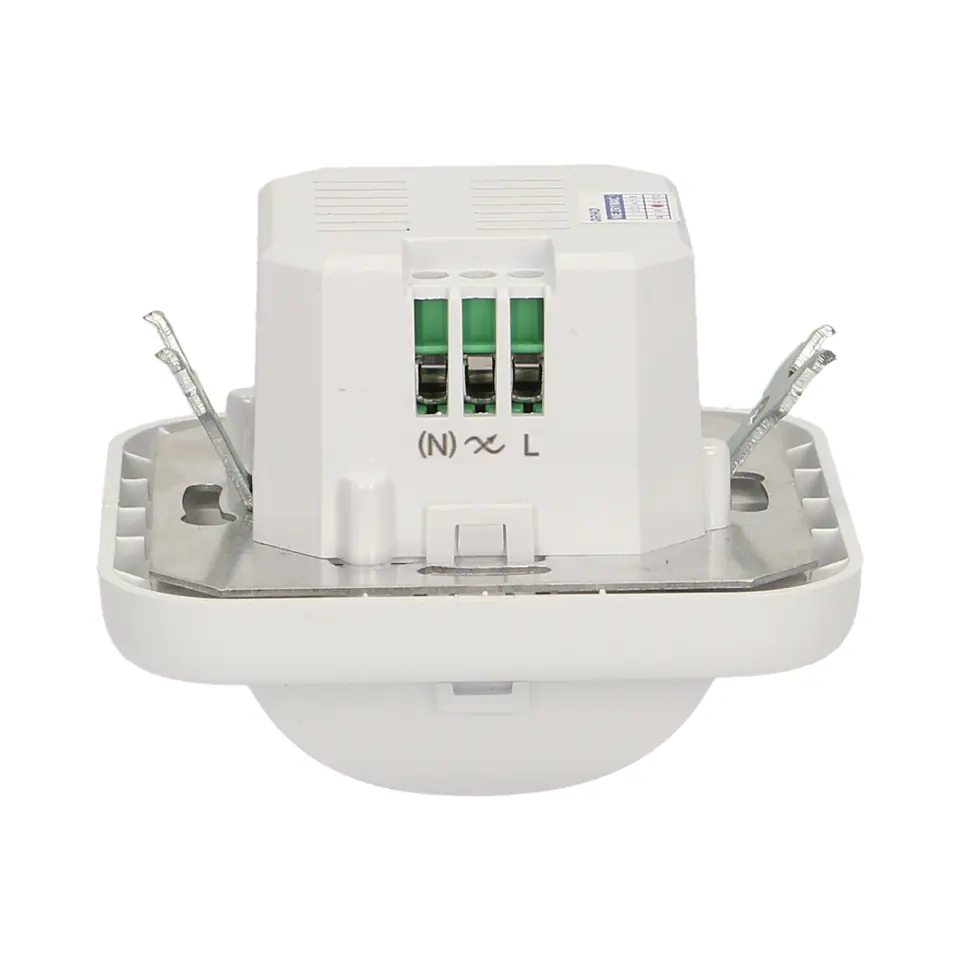

The sensor is used to automatically control lighting or other electrical devices. It works in both 2 and 3 wire installations. The device can be installed in a wall box ?60 mm. Potentiometers for adjusting: lighting time and sensitivity of light intensity.

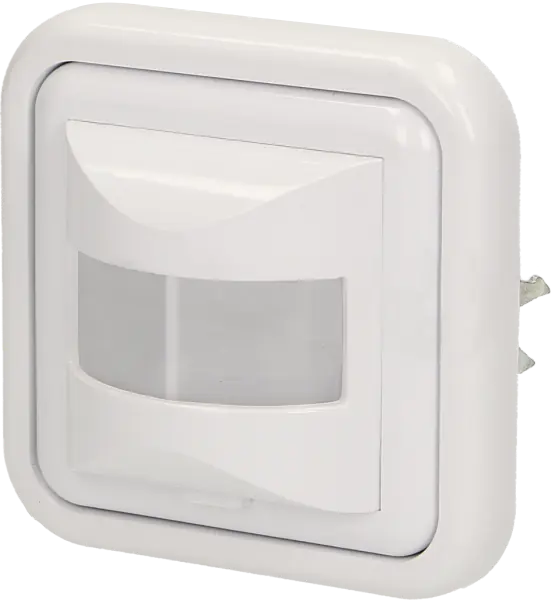

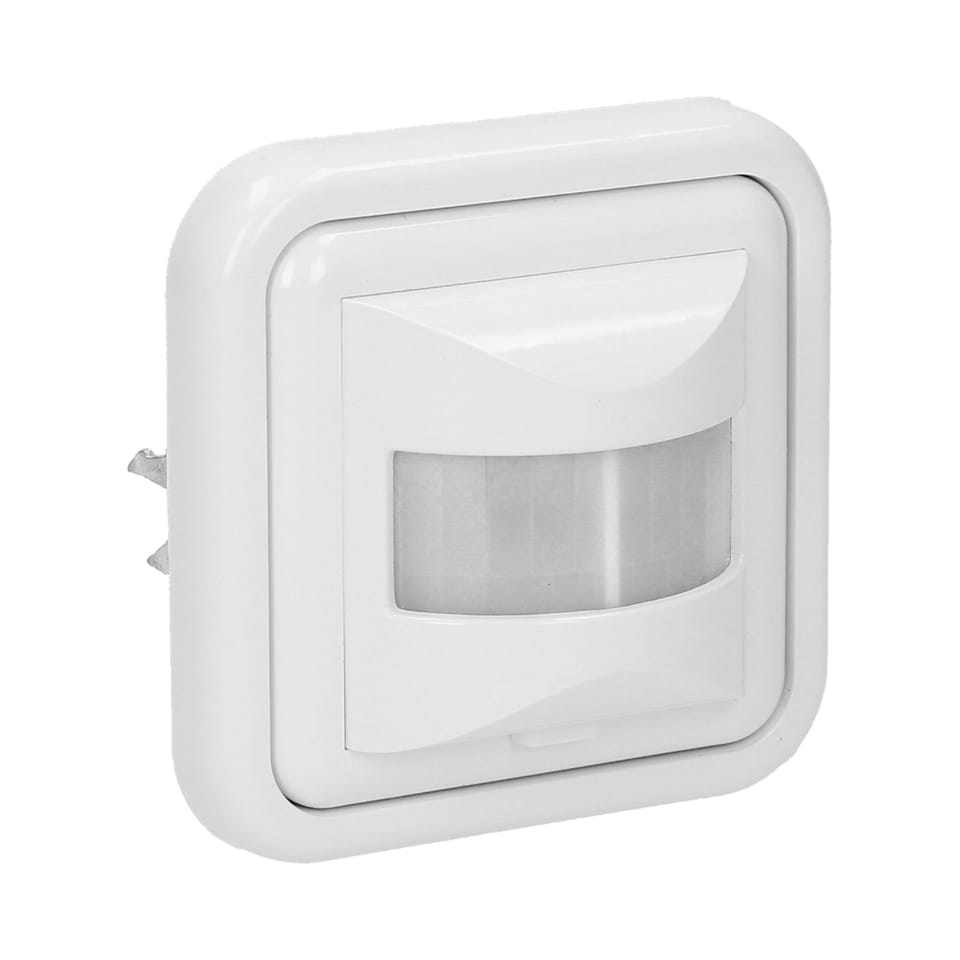

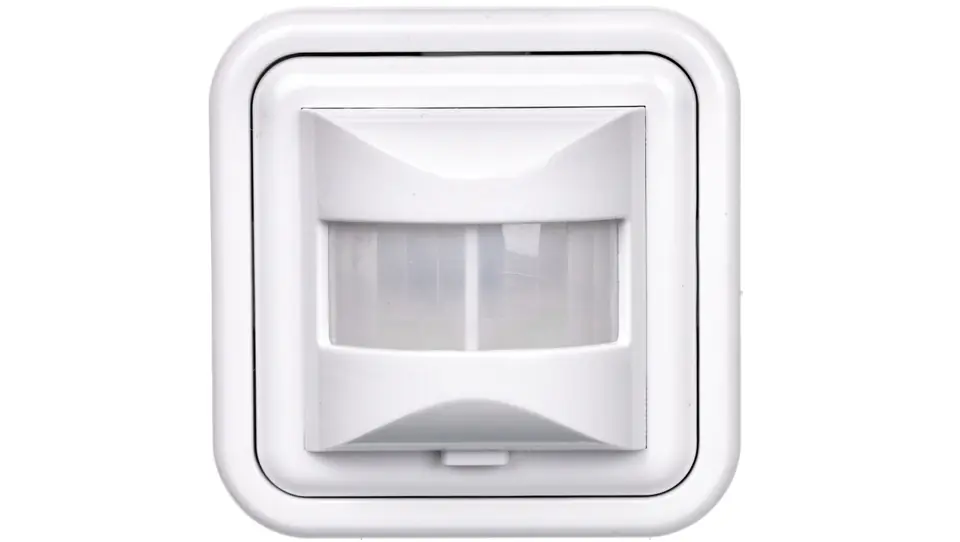

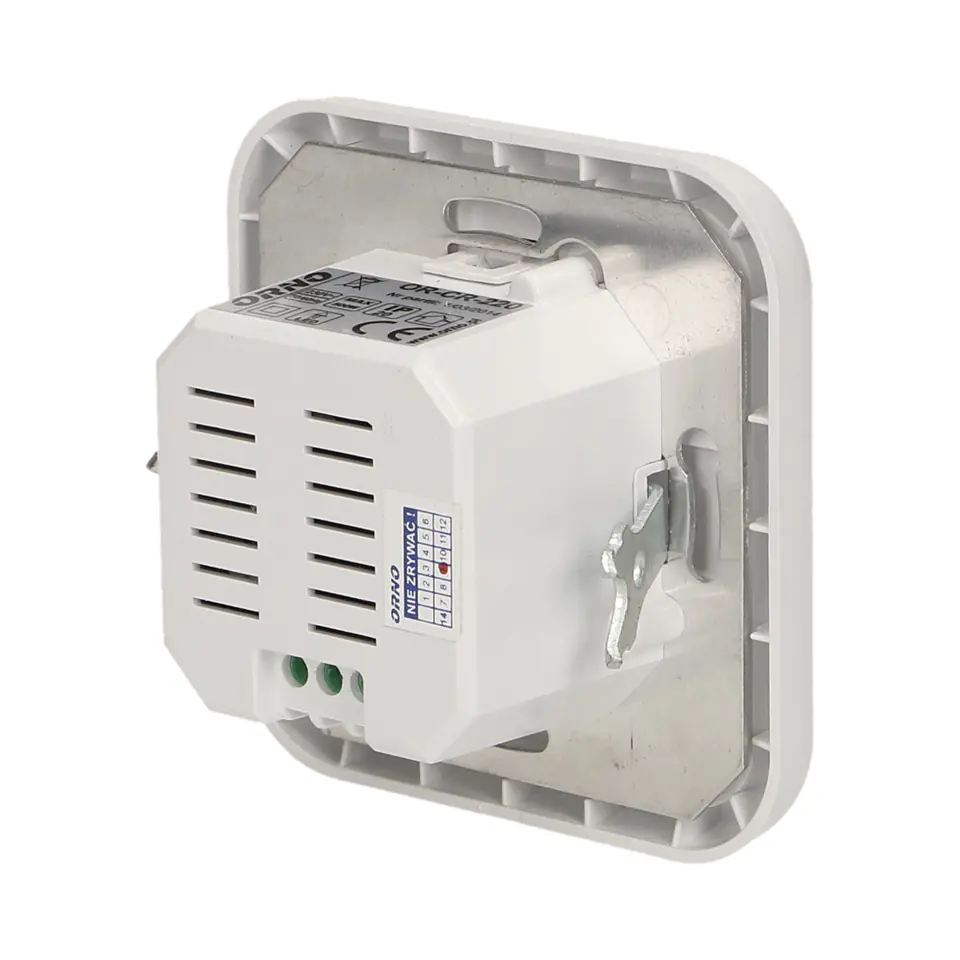

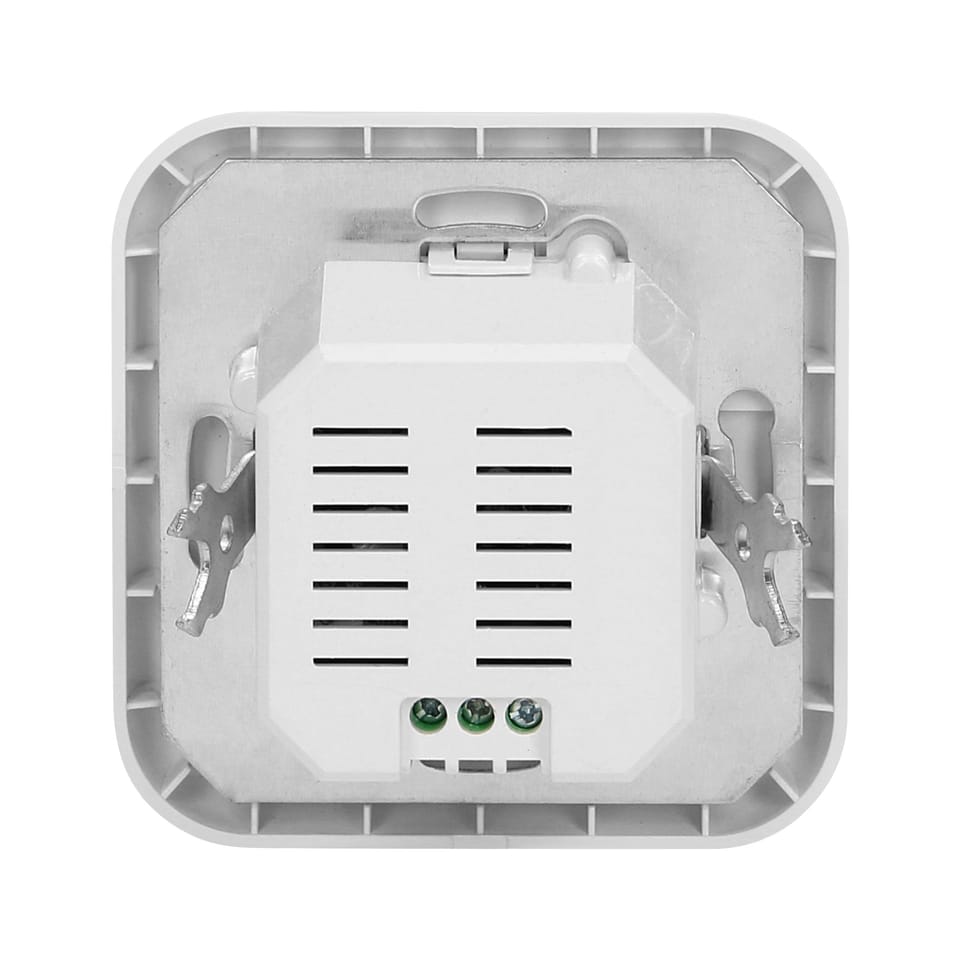

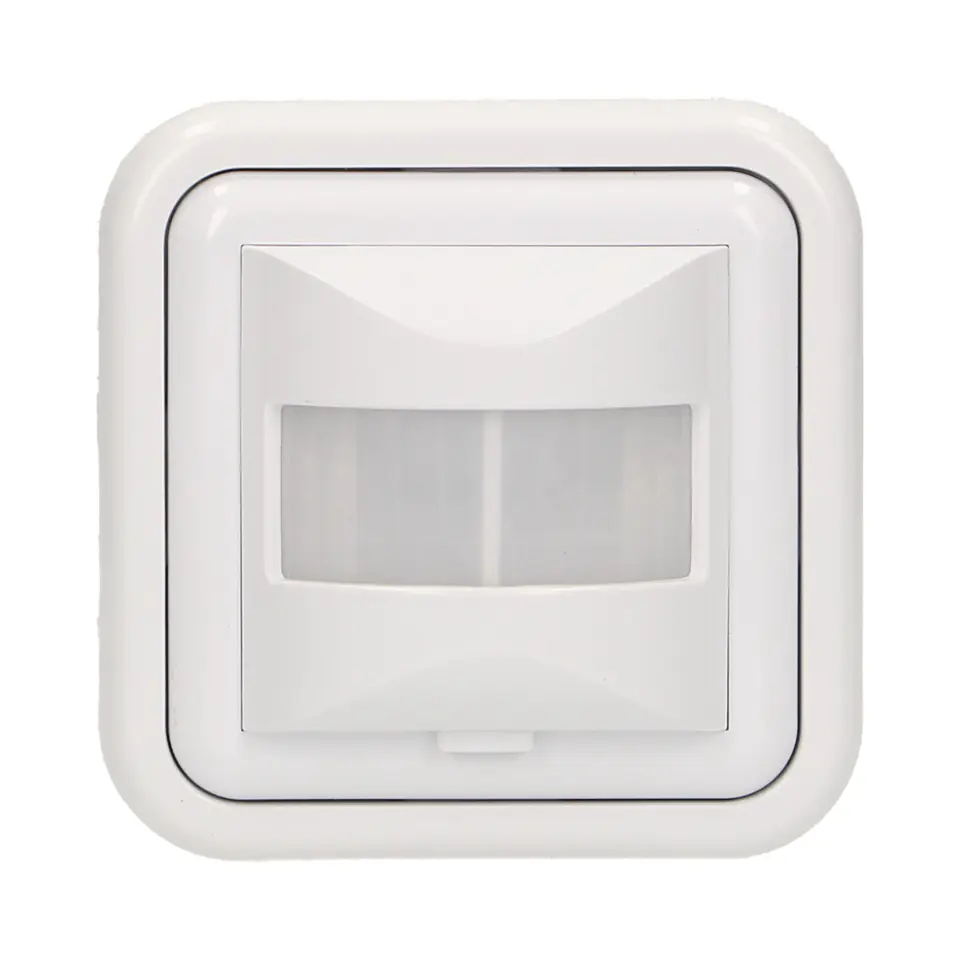

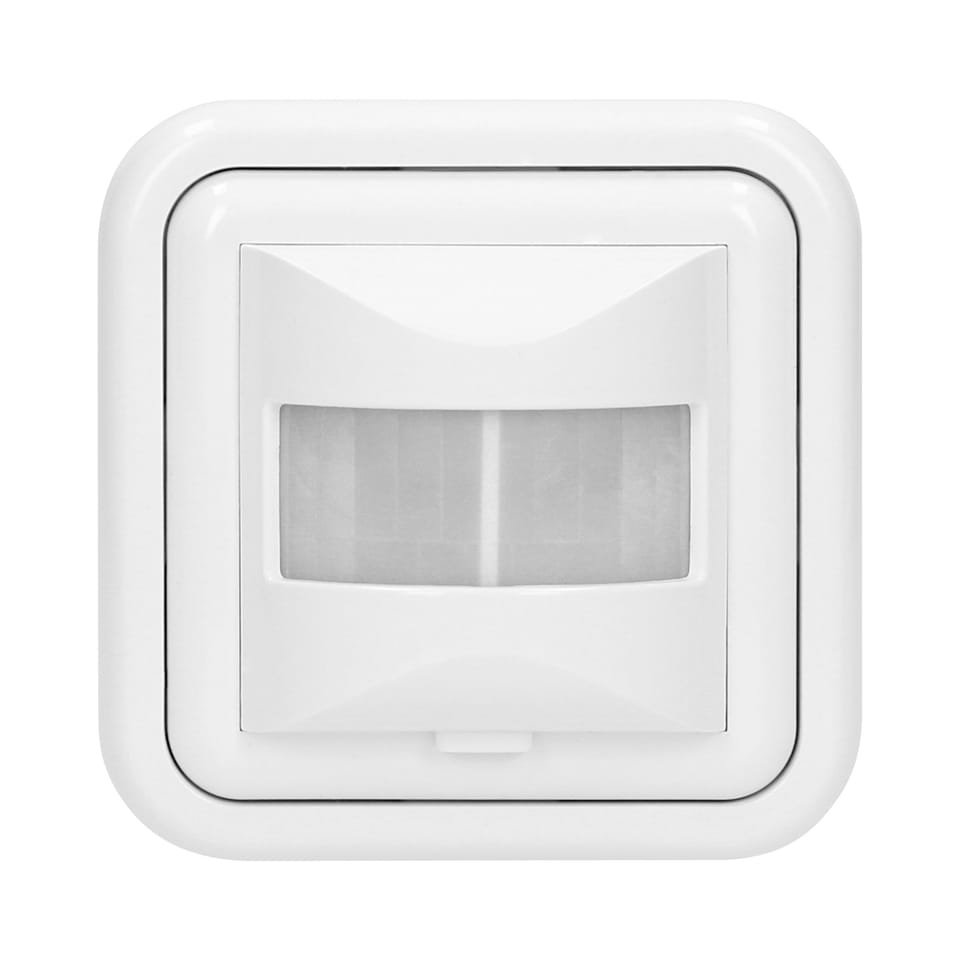

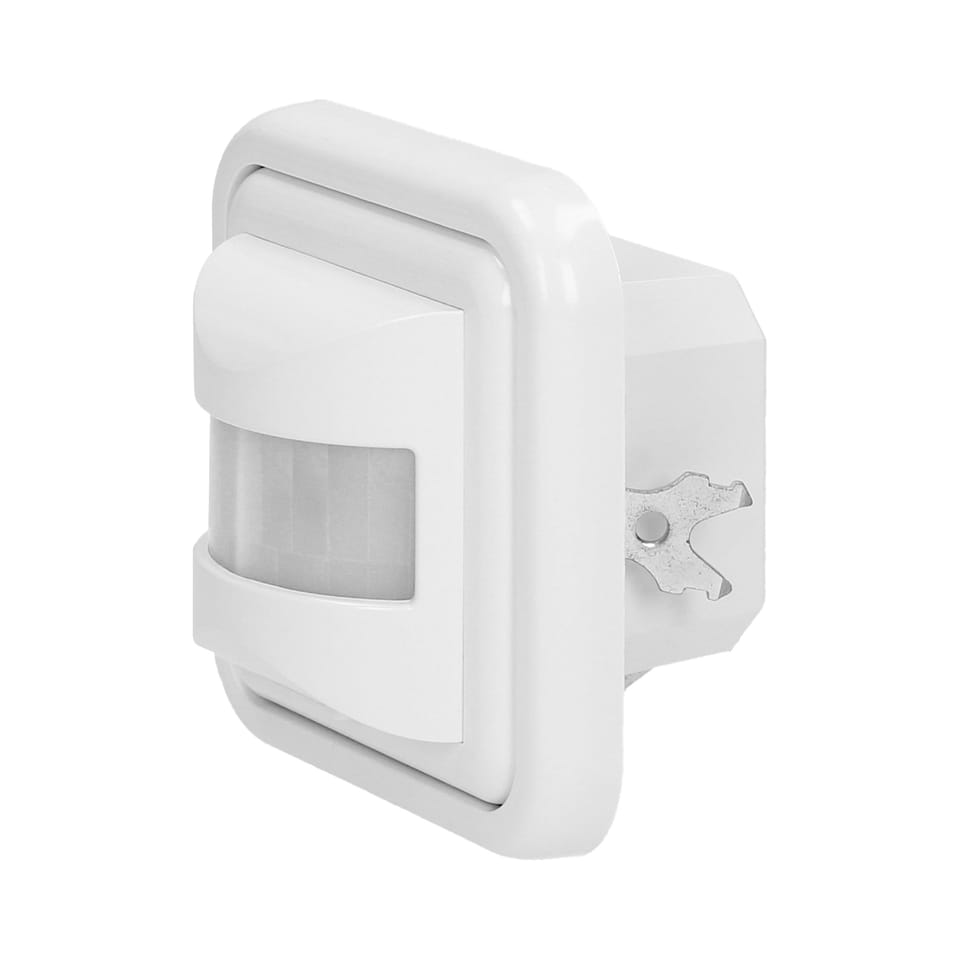

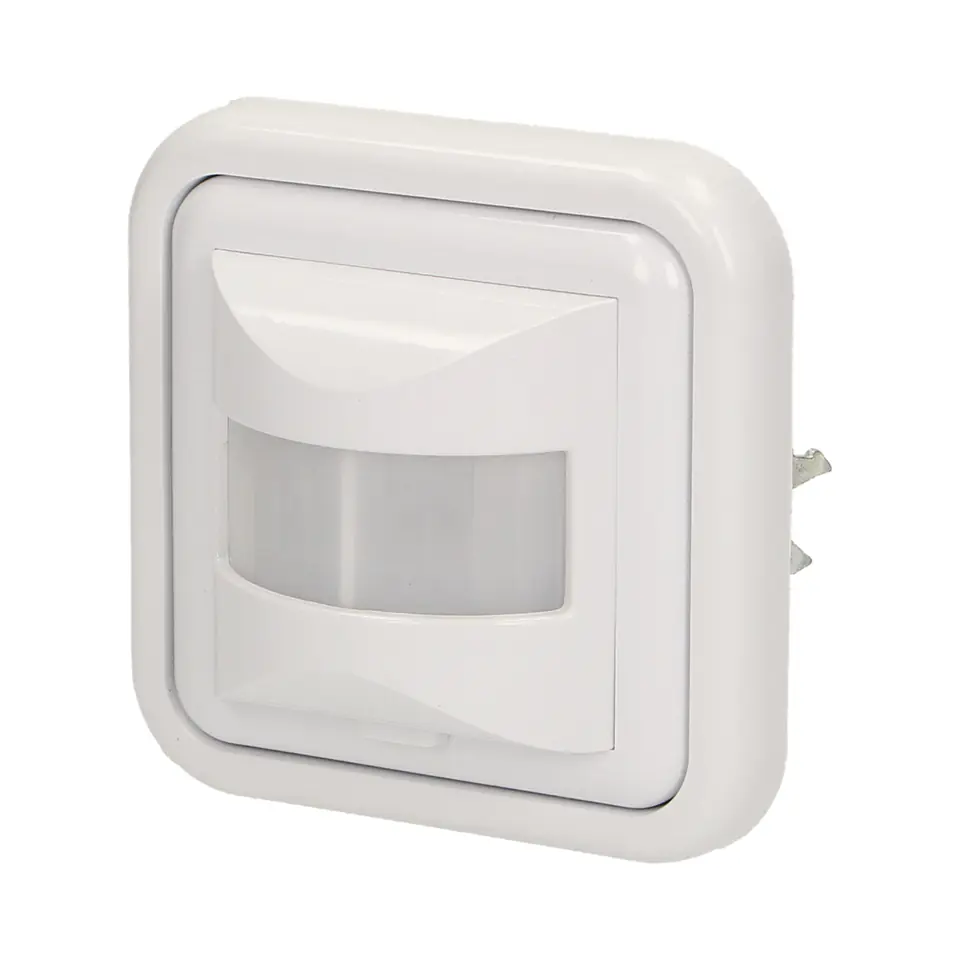

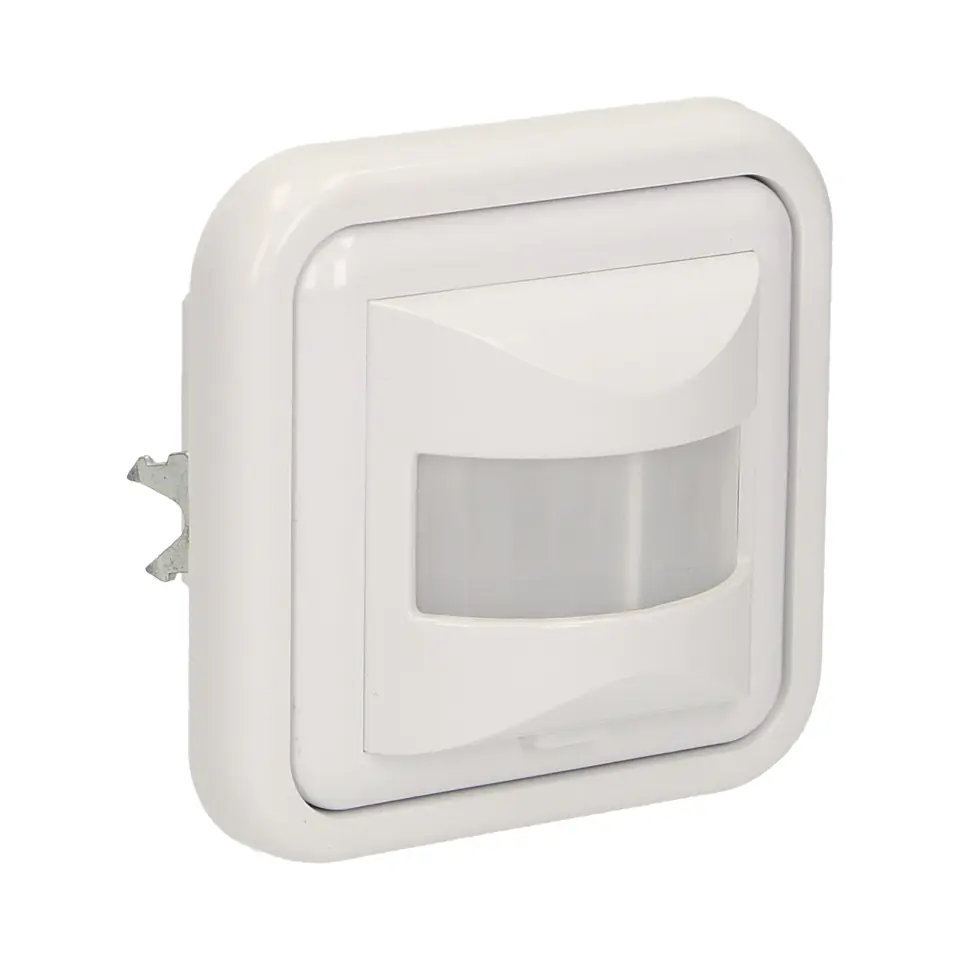

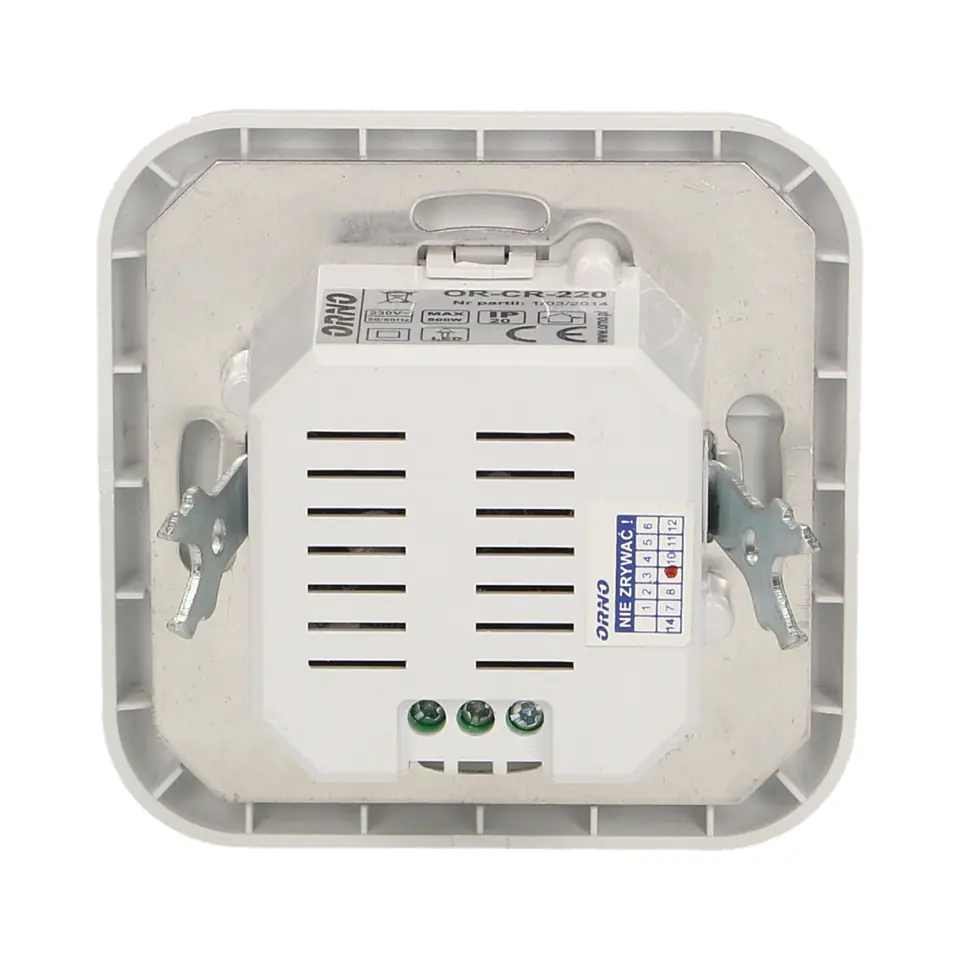

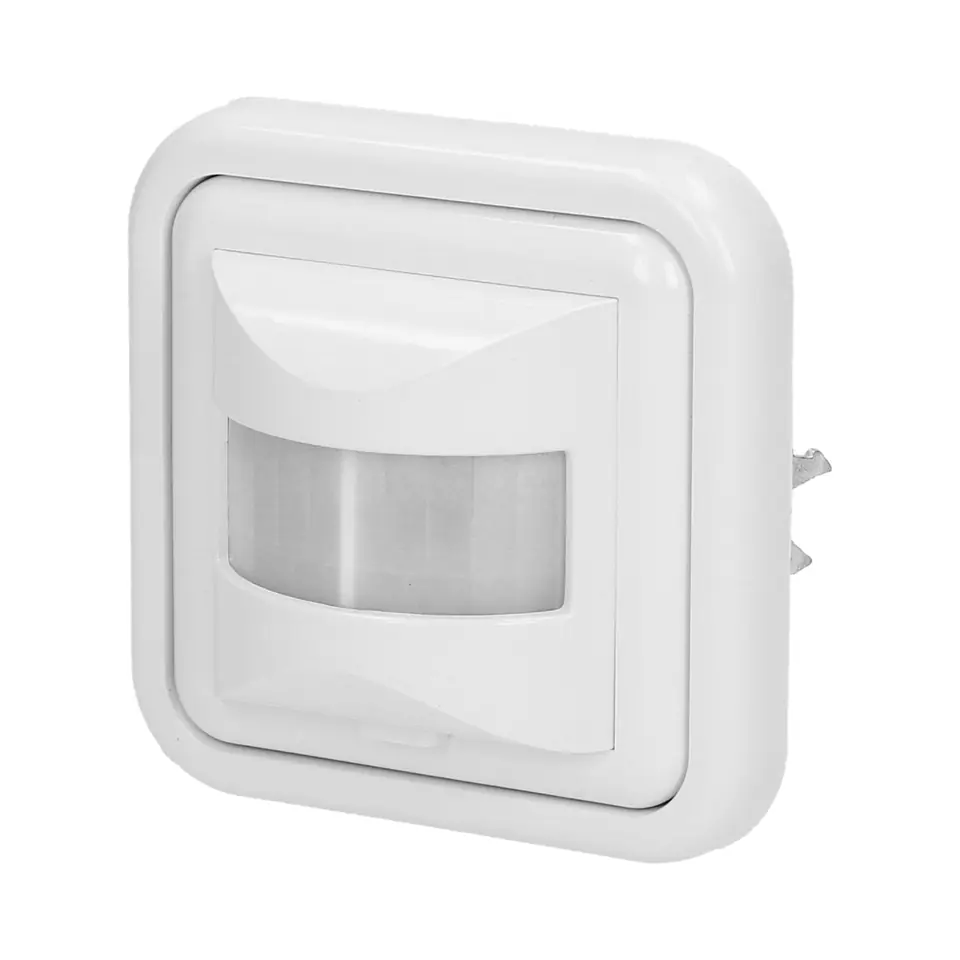

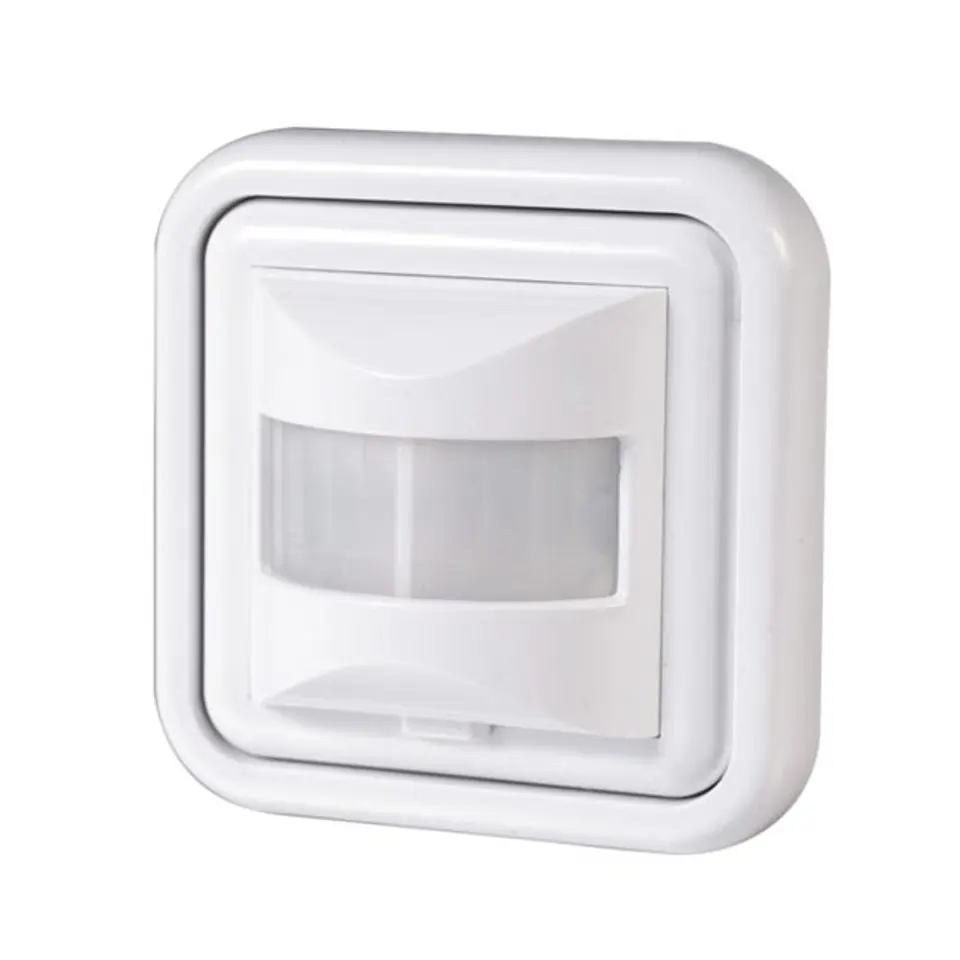

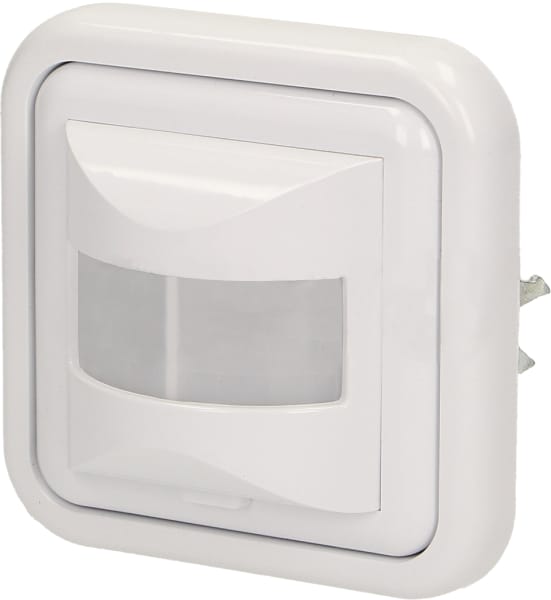

Motion sensor, 2&3 core, 160 degrees IP20, 500W, for can
€11.75
Shipping from warehouse: H7
Estimated shipping: Fri, Nov 15 - Mon, Nov 18
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Orno
- Product code:
- OR-CR-220 / 5901752483026
Share this product:
Specification
| Adjustable constant lighting level: | No |
|---|---|
| Adjustable sensitivity setting: | Yes |
| Adjustable threshold value of light intensity: | Yes |
| Alarm function: | No |
| Animal zone: | No |
| Bridging switch: | No |
| Brightness threshold sensitivity [lx] from: | 3 |
| Brightness threshold sensitivity [lx] up to: | 2000 |
| Color shade: | White |
| Colour: | White |
| Degree of protection (ip): | IP20 |
| Dimming function: | No |
| Forced shutdown: | No |
| Frequency range [hz] from: | 50 |
| Frequency range [hz] to: | 50 |
| Halogen-free: | No |
| Horizontal detection angle from/to [°] from: | 10 |
| Horizontal detection angle from/to [°] to: | 170 |
| Hvac control: | No |
| Input of add-on modules: | No |
| Light intensity threshold learning function: | No |
| Material: | Plastic |
| Material type: | Thermoplastic |
| Maximum lateral reach [m]: | 9 |
| Maximum range straight ahead [m]: | 9 |
| Maximum switching power [w]: | 500 |
| Maximum switching time [min]: | 9 |
| Minimum switching time [s]: | 7 |
| Model: | Motion sensor |
| Mounting method: | Surface mounting |
| Networkable: | No |
| Optimal installation height [m]: | 1.4000 |
| Rated voltage [v]: | 230 |
| Remote control: | No |
| Staircase surveillance: | No |
| Stealth protection: | No |
| Suitable for wireless transmission: | No |
| Surface finish: | Matte |
| Surface protection: | Untreated |
| Temperature range [°c] from: | -20 |
| Temperature range [°c] to: | 40 |
| With signaling element: | No |
