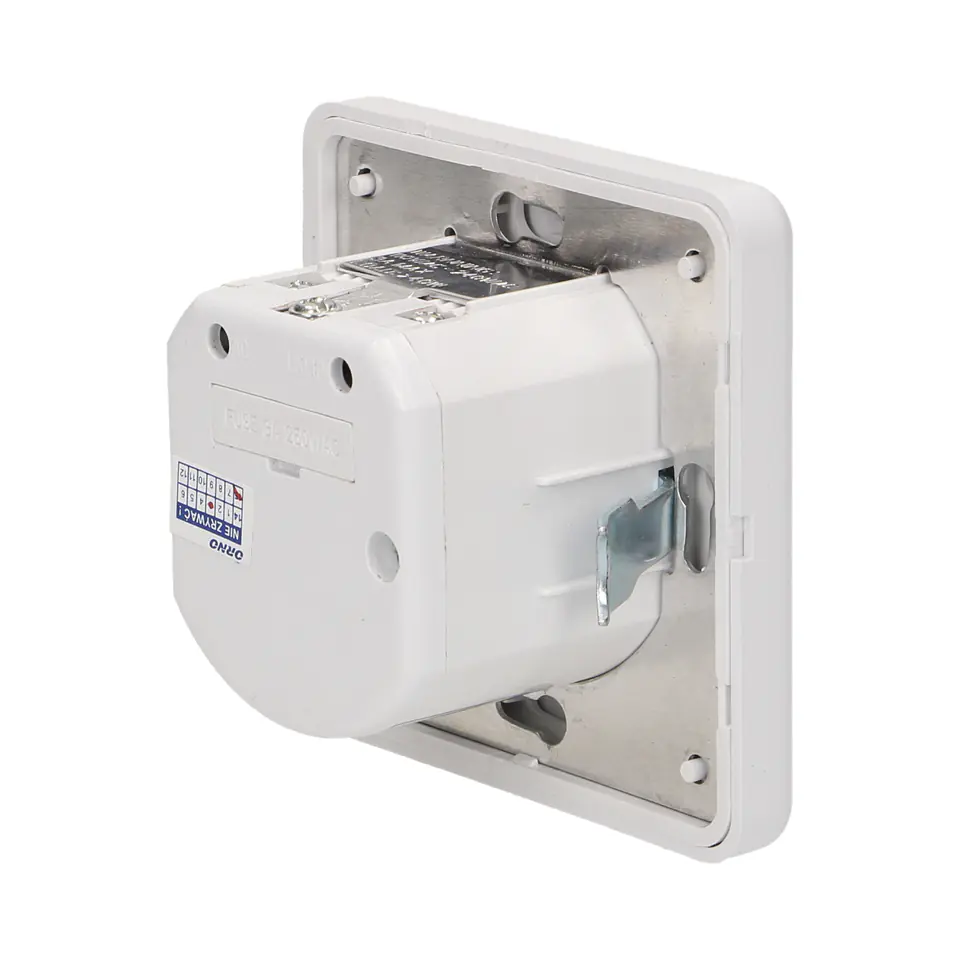

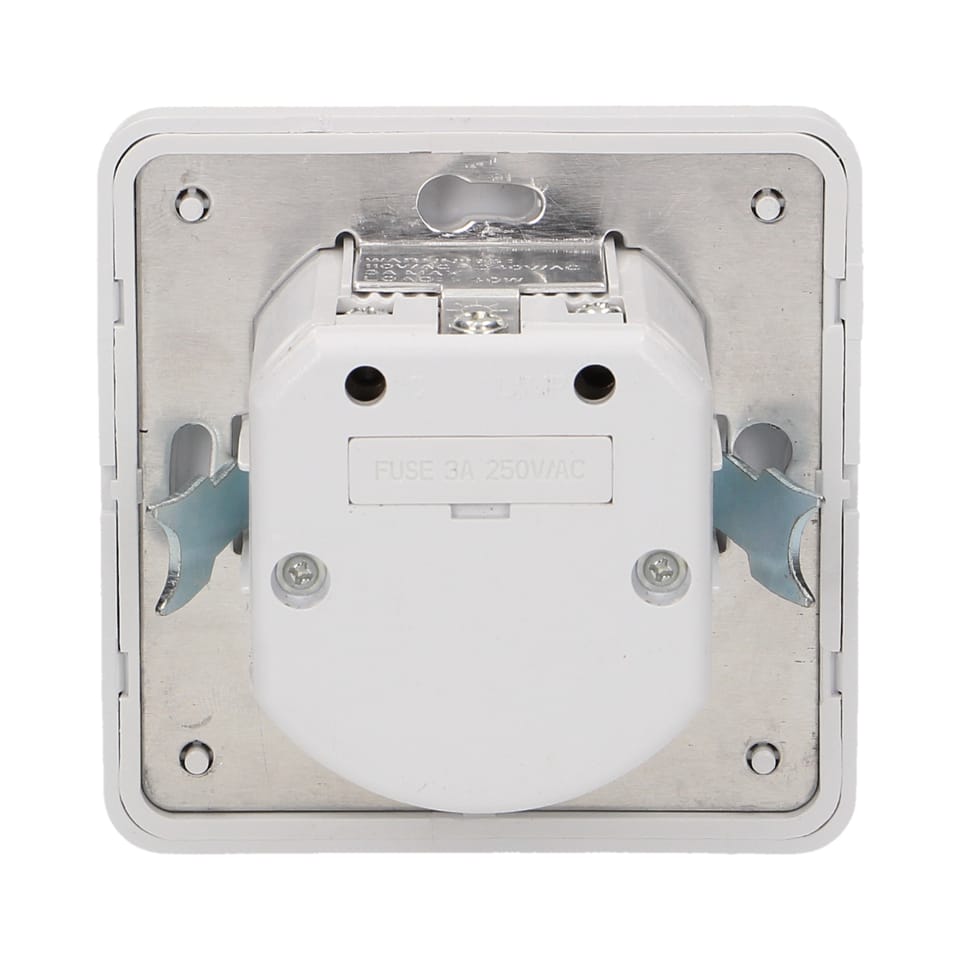

The sensor is used to automatically control lighting or other electrical devices. Works in a 2-wire installation. The device can be installed in a wall box ?60 mm in place of the usual switch. Potentiometers for adjusting: lighting time, motion detection range, sound sensor sensitivity and light intensity sensitivity.

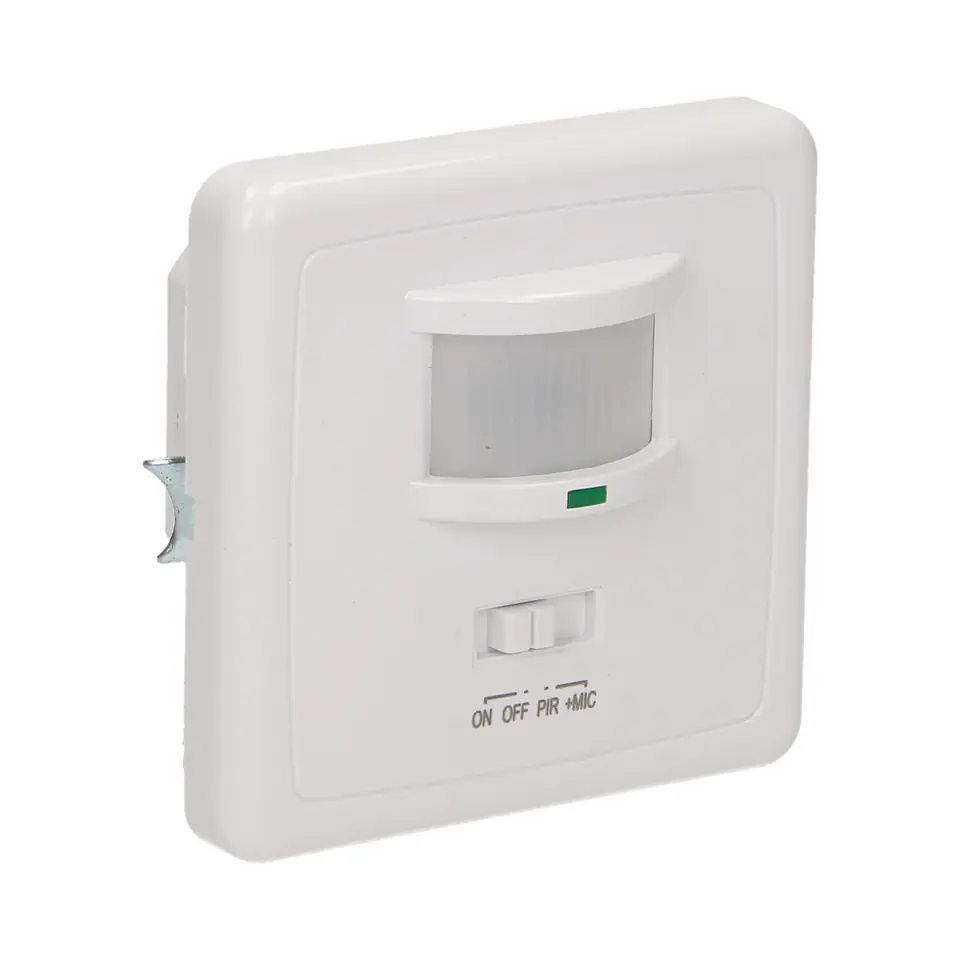

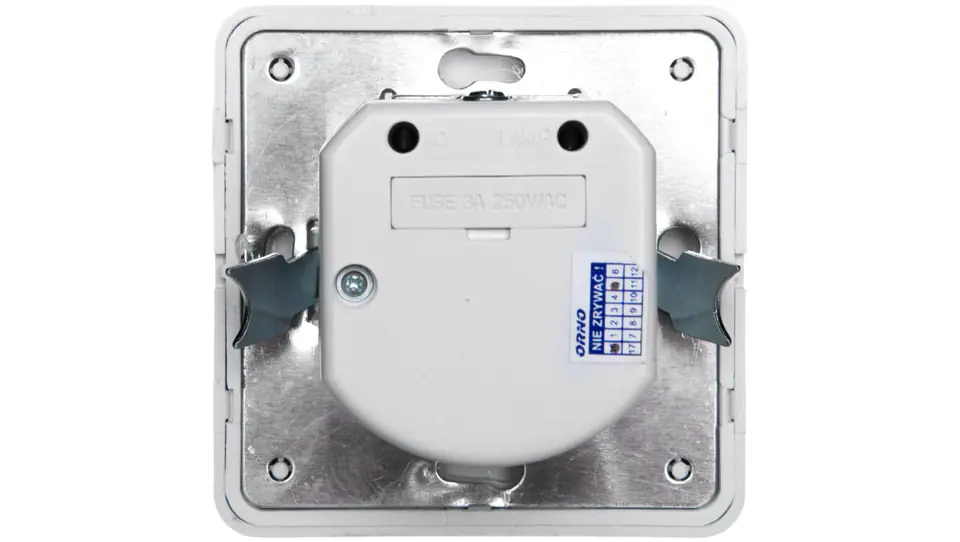

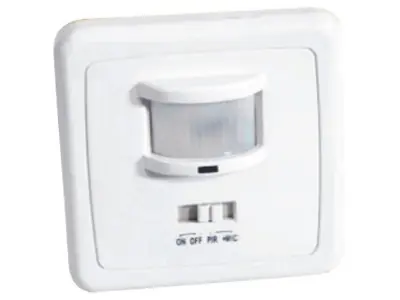

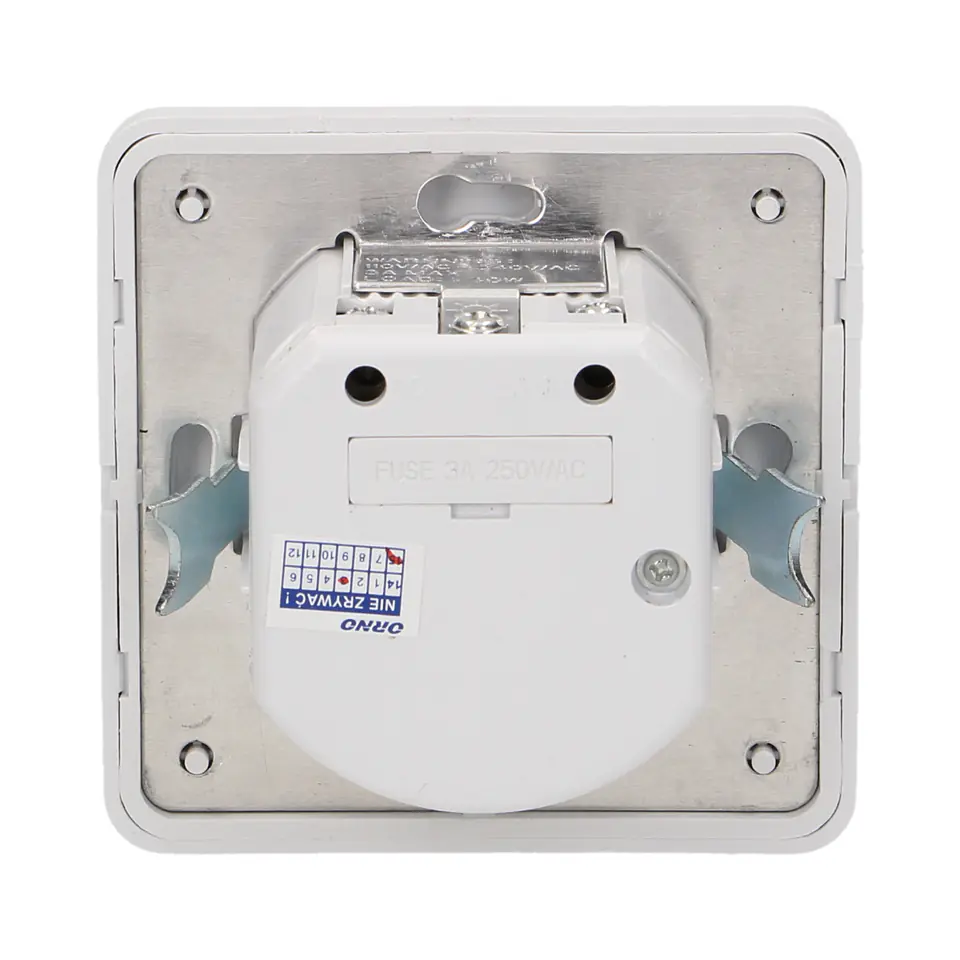

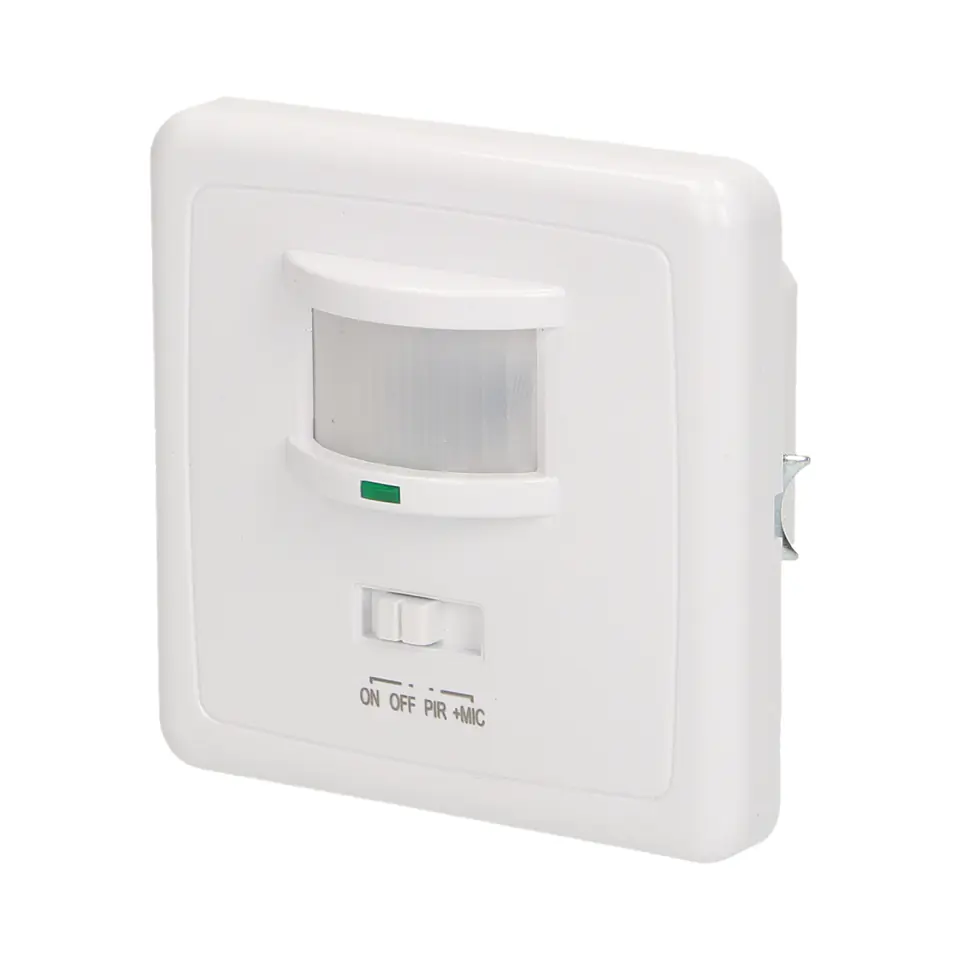

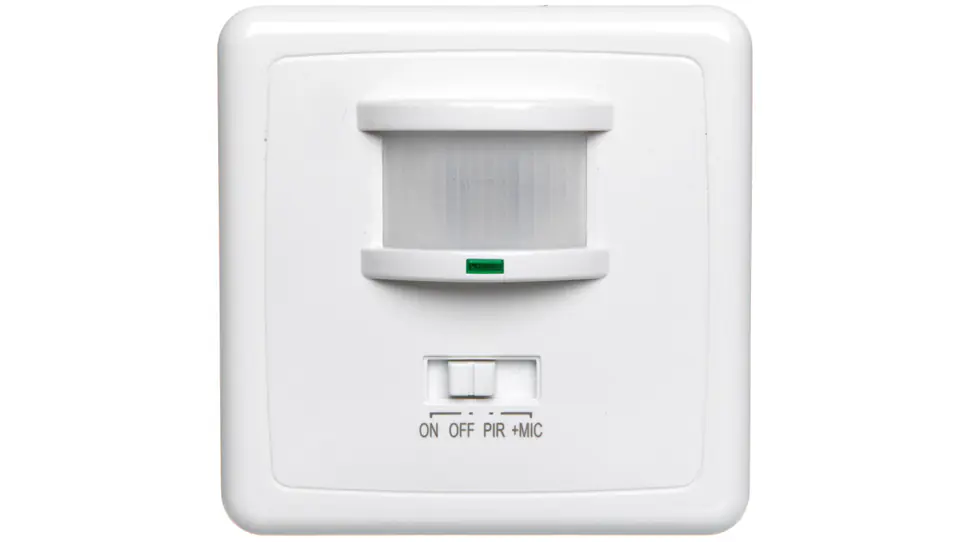

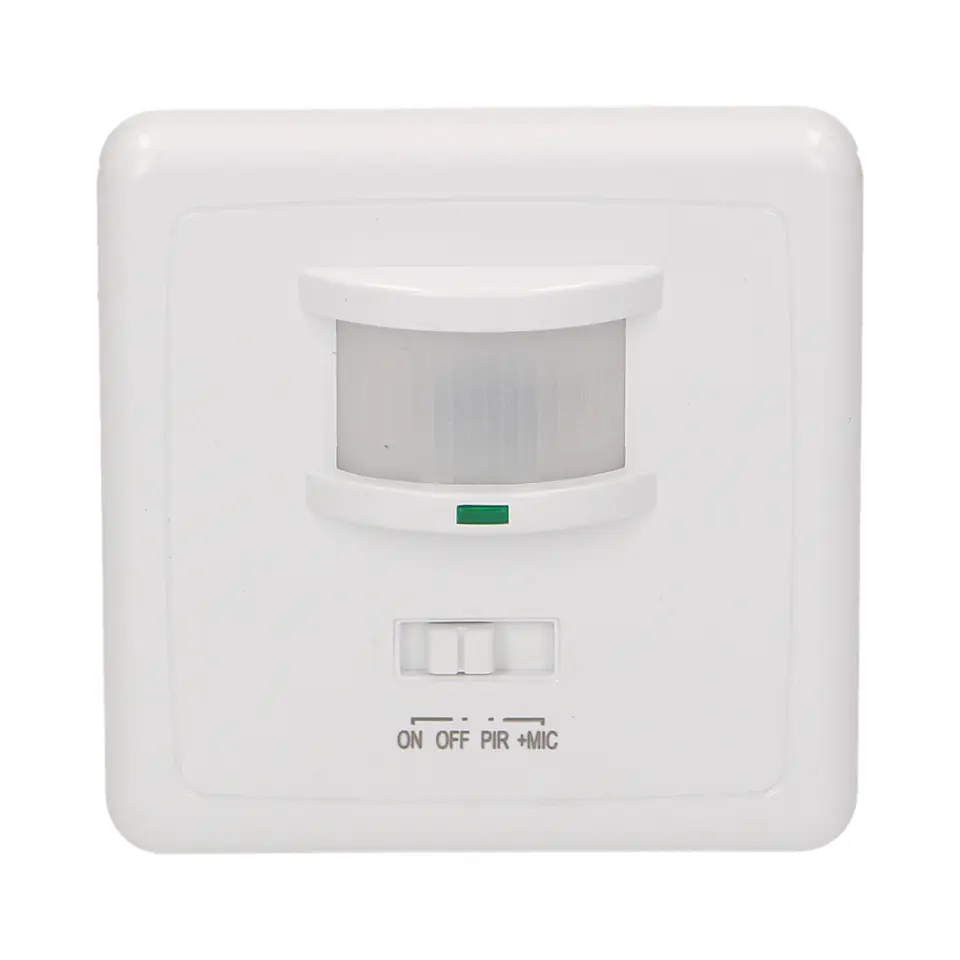

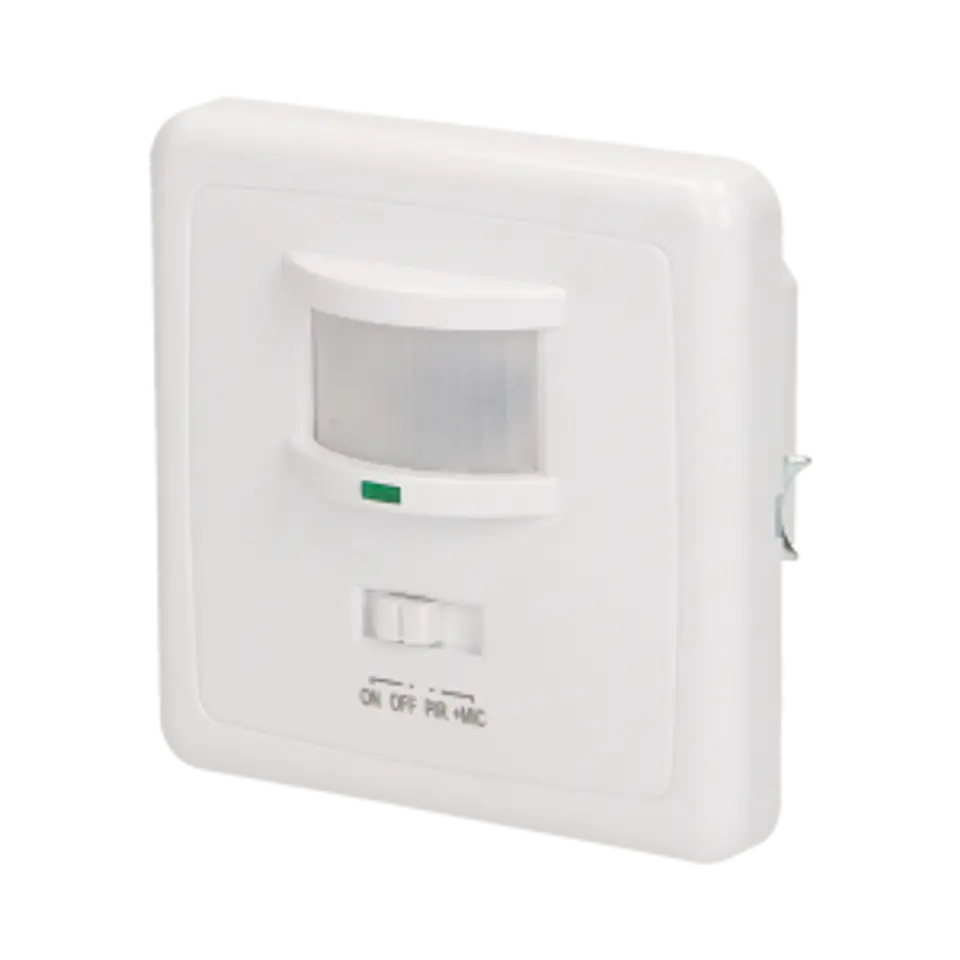

Motion and sound sensor 160 degrees IP20, for can, 500W, min. load 40W
€11.77
Shipping from warehouse: A2
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Orno
- Product code:
- OR-CR-206 / 5908235905235
Share this product:
Specification
| Adjustable constant lighting level: | No |
|---|---|
| Adjustable sensitivity setting: | Yes |
| Adjustable threshold value of light intensity: | Yes |
| Alarm function: | No |
| Animal zone: | No |
| Bridging switch: | No |
| Brightness threshold sensitivity [lx] from: | 3 |
| Brightness threshold sensitivity [lx] up to: | 2000 |
| Color shade: | White |
| Colour: | White |
| Degree of protection (ip): | IP20 |
| Dimming function: | No |
| Forced shutdown: | No |
| Frequency range [hz] from: | 50 |
| Frequency range [hz] to: | 60 |
| Halogen-free: | No |
| Horizontal detection angle from/to [°] from: | 20 |
| Horizontal detection angle from/to [°] to: | 180 |
| Hvac control: | No |
| Input of add-on modules: | No |
| Light intensity threshold learning function: | No |
| Material: | Plastic |
| Material type: | Thermoplastic |
| Maximum lateral reach [m]: | 9 |
| Maximum range straight ahead [m]: | 9 |
| Maximum switching power [w]: | 500 |
| Maximum switching time [min]: | 9 |
| Minimum switching time [s]: | 7 |
| Model: | Motion sensor |
| Mounting method: | Surface mounting |
| Networkable: | No |
| Optimal installation height [m]: | 1.5000 |
| Rated voltage [v]: | 1.5000 |
| Remote control: | No |
| Staircase surveillance: | No |
| Stealth protection: | No |
| Suitable for wireless transmission: | No |
| Surface finish: | Matte |
| Surface protection: | Untreated |
| Temperature range [°c] from: | -20 |
| Temperature range [°c] to: | 40 |
| With signaling element: | No |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
