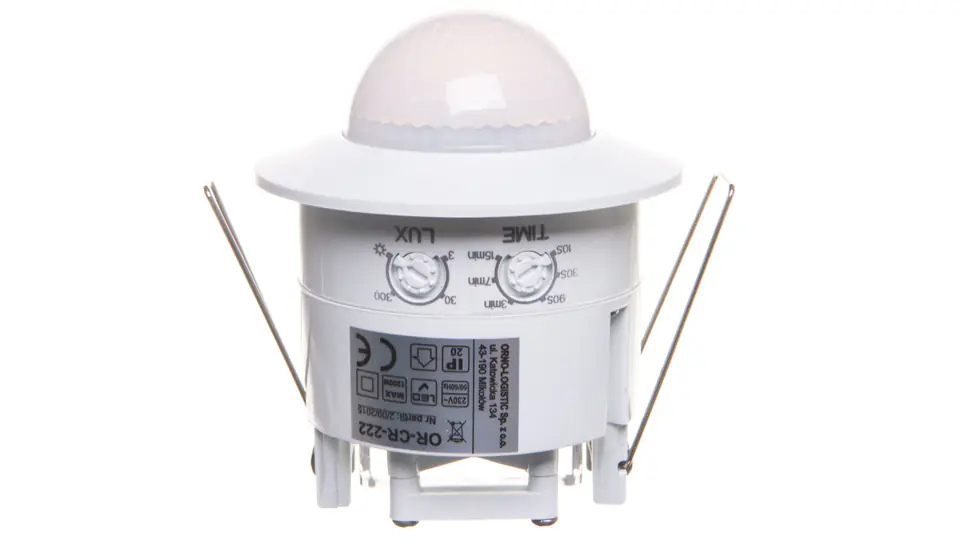

The sensor is adapted for installation in suspended ceilings, it is used to control lighting or other electrical devices. A triple motion sensor system with detectors placed at a special angle ensures control of the entire area. The device is suitable for use in large rooms, e.g. warehouse halls, waiting rooms. Potentiometers for adjusting: lighting time and sensitivity of light intensity. The sensor works with LED lighting.

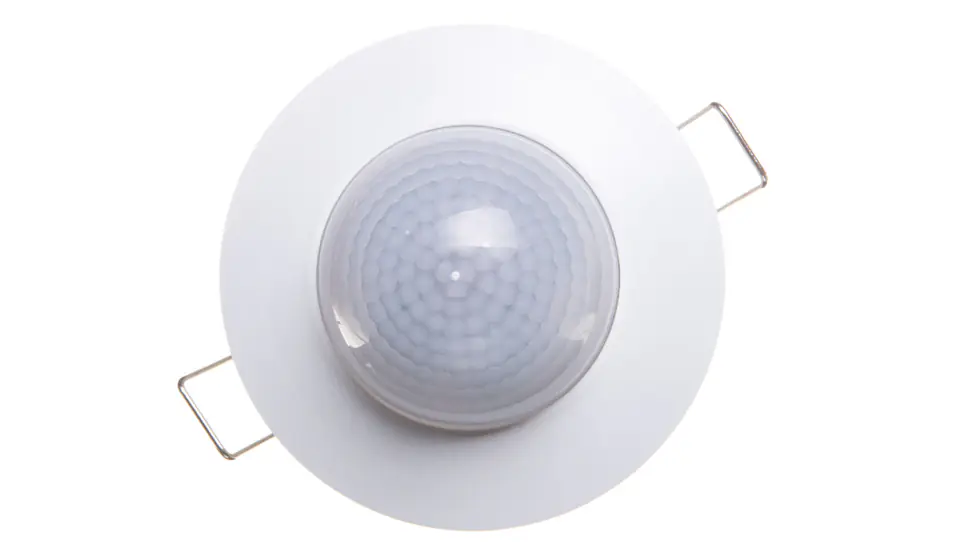

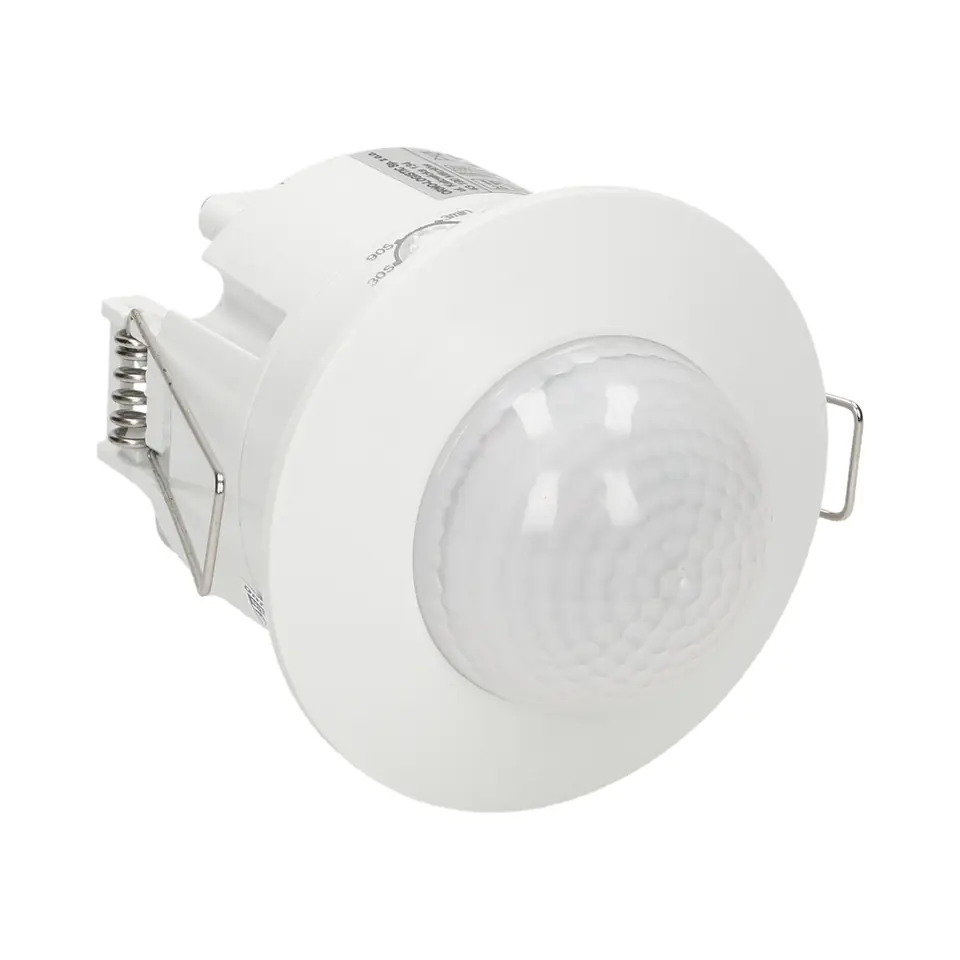

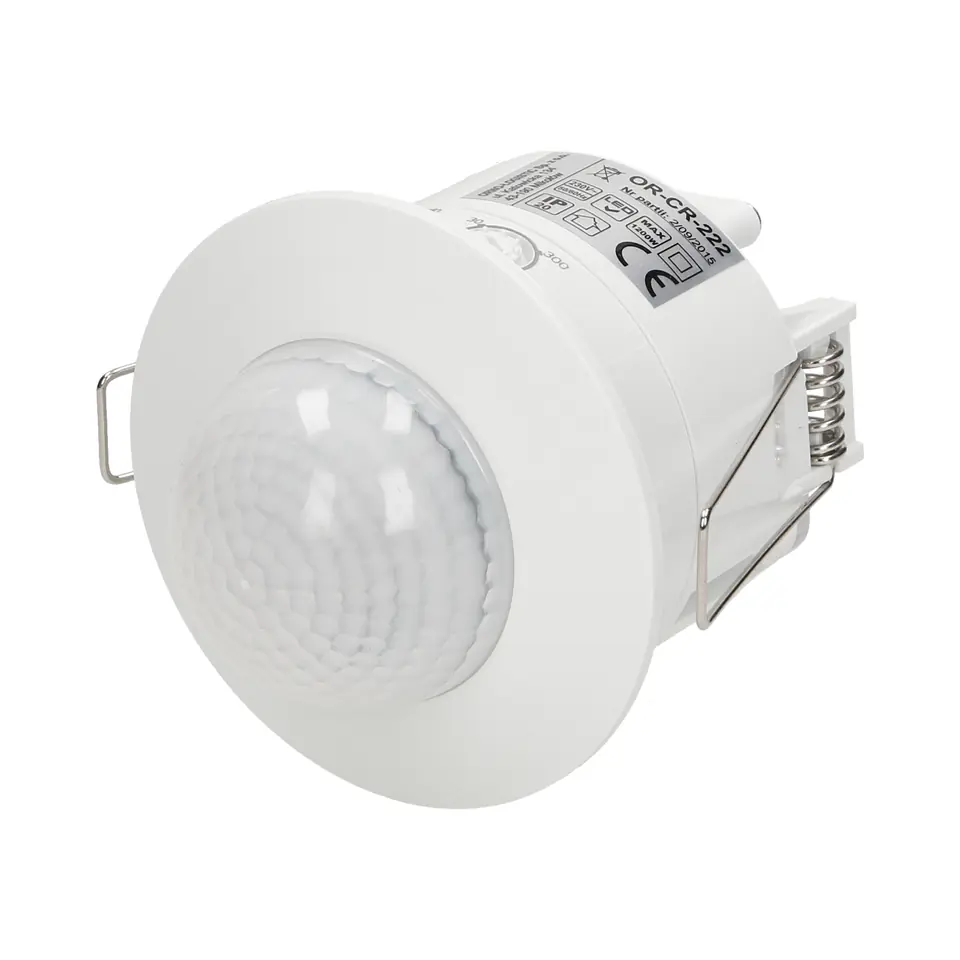

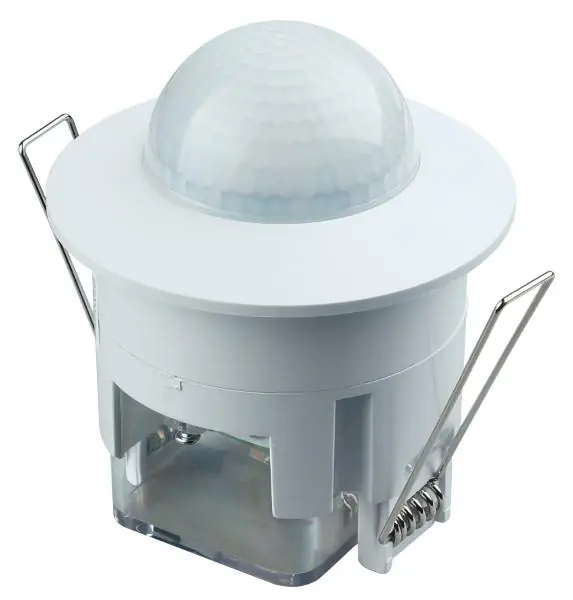

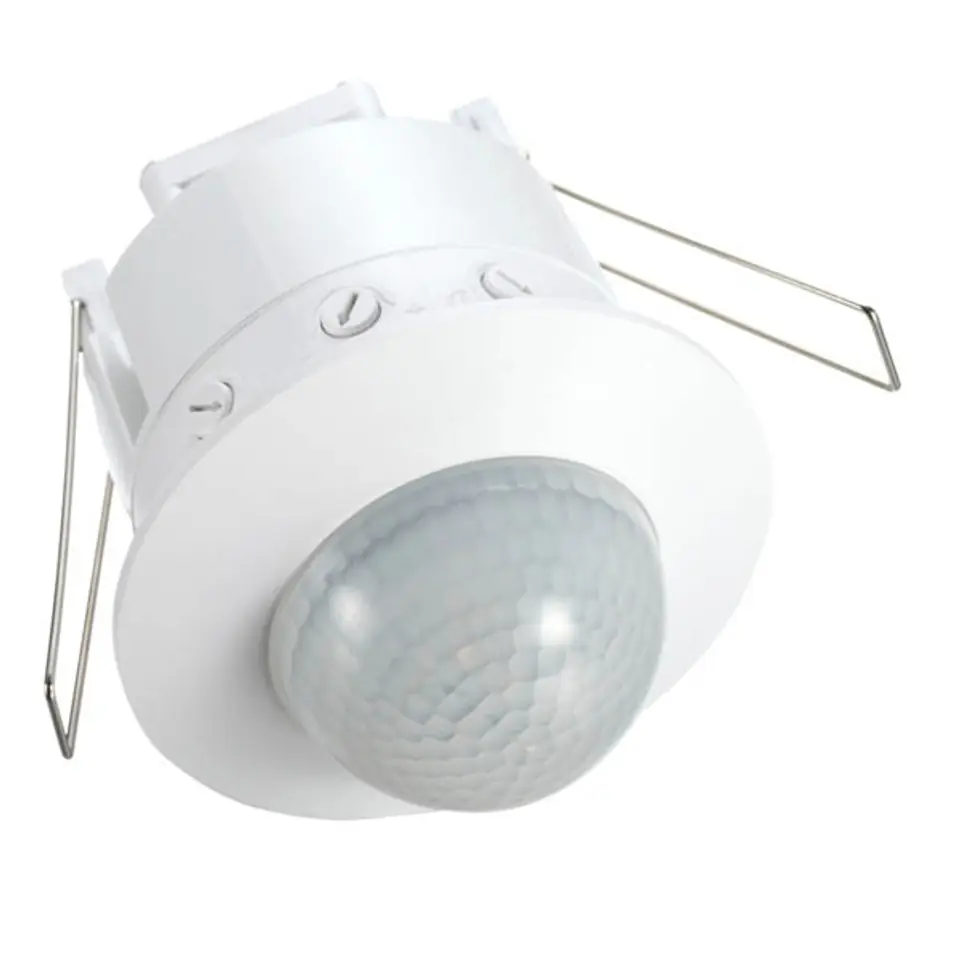

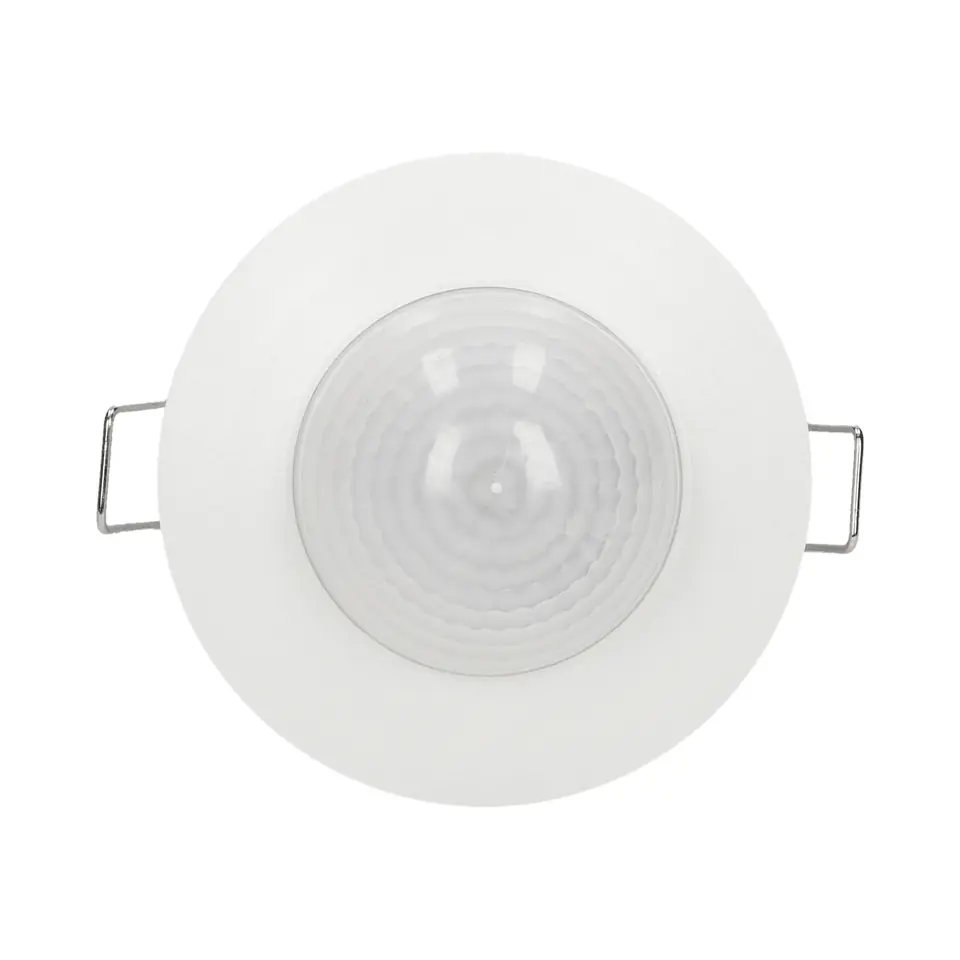

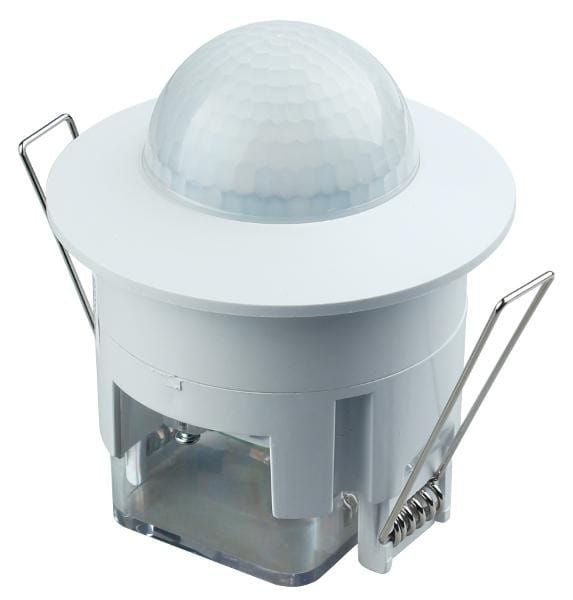

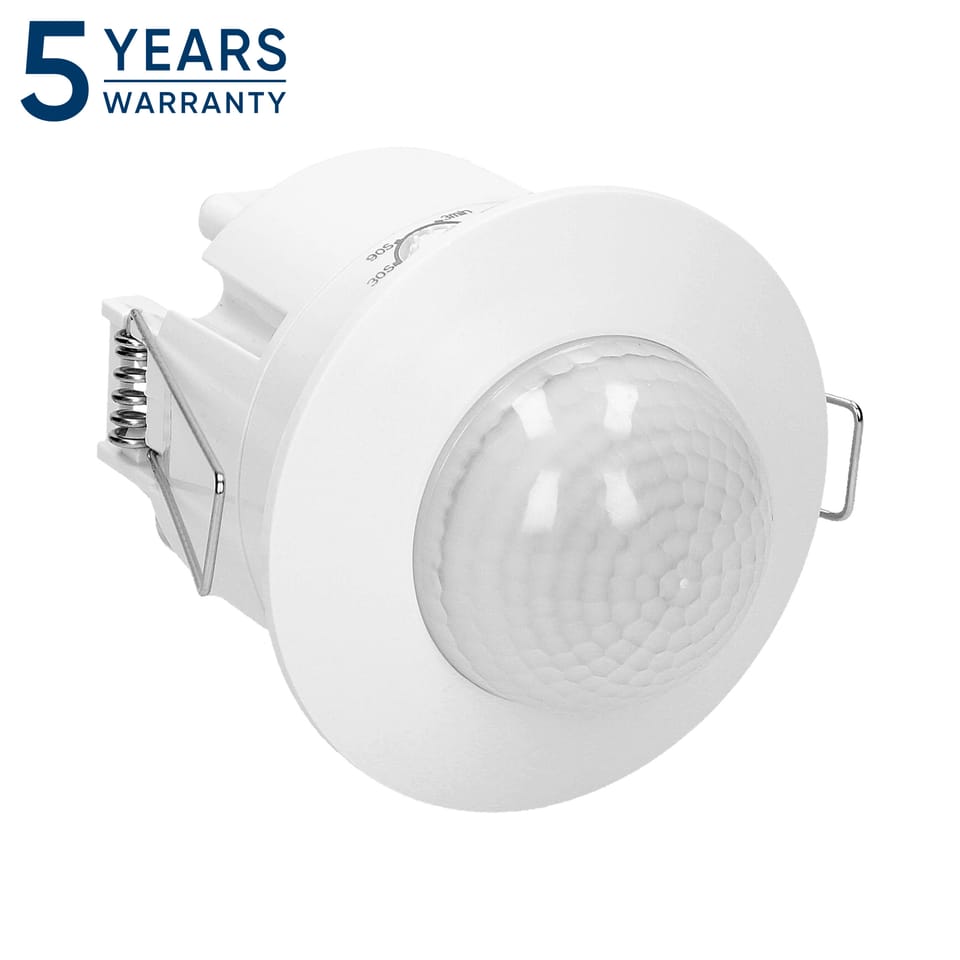

Motion and presence sensor 360st. IP20, 1200W, for suspended ceilings, 3 sensors
This product is not available
- Availability:
- expected delivery
- Brand:
- Orno
- Product code:
- OR-CR-222 / 5901752483033
Share this product:
Specification
| Adjustable constant lighting level: | No |
|---|---|
| Adjustable sensitivity setting: | Yes |
| Adjustable threshold value of light intensity: | Yes |
| Alarm function: | No |
| Animal zone: | No |
| Bridging switch: | No |
| Brightness threshold sensitivity [lx] from: | 3 |
| Brightness threshold sensitivity [lx] up to: | 2000 |
| Color shade: | White |
| Colour: | White |
| Degree of protection (ip): | IP20 |
| Dimming function: | No |
| Forced shutdown: | No |
| Frequency range [hz] from: | 50 |
| Frequency range [hz] to: | 60 |
| Halogen-free: | No |
| Horizontal detection angle from/to [°] to: | 360 |
| Hvac control: | No |
| Input of add-on modules: | No |
| Light intensity threshold learning function: | No |
| Material: | Plastic |
| Material type: | Thermoplastic |
| Maximum switching power [w]: | 1200 |
| Maximum switching time [min]: | 9 |
| Minimum switching time [s]: | 7 |
| Model: | Motion sensor |
| Mounting method: | Flush-mounted installation |
| Networkable: | No |
| Optimal installation height [m]: | 3 |
| Rated voltage [v]: | 230 |
| Remote control: | No |
| Staircase surveillance: | No |
| Stealth protection: | No |
| Suitable for wireless transmission: | No |
| Surface finish: | Matte |
| Surface protection: | Untreated |
| Temperature range [°c] from: | -20 |
| Temperature range [°c] to: | 40 |
| With signaling element: | No |
