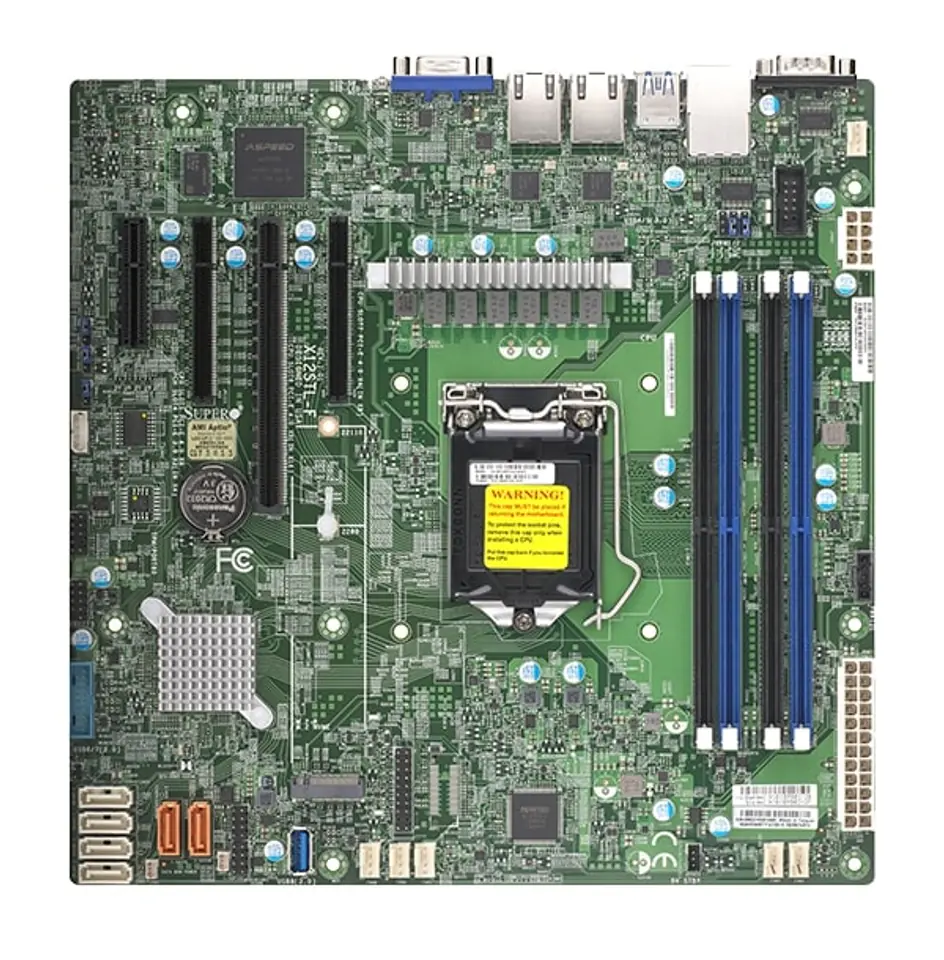

Motherboard SUPERMICRO X12STL-F Intel Xeon E-2300 C252 LGA-1200 (Socket H5) micro ATX (MBD-X12STL-F-O) Box
€424.99
Shipping from warehouse: A3
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Supermicro
- Product code:
- MBD-X12STL-F-O / 0672042461608
Share this product:
Specification
| Acpi version: | 6.0 |
|---|---|
| Bios memory size: | 256 Mbit |
| Bios type: | UEFI |
| Com ports quantity: | 1 |
| Component for: | Server |
| Depth: | 244 mm |
| Disk on module (dom) power connector: | Yes |
| Ecc: | Yes |
| Ethernet interface type: | Gigabit Ethernet, Fast Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 2 |
| Intel xeon series: | E-2300 |
| Ipmi lan (rj-45) port: | Yes |
| Lithography: | 14 nm |
| M.2 card slot (storage): | 2280/22110 (M-key) |
| Maximum internal memory: | 128 GB |
| Maximum udimm memory: | 128 GB |
| Memory voltage: | 1.2 V |
| Motherboard chipset: | Intel C252 |
| Motherboard form factor: | micro ATX |
| Number of dimm slots: | 4 |
| Number of processors supported: | 1 |
| Number of sata iii connectors: | 6 |
| On-board graphics card model: | Aspeed AST2400 |
| Operating temperature (t-t): | 0 - 50 °C |
| Package type: | Box |
| Pci express x2 (gen 3.x) slots: | 1 |
| Pci express x4 (gen 4.x) slots: | 1 |
| Pci express x8 (gen 4.x) slots: | 2 |
| Processor manufacturer: | Intel |
| Processor number of cores supported: | 8 |
| Processor socket: | LGA 1200 (Socket H5) |
| Processor thermal power (max): | 95 W |
| Raid levels: | 0, 1, 5, 10 |
| Raid support: | Yes |
| Real time clock (rtc): | Yes |
| Recommended humidity operating range: | 10 - 85% |
| Storage relative humidity (h-h): | 10 - 95% |
| Storage temperature (t-t): | -20 - 60 °C |
| Supported dimm module capacities: | 4GB, 32GB, 8GB, 16GB |
| Supported memory clock speeds: | 2933, 3200 MHz, 2666 |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive interfaces: | SATA III |
| Sustainability certificates: | RoHS |
| System management bios (smbios) version: | 3.3 |
| Tpm connector: | Yes |
| Trusted platform module (tpm): | Yes |
| Trusted platform module (tpm) version: | 2.0 |
| Uefi version: | 2.7 |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 1 |
| Vga (d-sub) ports quantity: | 1 |
| Wi-fi: | No |
| Width: | 244 mm |
