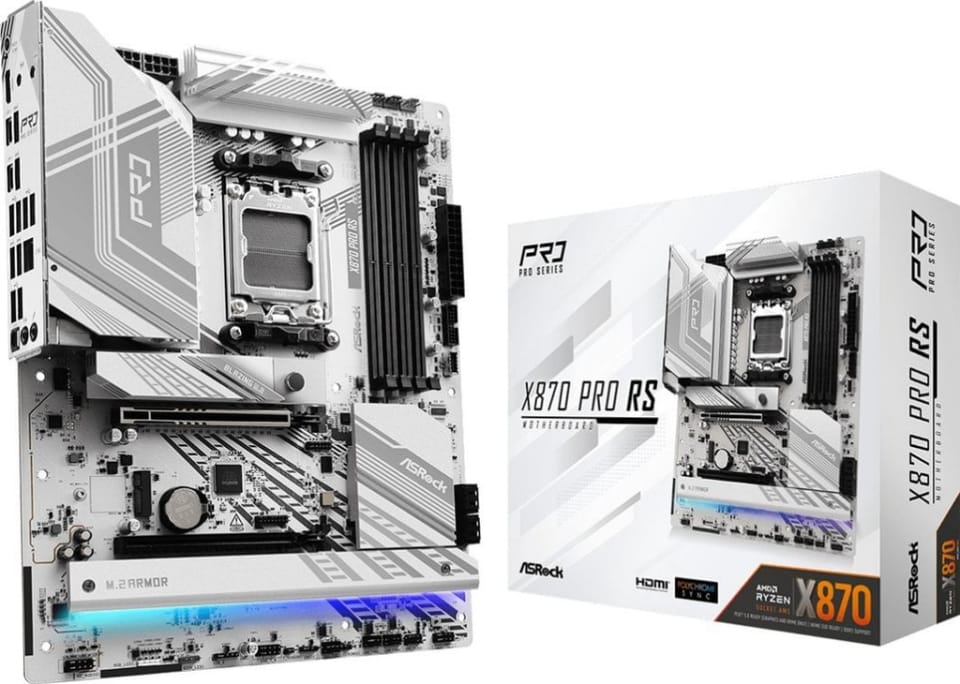

Motherboard - ASRock X870 Pro RS
€280.74
Shipping from warehouse: M7
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- ASRock
- Product code:
- X870 Pro RS / 4710483949326
Share this product:
Specification
| Atx power connector (24-pin): | Yes |
|---|---|
| Audio chip: | Realtek ALC1220 |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Bluetooth: | No |
| Compatible processor series: | AMD Ryzen™ 7000 Series |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Hdmi ports quantity: | 1 |
| Lan controller: | Dragon RTL8125BG |
| Line-out: | Yes |
| Maximum internal memory: | 256 GB |
| Maximum number of smp processors: | 1 |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | AMD X870 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | ATX |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| Operating system architecture: | 64-bit |
| Pci express x16 (gen 5.x) slots: | 1 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Rgb led pin header: | Yes |
| S/pdif out port: | Yes |
| Supported memory types: | DDR5-SDRAM |
| Supported storage drive interfaces: | Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4) |
| Top wi-fi standard: | Wi-Fi 6E (802.11ax) |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 6 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Usb 3.2 gen 2 (3.1 gen 2) connectors: | 1 |
| Usb 3.2 gen 2x2 type-c ports quantity: | 2 |
| Wi-fi: | Yes |
| Wi-fi standards: | 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), 802.11b |
| Width: | 305 mm |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
