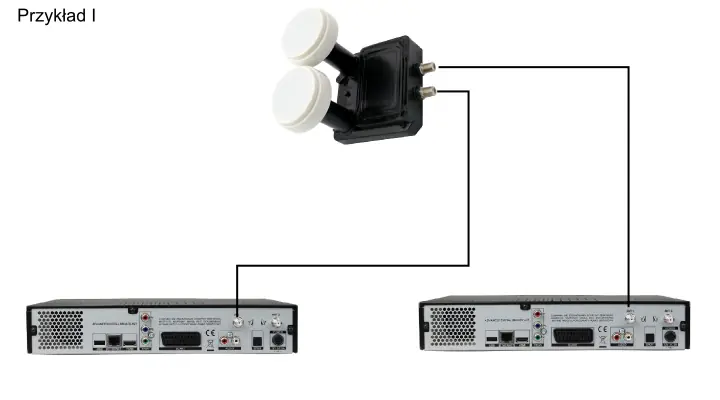

Monoblock TWIN has been designed for dual satellite reception. It can be used to receive signals from two satellites, located at a distance of 6° (e.g. Astra and Hotbird) and distribute it to two Set-top box tuners or one PVR receiver. Designed to be placed on a canopy of 80cm.
The converter is compatible with High Definition transmission and guarantees an excellent noise ratio. Made to the highest quality industrial standards and meeting all requirements, these converters are the ideal solution for satellite reception in Europe.
FEATURES:
- Low phase noise, compatible with DVB-S2 (HDTV)
- Low noise factor of 0.2dB
- Low power consumption
- High cross-polarization
- High frequency stabilization
TECHNICAL DATA:
- Lower band frequency range - input: 10.7~11.7 GHz
- Lower band frequency range - output: 950-1950 MHz
- Lower oscillator frequency: 9.75 GHz
- Upper band frequency range - input: 11.7~12.75 GHz
- Upper band frequency range - output: 1100~2150 MHz
- Top oscillator frequency: 10.6 GHz
- Own noise: 0.2dB Type. (0.7dB Max)
- Initial accuracy: +/-1.0 MHz
- Oscillator temperature drift: +/-3.0 MHz
- Phase noise: -90dBc/Hz
- Gain: 50~65dB
- Variability of gain characteristics: 8dB
- Separation between polarizations: 18dB
- VSWR: 2.5:1
- Current consumption: 120mA (Typ.) 150mA (max.)
- Operating temperature: -30°~+60°C
- Weight: 435g

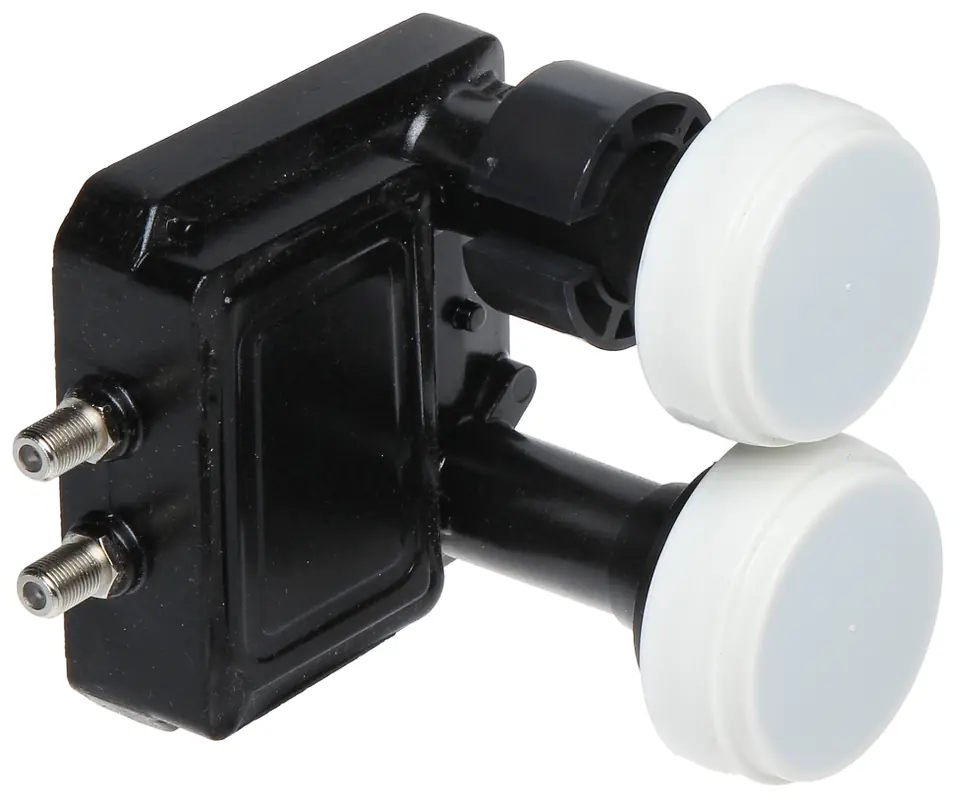

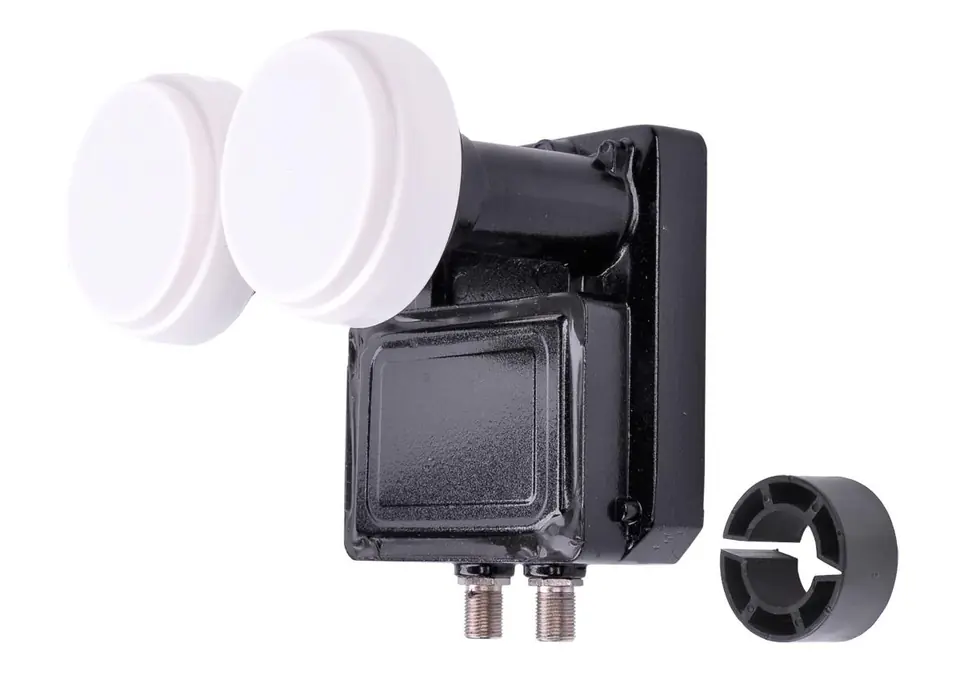

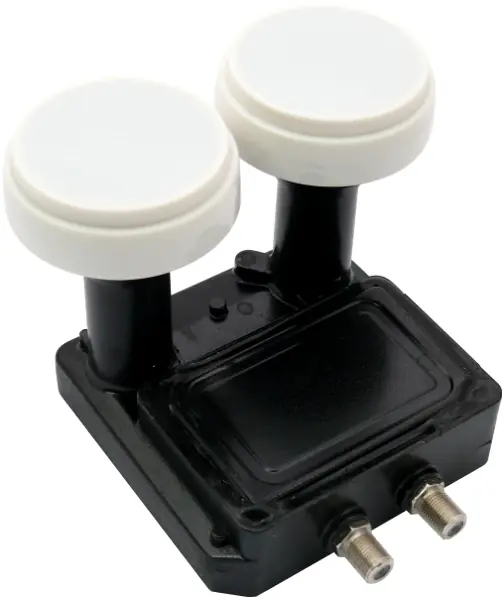

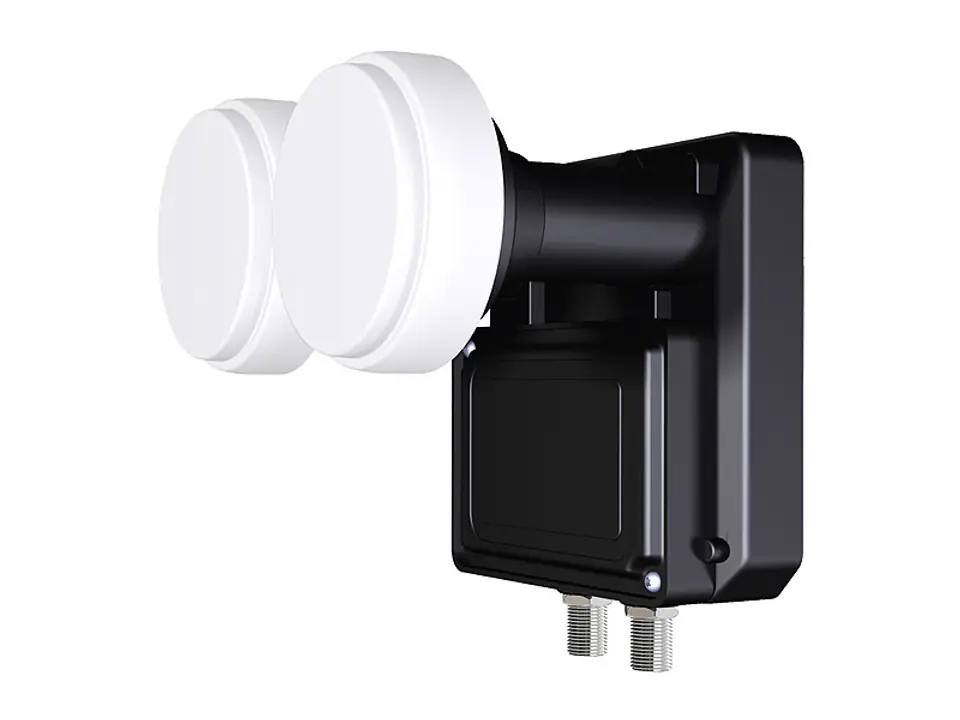

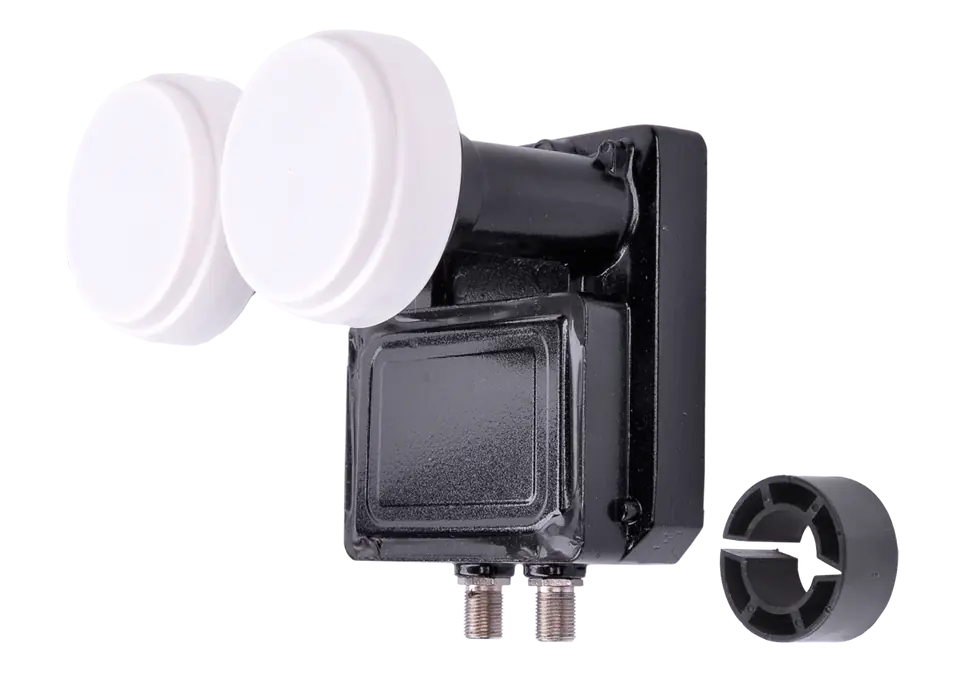

Monoblock Twin INVERTO Converter
€45.30
Shipping from warehouse: P2
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- LP
- Product code:
- KONW/MONOBLOCK-TWIN / 5453002610121
Share this product:
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
