Powerful and flexible Gigabit connectivity

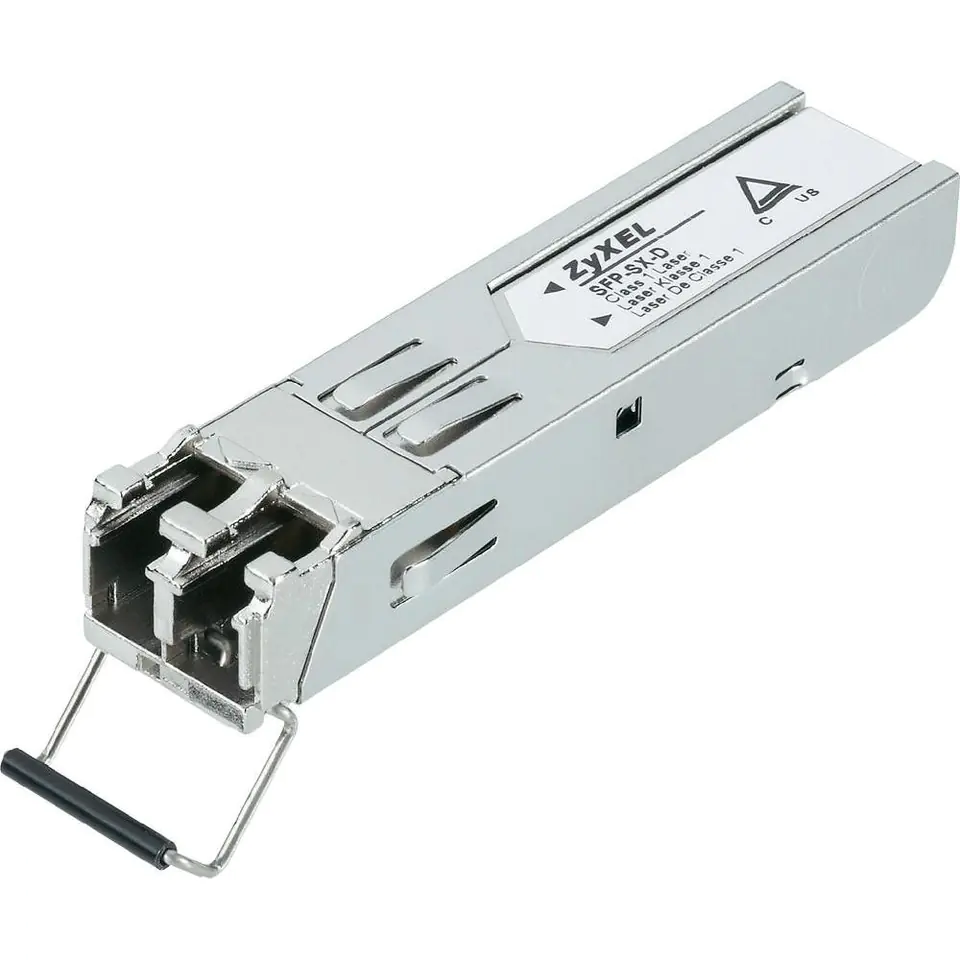

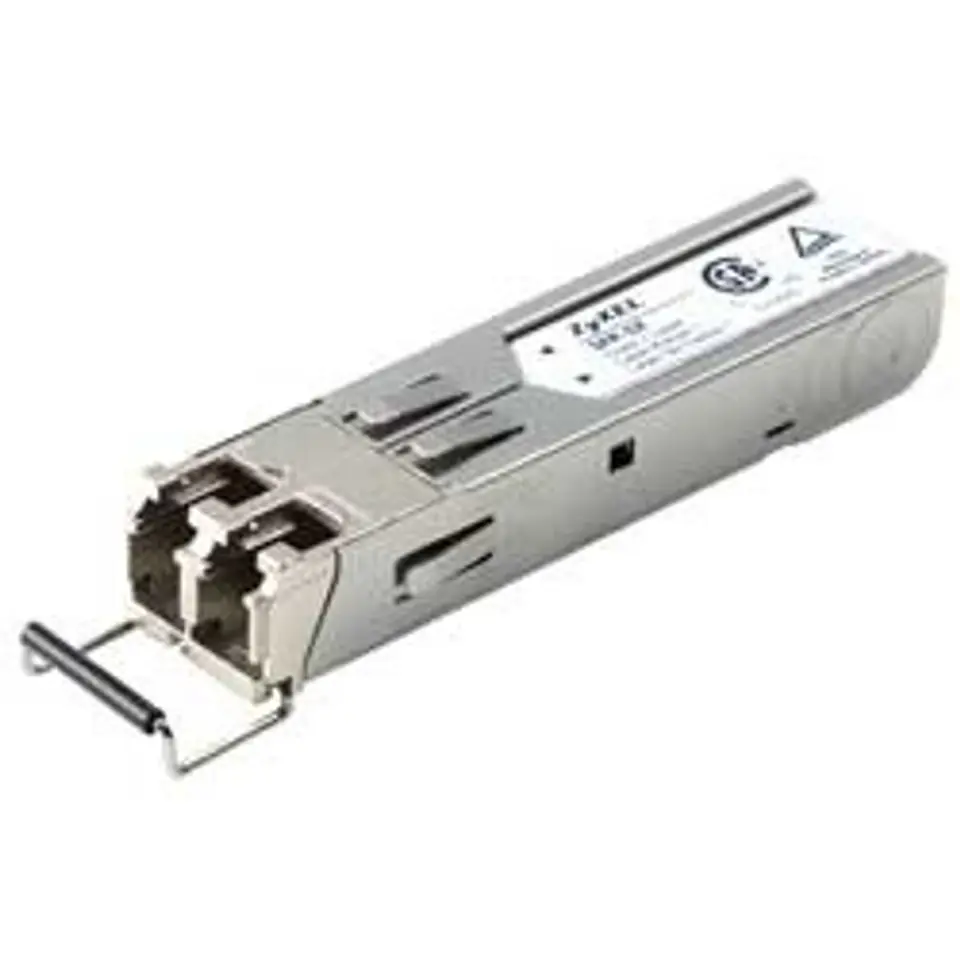

The ZyXEL SFP-SX transceiver provides high performance, enabling full duplex Gigabit data transfer and flexibility - thanks to the Hot Pluggable function, it can be installed in an enabled device.
Small size and high port density
Compactly designed, ZyXEL transceivers provide high port density. For example, the GS-3012F switch provides up to 12 fiber optic connections, and all ports are located as close to each other as possible.
Industry Standards
The ZyXEL SFP transceiver complies with IEEE 802.3z and SFP MSA standards, ensuring compatibility with third-party devices.
Technical specification:
Main features
- Gigabit speed and flexibility
- Connecting hot-pluggable to a working device
- Compact size and high port density
- Compliant with 802.3z , SFP MSA (Multi-Source Agreement) standards
- Power supply +3.3V
- Low power loss
Dimensions
- 56(W) x 13.4(D) x 12.46(H) mm
Optical receiver sensitivity
- -17 dBm
Wavelength
- 850nm
Joint
- LC
Transmission range according to standards
- 62.5um MMF: 220 m
- 50um MMF: 550 m
Operating range
- Power consumption: 3.15~3.45 V
- Max current consumption: 300mA
Safety Certificates
- Class 1 Laser
- Complies with 21 CFR 1040.10 and 1040.11
- CSA
- TUV
Terms of Use
- Operating Temperature: 0°C ~70°C
- Storage Temperature: -40°C ~85°C
- Relative humidity: 5% - 95%
