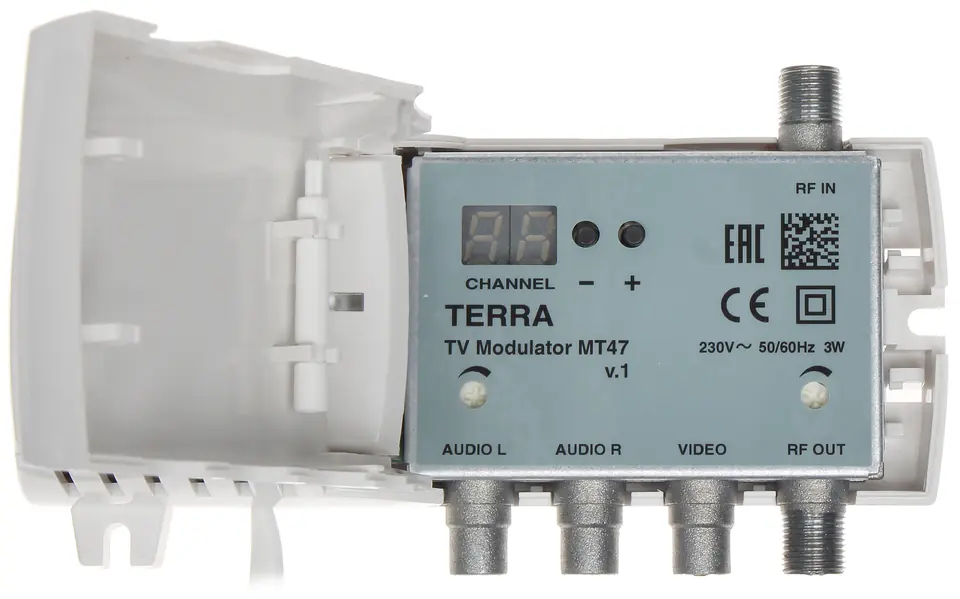

Two-band modulator with microprocessor controlThe output channel is selected using two buttons (visible when the lid is opened) and its number, like any parameter described below, the value of which can be changed, is displayed on the LED displayThe channel number and the values of other parameters are saved in non-volatile memoryThe use of the quartz stabilization system (PLL) provides almost zero frequency errorModulators can be combined They also allow summation of the modulated signal with the terrestrial TV signalIt is possible to protect the modulator against unauthorized accessIt should be noted that compared to previous series of modulators, Terra has implemented more variants of the PAL system
MODULATOR TV MT-47
€47.71
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- MT-47 / 5907634541099
Share this product:
Specification
| A/v ratio:: | 12 / 16 dB |
|---|---|
| Accuracy of carriers:: | ± 50 kHz |
| Amplitude modulation depth (typical):: | 81 % |
| Audio input frequency range:: | 20 Hz ... 15 kHz |
| Dimensions:: | 133 x 73 x 39 mm |
| Egress:: | 1 pc. RF (F) |
| Frequency of the subcarrier sound:: | 4.5 ; 5.5 ; 6.0 ; 6.5 MHz |
| Frequency range (channels) rf output:: | 170 MHz ... 230 MHz470 MHz ... 862 MHz (K6-12, K21-69) |
| Input level / impedance. video:: | 1 V ± 1 dB / 75 Ω |
| Input level adjustment. audio:: | 1 ... -14 dB |
| Inputs:: | 1 pc. Video composite (Cinch) 1 pc RF (F) 2 pcs. Audio (Cinch) |
| Level (typical) / impedance of rf output:: | 85 dBμV / 75 Ω |
| Level / impedance / deviance of the input. audio:: | 775 mV RMS / 10 kΩ / 50 kHz |
| Operating temperature:: | -10 °C ... 50 °C |
| Pal signal version rf output:: | B/G/D/K/H/I/L/M/N/Australia |
| Power consumption:: | 2.5 watts |
| Power:: | 230 V AC @ 50Hz |
| Rf output level adjustment:: | 0 ... -20 dB |
| Sat / terr flight attenuation:: | 2.5 dB / 1.5 dB |
| Sat/terr cruising frequency range:: | 47 MHz ... 2150 MHz |
| Scales:: | 0.336 kg |
| Selected features:: | adjustment of the carrier frequency of the vision of the change of the depth of subcarrier modulation of the sound of the change of the audio subcarrier from the video carrier adjustment of the input level and deviation of the audio signal |
| Snr (weighted):: | ≥ 55 dB |
| Video carrier adjustment range:: | ± 2.25 MHz max. at 0.25 MHz increment |
| Video frequency response:: | ± 1 dB |
| Video input frequency range:: | 20 Hz ... 6 MHz |
| Warranty:: | 2 years |
