Digital HDMI modulator for DVB-T Spacetronik HDMOD-10 Micro

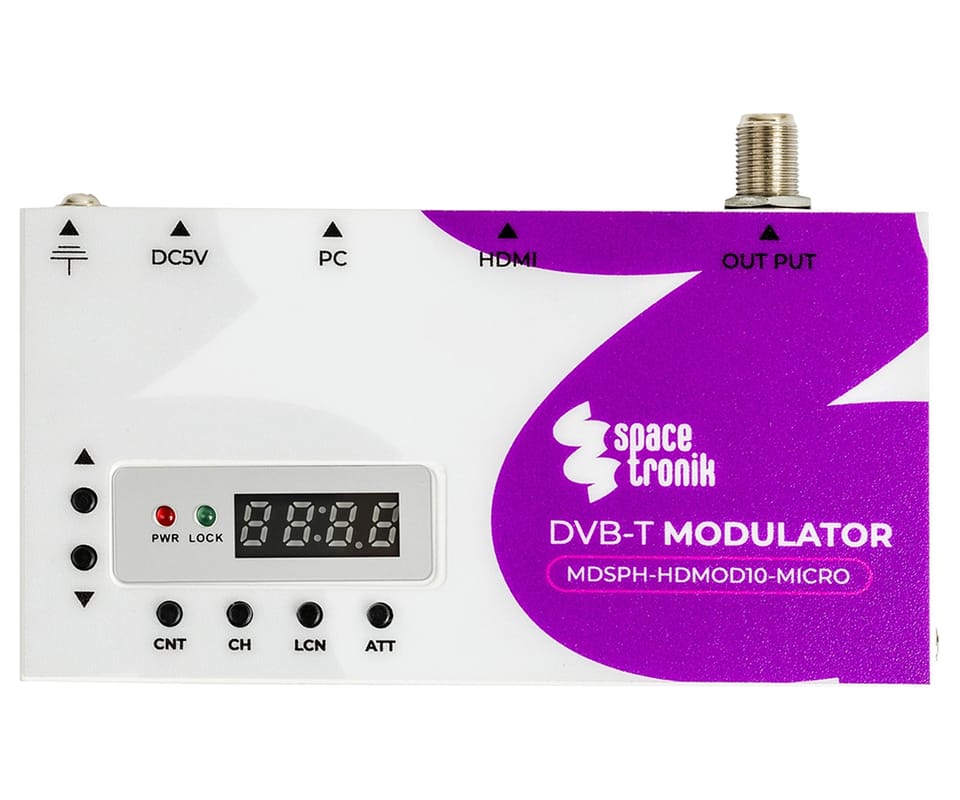

The HDMOD modulator has been developed to adapt digital terrestrial television. It integrates MPEG-4 with AVC/H.264 encoding and modulation to convert audio/video signals to RF DVB-T output. It is an ideal solution to send HD signal from satellite receivers, cameras or media players to a TV or set-top box. The modulator has a four-digit display and 6 buttons that allow for intuitive control and settings.

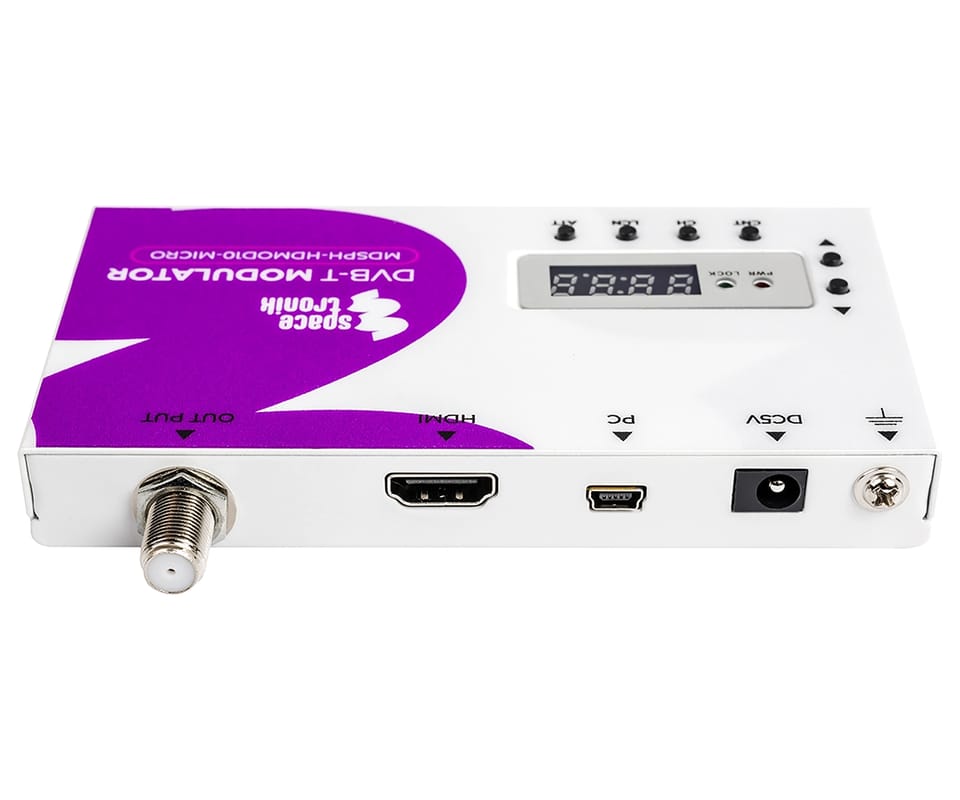

How to connect HDMI modulator HDMOD-10?

Connecting the modulator is very intuitive and can be done as in the diagrams below. The modulator is ideal for transmitting HD signals from satellite receivers, cameras or media players to a TV or set-top box. The device can also be used in series with another modulator, so that the number of channels in the coaxial cable can be freely increased.

- High level of integration, high efficiency,
- Fully functional, integrated design
- One input of the modulator that converts HD source into DVB-T channel
- Standard COFDM modulation and H.264 encoding
- Multi-video format compatibility, including 720p/1080p
- Bandwidth: 7/8MHz
- Frequency Range: 174~862MHz
- Continuous adjustable RF signal output level range from 70dBuV to 100dBuV, 1dBuV
-Lcd
- Small size and light weight
- User-friendly in configuration and control

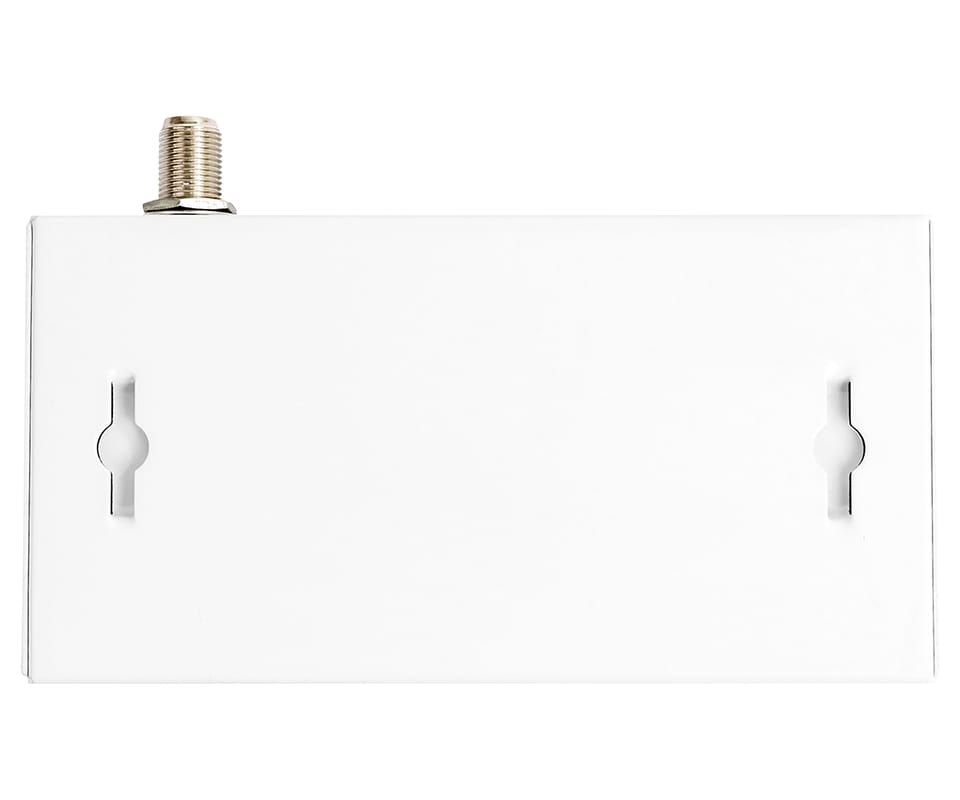

- For wall mounting

- Standard:DVB-T
- Constellation: 64QAM 2K/8K
- Protection compartment: 1/32
- Code: 2/3
- RF level: 70 ~ 100 dBuV
- Quality of MER modulator: ±30dB
- Attenuator: 0-15 dB
- Output impedance: 75Ω
- Compression: H.264 - bitrate 5-15 mb / s
- Video resolution: 1920*1080_60P, 1920*1080_50P;1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P
- Connector: HD

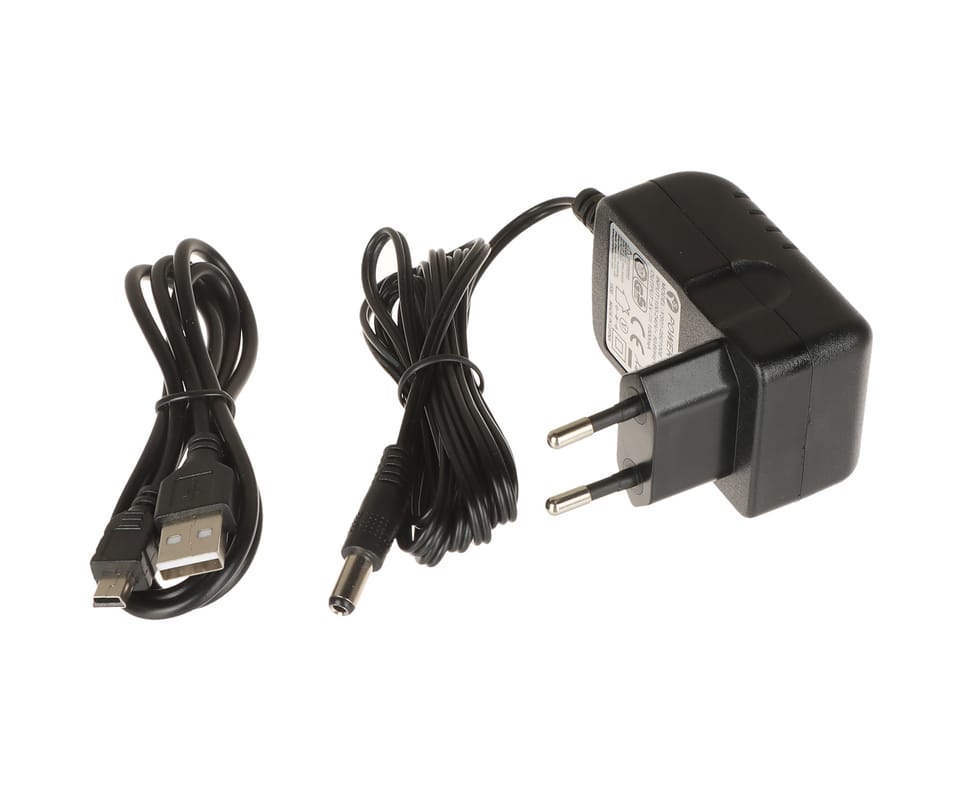

- Power source DC 12V/1A
