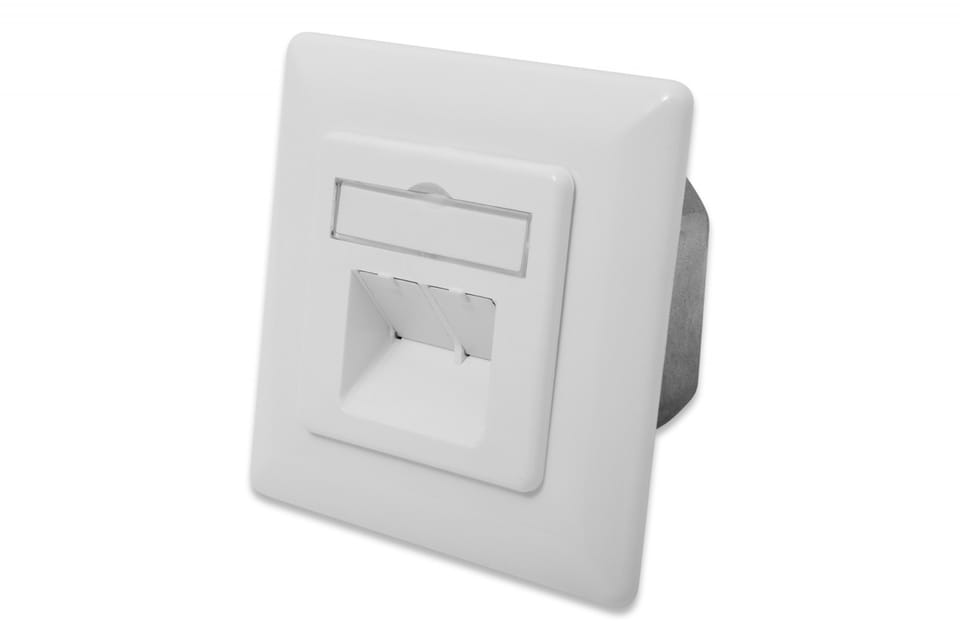

DIGITUS CAT 6A flush-mounted / surface-mounted sockets are design compatible with all standard switch programs. They are certified to CAT 6A ANSI/TIA 568 and ISO/IEC 11801, EN 50173 and are equipped with 2 shielded RJ45 sockets. Cables are installed via color-coded LSA strips in accordance with EIA/TIA 568 A & B.
- Category 6A
- RJ45, 8P8C sockets
- Application range: Up to 500MHz, 10GBase-T
- Standards: ISO/IEC 11801 2nd edition, EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+

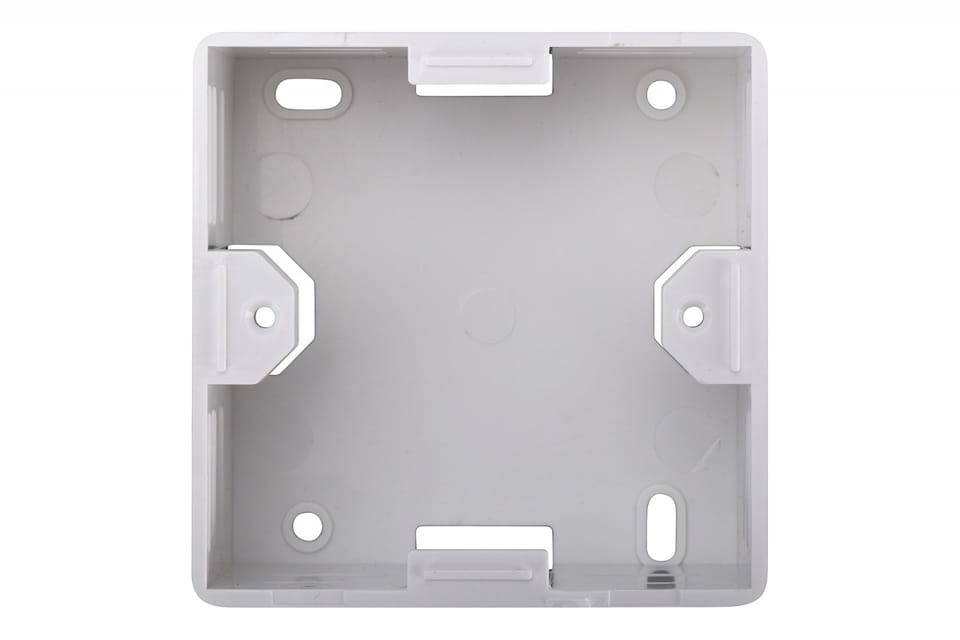

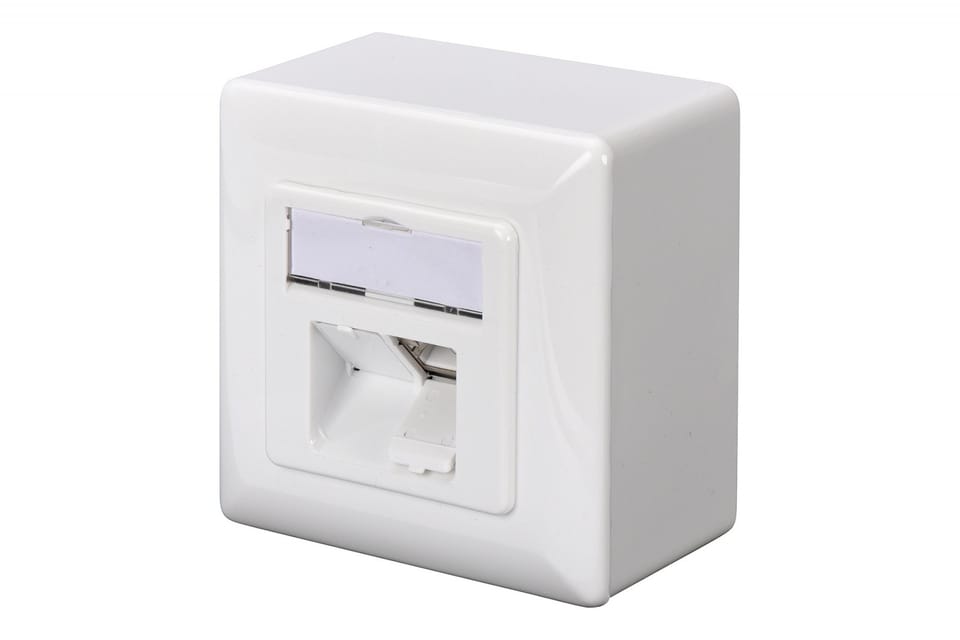

- Suitable for installation in an under-sill channel as well as for flush-mounted and surface-mounted installation

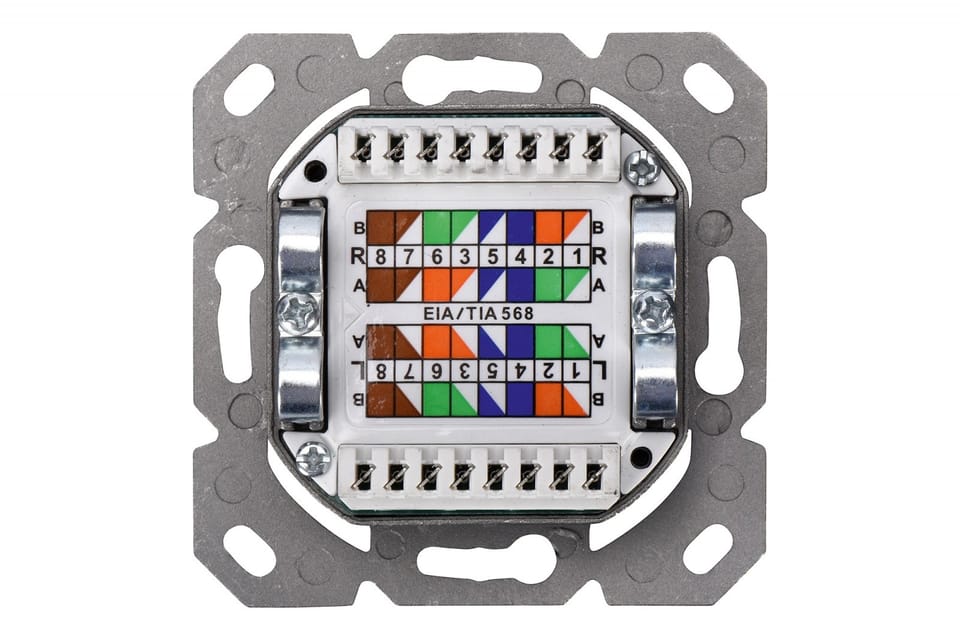

- Cable installation via color-coded LSA strips according to EIA/TIA 568 A & B
- Integrated strain relief for installation cables

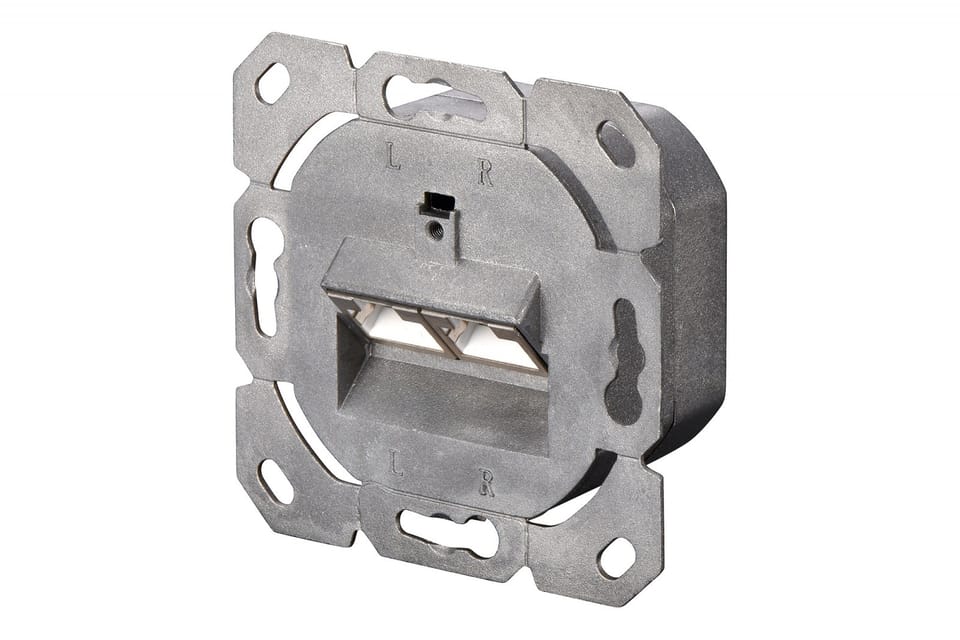

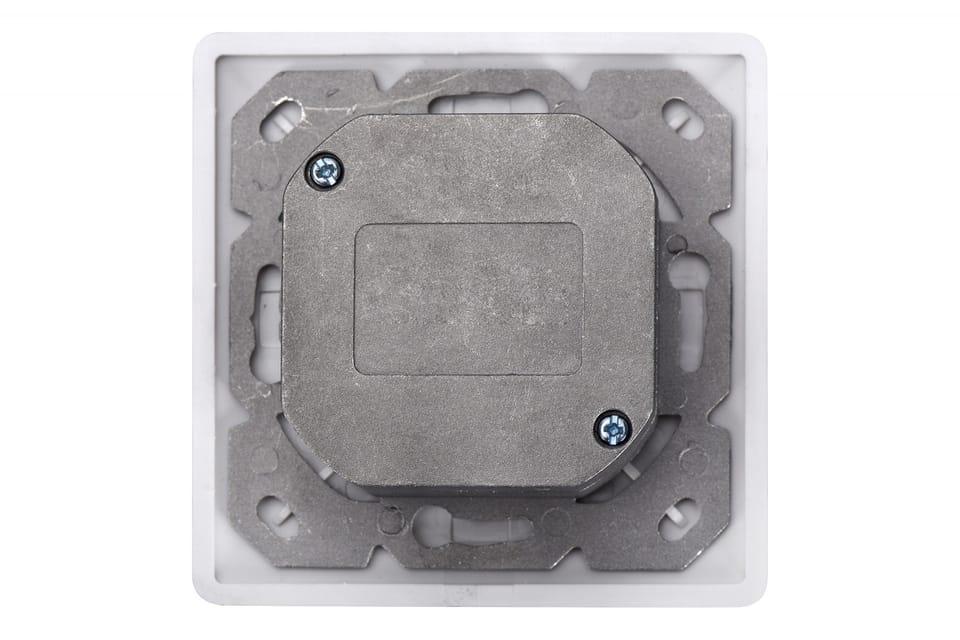

- Complete shielding of RJ45 sockets and LSA strips thanks to a complete die-cast metal housing
- Strain-relieving 40° socket angle for patch cords

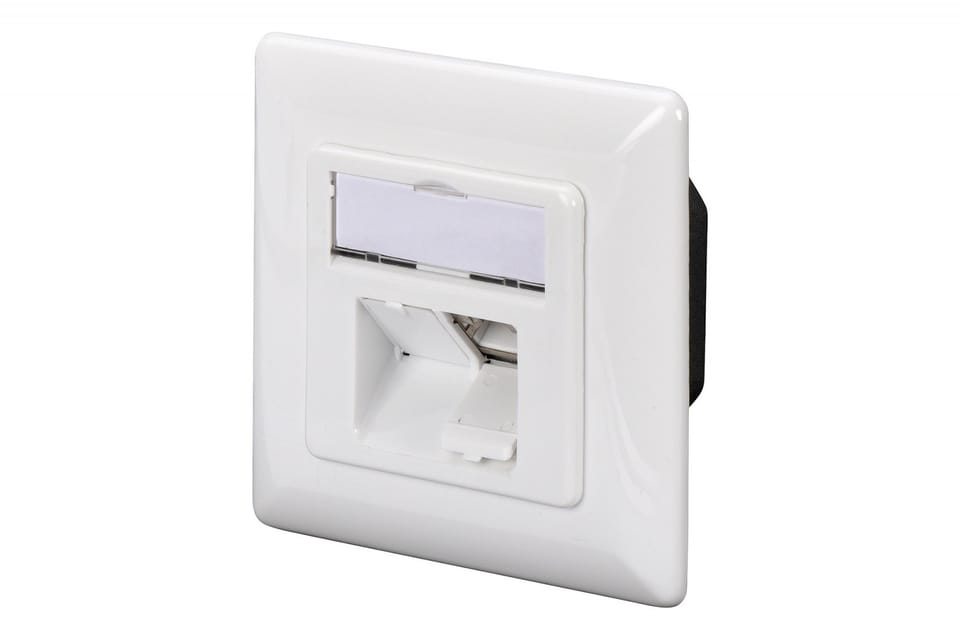

- Center plate with integrated dust protection flaps
- Design compatibility with all standard switch programs
- Technical properties:
- Body material: Die-cast metal housing
- RJ45 jack material: ABS UL 94V-0
- RJ45 socket contact: nickel-plated phosphor bronze, gold-plated contact 0.5
- RJ-45 shielding: nickel-plated bronze
- LSA knife clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
- Printed circuit board: FR4, UL 94V-0
- Physical properties:
- Plug force: 30 N max. (IEC 60603-7-5)
- Tensile load: 7.7 kg between socket and plug
- Operating temperature: -20°C to +70°C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
- Socket plug cycle: > 750 according to ISO/IEC 11801, IEC 60603-7-5
- Terminal: > 200 according to ISO/IEC 11801, IEC 60603-7-5
- Conductor size: 22-26 AWG solid and twisted wire
- Insulation resistance: > 500 megohms
- Contact resistance: < 20 milliohms
- Voltage resistance: 1000 V DC (contact/contact), 1500 V DC (contact/ground)
- Color: white RAL9003
