| Baud: | 115200 bps |
|---|---|
| Control: | RS-485 |
| Current consumption: | 60 mA @ 12 VDC |
| Current efficiency: | 2 A (single output), 8 A (total) |
| Dimensions: | 120 x 90 x 36 mm |
| Output: | 8 pcs. |
| Power: | 7 volts ... 26 V DC (not included power supply) |
| Producer / brand: | DELTA |
| Protocol: | MODBUS |
| Scales: | 0.09 kg |
| Warranty: | 2 years |

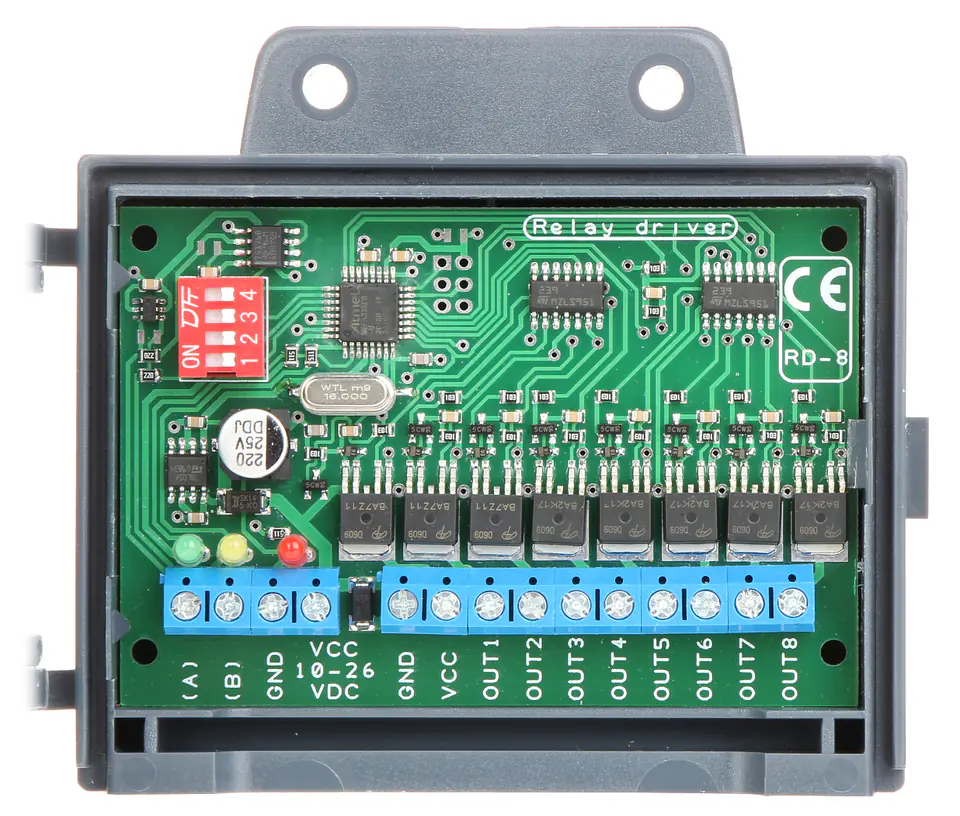

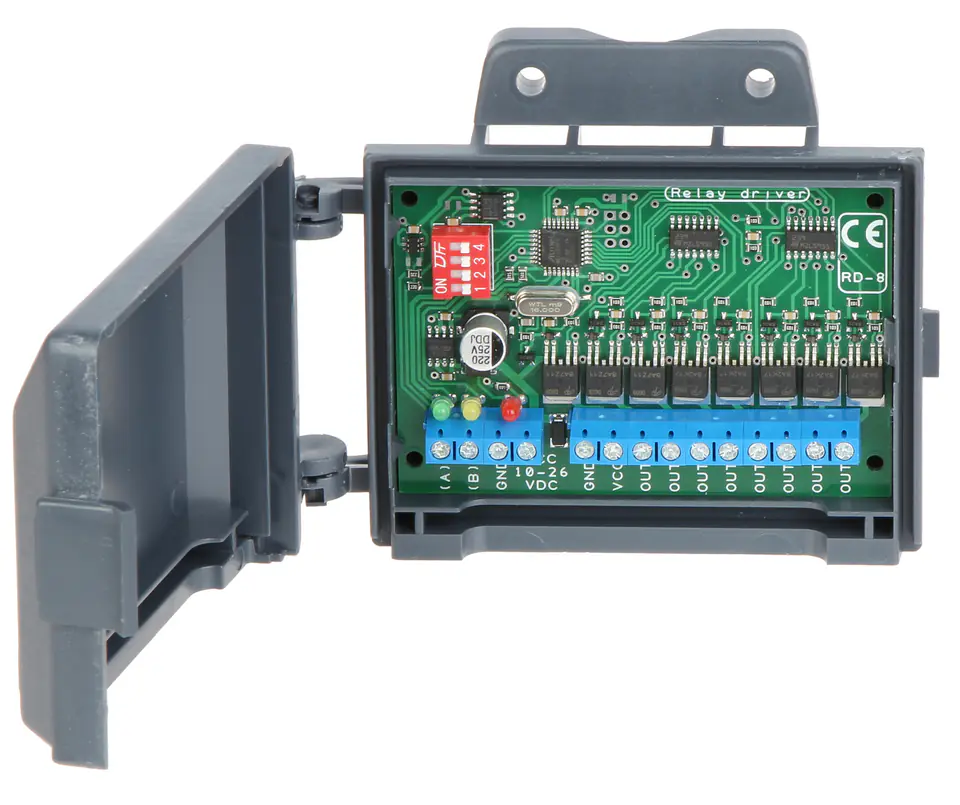

The Modbus RD-8 digital output module has 8 transistor outputs
The outputs can take two states: ground potential or power input potentialMaximum load of a single output is 2AUthe device is controlled by the Modbus RTU protocol on the RS-485 bus The free app allows you to control up to 4 modules
