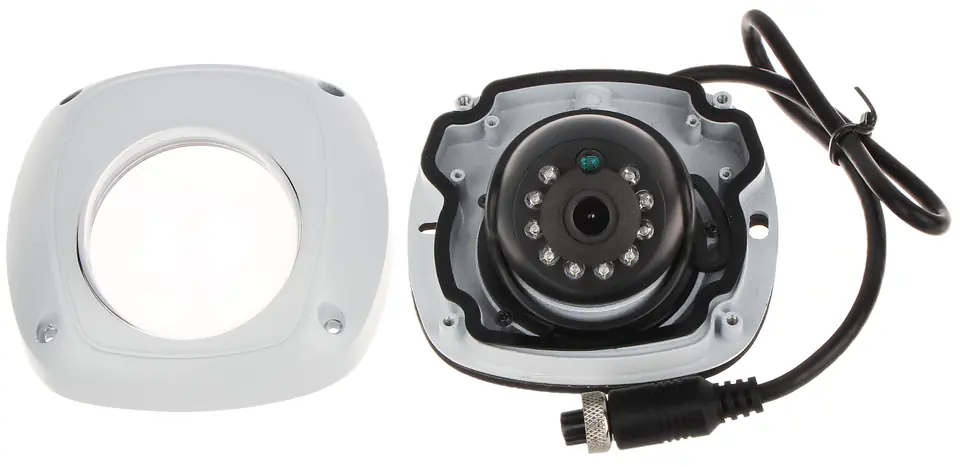

The ATE-CAM-CVBS925 camera is designed for outdoor installation
The camera meets IP65 protection class
MOBILE CAMERA PAL ATE-CAM-CVBS925 - 960H 2.8 mm AUTONE
€54.97
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- AUTONE
- Product code:
- ATE-CAM-CVBS925 / 5902887064678
Share this product:
Specification
| Case: | Dome, Metal |
|---|---|
| Colour: | white |
| Dimensions: | 99 x 97 x 57 mm |
| Ir illuminator range: | 10 m |
| Objective: | 2.8 mm |
| Operating temperature: | -20 °C ... 60 °C |
| Power: | 12 V DC / 420 mA - 12 VDC power supply directly from the DVR |
| Power consumption: | < 5 W |
| Producer / brand: | AUTONE |
| Resolution: | 960 x 576 - 960H |
| S/n ratio (s/n): | > 50 dB |
| Scales: | 0.28 kg |
| Selected features: | AGC - Automatic image gain adjustment BLC - backlight compensation ICR filter - cooperation with IR illuminators Automatic white balance Sharpness - Sharpening image contours |
| Sensor size: | 1 MP |
| Standard: | CVBS - PAL |
| Transducer: | 1/3" CMOS |
| Use: | The camera is designed for outdoor mounting |
| Video output: | 1 Vpp / 75 Ω - M12 socket, 4-pin, Code A |
| Viewing angle: | 91 ° (manufacturer data)86 ° (our tests) |
| Warranty: | 2 years |
