| Cable length:: | 0.4 m |
|---|---|
| Case:: | Metal |
| Colour:: | Black |
| Dimensions:: | 90 x 77 x 63 mm |
| Ir illuminator range:: | 15 m |
| Matrix size:: | 2.1 Mpx |
| Objective:: | 3.6 mm |
| Operating temperature :: | -20 °C ... 50 °C |
| Power consumption:: | 3 watts |
| Power:: | 12 V DC / 250 mA - 12V DC power supply for cameras directly from the dvr |
| Resolution:: | 1920 x 1080 - 1080p |
| Scales:: | 0.28 kg |
| Sealing:: | IP69 |
| Selected features:: | ICR filter - cooperation with IR illuminators Thanks to the "Starlight" technology used, the camera is enough very low illumination to obtain a clear color image Rotating body |
| Standard:: | AHD |
| Transducer:: | 1/2.9" Sony CMOS |
| Use:: | The camera is designed for outdoor installation of vehicles |
| Video output:: | 1 Vpp / 75 Ω - M12 socket, 4-pin, Code A |
| Viewing angle:: | 110 ° |
| Warranty:: | 2 years |

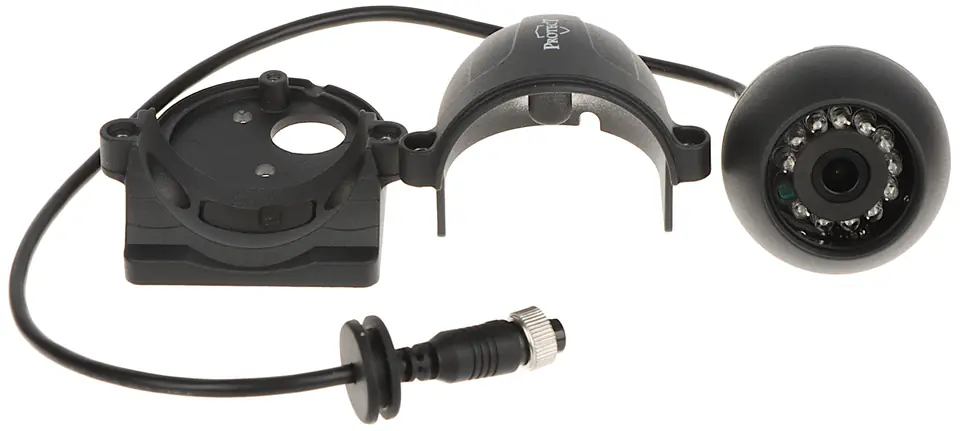

Protect-C360 camera is designed for outdoor installation of vehicles
AHD interface enables the transmission of analog, complex video signal via coaxial cableDuringus there are no delays and the original, high image quality is preserved
Thanks to the "Starlight" technology used, the camera is satisfied with very low illumination to obtain a clear color imageThe camera meets the IP69 protection class
