| Case: | Dome, Metal |
|---|---|
| Colour: | white |

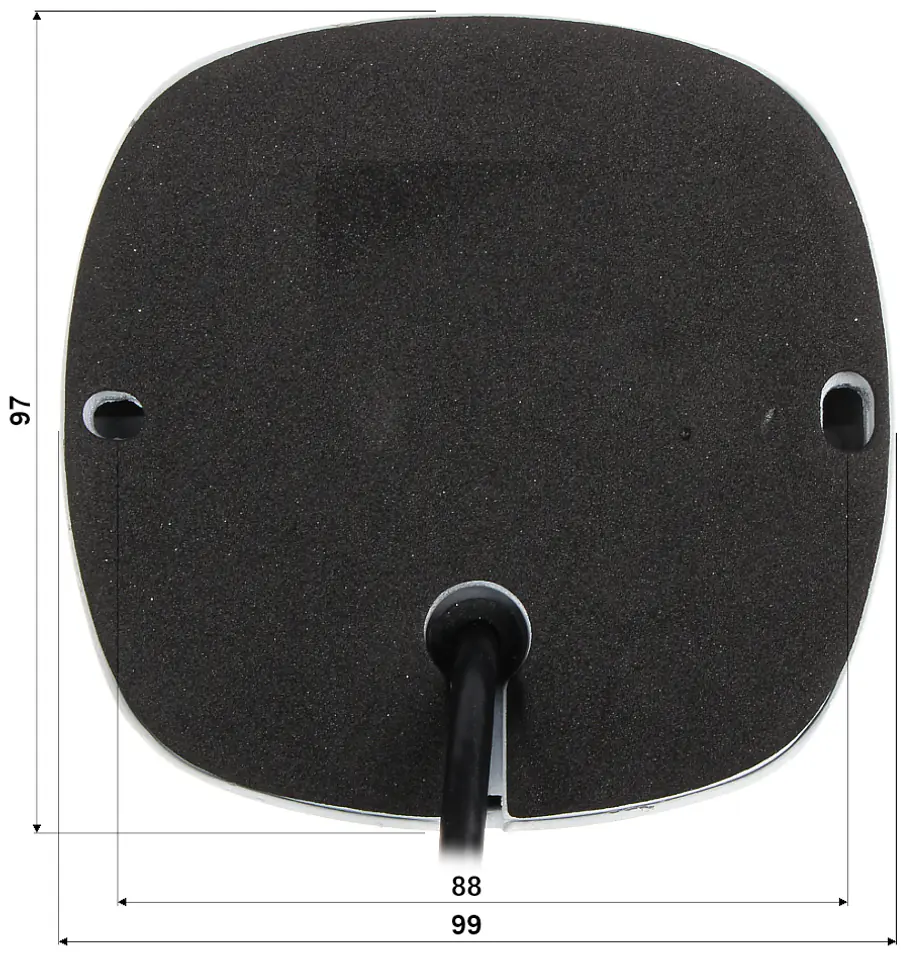

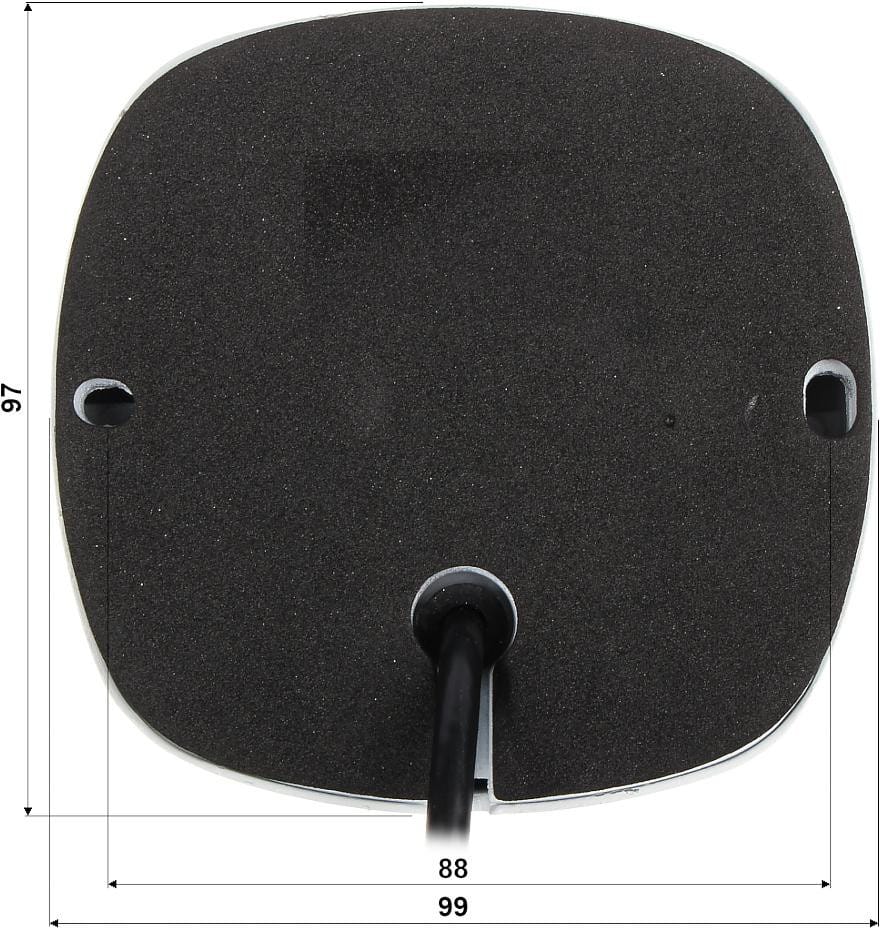

| Dimensions: | 99 x 97 x 57 mm |
| Ir illuminator range: | 10 m |
| Objective: | 2.8 mm |
| Operating temperature: | -20 °C ... 60 °C |
| Power: | 12 V DC / 420 mA - 12 VDC power supply directly from the DVR |
| Power consumption: | < 5 W |
| Producer / brand: | AUTONE |
| Resolution: | 1920 x 1080 - 1080p |
| S/n ratio (s/n): | ≥ 58 dB |
| Scales: | 0.28 kg |
| Selected features: | AGC - Automatic image gain adjustment BLC - backlight compensation ICR filter - cooperation with IR illuminators Automatic white balance Sharpness - Sharpening image contours |
| Sensor size: | 2.1 MP |
| Standard: | AHD |
| Transducer: | 1/3" Sony CMOS IMX323 |
| Use: | The camera is designed for outdoor mounting |
| Video output: | 1 Vpp / 75 Ω - M12 socket, 4-pin, Code A |
| Viewing angle: | 91 ° (manufacturer data)86 ° (our tests) |
| Warranty: | 2 years |

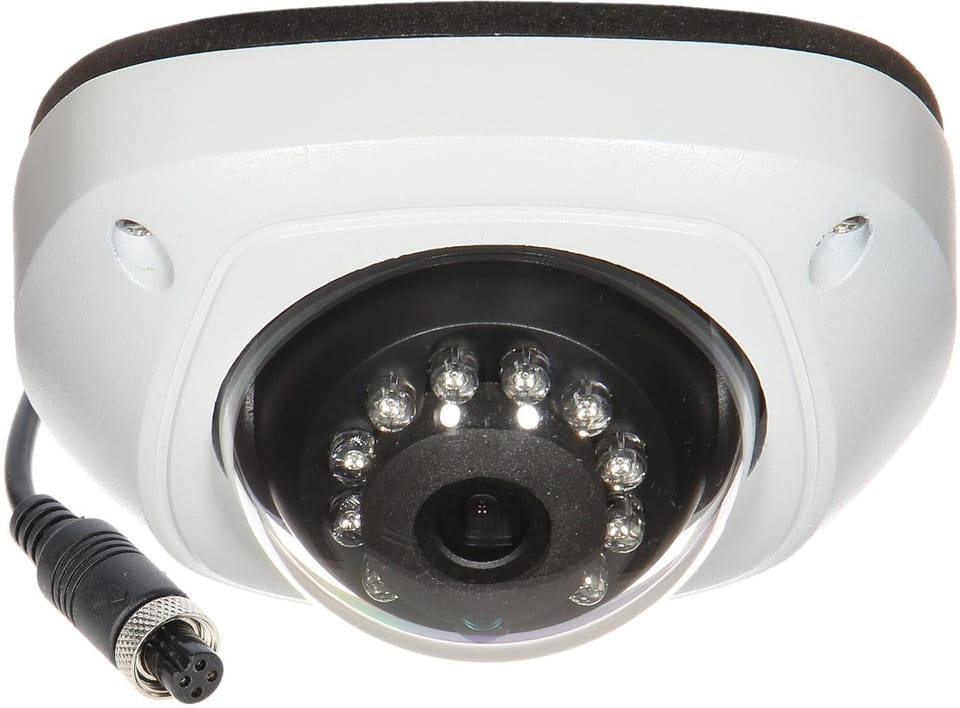

The ATE-CAM-AHD925HD camera is designed for outdoor use
AHD interface enables transmission of analog composite video signal via coaxial cable During transmission, there are no delays and the original, high image quality is maintained
The camera meets IP65 protection class
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
