| Audio:: | Built-in microphone - The microphone is located at the camera directed to the interior of the vehicle (CAM2), The sound transmission is carried out by the signal path of the camera directed outside the vehicle (CAM1) |
|---|---|
| Cable length:: | 3 m |
| Case:: | Plastic |
| Colour:: | Black |
| Dimensions:: | 115 x 71 x 66 mm |
| Ir illuminator range:: | 10 m |
| Manufacturer / brand:: | AUTONE |
| Matrix size:: | 2.1 Mpx |
| Objective:: | 2.8 mm - front, 2.1 mm - rear |
| Operating temperature :: | -10 °C ... 50 °C |
| Power consumption:: | < 10 W (łącznie) |
| Power:: | 2 x 12 V DC / 420 mA - 12V DC power supply for cameras directly from the DVR |
| Resolution:: | 1920 x 1080 - 1080p |
| S/n ratio:: | ≥ 58 dB |
| Scales:: | 0.27 kg |
| Selected features:: | AGC - Automatic BLC Image Gain Adjustment - Backlight Compensation Automatic White Balance Sharpness - Sharpening Image Contours |
| Sensitivity:: | 0.001 Lux |
| Standard:: | AHD |
| Transducer:: | 1/3" Sony CMOS IMX323 |
| Use:: | The camera is designed for installation inside vehicles |

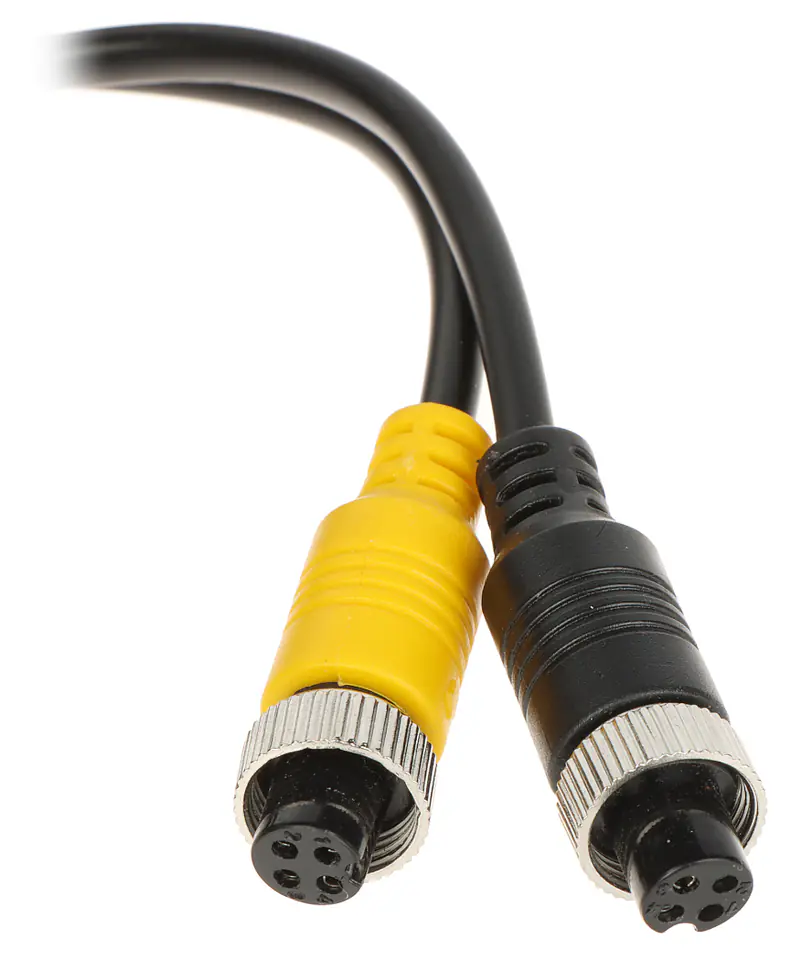

| Video output:: | 2 x 1 Vpp / 75 Ω - Socket M12, 4-pin, Code A |
| Viewing angle:: | 89° - front / 107 ° - back (manufacturer data) 95 ° - front / 113 ° - back (our tests) |
| Warranty:: | 2 years |

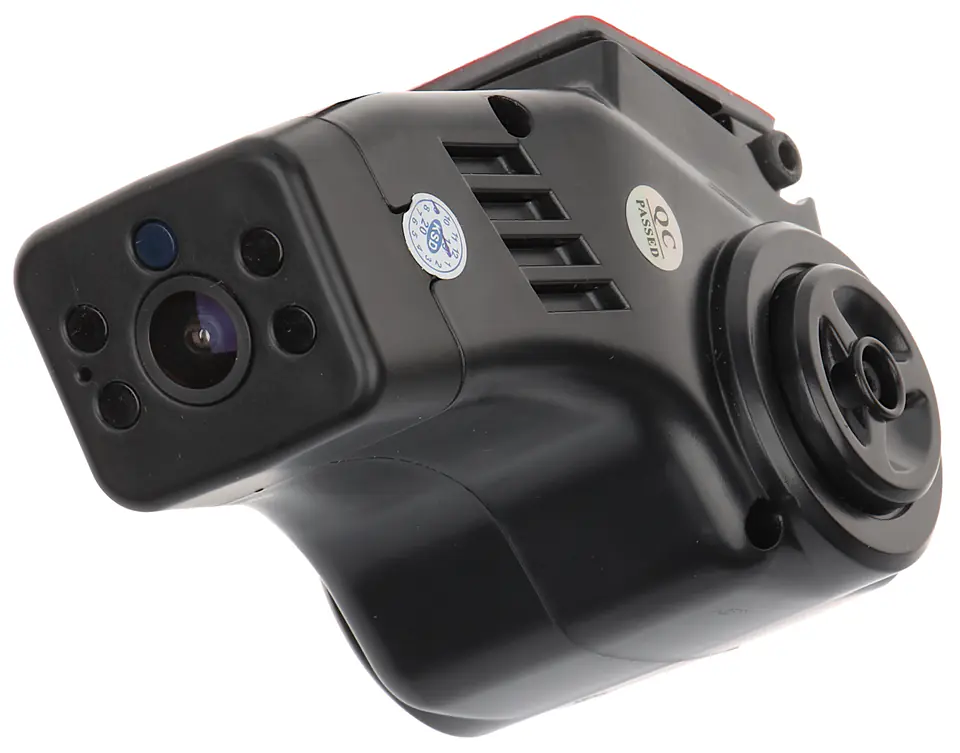

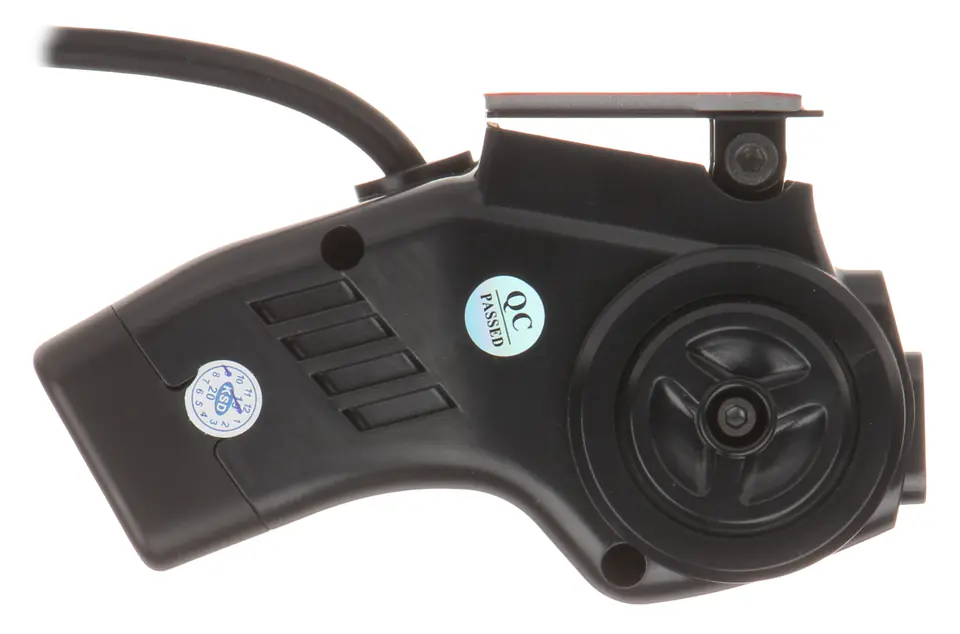

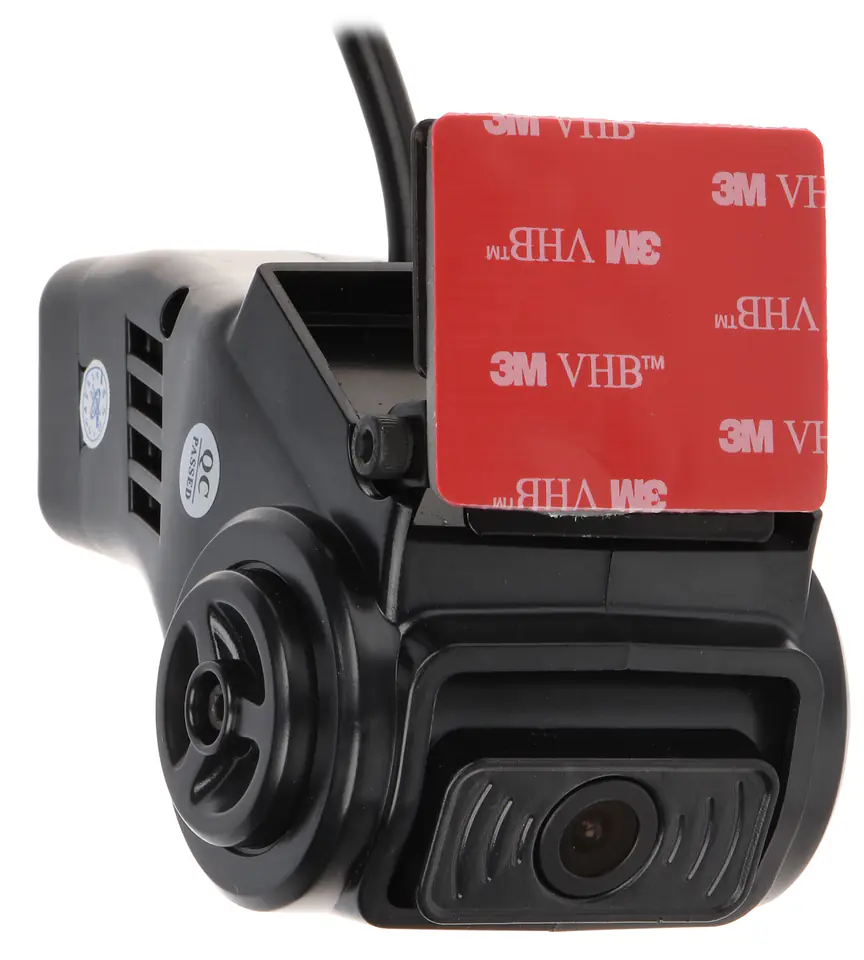

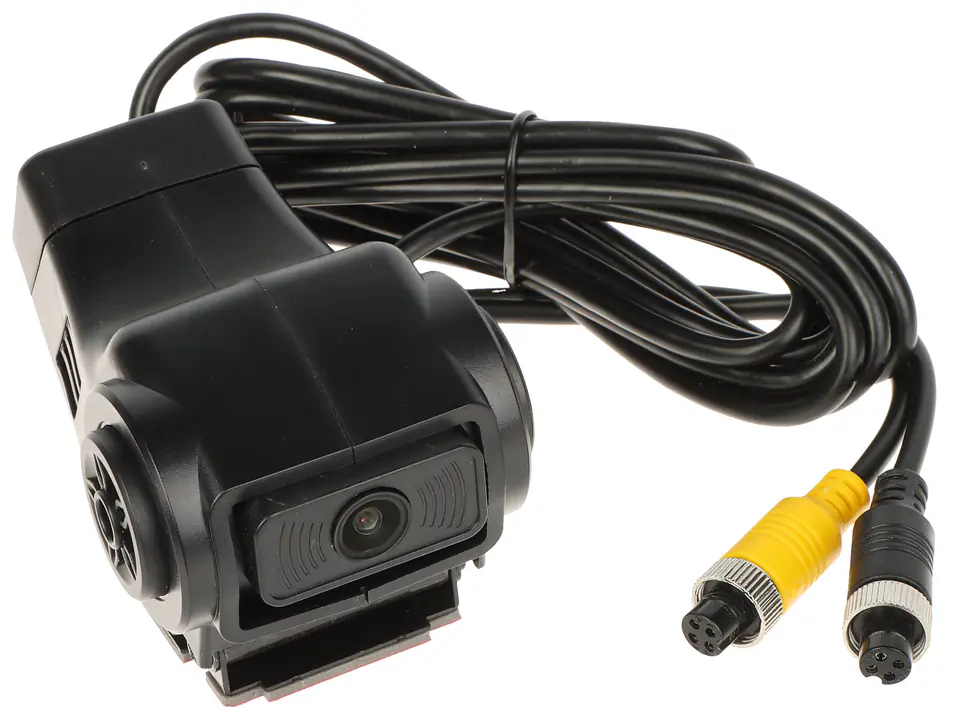

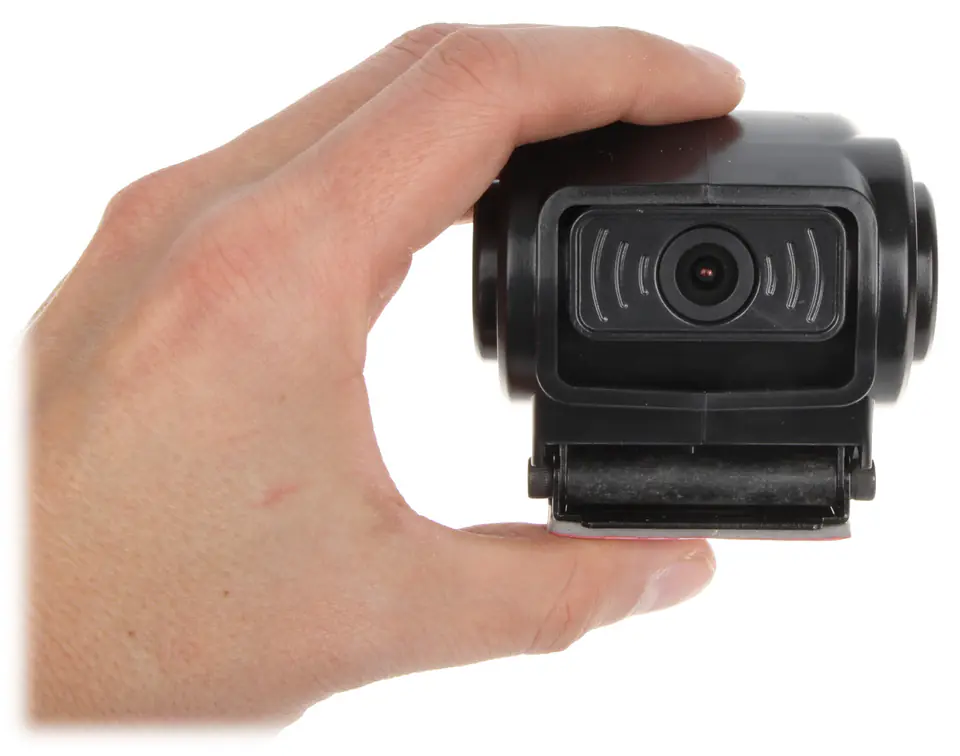

The ATE-CAM-AHD650HD dual camera is designed for installation inside vehiclesThe design of the device allows you to record both what is in front of or behind the vehicle and inside it
The device can also act as a reversing cameraIn addition, the IR illuminator used in the camera facing the interior of the vehicle makes it easier to observe the driver and passengers in difficult lighting conditions
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
