| Case:: | Dome, Metal |
|---|---|
| Colour:: | Olive |

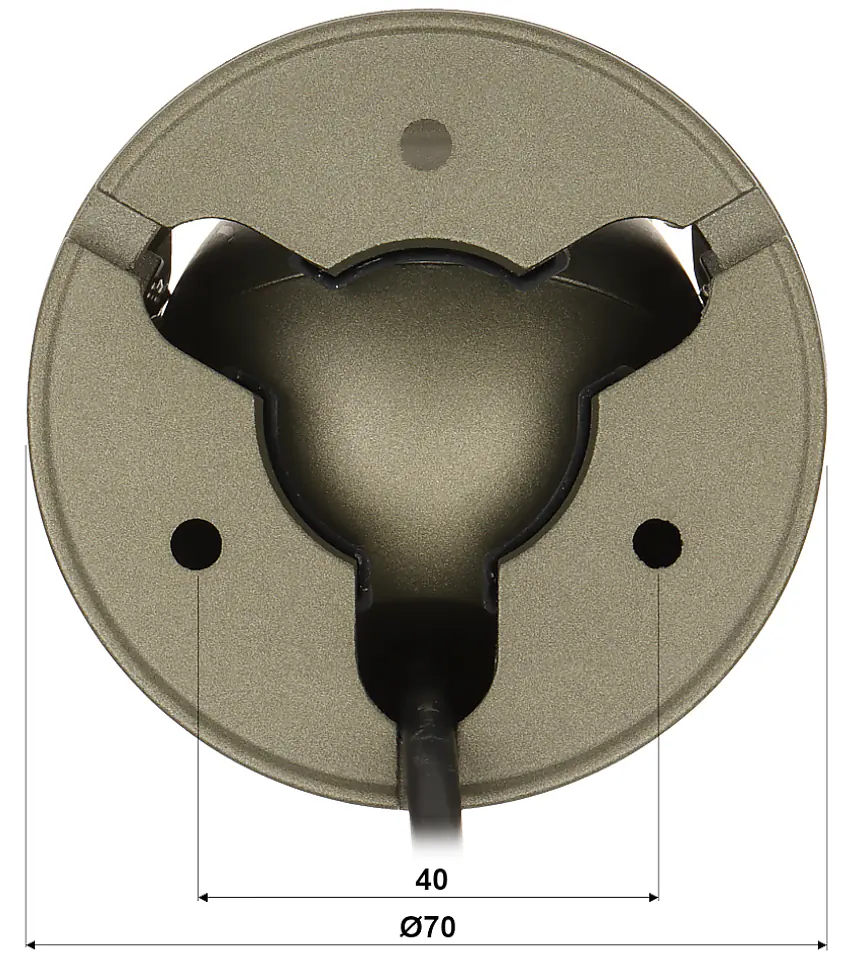

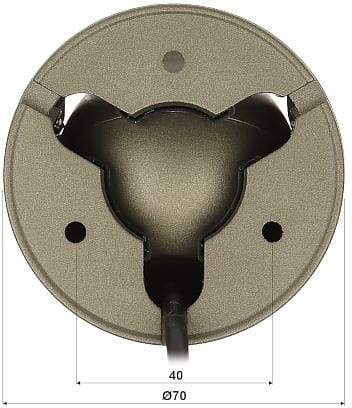

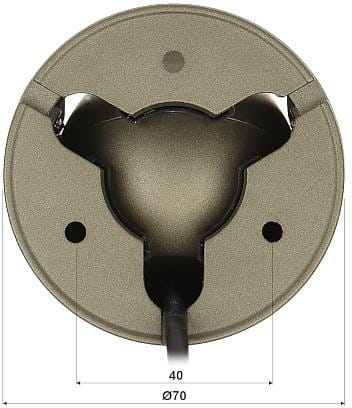

| Dimensions:: | Ø 70 x 58 mm |
| Ir illuminator range:: | 10 m |
| Manufacturer / brand:: | AUTONE |
| Matrix size:: | 2.1 Mpx |
| Objective:: | 2.8 mm |
| Operating temperature :: | -20 °C ... 60 °C |
| Power consumption:: | < 5 W |
| Power:: | 12 V DC / 420 mA - 12V DC power supply for cameras directly from the recorder |
| Resolution:: | 1920 x 1080 - 1080p |
| S/n ratio:: | ≥ 58 dB |
| Scales:: | 0.16 kg |
| Sealing:: | IP66 |
| Selected features:: | AGC - Automatic BLC Image Gain Adjustment - Backlight (Background) Compensation Auto White Balance ICR Filter - Compatible with IR Sharpness Illuminators - Image Contour Sharpening |
| Standard:: | AHD |
| Transducer:: | 1/3" CMOS |
| Use:: | The camera is designed for outdoor installation of vehicles |

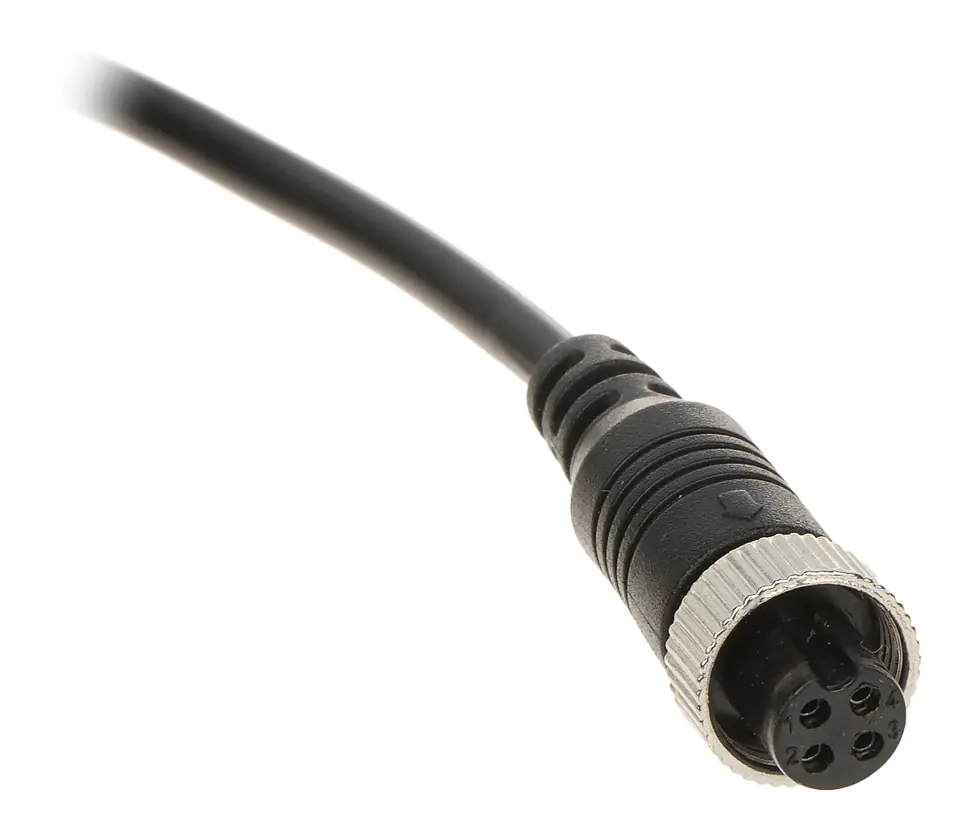

| Video output:: | 1 Vpp / 75 Ω - M12 socket, 4-pin, Code A |
| Viewing angle:: | 89° (manufacturer data)91° (our tests) |
| Warranty:: | 2 years |

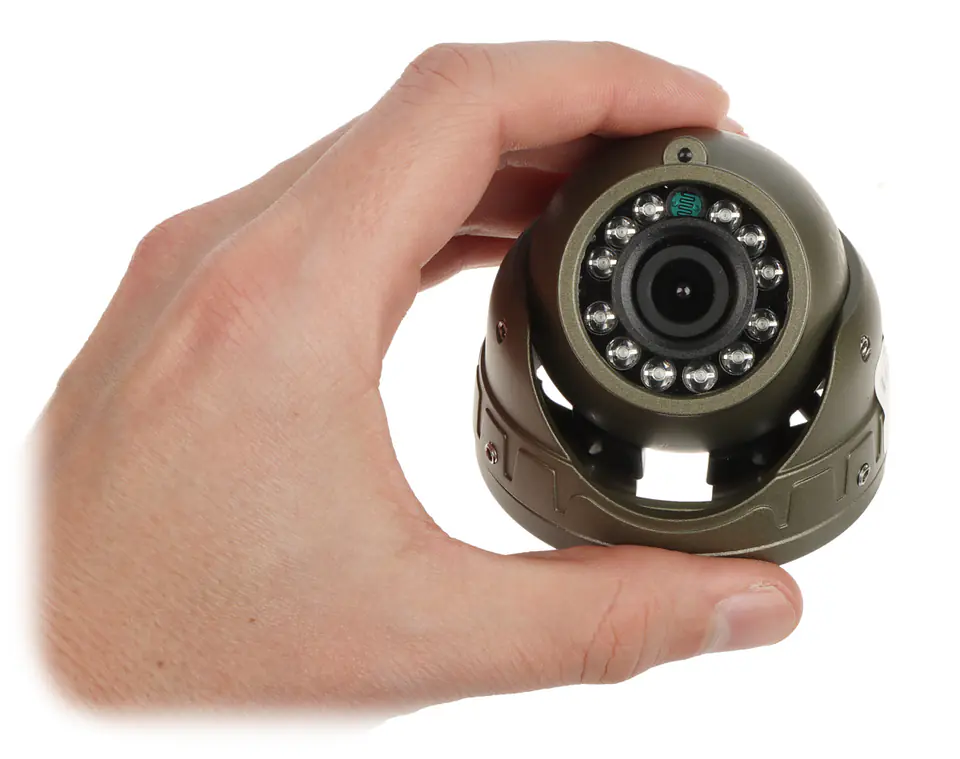

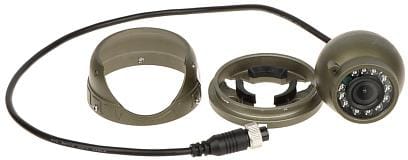

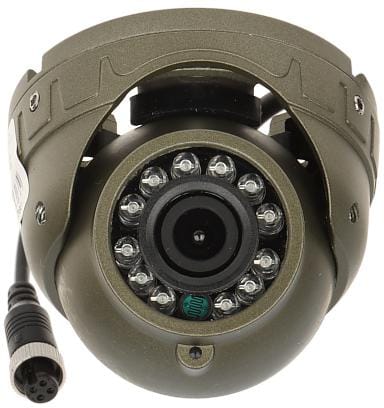

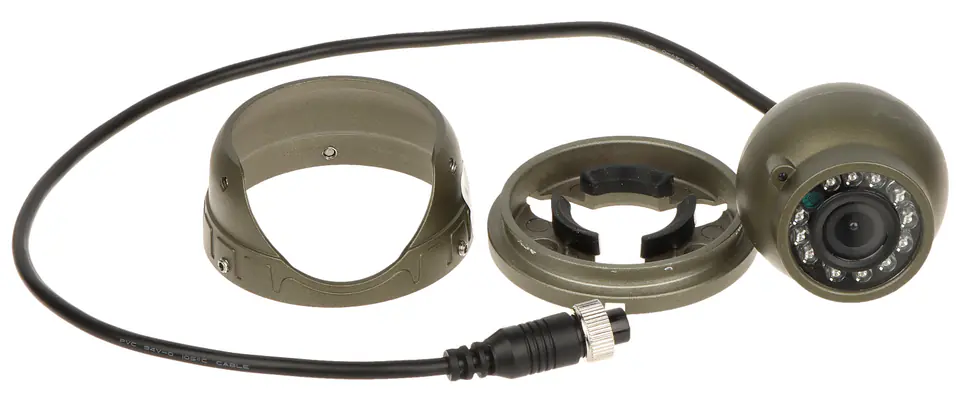

ATE-CAM-AHD238HD-V2 camera is designed for outdoor installation of vehicles
AHD interface enables the transmission of analog, complex video signal via coaxial cableDuringus there are no delays and the original, high image quality is preserved
The camera meets IP66 protection class
