Manufacturer no: 10021385

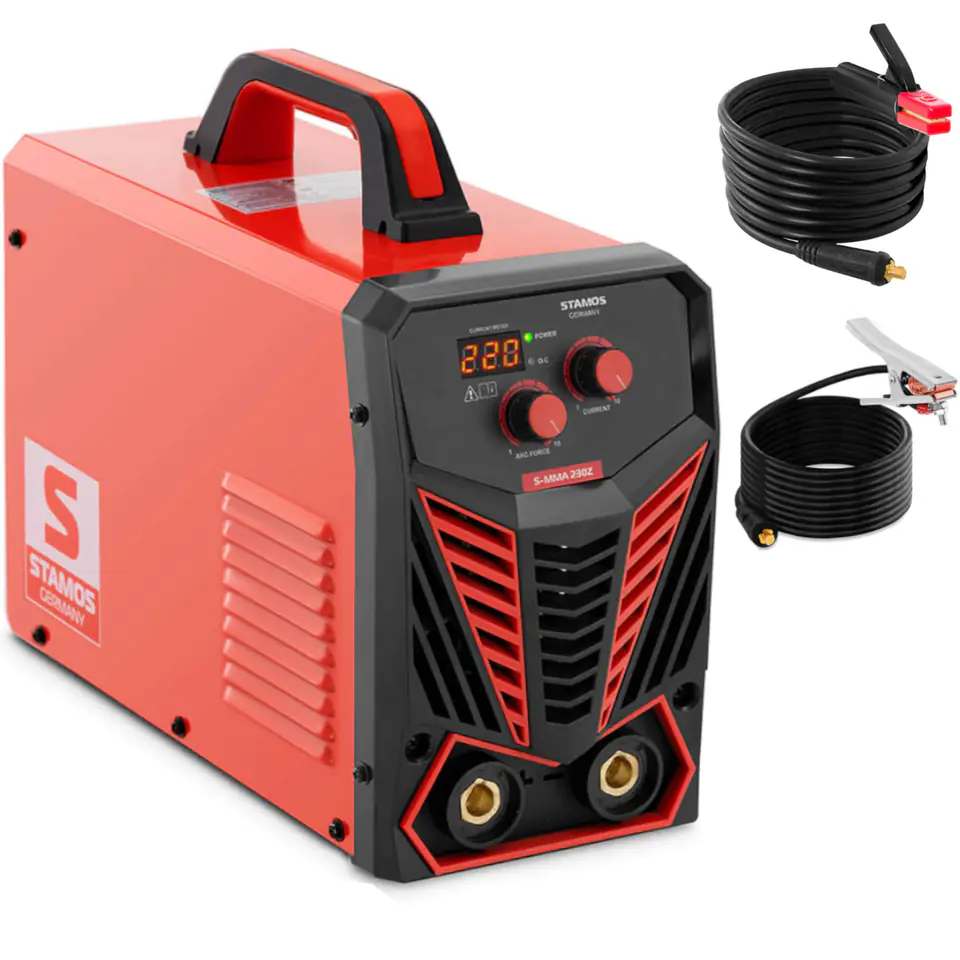

Stamos Germany welding machine is a handy device for welding with a coated electrode with 8 m long wires. The welding current is selected in the range of 20-220 A using a knob. To achieve a 100% duty cycle, the welding current must be adjusted below 110 A. An easy-to-read LED display allows you to check the set values. Long, 8 m welding and grounding cables provide maximum freedom of movement. To quickly make clean and strong welds with reduced splash, use acid or alkaline electrodes with a diameter of 1.6-5.0 mm. The device is designed for welds with a thickness of up to 20 mm. The 61 V open circuit voltage and the Hot Start function allow you to easily catch the arc and achieve optimal welding results. Arc Force allows you to adjust the arc to the material to be welded to achieve the desired density welds. IGBT technology is characterized by increased efficiency. The equipment reliably compensates for fluctuations in mains voltage by +/- 10%. Since no shielding gas is required for MMA welding, it can be effectively welded outdoors even under adverse conditions. The MMA welding machine combines materials such as steel, iron, cast iron, nickel or copper. The fan cools the device to protect it from overheating. The plastic housing and front cover are shock and vibration resistant. Insulation, anti-static and low-corrosion design ensure safe operation for many years.
Product features:
- - Compact design and powerful IGBT inverter,
- - Freedom of movement thanks to MMA welding torch and 8 m grounding torch cables,
- - Welding current from 20 to 220 A and 100% duty cycle at 110 A,
- - Clean welding effects thanks to Hot Start, Arc Force and stable arc,
- - Stepless control and LED display.
- - Model - S-MMA230Z
- - Catalogue number - 10021385
- - Article status - New
- - Voltage [V] - 230
- - Case cooling - Fan
- - Duty cycle [%] - 25
- - MMA cable [m] - 8
- - Power cord [m] - 2,3
- - Rated input power [kVA] - 10,8
- - Ground cable [m] - 8
- - Power factor - 0,73
- - Maximum input power [kVA] - 10,8
- - Insulation class - F
- - Maximum input current [A] - 46,3
- - Weldable thickness [mm] - 20
- -Max. welding current [A] - 220
- - Min. welding current [A] - 20
- - IP rating - IP21S
- - Rated input current [A] - 23,2
- - Idle voltage [V] - 61
- - Welding cycle current 60% [A] - 141
- - Welding cycle current 100% [A] - 110
- - Dimensions (LxWxH) [cm] - 38 x 15,5 x 32
- - Weight [kg] - 5,9
- - Shipping dimensions (LxWxH) [cm] - 46,5 x 30 x 36
- - Shipping weight [kg] - 10,6
- - Welding machine
- - Welding torch with cable (8 m)
- - Grounding terminal with wire (8 m)
- -Manual
