Pinch and dredger combination system
Design: system consisting of a handle, countersink and guide pivot. GFS pivot dredge systems provide countersinking of any number of holes, thanks to the possibility of folding various combinations of shank, countersink and guide journal.
Advantages:
1. For countersinking range from 5mm to 85mm, only 4 handle sizes are needed.
2. Guide journals in size 1 from diameter 8,5 mm and in size 2 from diameter 14,0 mm rotating and equipped with internal cooling.
3. Possibility of delivery from stock of dredges with guide pivot, HSS with TiN coating, with soldered carbide blades.
4. Dredges from diameter 32 mm also available with replaceable inserts.
5. Any possibility of combining individual elements within one size.
6. Possible replacement of guide journals without removing the dredger.
Application: for DIN countersinks as well as for suitable journal and countersink combinations for stepped holes or out-of-standard countersinks. When replacing, the handle remains in the machine. With a hexagonal head screwdriver according to DIN 911, the countersink and guide journal are attached.
Note: Sufficient coolant must be provided.

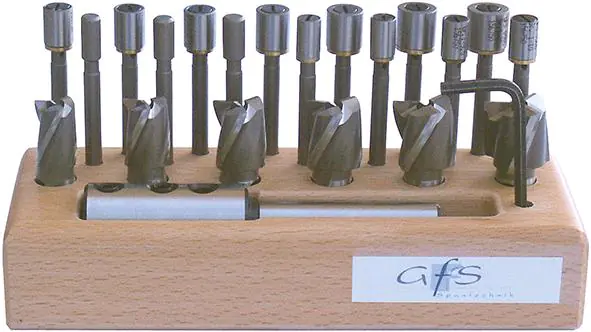

Content:
1 dredger 26 each; 28; 30; 32; 33; 34; 36
12 dredger each; 13; 14; 15; 16; 17; 18; 19; 20; 21; 22; 23; 24; 25
1 handle with Morse cone grip 3 Contents:
1 dredger 26 each; 28; 30; 32; 33; 34; 36
12 dredger each; 13; 14; 15; 16; 17; 18; 19; 20; 21; 22; 23; 24; 25
1 handle with Morse cone grip 3
