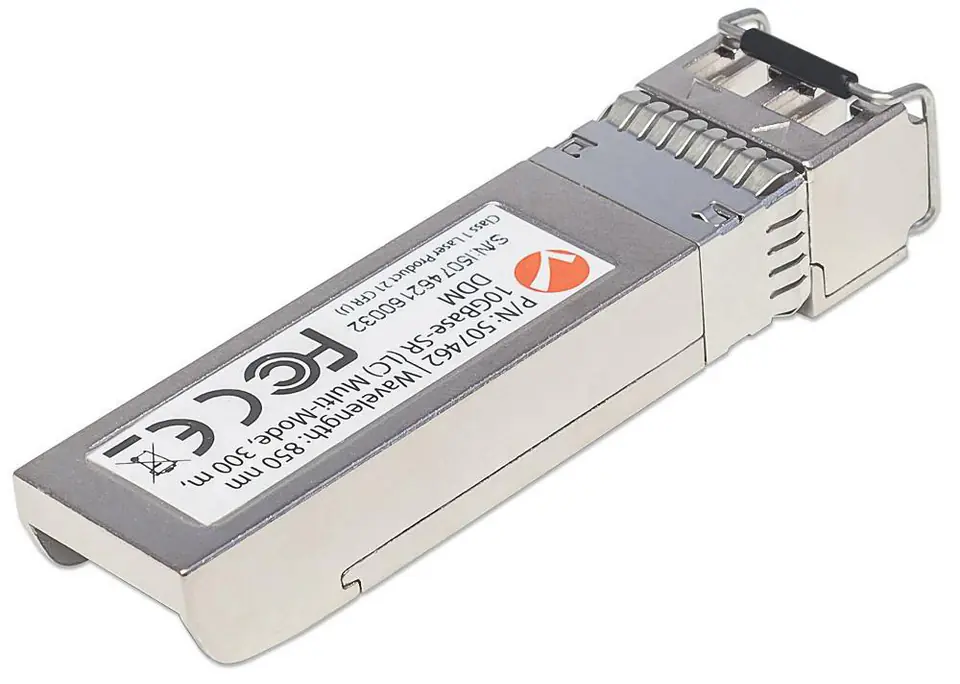

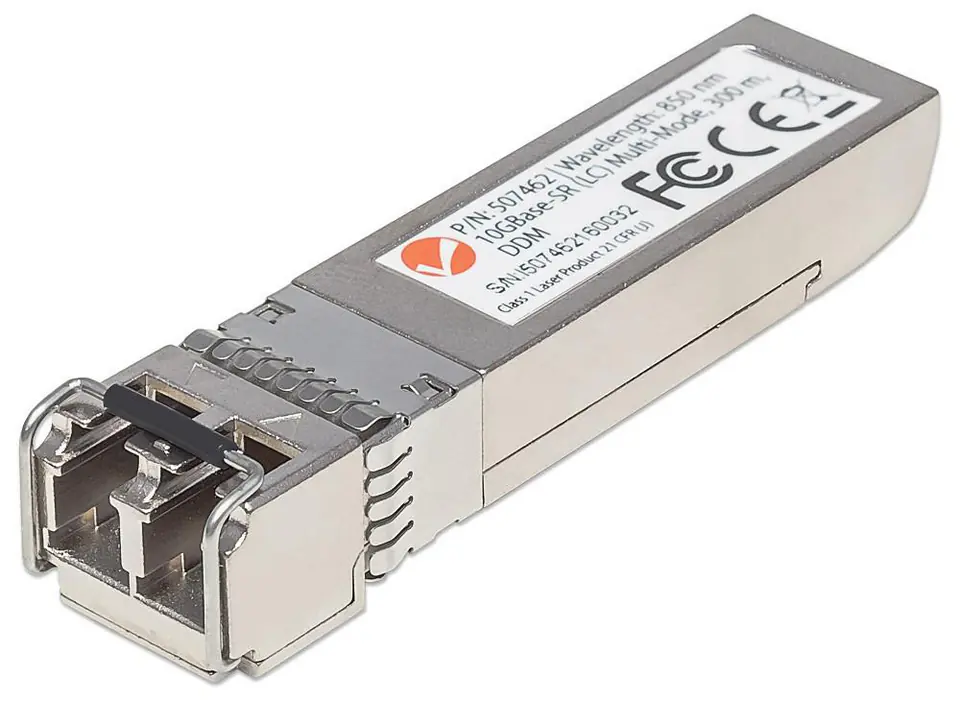

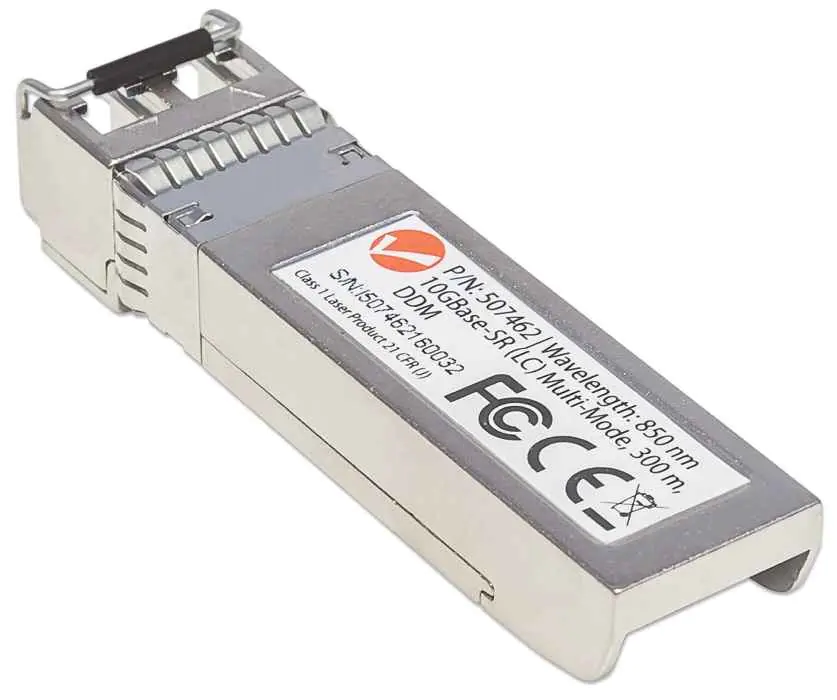

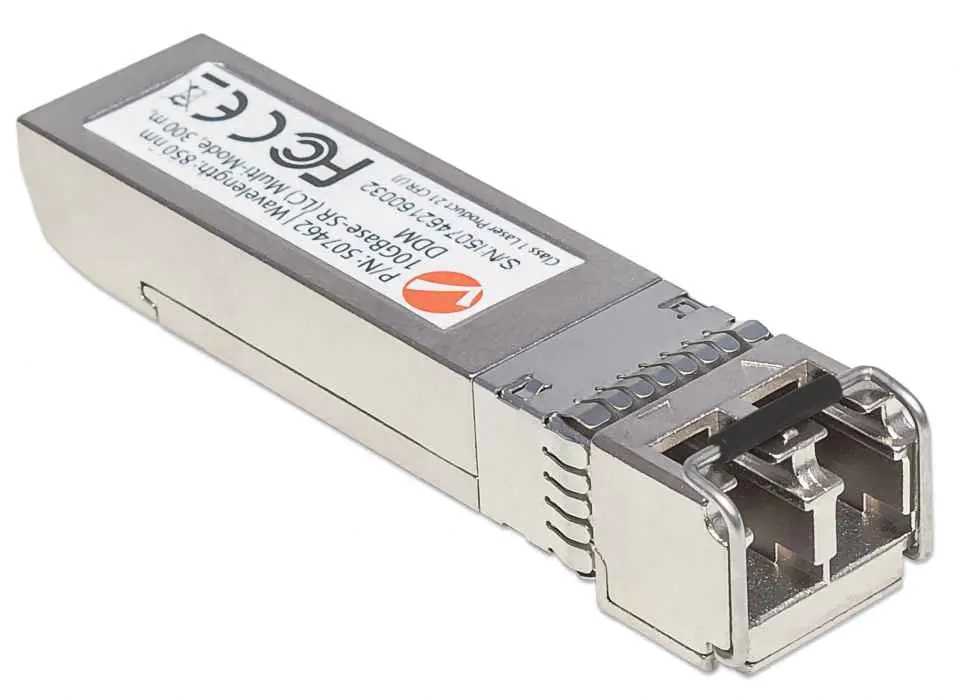

Mini GBIC SFP+10G Base-SR LC Multimode 850nm module
€86.10
Shipping from warehouse: T2
Estimated shipping: Tue, Nov 19 - Fri, Nov 22
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- INTELLINET NETWORK SOLUTIONS
- Product code:
- 507462 / 0766623507462
Share this product:
Specification
| Colour: | Silver |
|---|---|
| Compliance certificates: | RoHS |
| Depth: | 57 mm |
| Destiny: | Fits any Intellinet Gigabit Switch with SFP slot, Fits MSA or Cisco devices with SFP-compliant slots |
| Digital diagnostics monitoring (ddm): | Yes |
| Dimensions (cm): | 1.4 x 1.2 x 5.7 |
| Duplex system: | Full |
| Ethernet interface type: | Gigabit Ethernet |
| Features: | Wavelength: 850nm, One 10GBase-SR multimode LC duplex optical port, Bandwidth: 10 Gbps, Maximum supported fiber length: 300 m, SFP Multi-Source Agreement (MSA) compliant, Digital Diagnostics Monitoring (DDM) support |
| Fiber cable diameters supported (core/cladding): | 50/125, 62.5/125 µm |
| Fiber ethernet cabling technology: | 10GBASE |
| Fiber optic connector: | LC |
| Harmonized system (hs) code: | 85369010 |
| Height: | 12 mm |
| Hot-plug support: | Yes |
| Interface type: | SFP+ |
| Kind: | Module |
| Link budget: | 7 dB |
| Material: | Metal |
| Maximum data transfer rate: | 11100 Mbit/s |
| Maximum transfer distance: | 300 m |
| Maximum voltage: | 3.3 V |
| Multi-mode fiber (mmf) supported: | Yes |
| Networking standards: | IEEE 802.3z, IEEE 802.3ae |
| Number of products included: | 1 pc(s) |
| Operating relative humidity (h-h): | 10 - 85% |
| Operating temperature (t-t): | 0 - 70 °C |
| Power consumption (typical): | 1 W |
| Product colour: | Silver |
| Quantity per pack: | 1 pc(s) |
| Sfp transceiver standard: | SR |
| Sfp transceiver type: | Fiber optic |
| Storage temperature (t-t): | -40 - 85 °C |
| Sustainability certificates: | RoHS |
| Tx power (max): | -1 dBmW |
| Tx power (min): | -5 dBmW |
| Wavelength: | 850 nm |
| Weight: | 37 g |
| Width: | 14 mm |
