- Bandwidth: 1000 Mbps;
- One 1000Base-SX multimode fiber optic duplex port
- Supported distances: up to 550 m (50/125 microns) or 220 m (62.5 / 125 micron);
- Wavelength: 850 nm;
- Made in SFP (small form factor plugable) standard;
- Hot Plug connection (without switching off the switch);
- For use with the Intellinet Gigabit Switches, models 560801, 560818, 523929;
- Compliant with SFP Transceiver MSA specifications;

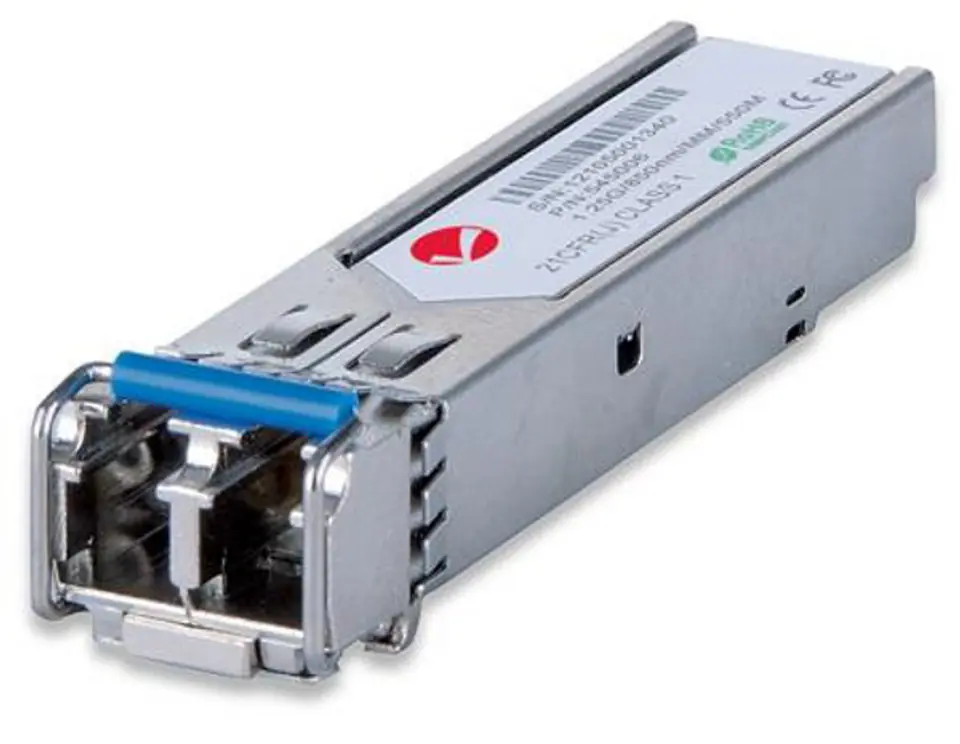

Mini GBIC SFP LC Multimode 550m module
€20.97
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- INTELLINET NETWORK SOLUTIONS
- Product code:
- 545006 / 0766623545006
Share this product:
Specification
| Colour: | Silver |
|---|---|
| Depth: | 55 mm |
| Duplex system: | Full |
| Ethernet interface type: | Gigabit Ethernet |
| Features: | Wavelength: 850nm, Multimode LC duplex, Up to 550m (50/125 cabling) or 220m (62.5/125 cabling) |
| Fiber cable diameters supported (core/cladding): | 62.5/125 µm, 50/125 |
| Fiber ethernet cabling technology: | 1000BASE |
| Fiber optic connector: | LC |
| Height: | 12 mm |
| Hot-plug support: | Yes |
| Input voltage: | 3.3 V |
| Interface type: | SFP |
| Kind: | Module |
| Link budget: | 8 dB |
| Material: | Metal, Plastic |
| Maximum data transfer rate: | 1000 Mbit/s |
| Maximum transfer distance: | 550 m |
| Multi-mode fiber (mmf) supported: | Yes |
| Networking standards: | IEEE 802.3z |
| Number of products included: | 1 pc(s) |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | 0 - 70 °C |
| Power consumption (typical): | 1 W |
| Product colour: | Aluminium |
| Quantity per pack: | 1 pc(s) |
| Sfp transceiver type: | Fiber optic |
| Storage temperature (t-t): | -40 - 85 °C |
| Tx power (max): | -3 dBmW |
| Tx power (min): | -8 dBmW |
| Wavelength: | 850 nm |
| Weight: | 15 g |
| Width: | 13 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
