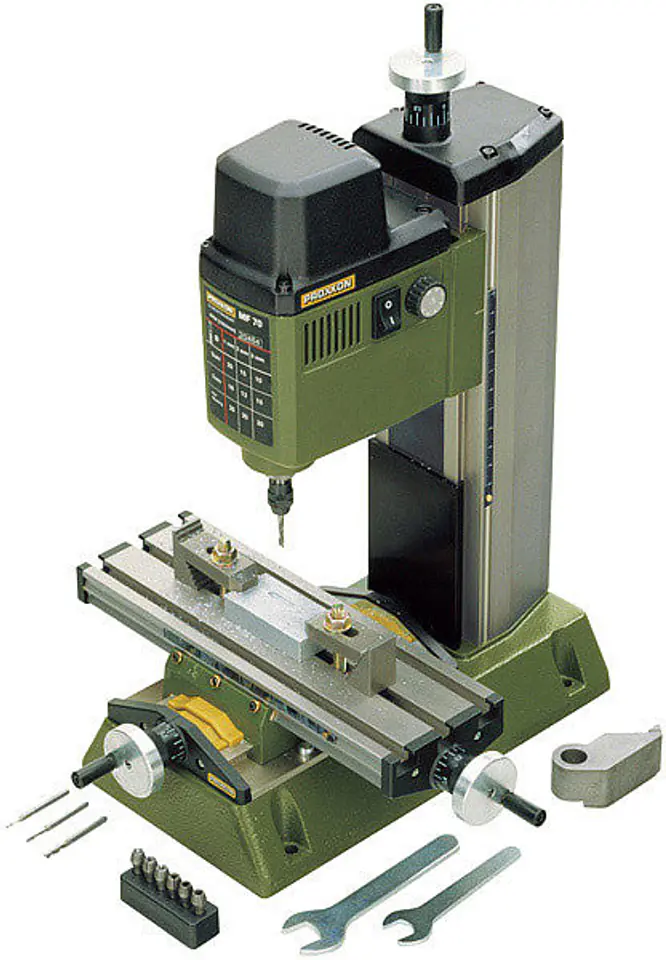

For work with very small cutters. Gray cast iron base. With vertical column and coordination tablefrom high quality aluminum.
Possibility of moving the table using repositionable guides. Die-cast aluminum head with a special (balanced) motor that is stable even at the highest operating speeds.
This feature makes it possible to use even the smallest cutters. Tool clamping thanks to MICROMOT tool clamps (hardened steel, three-jaw), one piece each 1 – 1.5 – 2 – 2.4 – 3 – 3.2 mm.
The table has three T-shaped grooves measuring 12 x 6 x 5 mm (according to the MICROMOT standard).
A movable guide with a scale makes it easy to position the workpiece. All knobs are manual with a scale from scratch. One full rotation = 1 mm, one cannon = 0,05 mm.
Technical data:
220 – 240 V, 100 W, 50/60Hz.
Revolutions from 5,000 to 20,000 rpm.
Table with dimensions of 200 x 70 mm.
Possibility of moving: along the X axis – 134 mm, along the Y axis – 46 mm and vertically 80 mm.
Base: 13 0x 225 mm.
Total height 370 mm.
Weight about 7 kg.
Mounting brackets included.
Possibility of moving the table using repositionable guides. Die-cast aluminum head with a special (balanced) motor that is stable even at the highest operating speeds.
This feature makes it possible to use even the smallest cutters. Tool clamping thanks to MICROMOT tool clamps (hardened steel, three-jaw), one piece each 1 – 1.5 – 2 – 2.4 – 3 – 3.2 mm.
The table has three T-shaped grooves measuring 12 x 6 x 5 mm (according to the MICROMOT standard).
A movable guide with a scale makes it easy to position the workpiece. All knobs are manual with a scale from scratch. One full rotation = 1 mm, one cannon = 0,05 mm.
Technical data:
220 – 240 V, 100 W, 50/60Hz.
Revolutions from 5,000 to 20,000 rpm.
Table with dimensions of 200 x 70 mm.
Possibility of moving: along the X axis – 134 mm, along the Y axis – 46 mm and vertically 80 mm.
Base: 13 0x 225 mm.
Total height 370 mm.
Weight about 7 kg.
Mounting brackets included.
