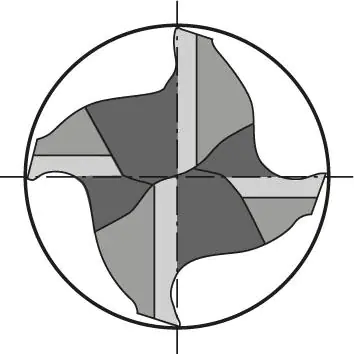

Mandrel cutter, solid carbide
Execution: with center blade, suitable for drilling.
Application: for circumferential milling and for universal machining. Also suitable for edge milling and finishing milling.
Milling cutter mandr.SL,b.long WN,full. FIRE,4-person,6mm GÜHRING
€48.32
Shipping from warehouse: B6
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- GÜHRING
- Product code:
- 9055560060000 / 4031093641647
Share this product:
Specification
| Cast iron gg/gts: | 120 |
|---|---|
| Cutting part length l2: | 30 mm |
| Diameter d1 = h 10: | 6 mm |
| Ggg cast iron: | 96 |
| Shank diameter d2 = h6: | 6 mm |
| Steel < 1000 n/mm2: | 92 |
| Steel < 1000 n/mm2 fz: | 0.024 mm/rev. |
| Steel < 1400 n/mm2: | 74 |
| Steel < 700 n/mm2: | 115 |
| Titanium > 850 n/mm2: | 40 |
| Total length l1: | 75 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
