| Cast iron gg/gts: | 120 |
|---|---|

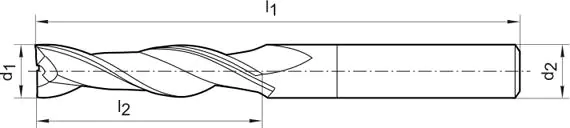

| Cutting part length l2: | 30 mm |
| Diameter d1 = h 10: | 6 mm |
| Ggg cast iron: | 96 |
| Shank diameter d2 = h6: | 6 mm |
| Steel < 1000 n/mm2: | 92 |
| Steel < 1000 n/mm2 fz: | 0.017 mm/rev. |
| Steel < 1400 n/mm2: | 74 |
| Steel < 700 n/mm2: | 115 |
| Titanium > 850 n/mm2: | 40 |
| Total length l1: | 75 mm |
Mandrel cutter, solid carbide (UF)

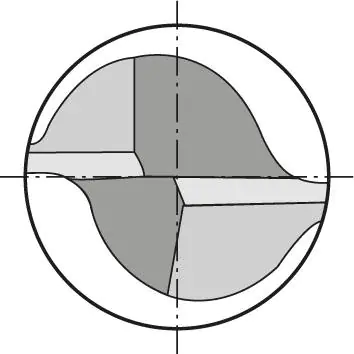

Execution: with center blade, suitable for drilling.
Application: for wedge and keyway milling and for universal machining. For milling to a depth of max. 3 x D.
Cutting speed approx. 50 % higher than uncoated tools. Dry processing possible.
