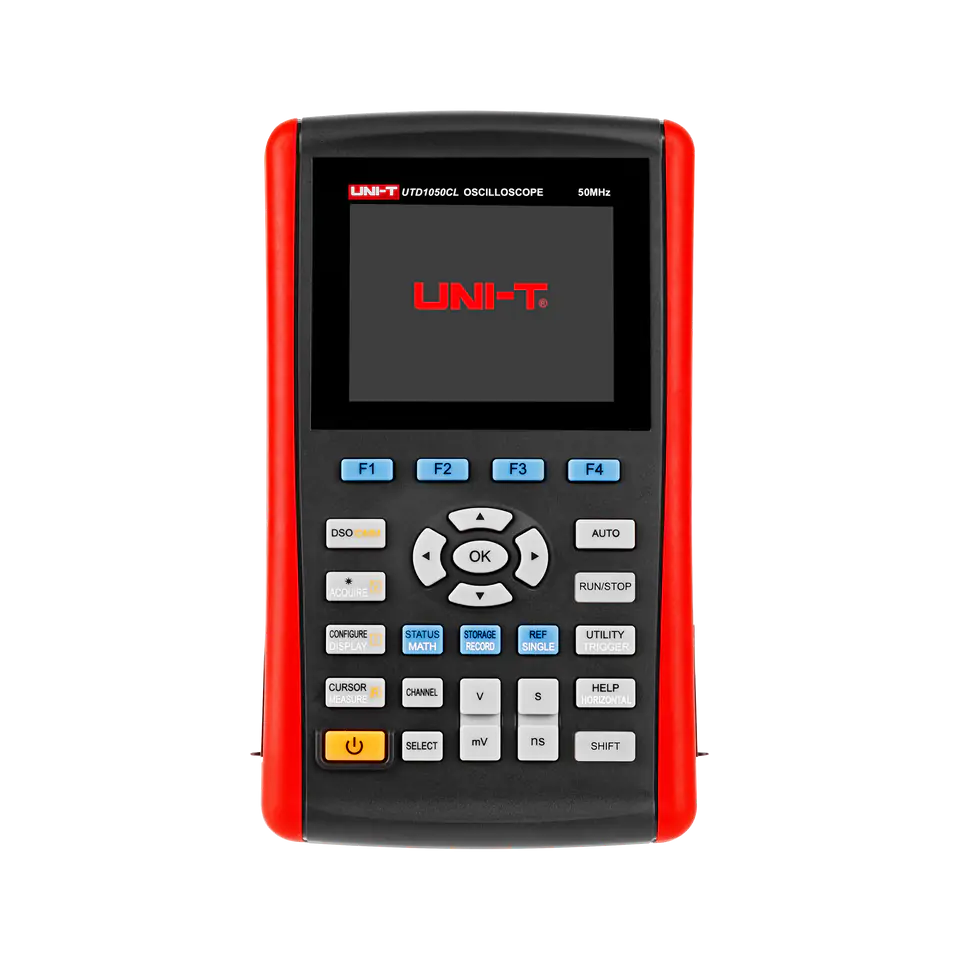

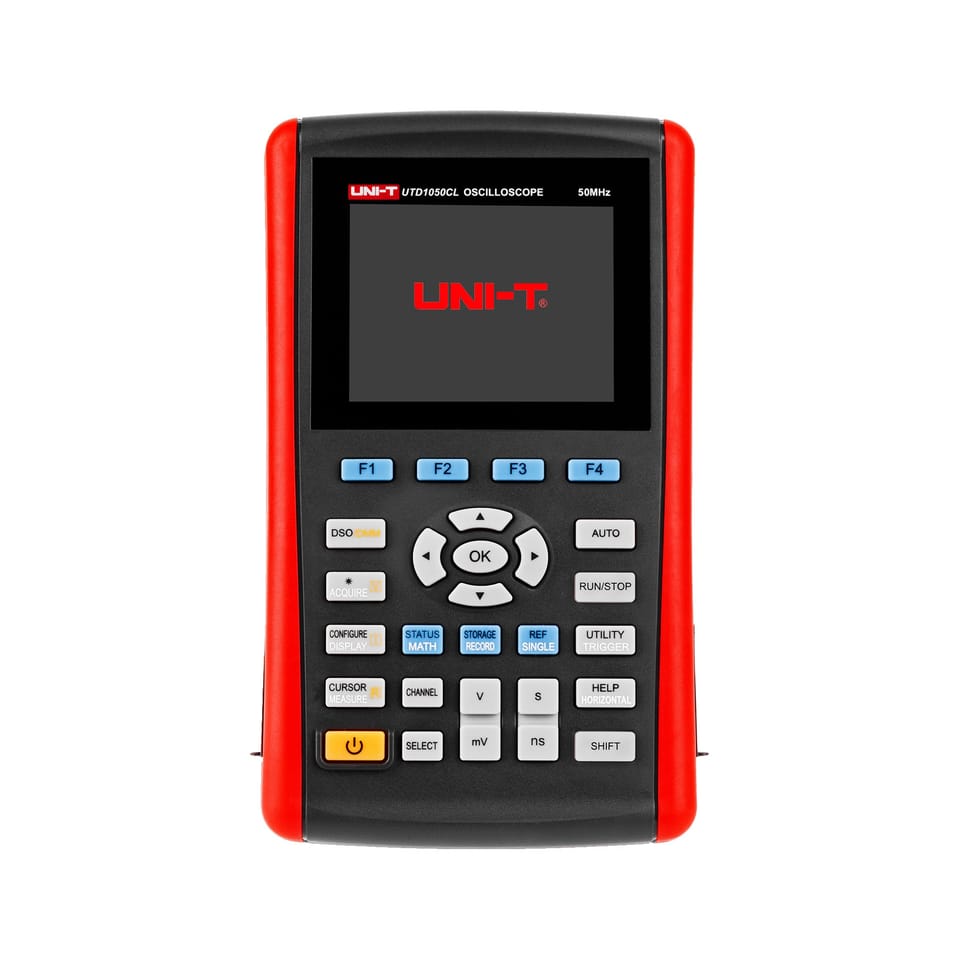

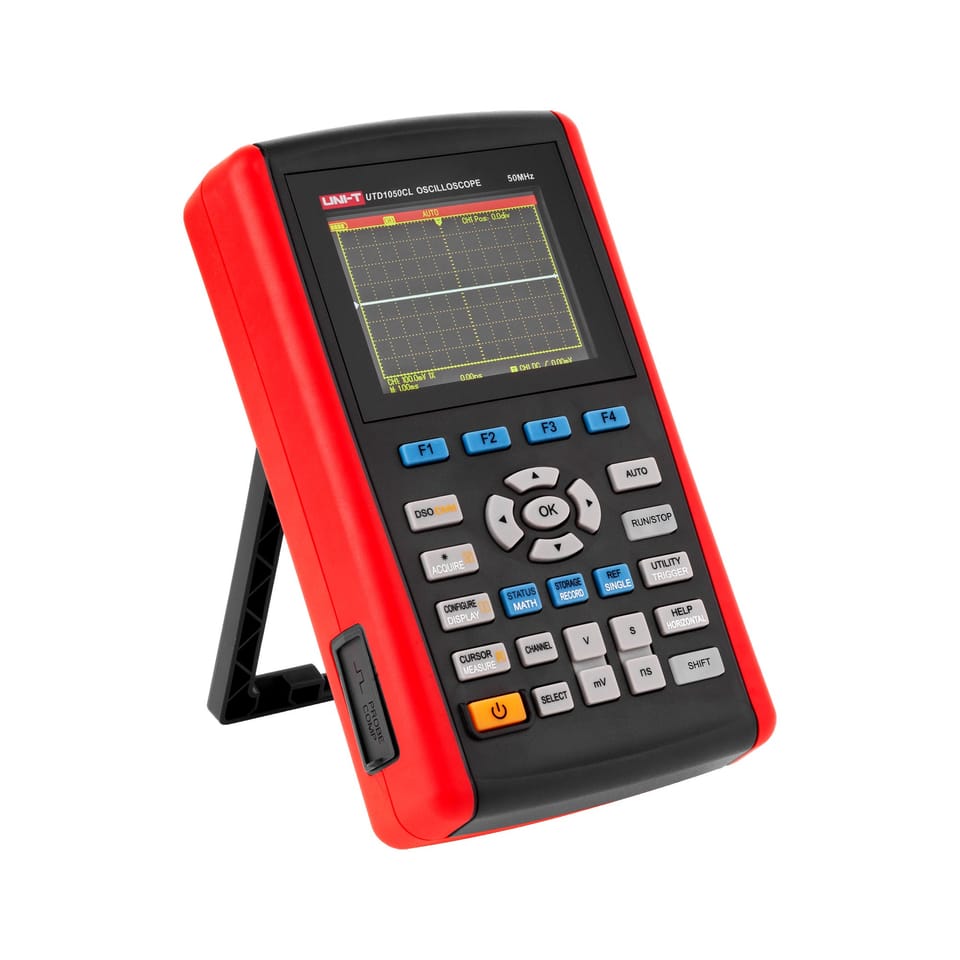

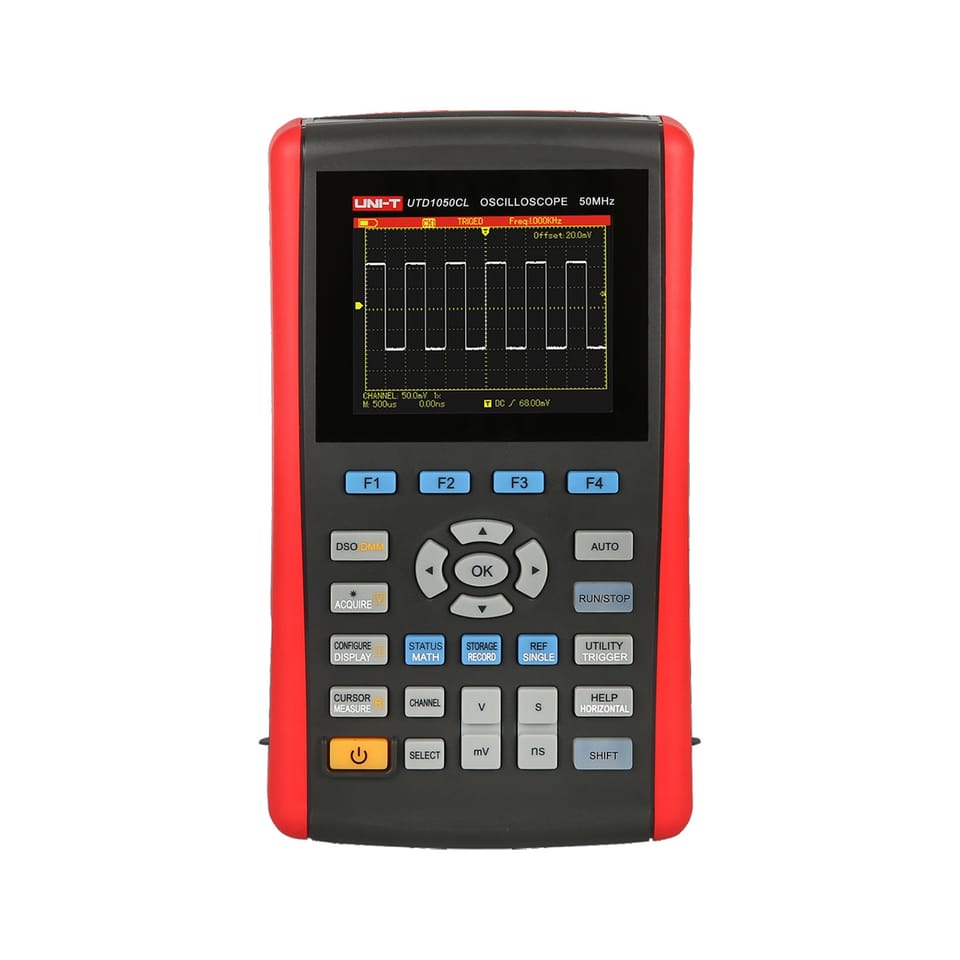

MIE0176 50MHz oscilloscope model UTD1050CL
- 1 channel
- Bandwidth: 50MHz
- Sampling rate: 200 MS/s
- Rise band: <= 7 ns
- Memory length: 12 kpts
- Vertical sensitivity: 5mV/div~20V/div
- Search: 5ns/div~50s/div
- Trigger: Edge, Pulse, Video, Slope
- Interface: miniUSB
- DC Voltage: 400.0mV/ 4.000V/ 40.00V/ 400.0V; ±(1%+5)
- AC Voltage: 400.0mV/ 4.000V/ 40.00V/ 400.0V; ±(1.2%+5)
- DC Current: 400.0μA/ 4000μA; ±(1.2%+5)
- AC Current: 400.0μA/ 4000μA; ±(2%+5)
- Resistance: 400.0?/4.000k?/40.00k?/400.0k?/4.000M?; ±(1.2%+5) / 40.00M?; ±(1.5%+5)
- Capacity: 51.20nF/512.0nF/5.120μF/51.20μF/100μF; ±(3%+5)

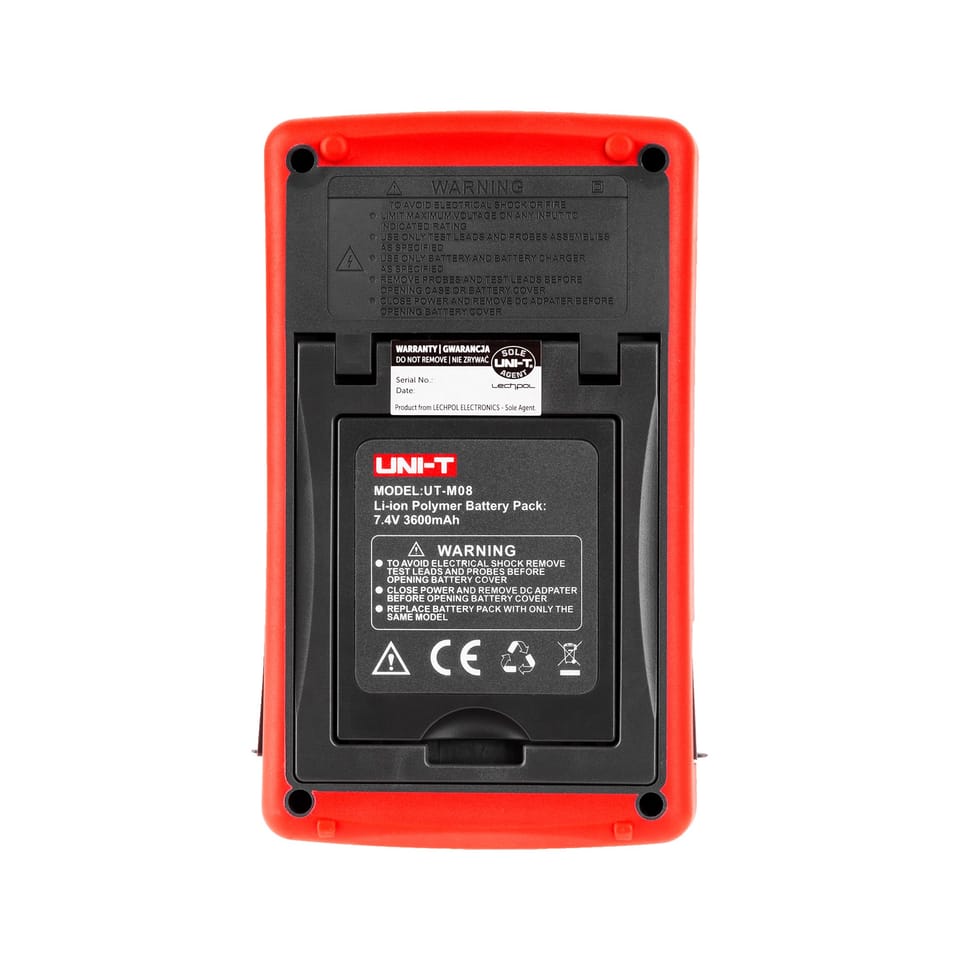

- Power Supply: Lithium Battery: 7.4V 3600mAh; AC adapter: input 100~240V 50/60Hz, output 9V 4A
