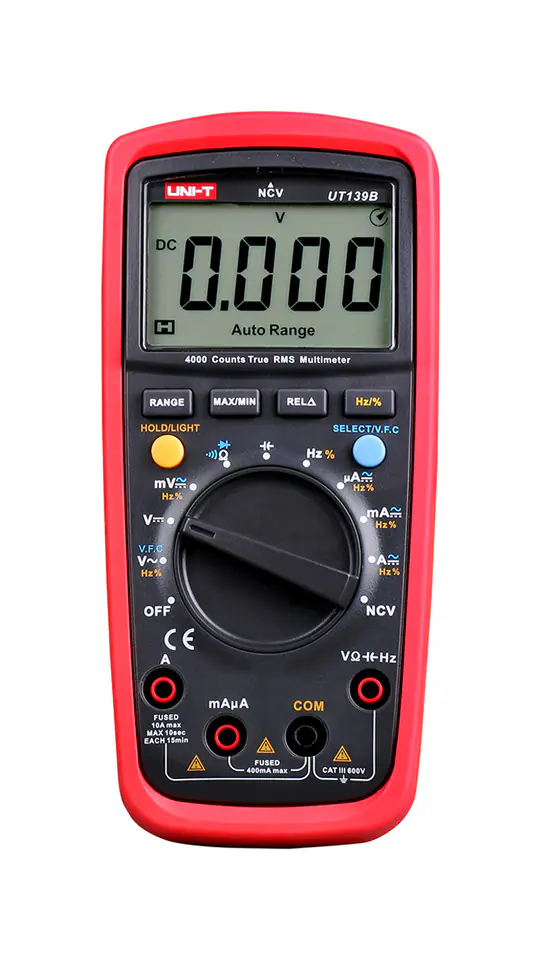

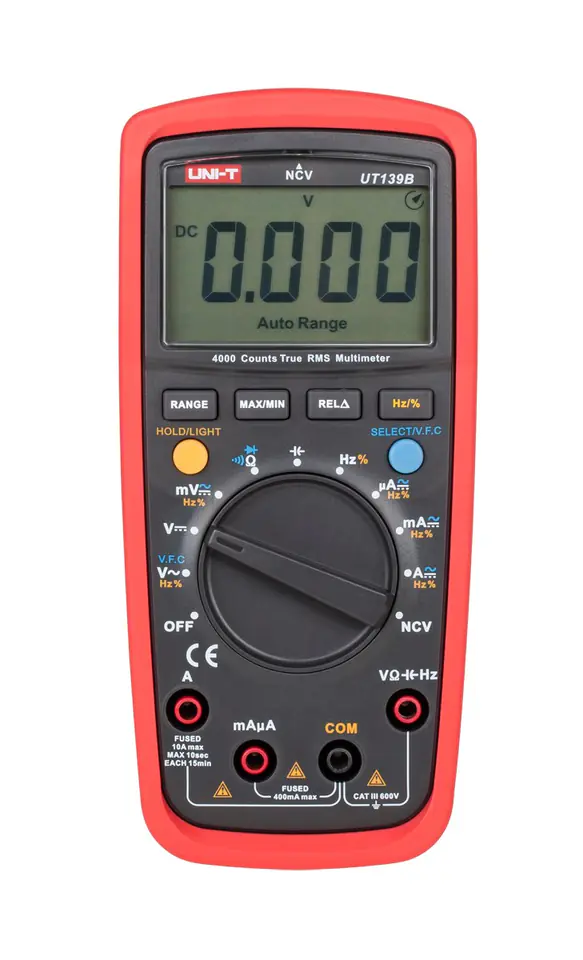

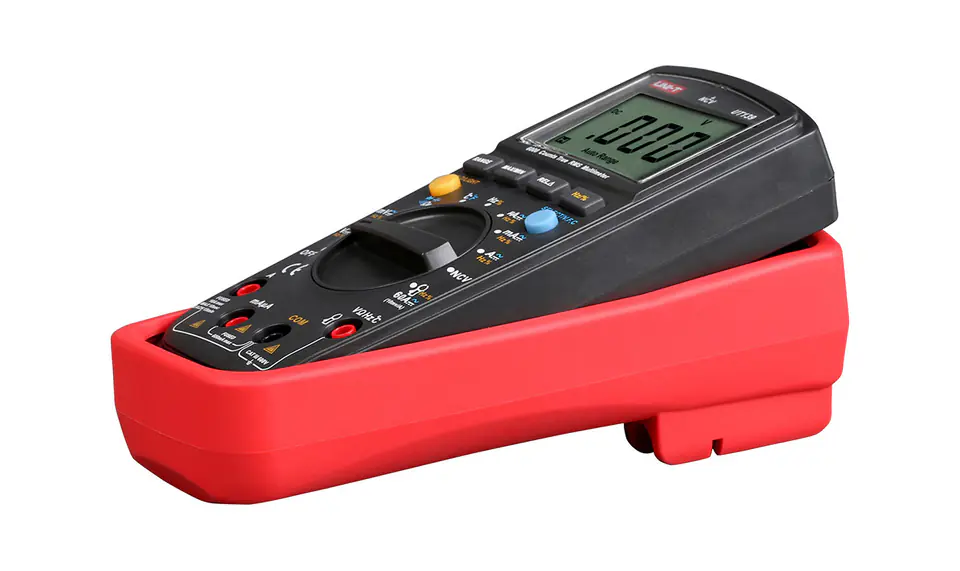

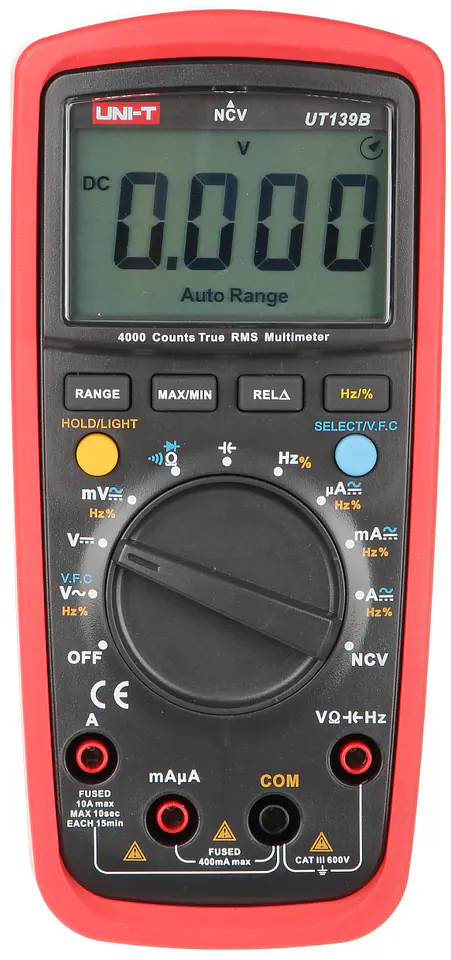

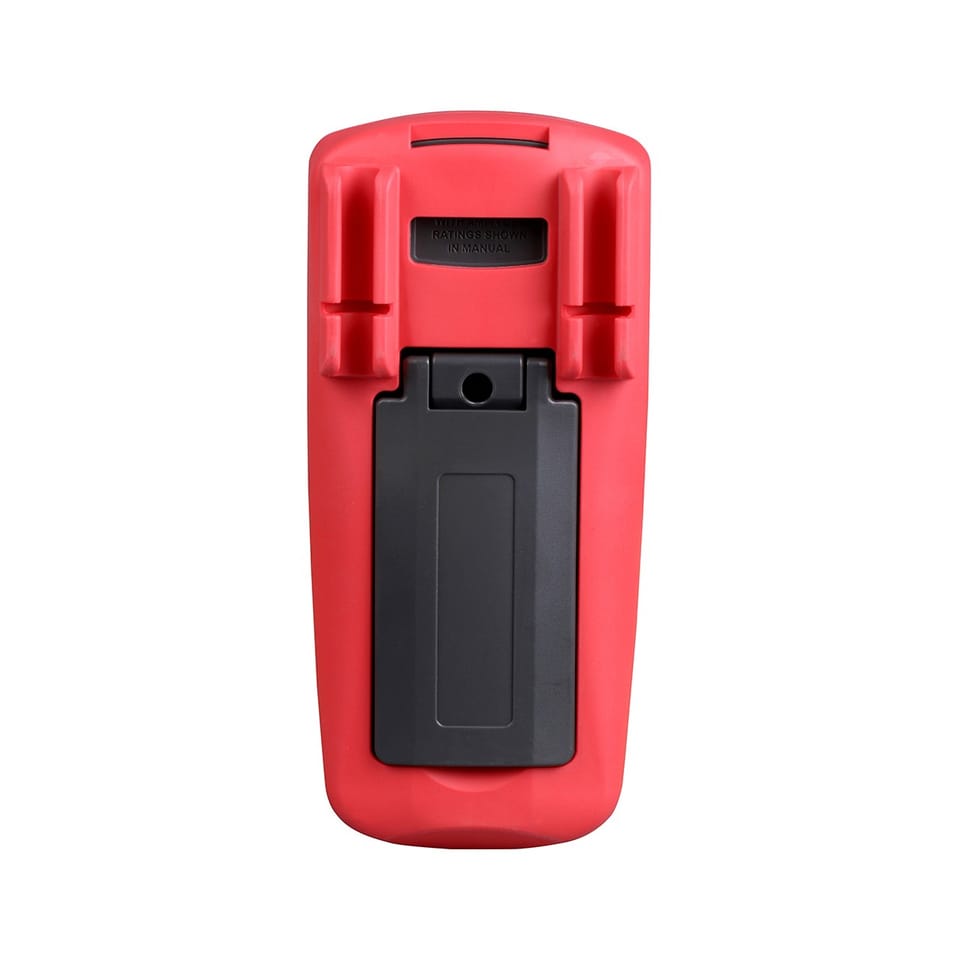

MIE0155 Universal meter UT139B
Technical data:
- backlit display 4000
- range selection: manual, automatic
- REL
- diode test
- non-contact voltage detector
- circuit continuity test
- MIN/MAX values
- low battery indicator
- data hold
- autopower off
- 'OL' range overrun indicator
- CATIII 600V

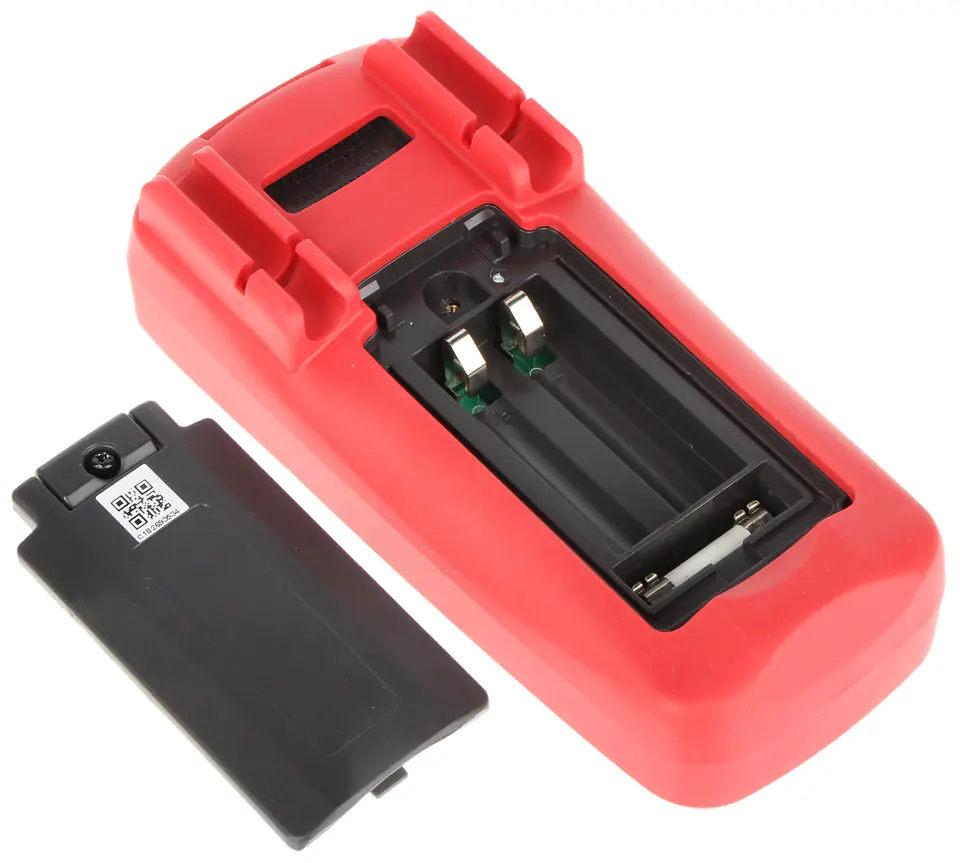

- power supply: 2 * AA 1.5V batteries
- dimensions 180x87x47 mm
- weight about 370 g
Measuring ranges:
- DC voltage: 40mV/400mV/4V/40V/400V
- AC voltage: 40mV/400mV/4V/40V/400V
- resistance: 400om/4kom/40kom/400kom/4Mom/40Mom
- DC current: 400uA/4000uA/40mA/400mA/4A/10A
- AC current: 400uA/4000uA/40mA/400mA/4A/10A
- capacity: 9.999nF/99.99nF - 999.9uF/9.999mF - 99.99mF
- Frequency: 9.999Hz - 9.999MHz
- fill factor 0.1% - 99.9%

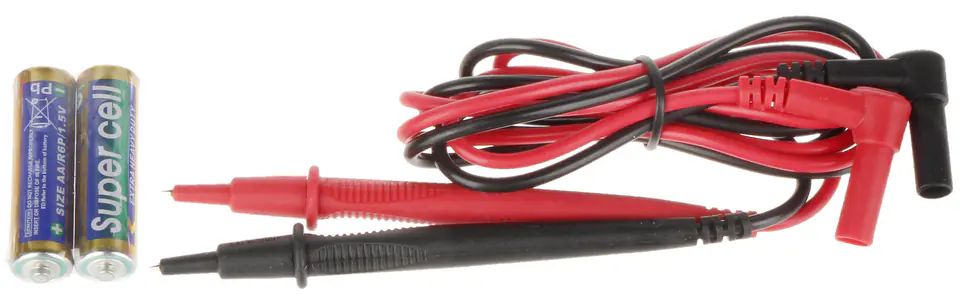

Composition of the set:
- gauge

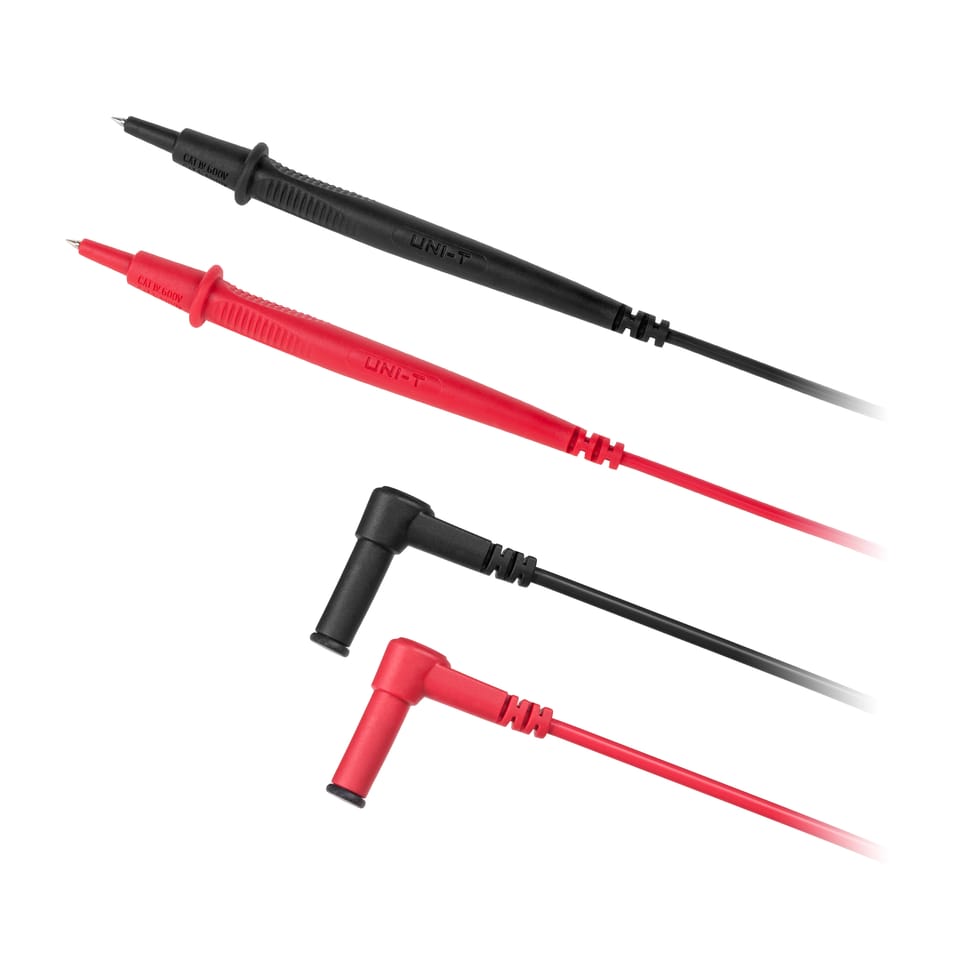

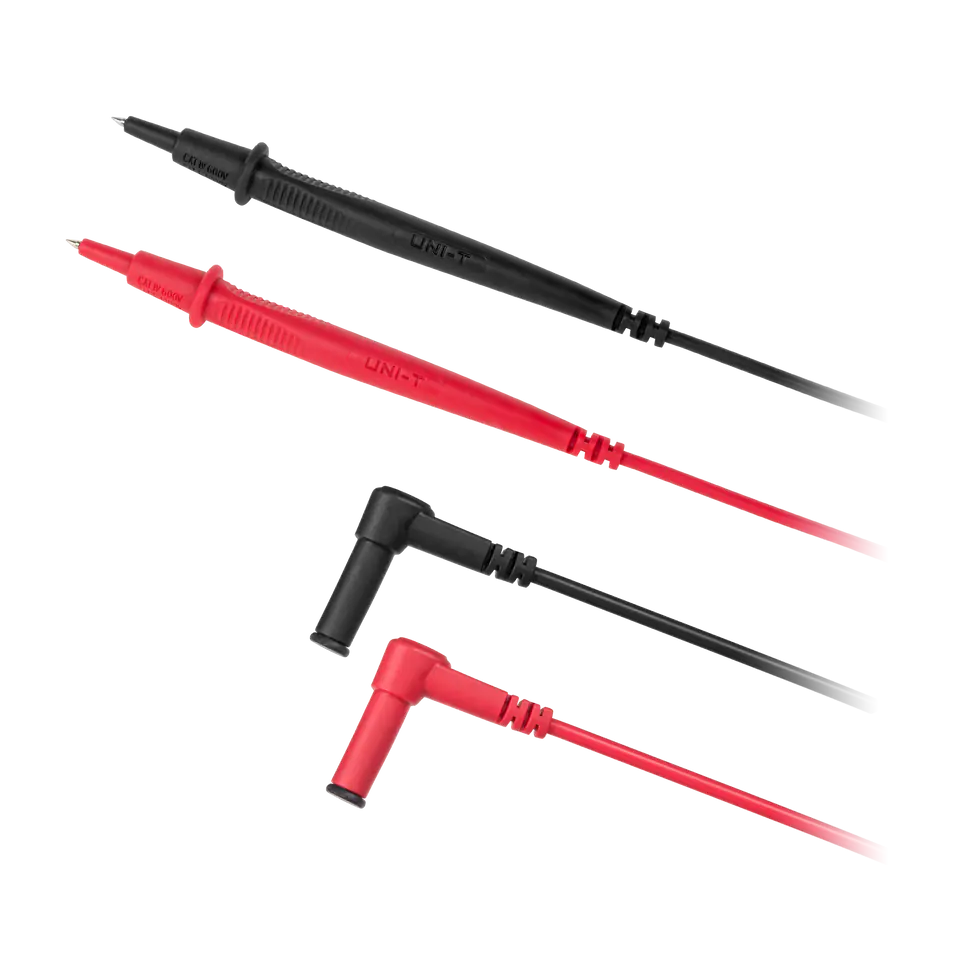

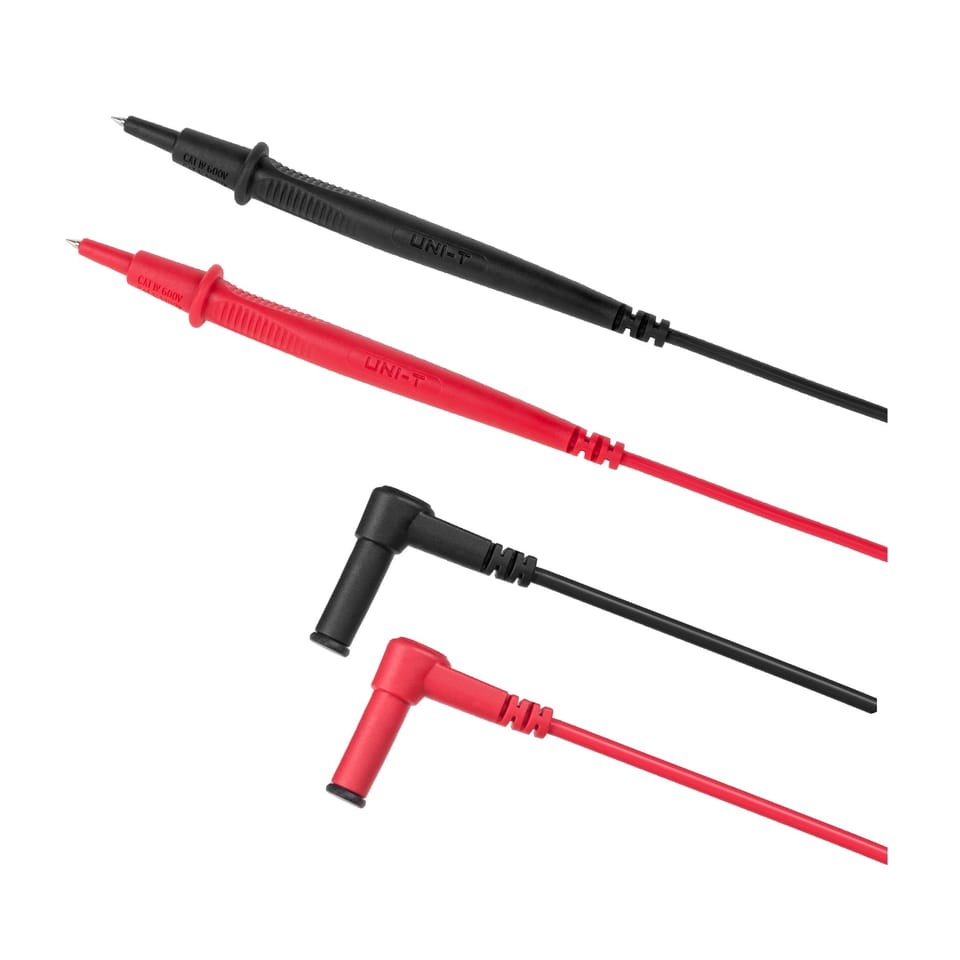

- Leads
- Batteries
