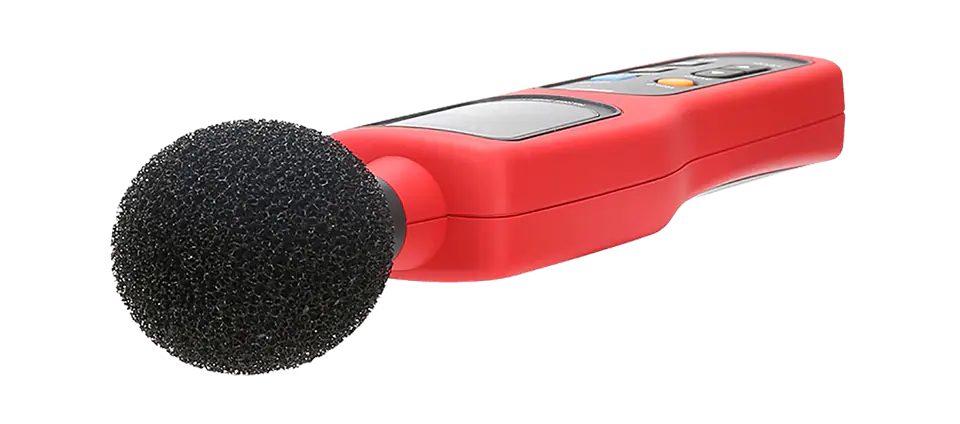

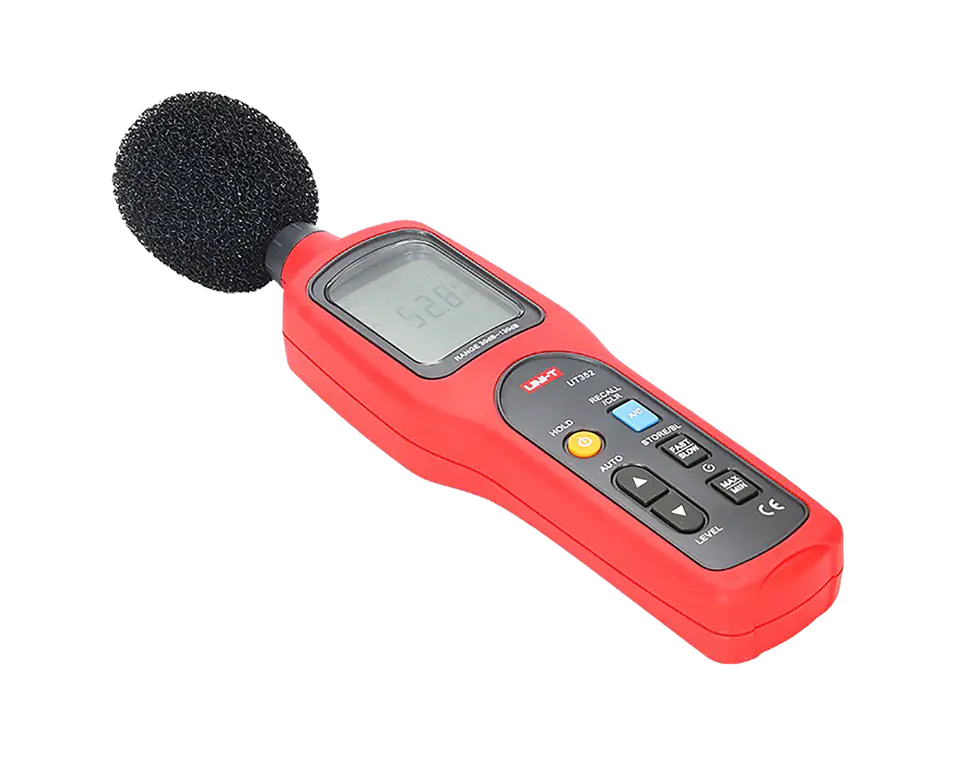

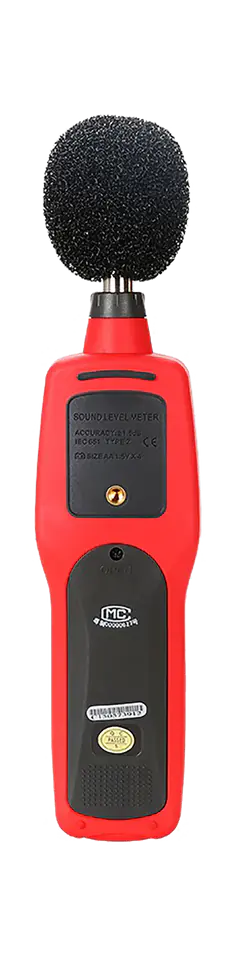

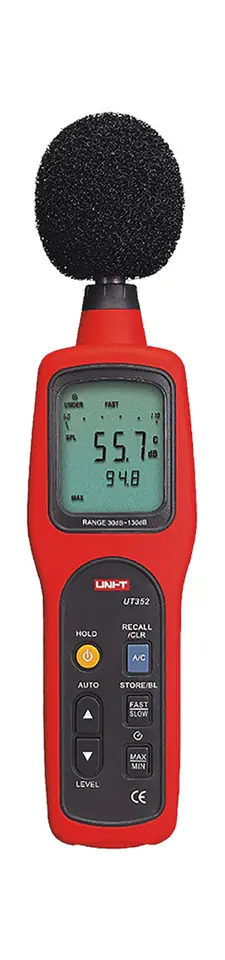

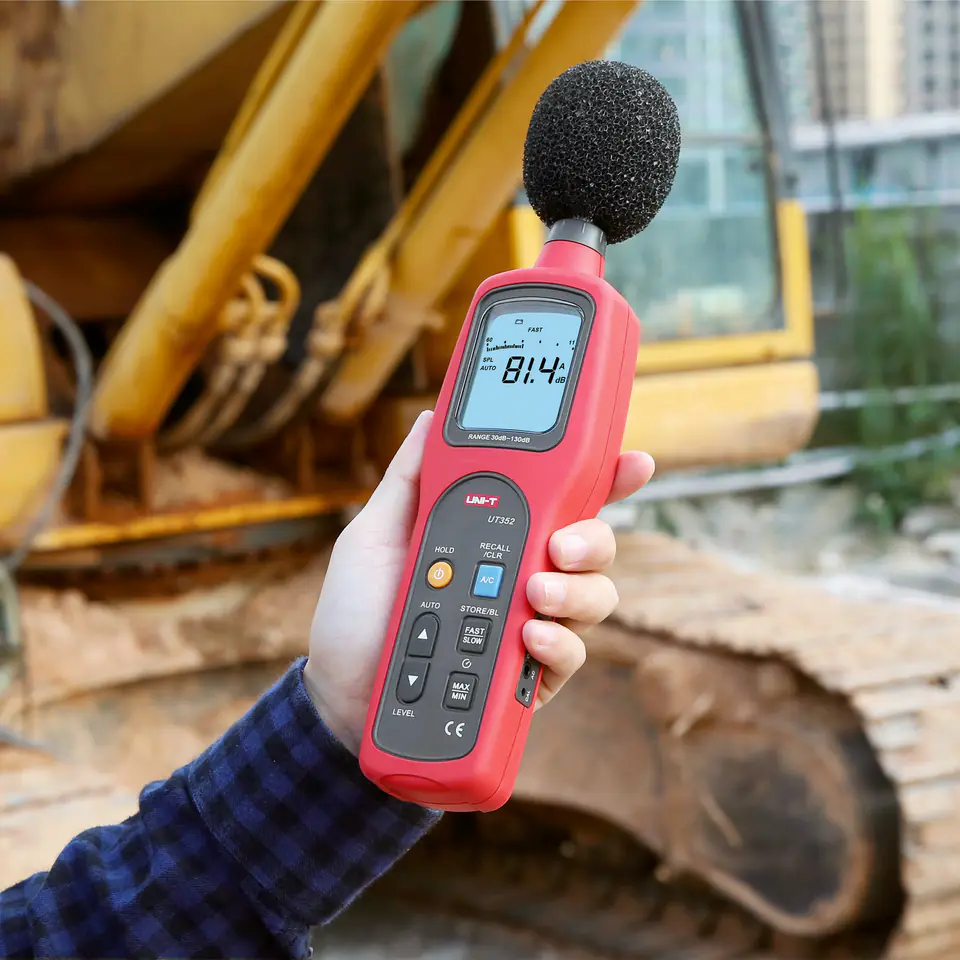

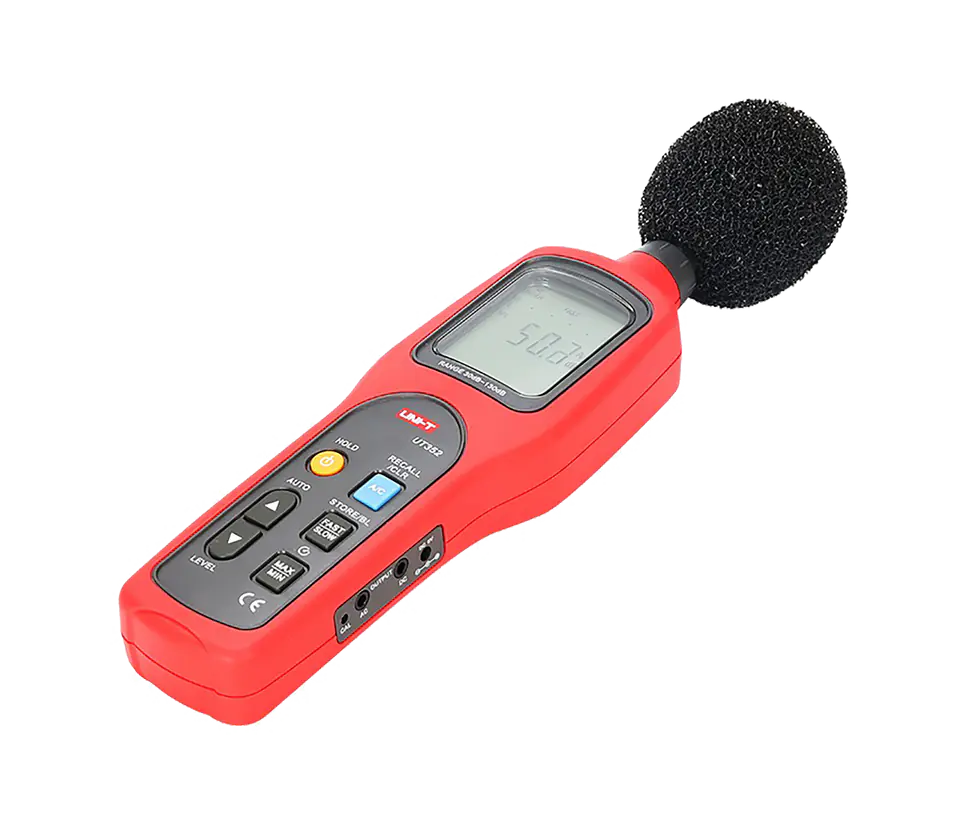

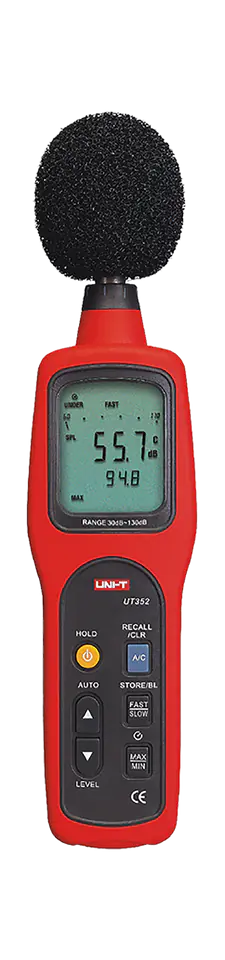

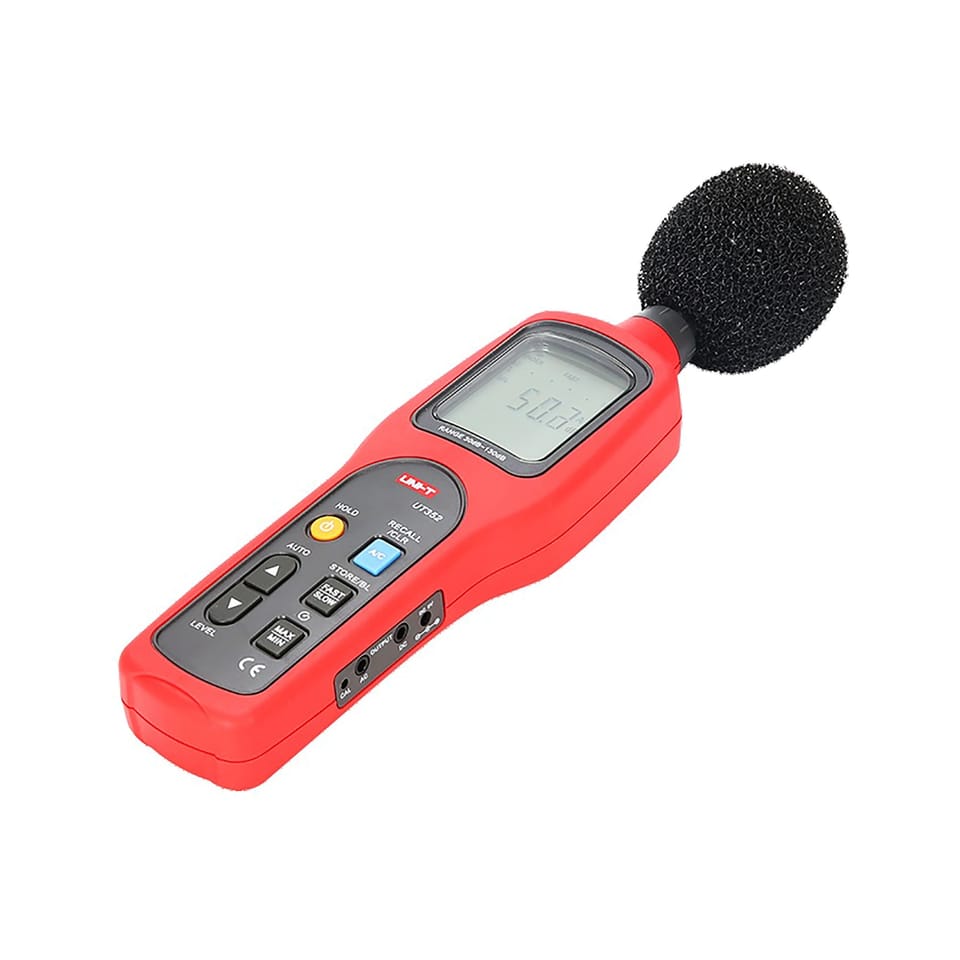

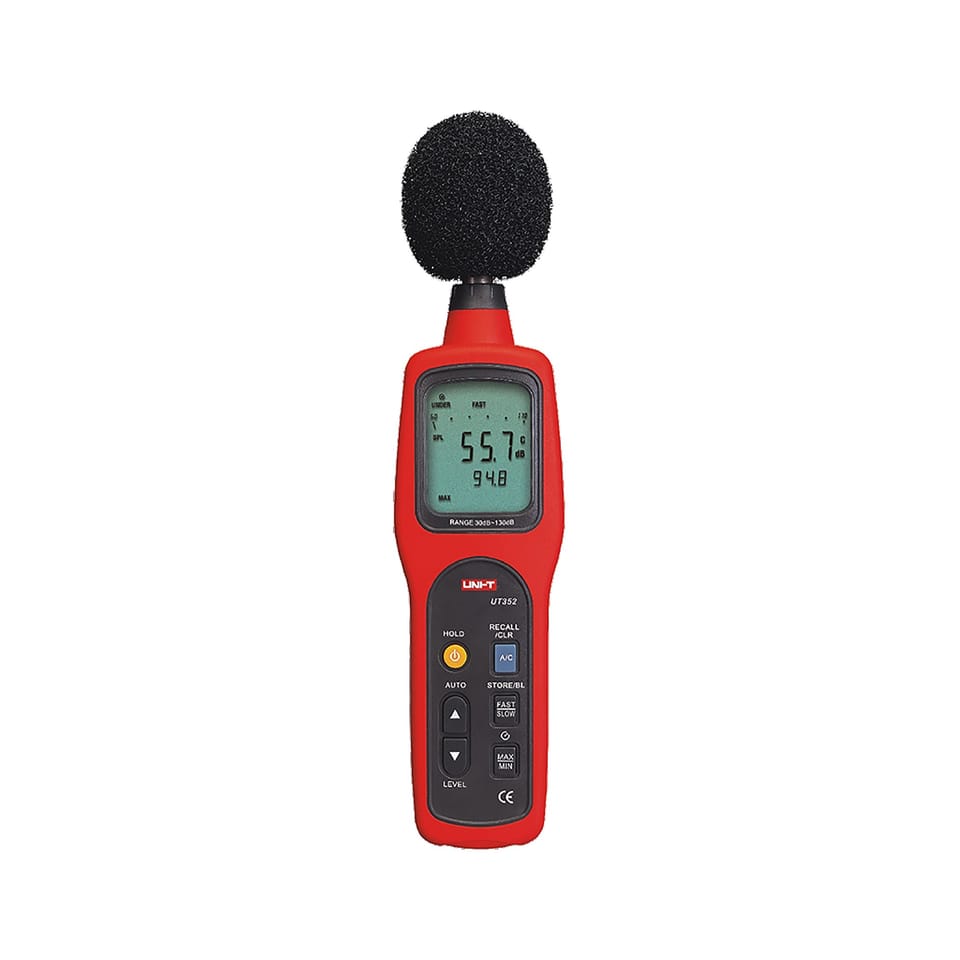

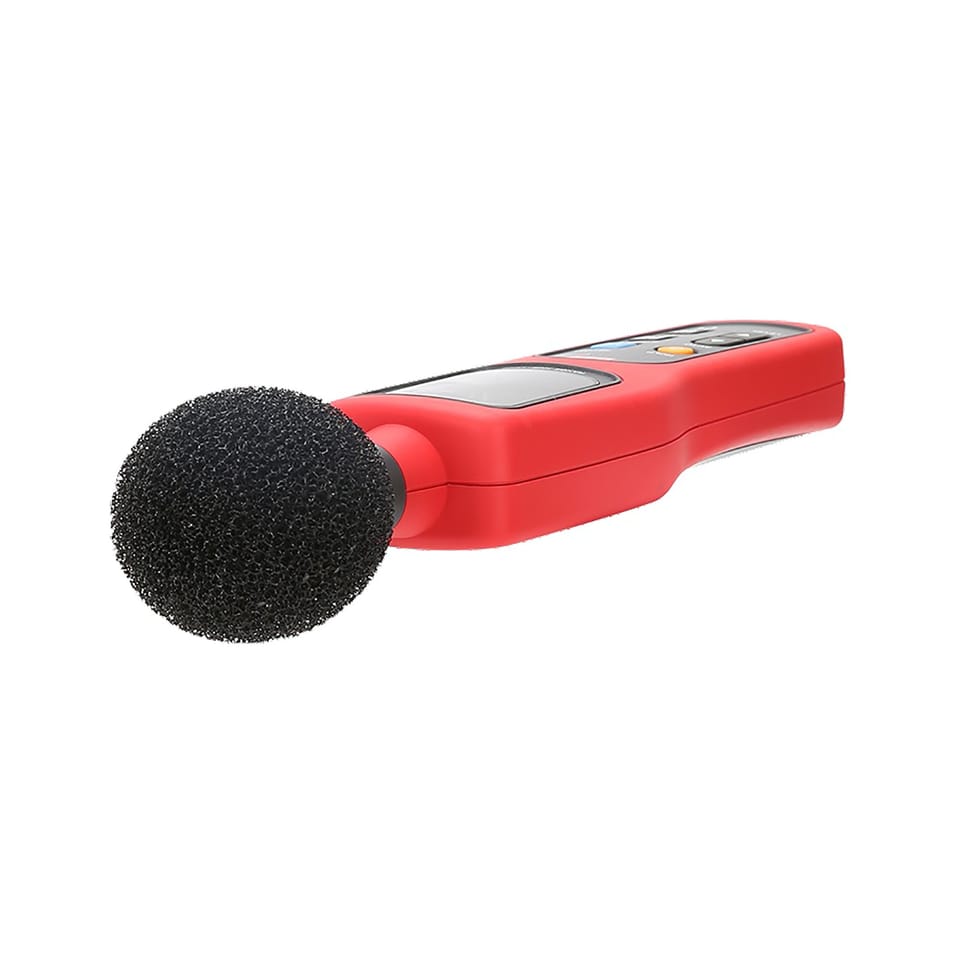

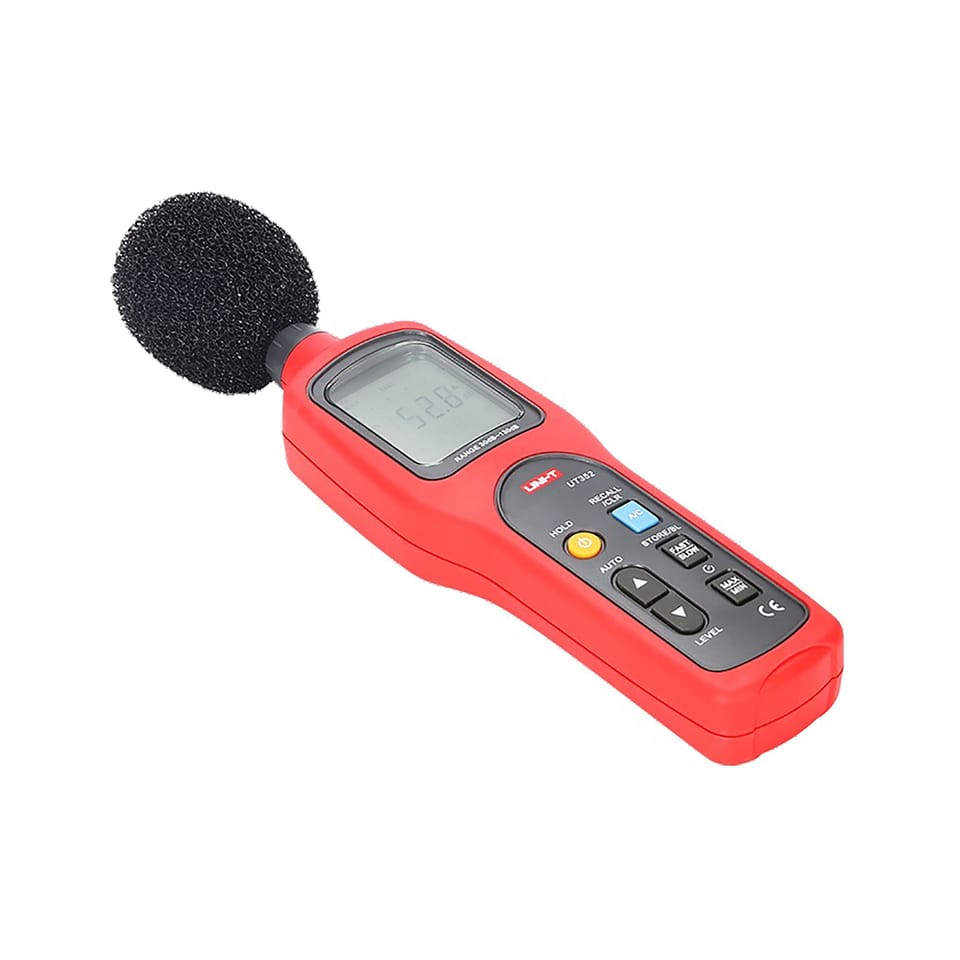

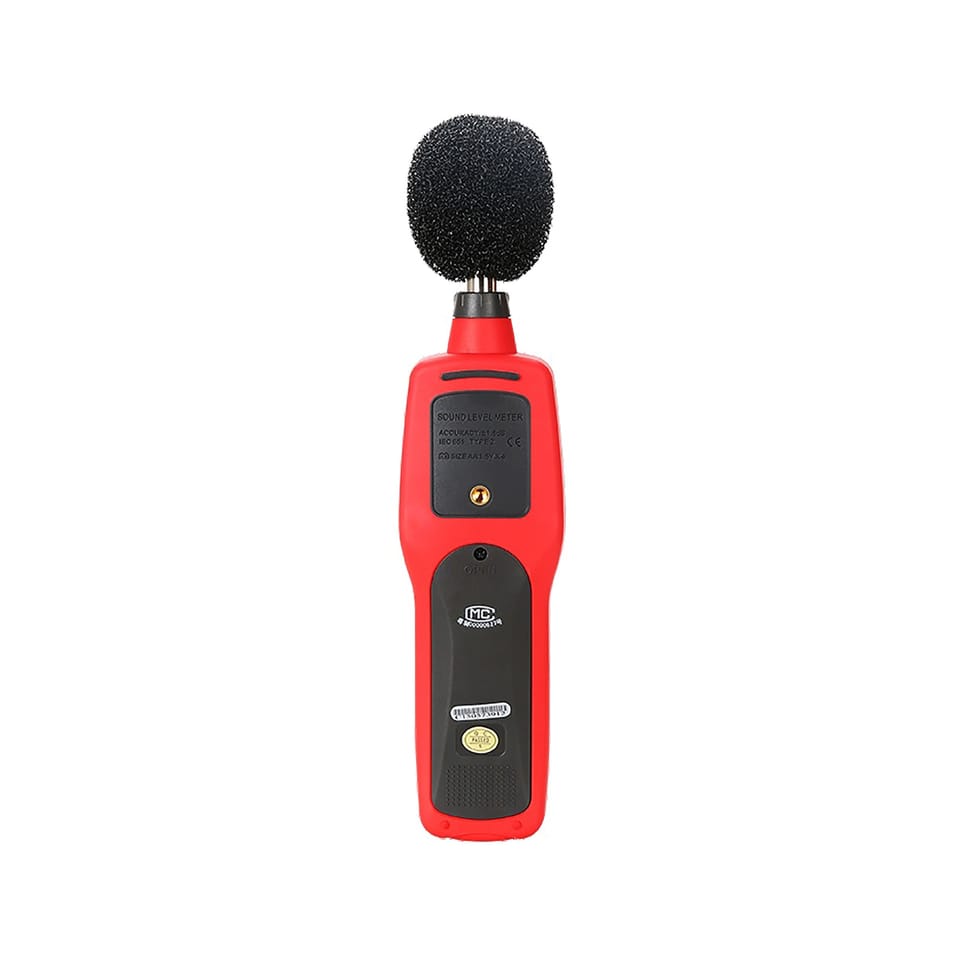

MIE0129 Volume level mier.UT352
Range: 30 - 130 dB
Accuracy: +/-1.5dB
Ranges: 30 - 80 dB, 50 - 100 dB, 60 - 110 dB, 80 - 130 dB
Frequency Range: 31.5 - 8000Hz
Frequency ratio selection: A/C
Time selection:
- FAST: every 125ms
- SLOW (slow): every 1s
Bargraph: 30 - 130 dB
Output:
- AC: 0.707 V RMS (full scale), output impedance: approx. 600 Ohm
- DC: 2 V RMS (whole scale), 10mV/dB, output impedance: approx. 100 Ohm
Special features:
- Warnings: above"OVER"/below"UNDER" range
- minimum/maximum value
- stopping the last indication
- display backlight
- work in dormancy
- battery drain indicator (4.8V)
- memory of 63 readings
Power Supply: 4x 1.5V (AA) battery
LCD dimension: 53 x 41 mm
Overall dimensions: 273 x 70 x 39 mm
Weight: 390g
