A microwave (radar) motion sensor with an external sensor is an active motion detector that sends high-frequency electromagnetic waves (5.8GHz) and receives their echo. The sensor detects changes in the echo, caused by even the slightest movement in the observed area. Low power emission (<0,2mW), potencjometry do regulacji: czasu świecenia, zasięgu wykrywania ruchu i czułości natężenia światła. Brak wpływu temperatury na detekcję. Czujnik współpracuje z oświetleniem LED-owym.

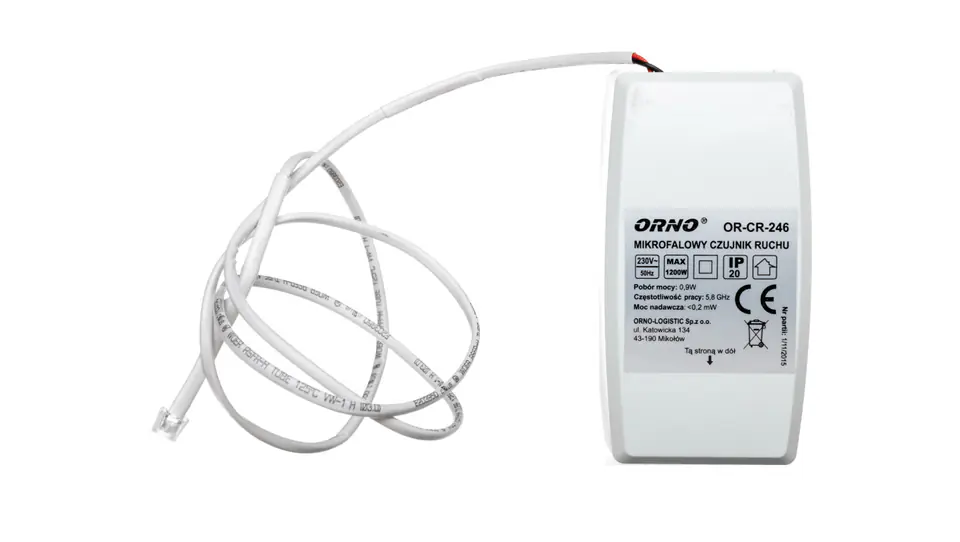

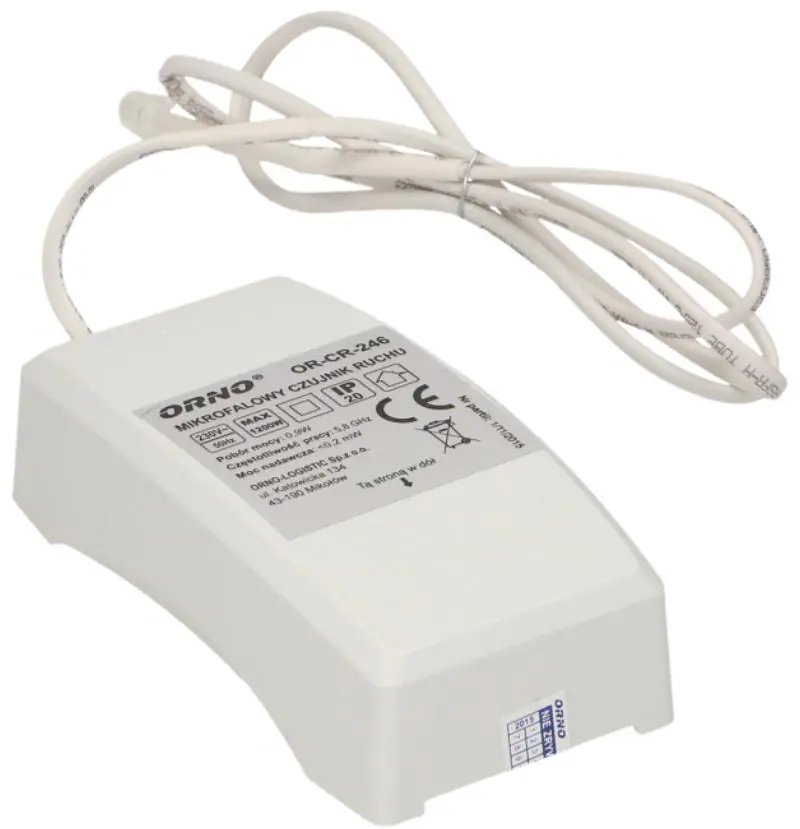

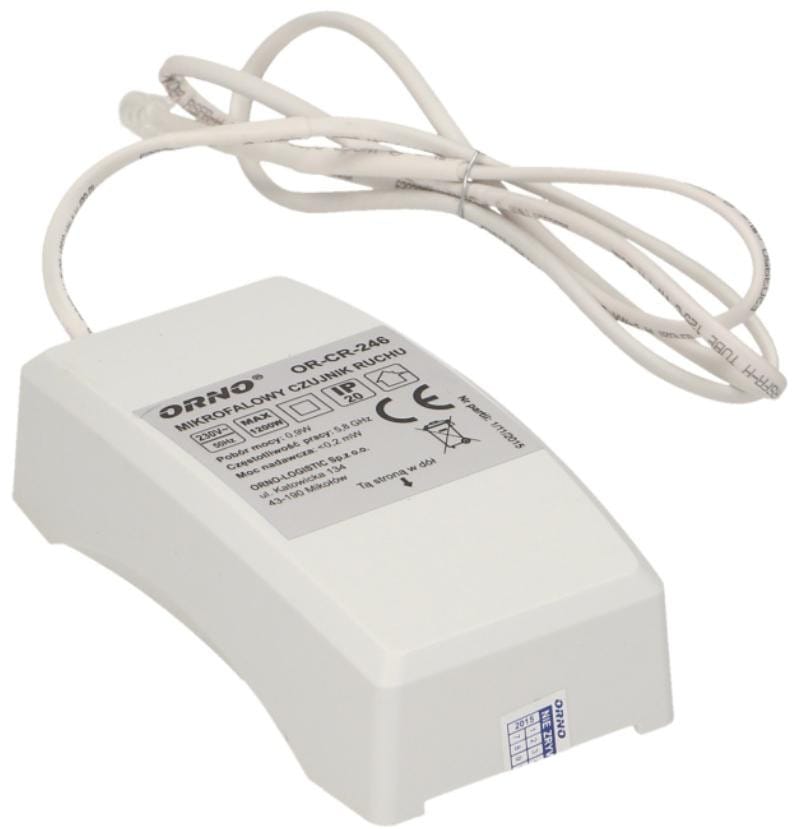

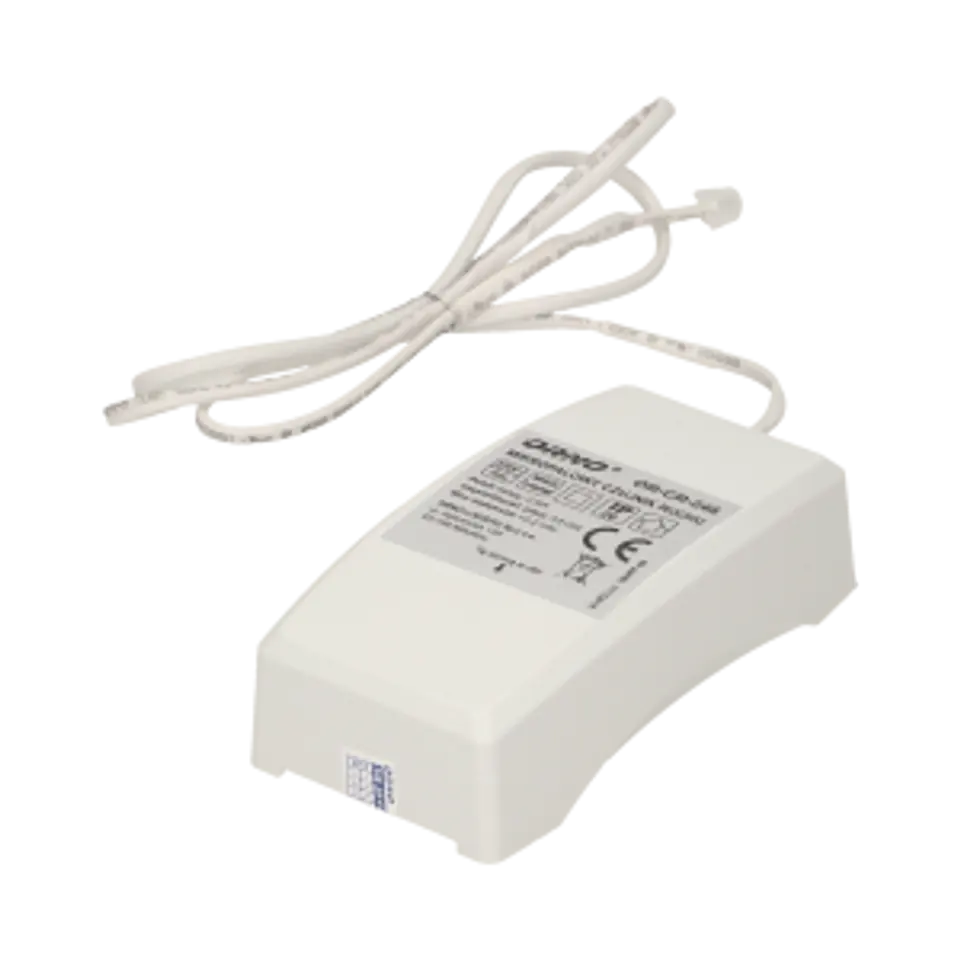

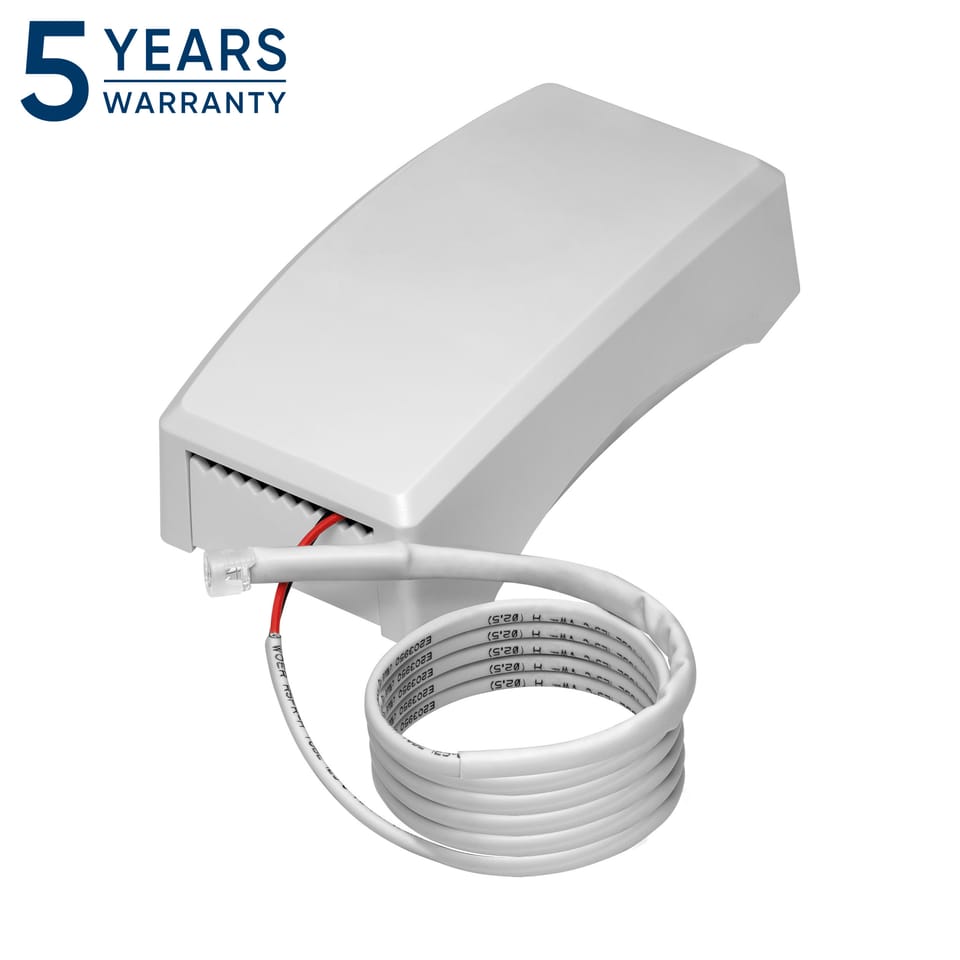

Microwave motion sensor with external twilight sensor, 360°, IP20, 1200W
€15.88
Shipping from warehouse: H7
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Orno
- Product code:
- OR-CR-246 / 5901752486607
Share this product:
Specification
| Adjustable sensitivity setting: | Yes |
|---|---|
| Brightness threshold sensitivity [lx] from: | 3 |
| Brightness threshold sensitivity [lx] up to: | 2000 |
| Color shade: | -- |
| Colour: | White |
| Degree of protection (ip): | IP20 |
| Diameter of the detection field on the substrate [m]: | 16 |
| Frequency range [hz] from: | 50 |
| Frequency range [hz] to: | 50 |
| Horizontal detection angle from/to [°] to: | 360 |
| Material: | Plastic |
| Material type: | Thermoplastic |
| Maximum lateral reach [m]: | 8 |
| Maximum range straight ahead [m]: | 8 |
| Maximum switching power [w]: | 1200 |
| Maximum switching time [min]: | 12 |
| Minimum switching time [s]: | 10 |
| Model: | Motion sensor |
| Mounting method: | Surface mounting |
| Networkable: | Yes |
| Rated voltage [v]: | 230 |
| Voltage type: | AC |
