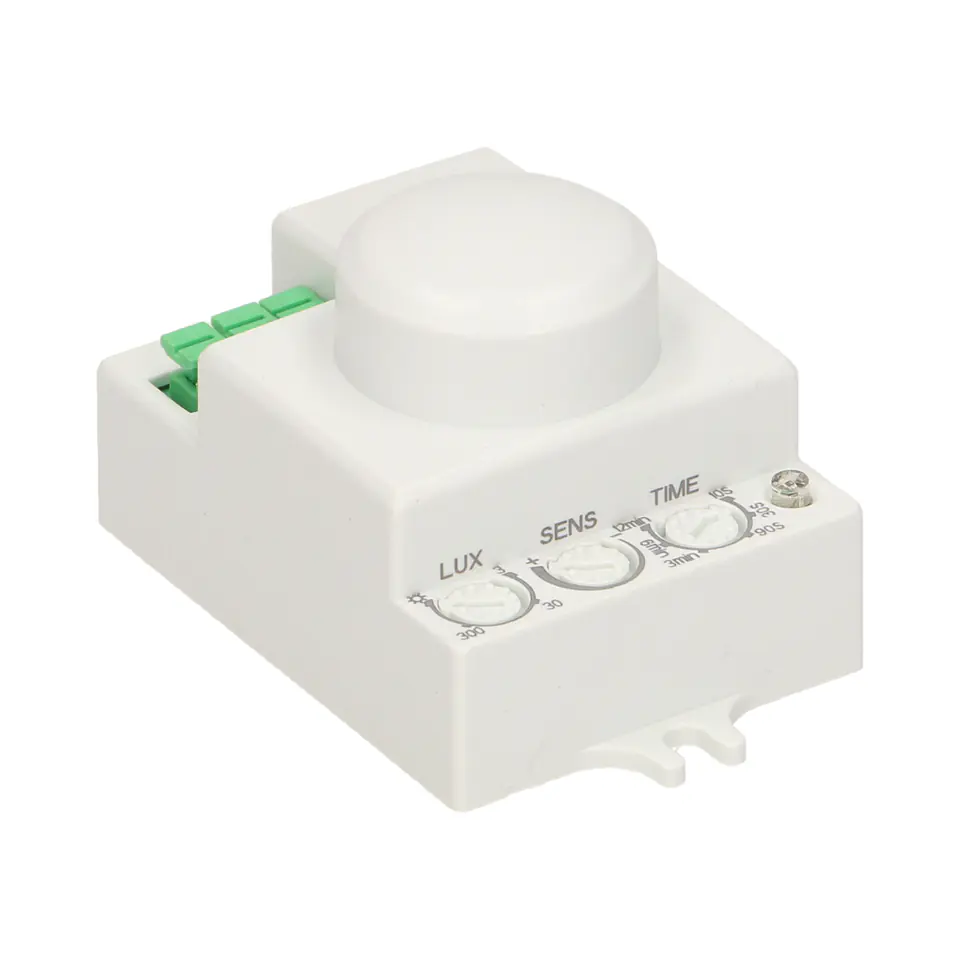

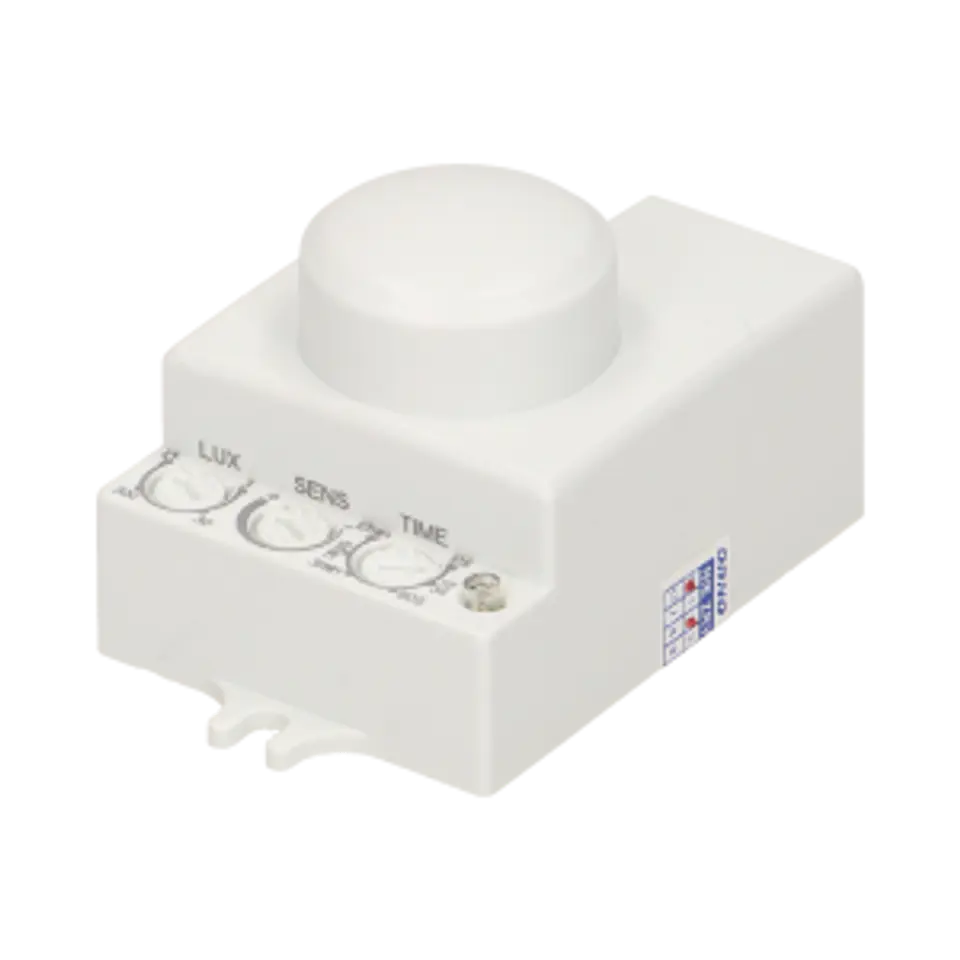

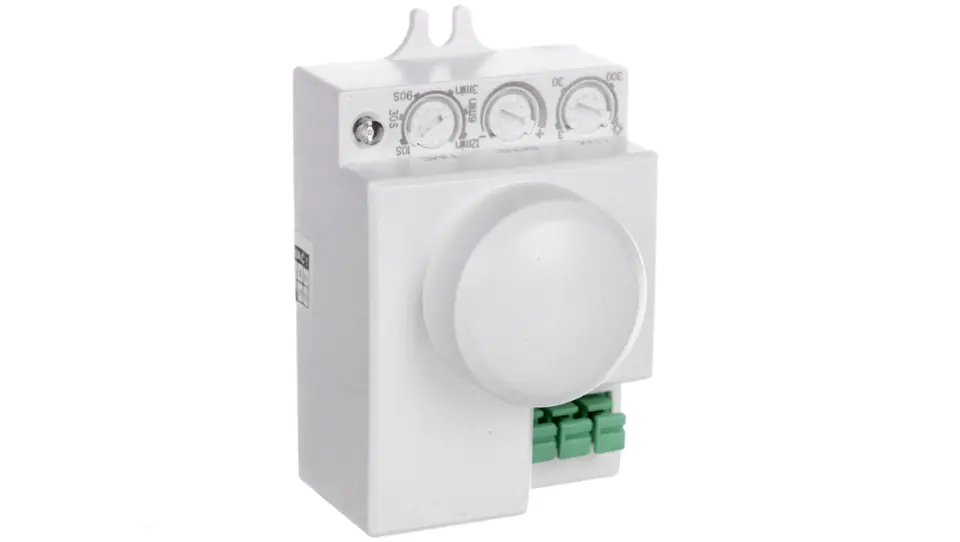

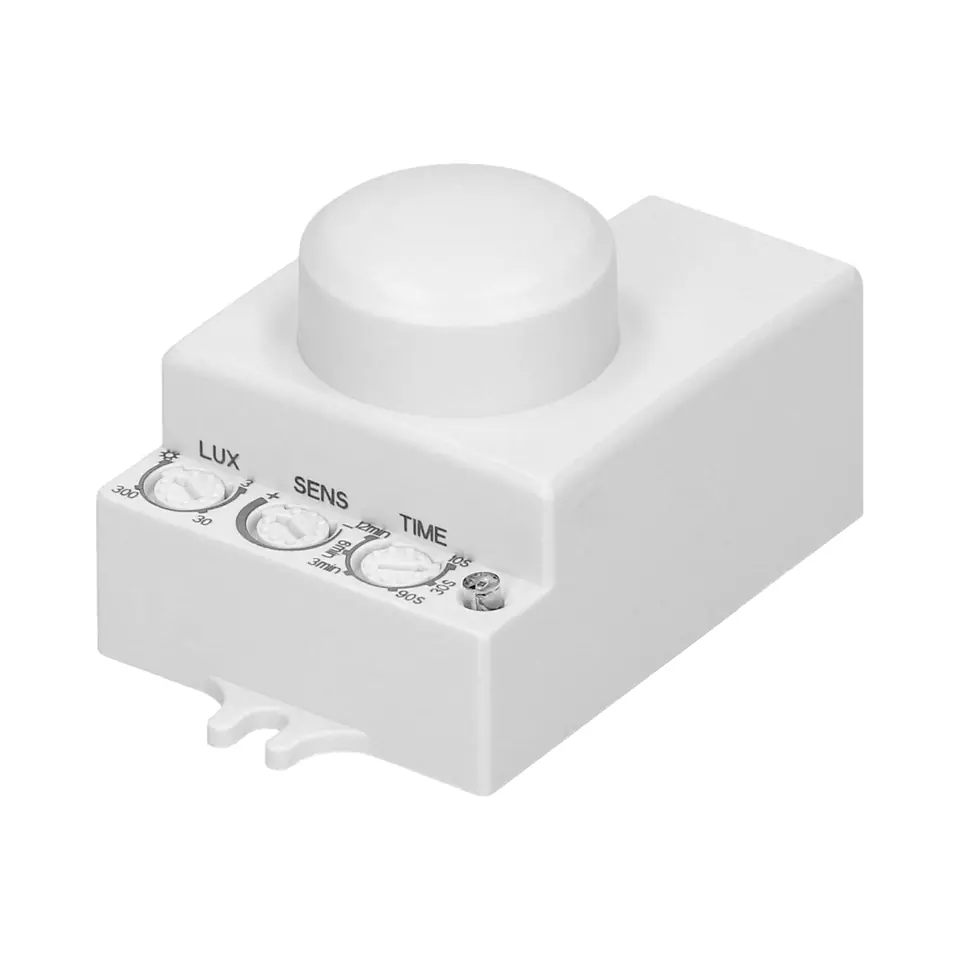

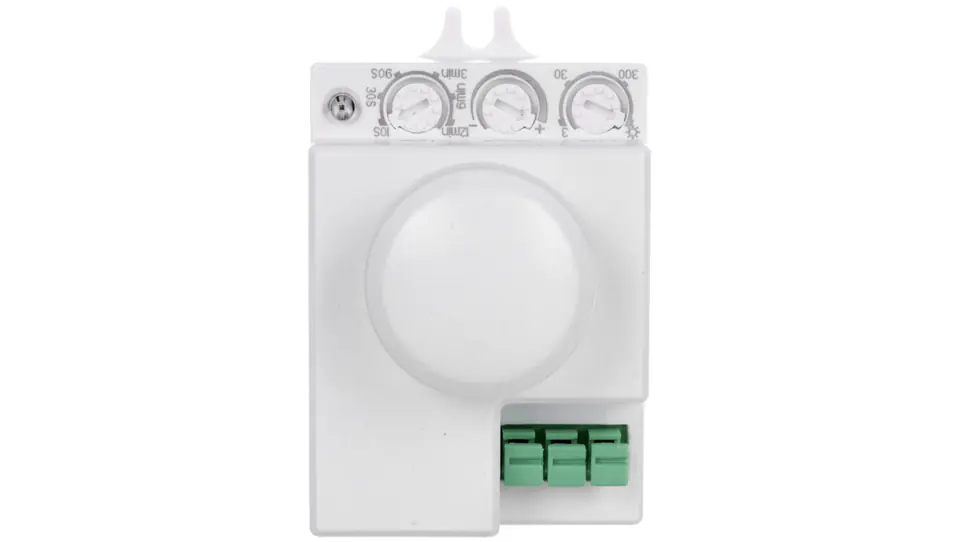

The microwave (radar), small motion sensor is an active motion detector that sends high-frequency electro-magnetic waves (5.8GHz) and receives their echo. The sensor detects changes in the echo, caused by even the slightest movement in the observed area. Low power emission (<0,2mW), potencjometry do regulacji: czasu świecenia, zasięgu wykrywania ruchu i czułości natężenia światła. Detekcja ruchu przez szkło, tworzywa sztuczne, płyty kartonowo-gipsowe, brak wpływu temperatury na detekcję. Czujnik współpracuje z oświetleniem LED-owym.

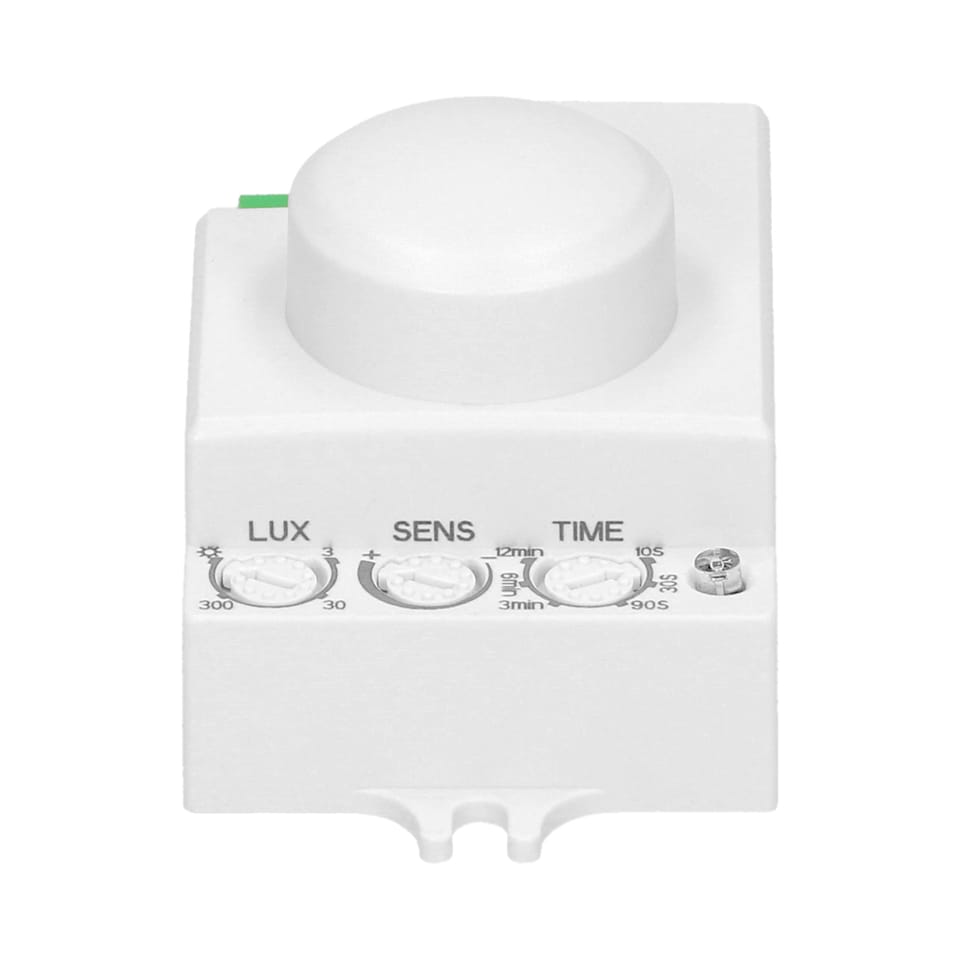

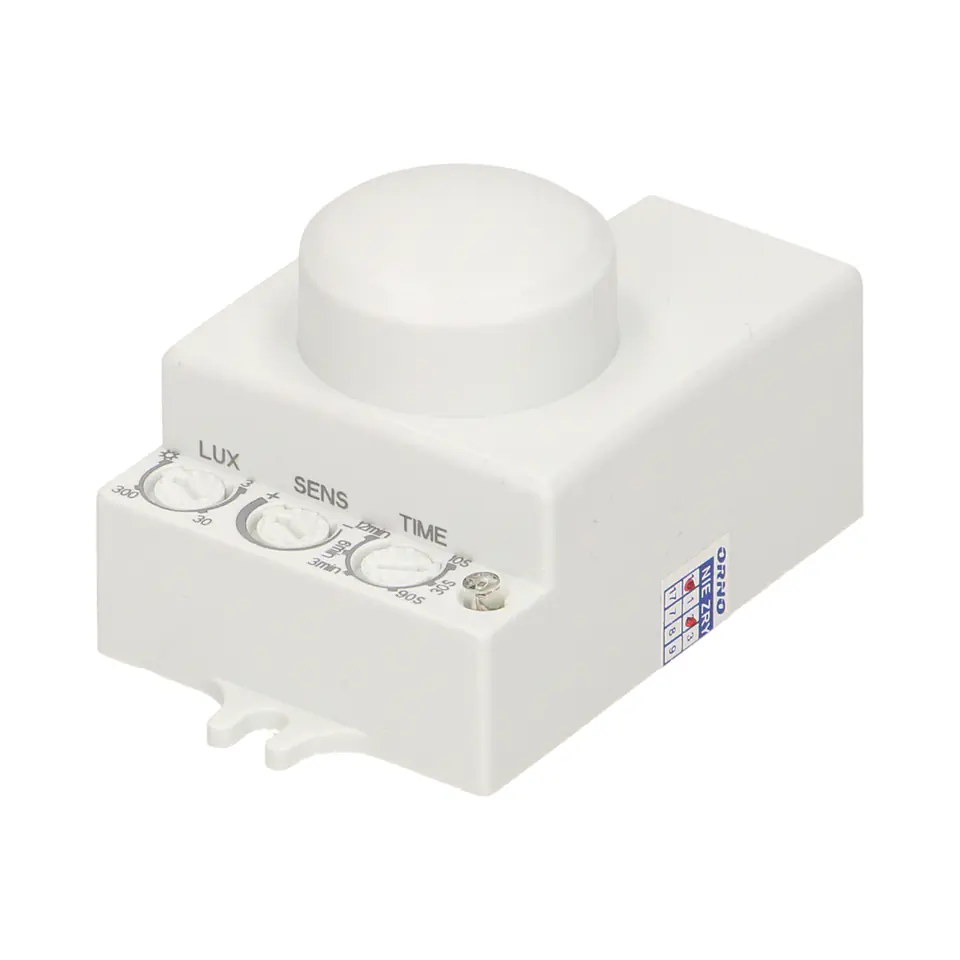

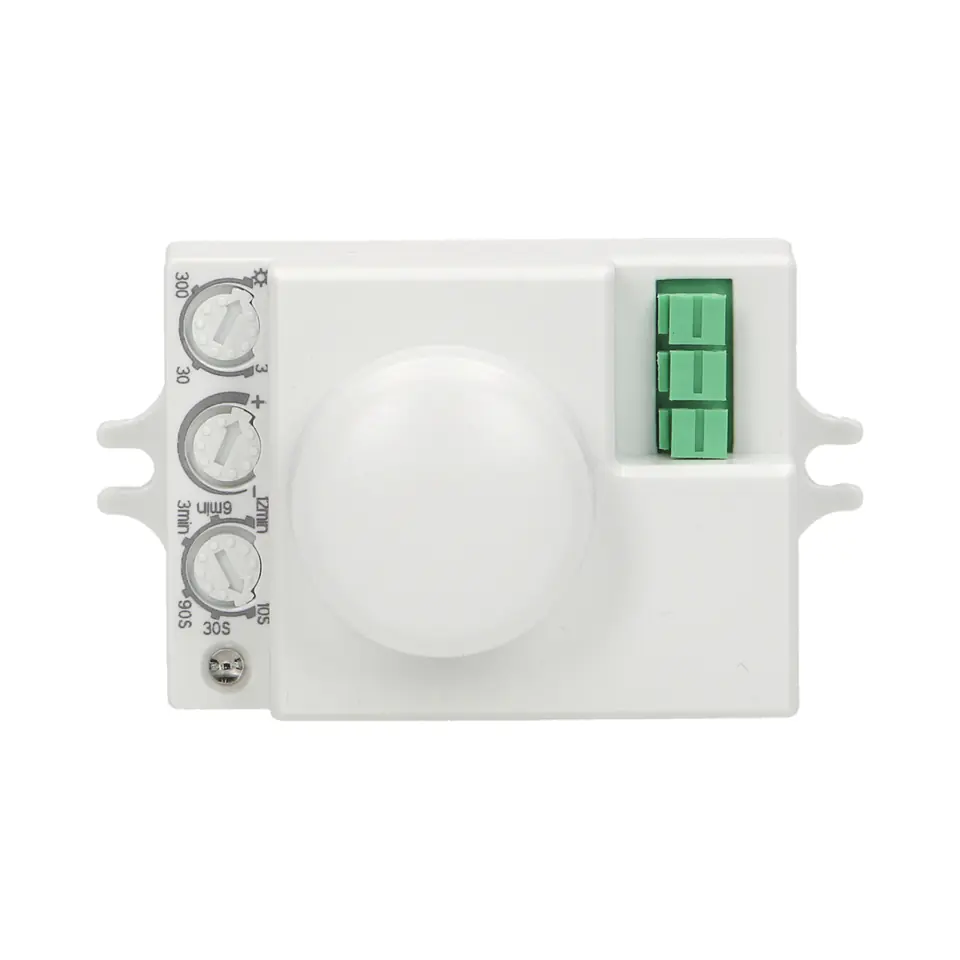

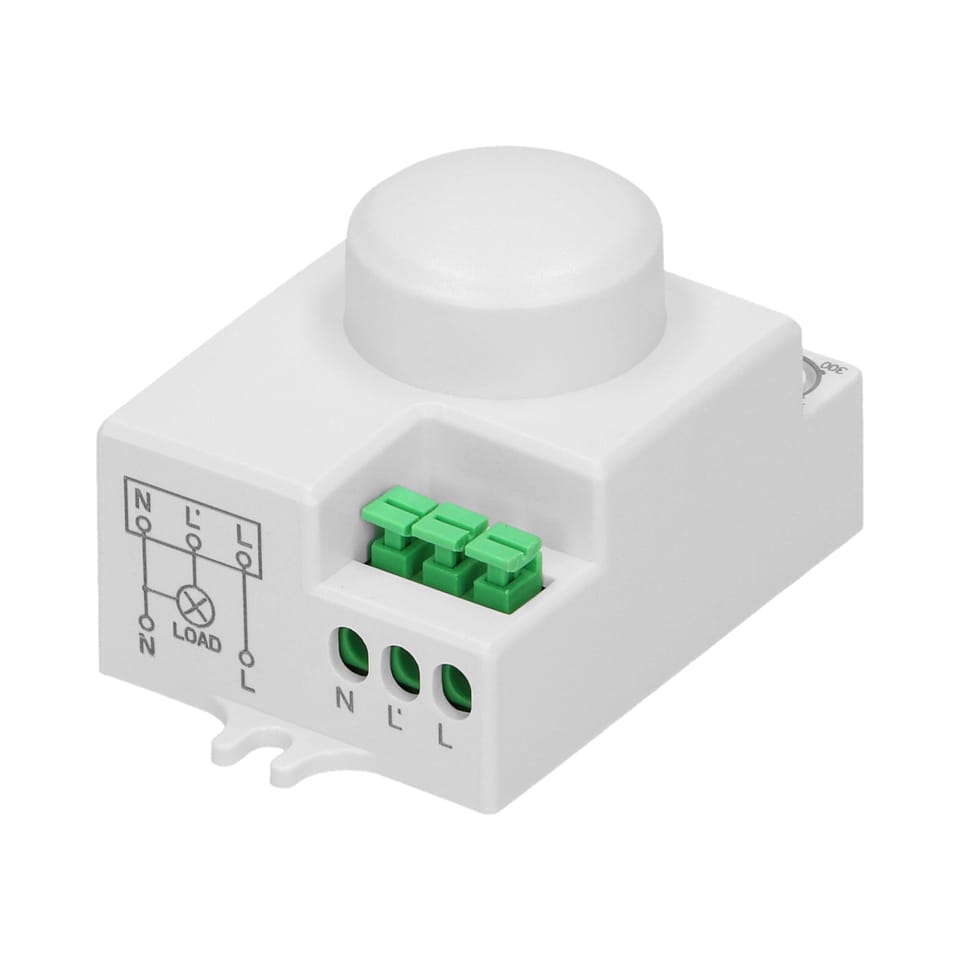

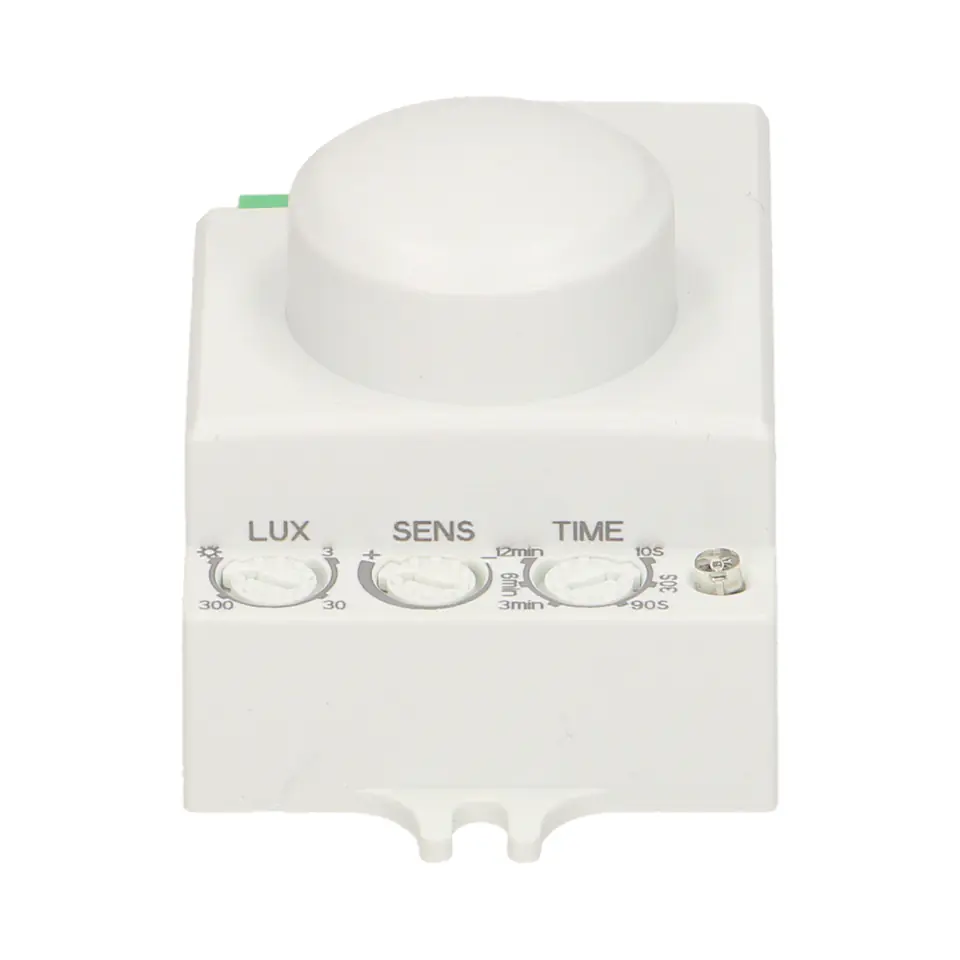

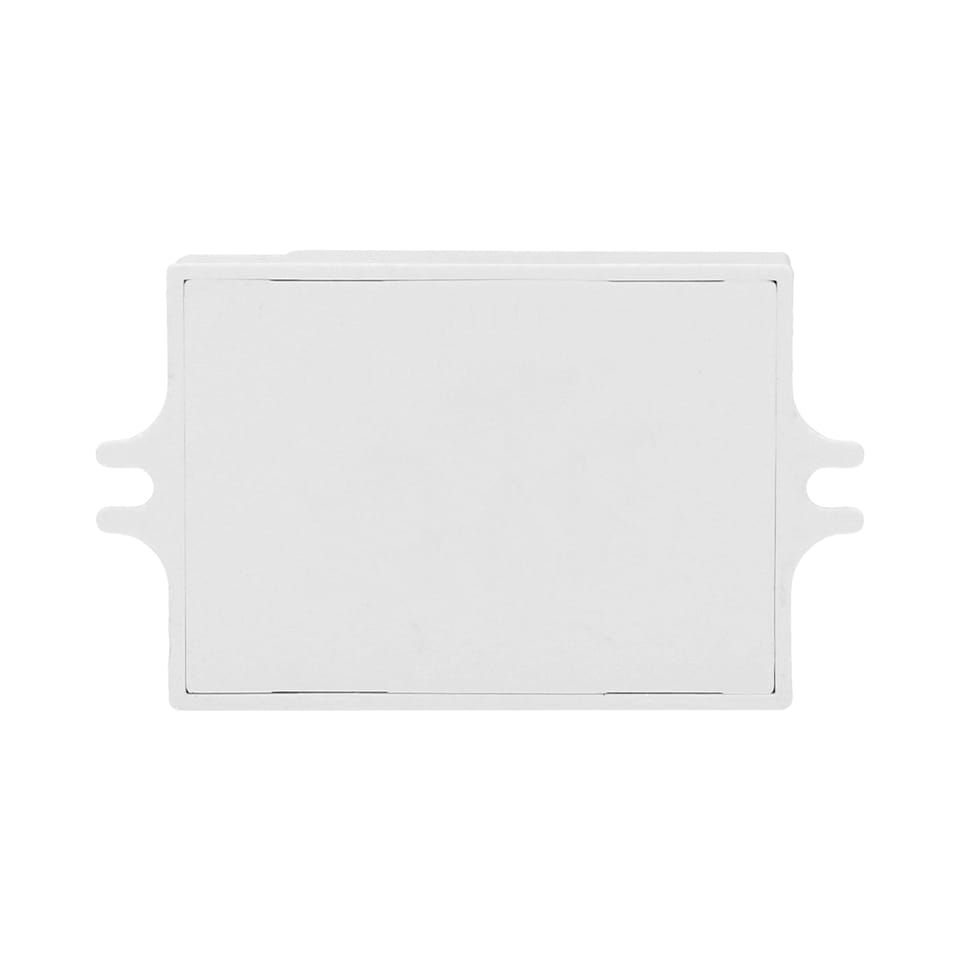

Microwave motion sensor, mini, 360/180st. IP20, 1200W
€16.01
Shipping from warehouse: A2
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Orno Group Sp. z o.o.
- Product code:
- OR-CR-216 / 5901752482067
Share this product:
Specification
| Adjustable constant lighting level: | No |
|---|---|
| Adjustable sensitivity setting: | Yes |
| Adjustable threshold value of light intensity: | Yes |
| Alarm function: | No |
| Animal zone: | No |
| Bridging switch: | No |
| Brightness threshold sensitivity [lx] from: | 3 |
| Brightness threshold sensitivity [lx] up to: | 2000 |
| Color shade: | White |
| Colour: | White |
| Degree of protection (ip): | IP20 |
| Diameter of the detection field on the substrate [m]: | 12 |
| Dimming function: | No |
| Forced shutdown: | No |
| Frequency range [hz] from: | 50 |
| Frequency range [hz] to: | 50 |
| Halogen-free: | No |
| Horizontal detection angle from/to [°] to: | 360 |
| Hvac control: | No |
| Input of add-on modules: | No |
| Light intensity threshold learning function: | No |
| Material: | Plastic |
| Material type: | Thermoplastic |
| Maximum switching power [w]: | 1200 |
| Maximum switching time [min]: | 13 |
| Minimum switching time [s]: | 7 |
| Model: | Motion sensor |
| Mounting method: | Flush-mounted installation |
| Networkable: | No |
| Optimal installation height [m]: | 2.5000 |
| Rated voltage [v]: | 230 |
| Remote control: | No |
| Staircase surveillance: | No |
| Stealth protection: | No |
| Suitable for wireless transmission: | No |
| Surface finish: | Shiny |
| Surface protection: | Untreated |
| Temperature range [°c] from: | -20 |
| Temperature range [°c] to: | 40 |
| Transparent: | No |
| With signaling element: | No |
