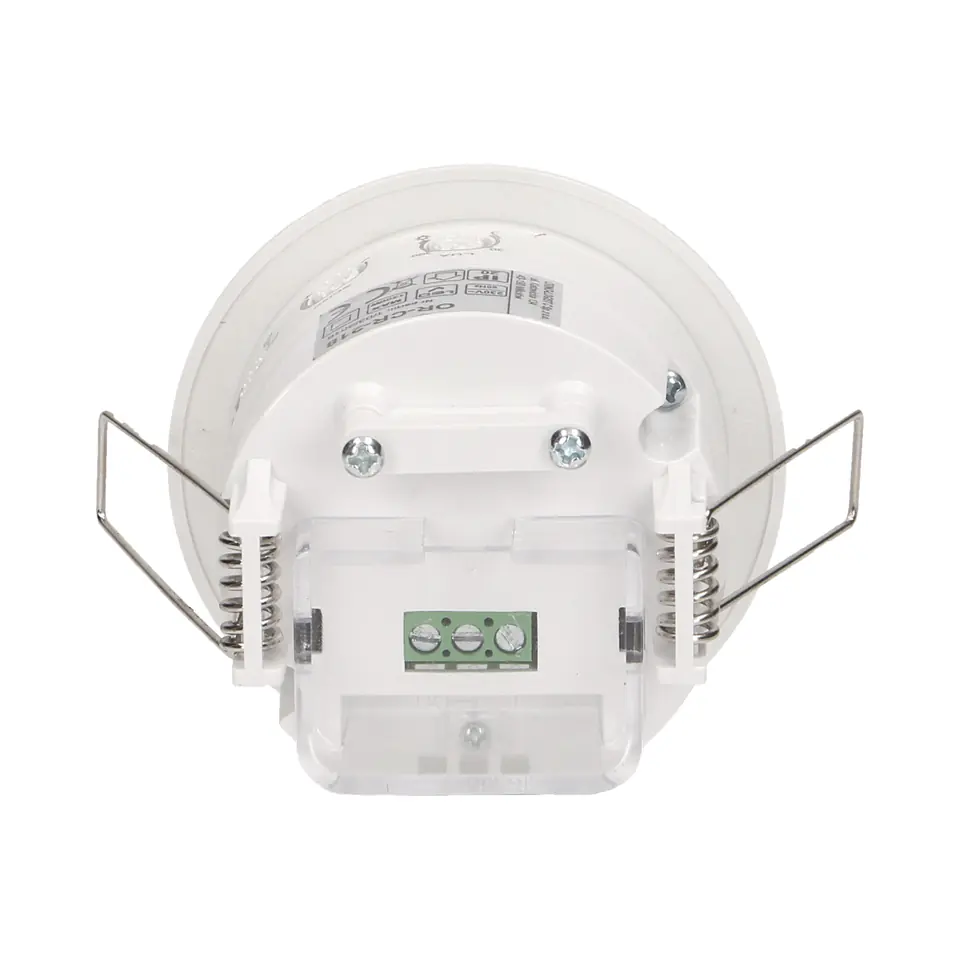

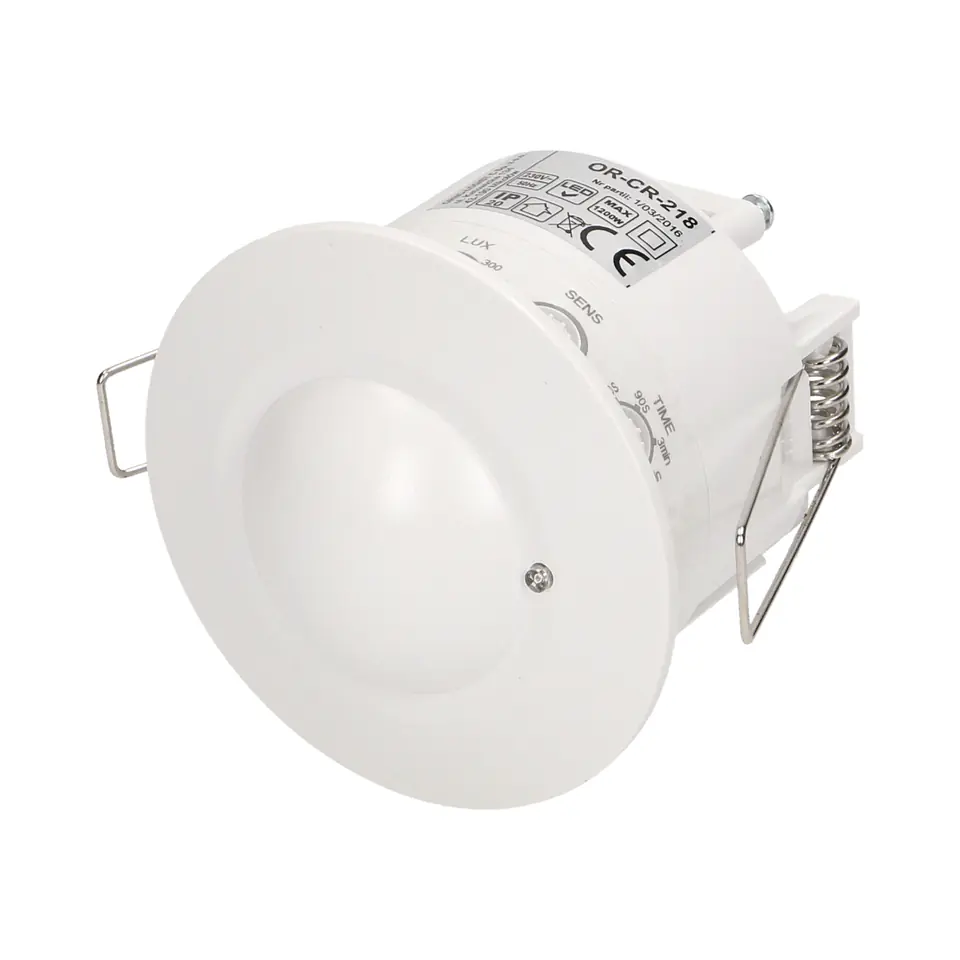

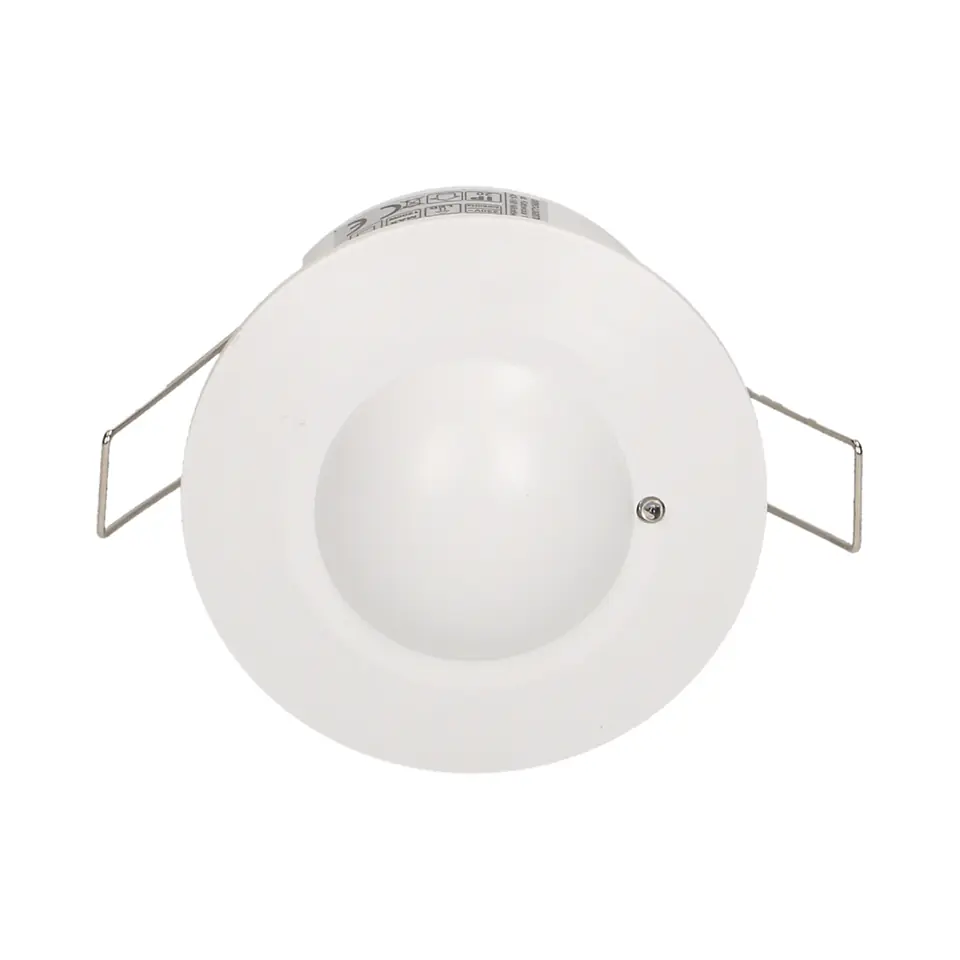

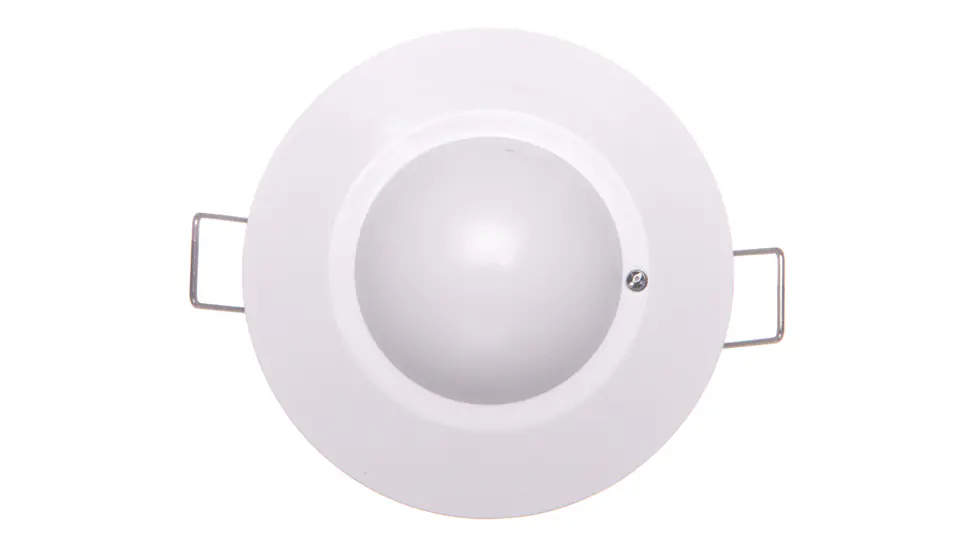

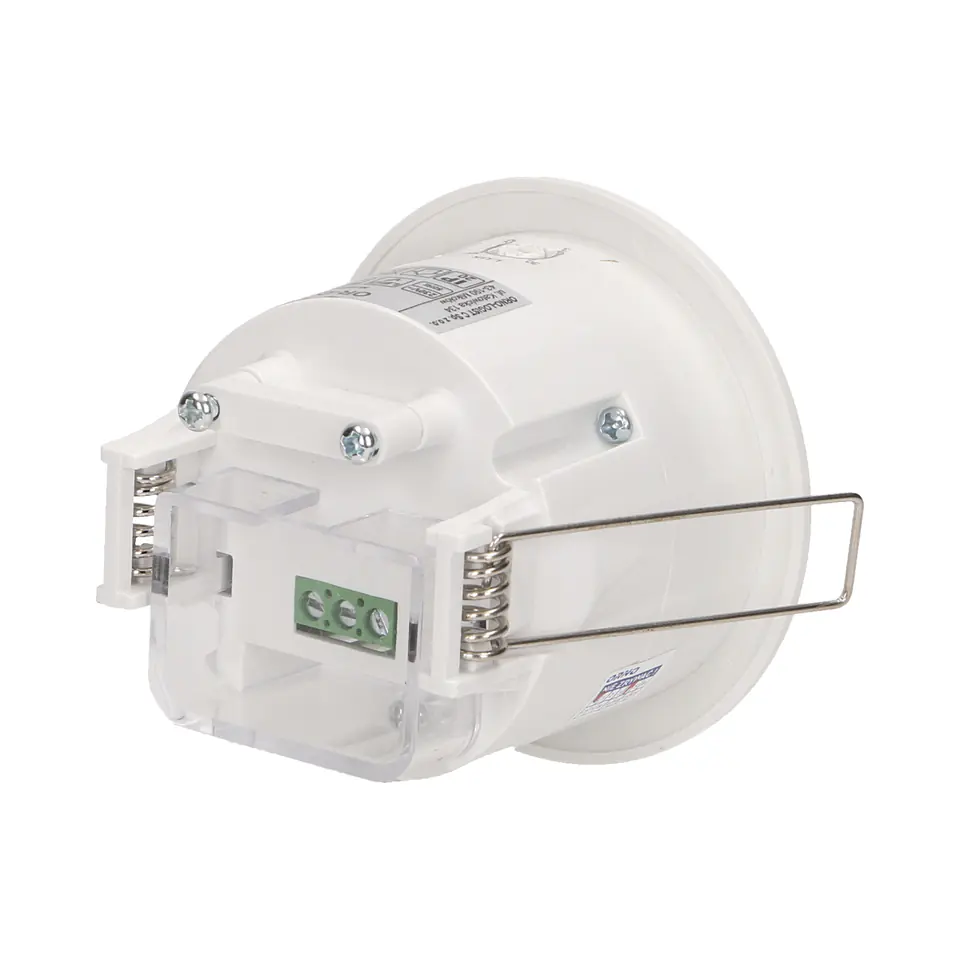

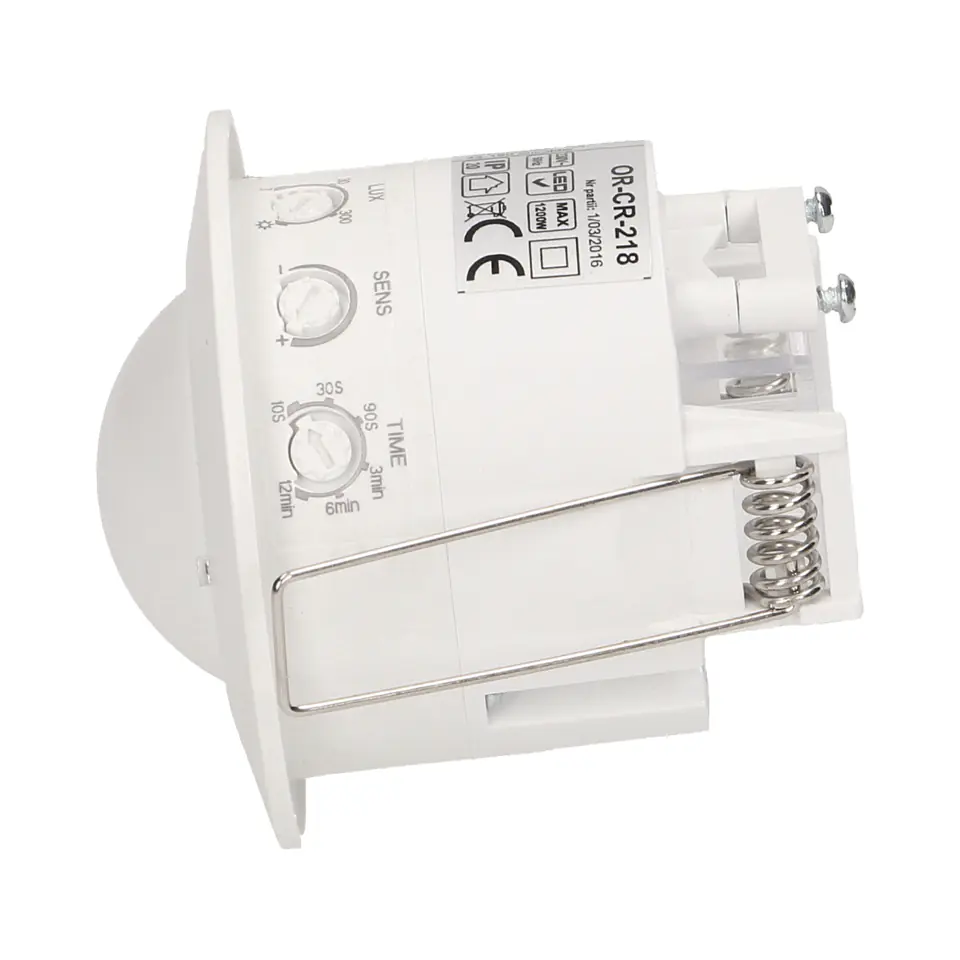

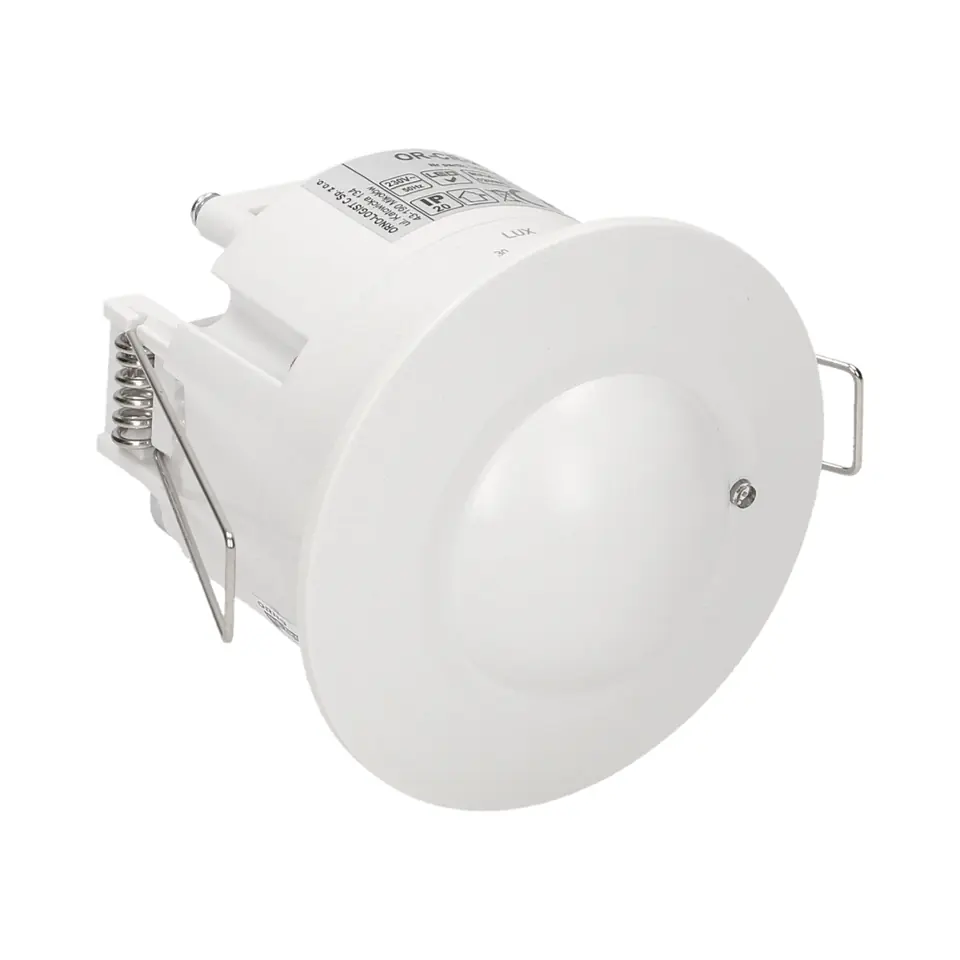

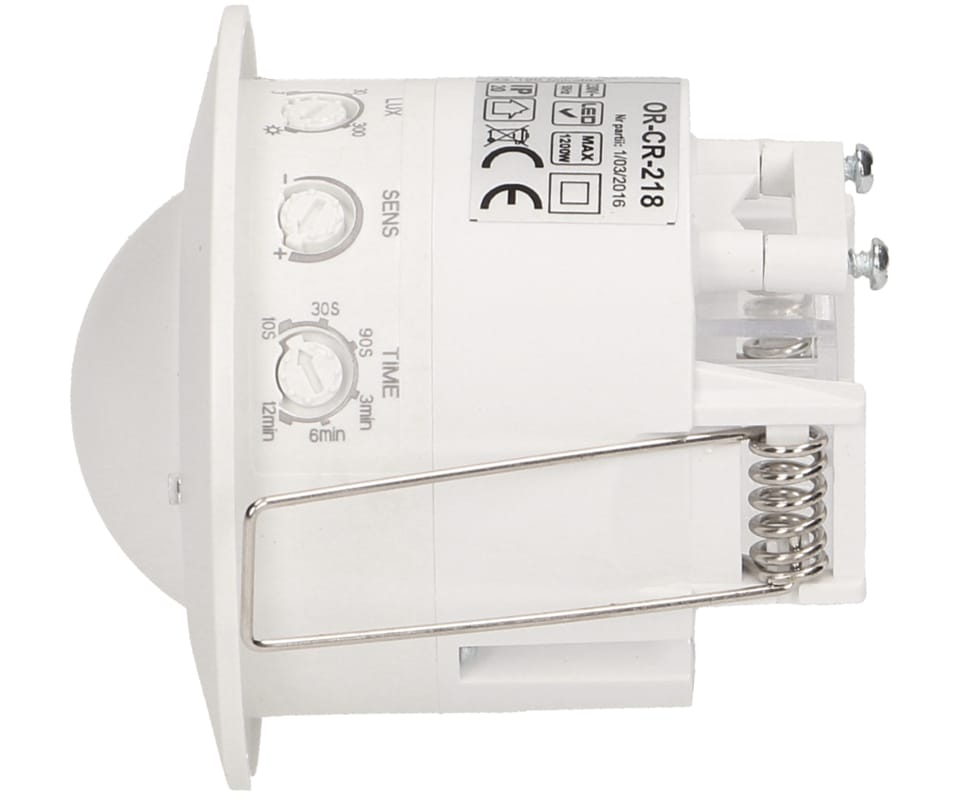

Microwave (radar) motion sensor adapted for installation in suspended ceilings, is an active motion detector that sends high-frequency electromagnetic waves (5.8GHz) and receives their echo. The sensor detects changes in the echo, caused by even the slightest movement in the observed area. Low power emission (<0,2mW), potencjometry do regulacji: czasu świecenia, zasięgu wykrywania ruchu i czułości natężenia światła. Detekcja ruchu przez szkło, tworzywa sztuczne, płyty kartonowo-gipsowe, brak wpływu temperatury na detekcję. Czujnik współpracuje z oświetleniem LED-owym.

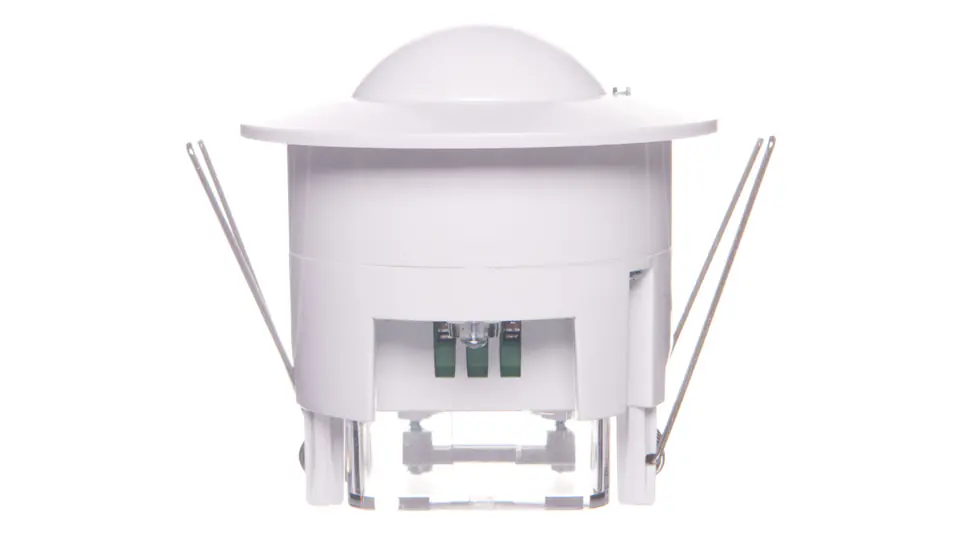

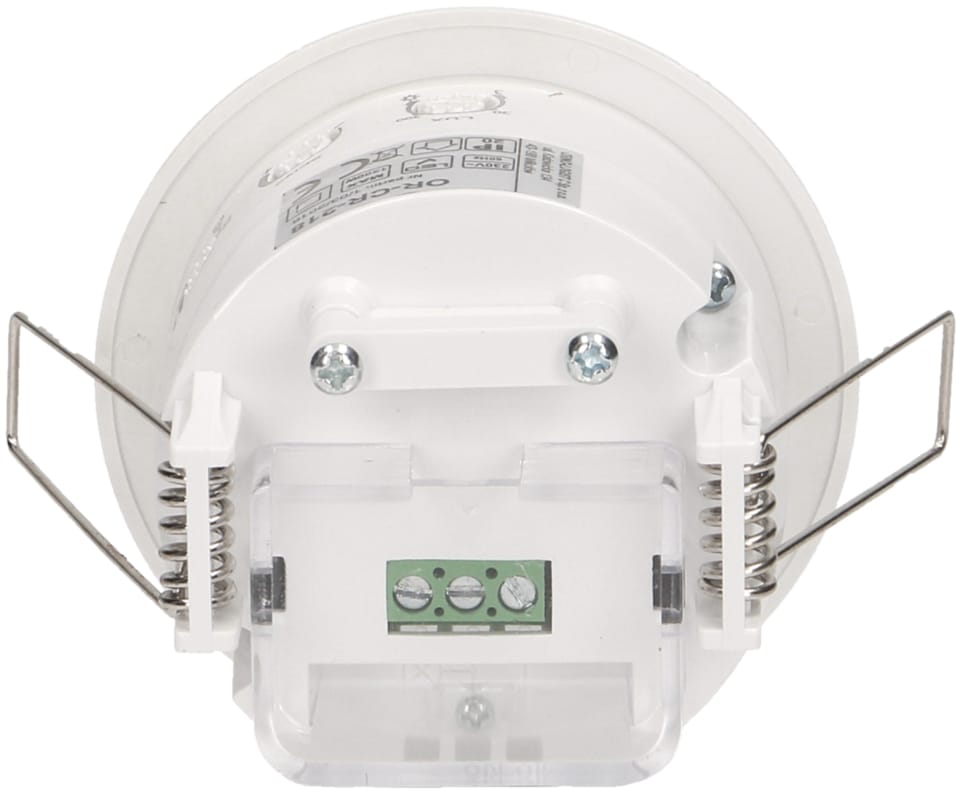

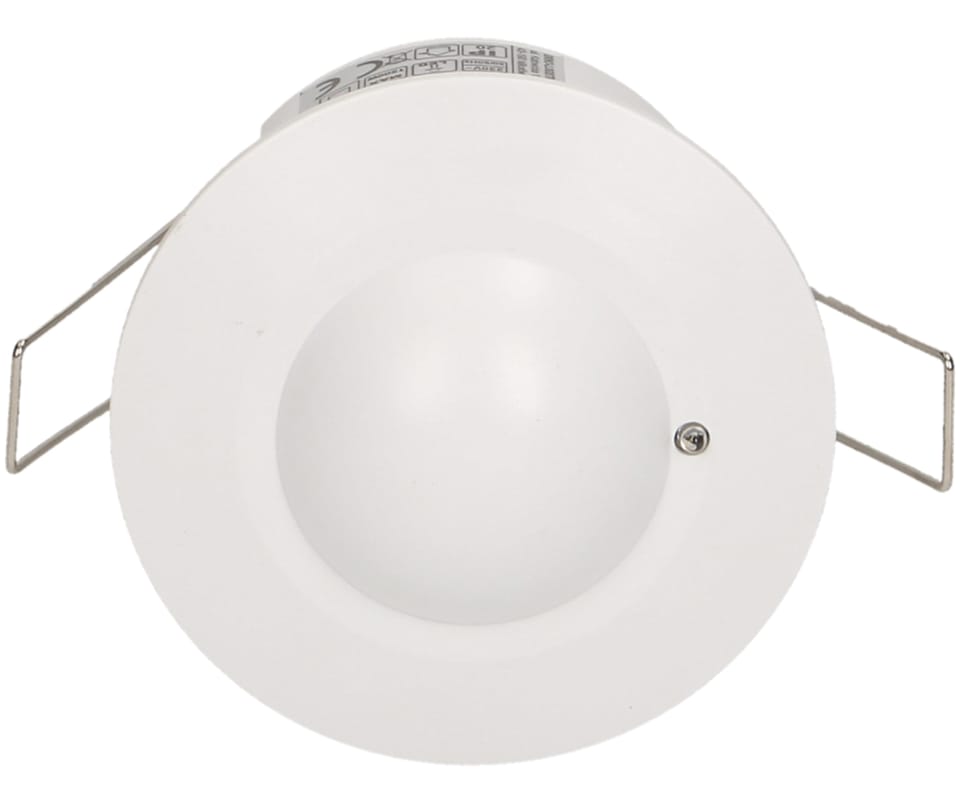

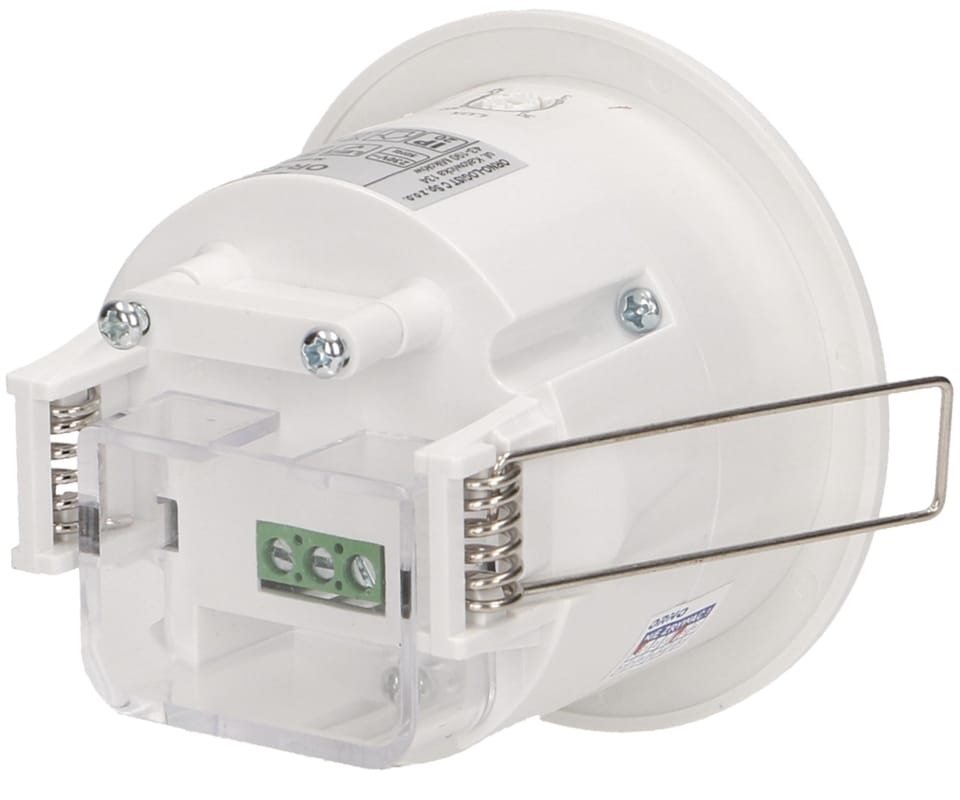

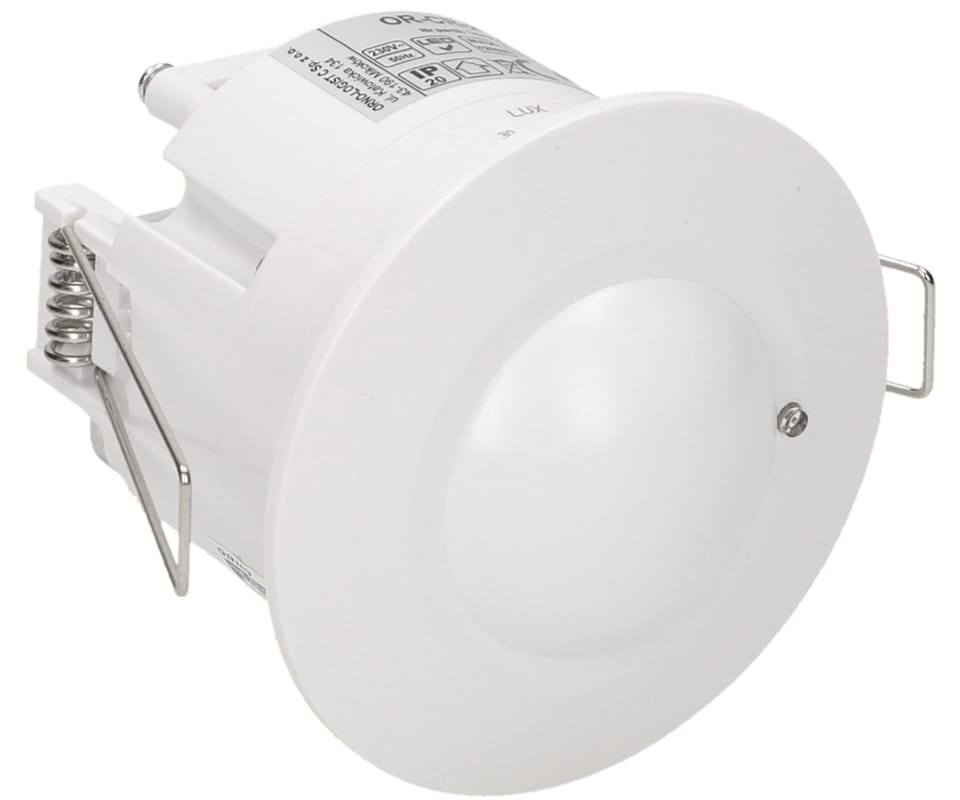

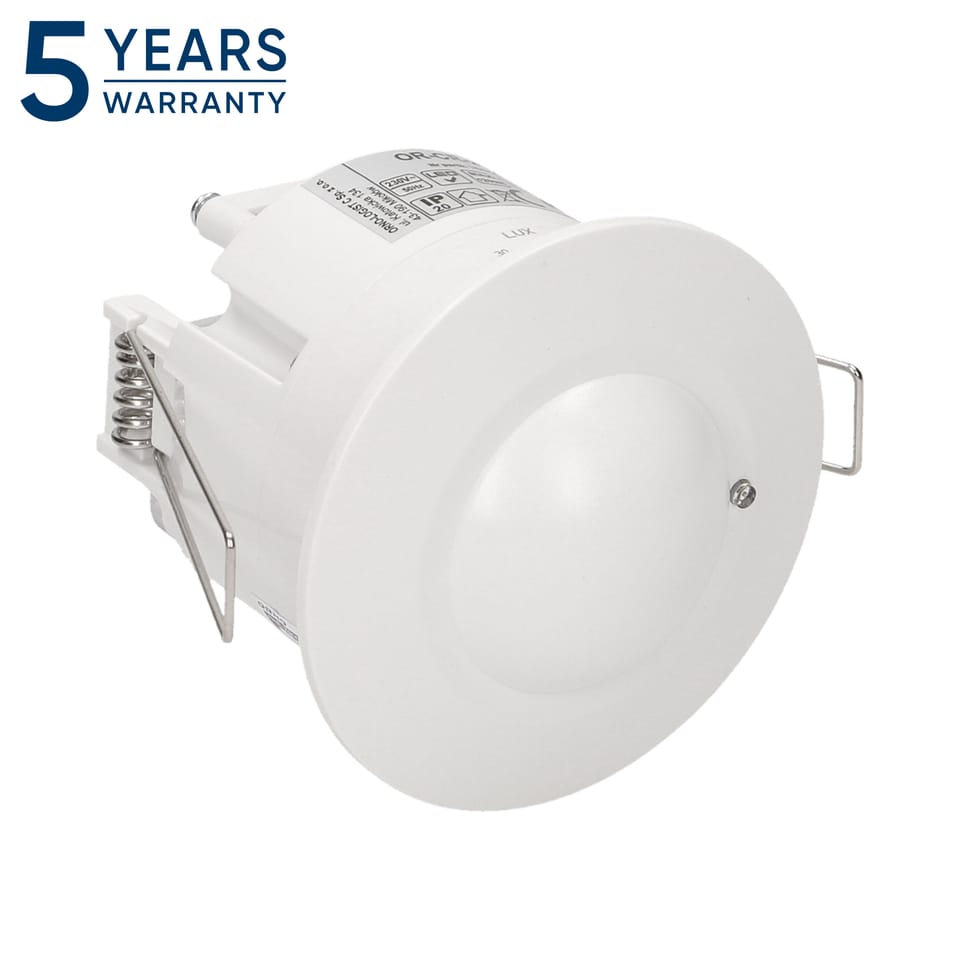

Microwave Motion Sensor for Suspended Ceilings, IP20, 1200W
€19.10
Shipping from warehouse: A2
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Orno Group Sp. z o.o.
- Product code:
- OR-CR-218 / 5901752482074
Share this product:
Specification
| Adjustable threshold value of light intensity: | Yes |
|---|---|
| Brightness threshold sensitivity [lx] from: | 3 |
| Brightness threshold sensitivity [lx] up to: | 2000 |
| Color shade: | White |
| Colour: | White |
| Degree of protection (ip): | IP20 |
| Diameter of the detection field on the substrate [m]: | 8 |
| Frequency range [hz] from: | 50 |
| Frequency range [hz] to: | 50 |
| Horizontal detection angle from/to [°] to: | 360 |
| Material: | Plastic |
| Material type: | Thermoplastic |
| Maximum switching power [w]: | 1200 |
| Maximum switching time [min]: | 13 |
| Minimum switching time [s]: | 7 |
| Model: | Motion sensor |
| Mounting method: | Flush-mounted installation |
| Optimal installation height [m]: | 2.5000 |
| Rated voltage [v]: | 230 |
| Surface finish: | Shiny |
| Surface protection: | Untreated |
| Temperature range [°c] from: | -20 |
| Temperature range [°c] to: | 40 |
