MICROMETER 0-25MM

Technical Specifications

Manufacturer: Yato
Manufacturer's code: 72300
Material: carbon steel|aluminum| PVC
Operating Temperature Range: 5~40 °C
Metric scale: Yes
Inch scale: no
Measuring accuracy: ± 0.01 mm
Measuring range: 0-25mm
DIN: 863

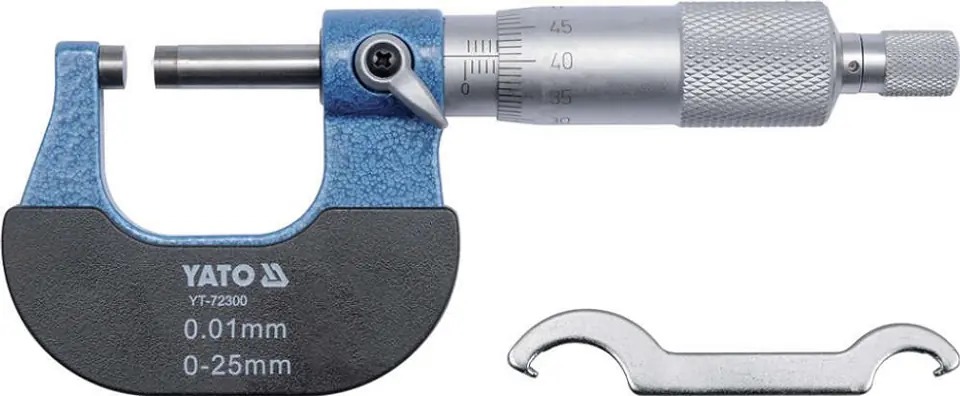

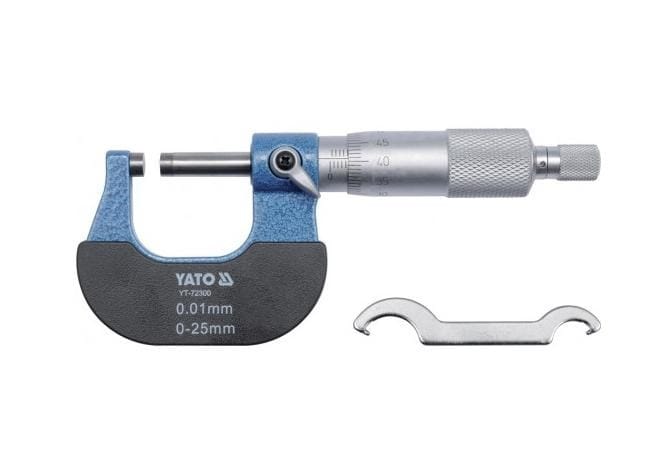

Micrometer 0-25mm

Preparation for work: - Clean the measuring surfaces and guide.

For this purpose, use a cotton cloth.

Do not use solvents or acids.

Check the zero position and, if necessary, adjust with the enclosed key so that the line marked "0" on the drum coincides with the horizontal line of the scale.

Measuring method: - The drum can only be rotated after the retaining clamp is unlocked.

Spread the target surfaces a little farther than the object to be measured.

Then, rotating with the drum, set roughly, and then continue tightening by turning the friction clutch knob.

Stop tightening when the clutch works, i.e. further rotation of the knob will not cause the drum to rotate.

Read the measurement result according to the measuring principle shown in the figure.

It is recommended to fix the workpiece or micrometer before starting the measurement.

This will allow you to achieve the highest measurement accuracy.

It is also recommended to carry out several measurements so as to obtain the arithmetic mean of the results.




**

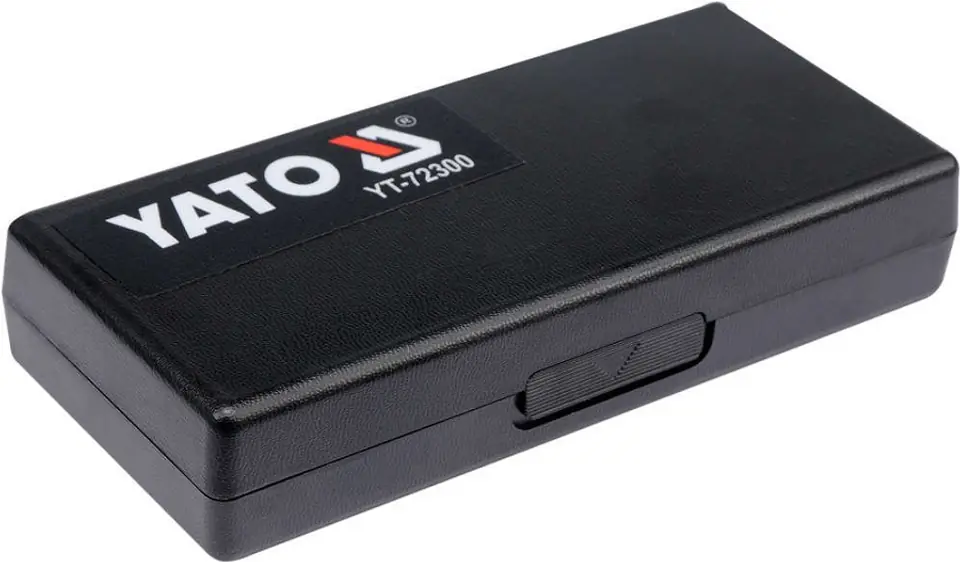

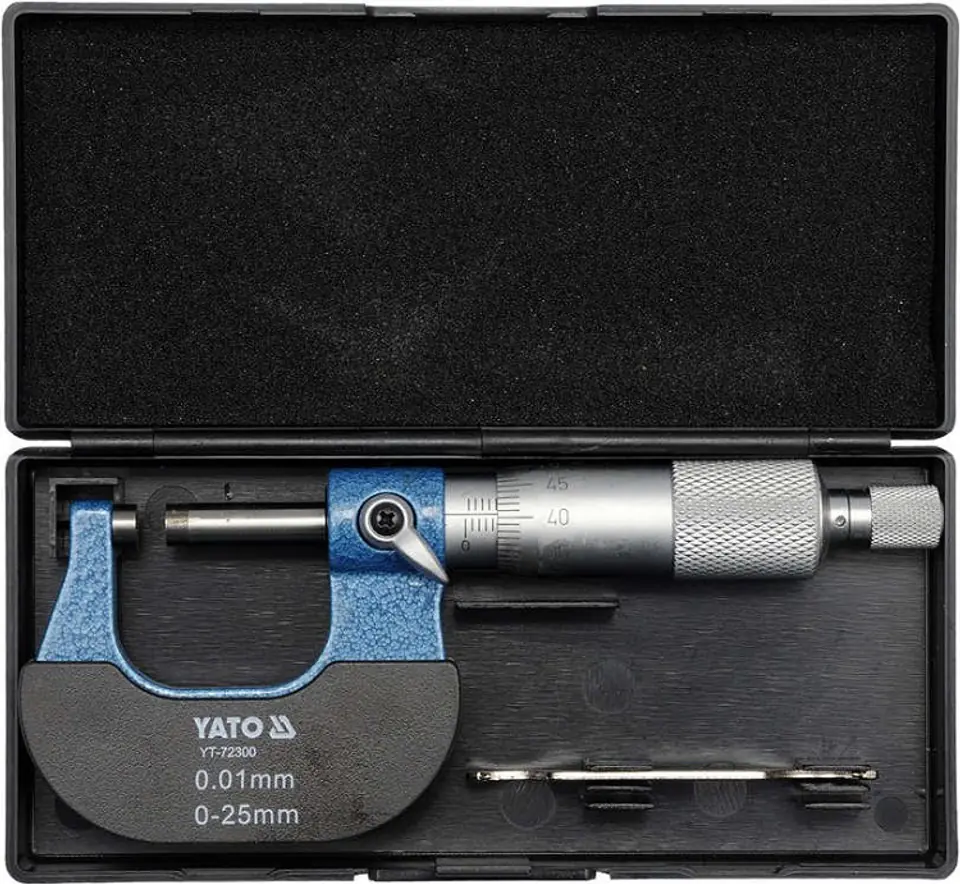

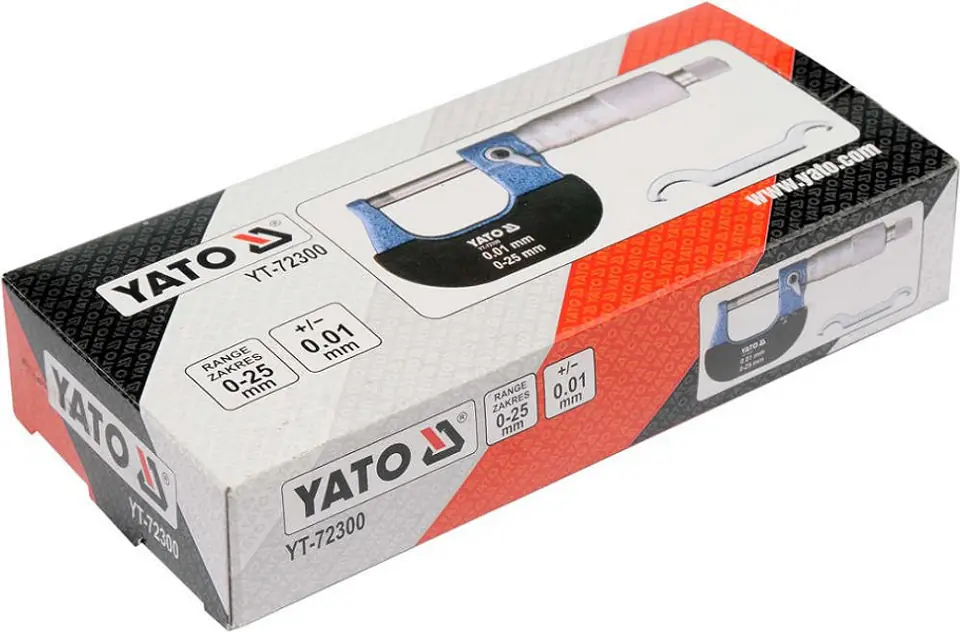

Illustrative photos
