The offered product is a response to the high market demand, for devices ensuring the control of gas installations,
ventilation and central heating furnaces installed in our apartments,
houses and public buildings.
The device is especially in demand by customers in the autumn and winter.
Our product is entirely manufactured in POLAND.
It is checked in the laboratory, with special gas mixtures,
in order to guarantee the reliability of the operation of the device when the concentration of gas dangerous to man appears.

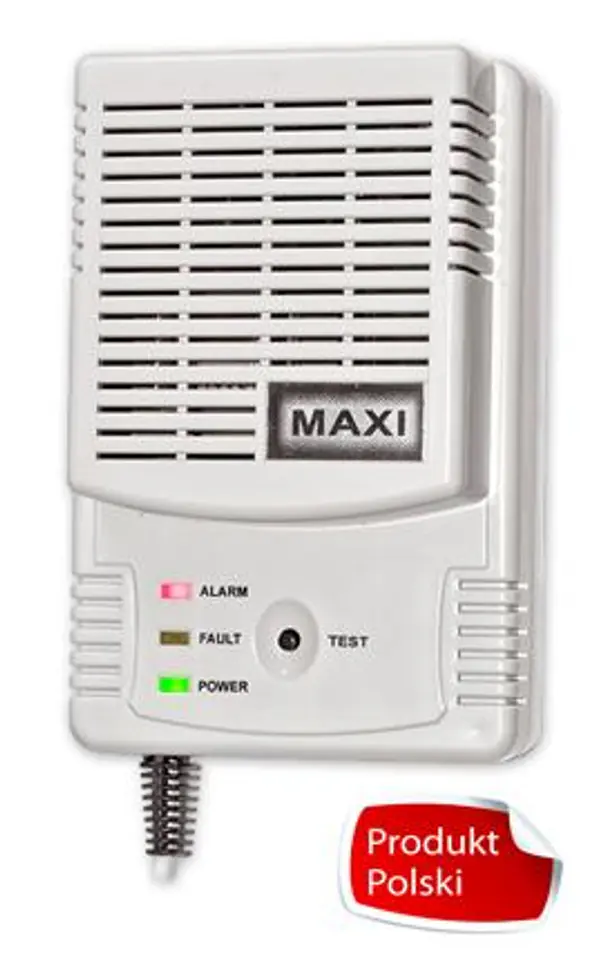

The MAXI/K-GP detector is designed to monitor enclosed spaces for the presence of flammable gases:
methane and propane-butane.
The detector continuously measures the concentration of gas in the ambient air.
When a gas value of approximately 15% of the Lower Explosion Limit is exceeded
(i.e. at a gas concentration about 7 times lower than that at which the gas can explode)
optical and acoustic alarm signalling shall be activated.
Additional outputs allow connection to alarm systems and control of solenoid valves
and acoustic-light modules (siren, lamp).
The alarm is switched off automatically when the gas concentration falls below the alarm threshold.
Application of the MAXI gas detector:
Domestic boiler rooms with furnaces fired with natural gas or propane-butane
Bathrooms, kitchens equipped with gas appliances, e.g. stoves, stoves, water heaters
Rooms in which gas appliances are located, i.e. gas meters, cylinders, tanks,
gas pipes (basements, corridors), portable gas stoves
Home garages of cars with LPG gas installation
School physico-chemical laboratories
Caravans and yachts
Technical parameters:
Supply voltage 230V, 50Hz, power consumption 3W.
Operating temperature from -10 °C to +40 °C.
Relative air humidity from 30% to 95%.
Sensor type - semiconductor of Japanese production, durability 10 years.
The value of the threshold concentration - about 15% of the Lower Explosion Limit.
Alarm signaling - optically acoustic (red diode, piezo acoustic diaphragm 85dB).
Additional outputs in the GP230 version - connection of a 230V solenoid valve and an acoustic-light module.
Dimensions 120x80x45 mm.
Weight 0.30 kg.
