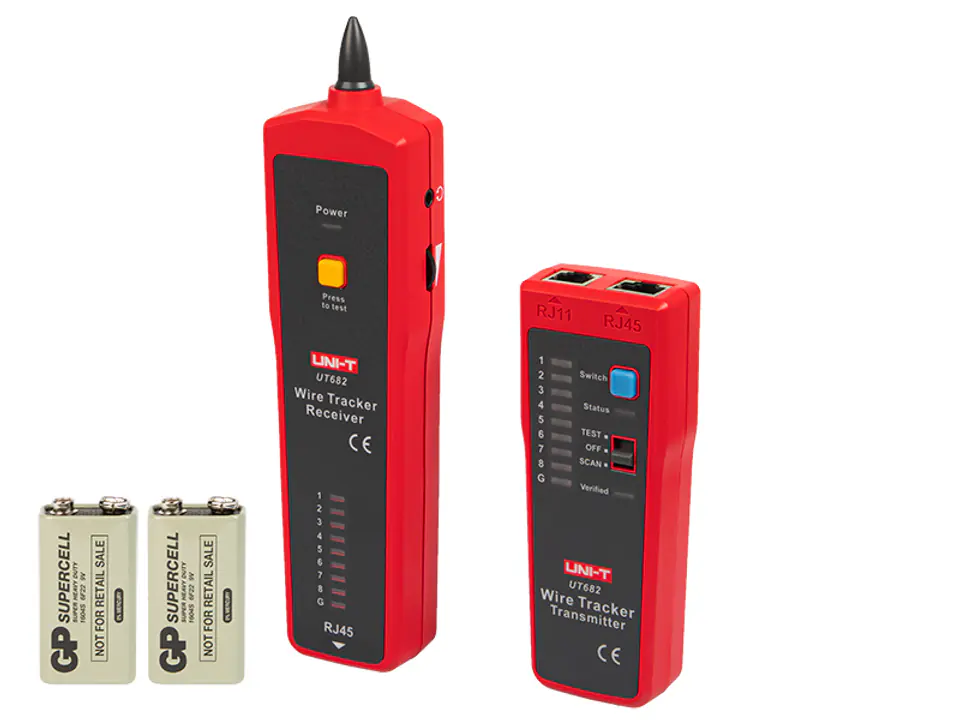

A pair locator ideal for finding telephone, Internet, power and live cables. The meter is a handy, accurate and non-invasive tool suitable for fitters and technicians as well as people who work on low-voltage lines.
Specification:
- Types of wires: LAN cable, telephone, coaxial cable, electric wire
- Maximum length of telephone line: 3000m
- Maximum length of shielded and unshielded cables: 320m
- Transmitter output voltage: max. 12 volts
- Polarization indicator of telephone wire pairs: ± (5 V ~ 52 V)
- Signal strength indicator light
- Tracking of live switchgear wires
- Opening and short circuit test
- Track a broken cable
- Headphone jack for receiver
- Transmitter input voltage protection: 52V DC
- Receiver and transmitter power supply: 9V battery
- Maximum receiver standby current: 10mA
- Maximum working current of the receiver: <40mA (AC, RMS)
- Maximum working current of the transmitter: 25mA
- Transmitter dimensions: 125x48x28mm
- Receiver dimensions: 195x48x30mm
- Transmitter weight: 125g
- Receiver weight: 153g
