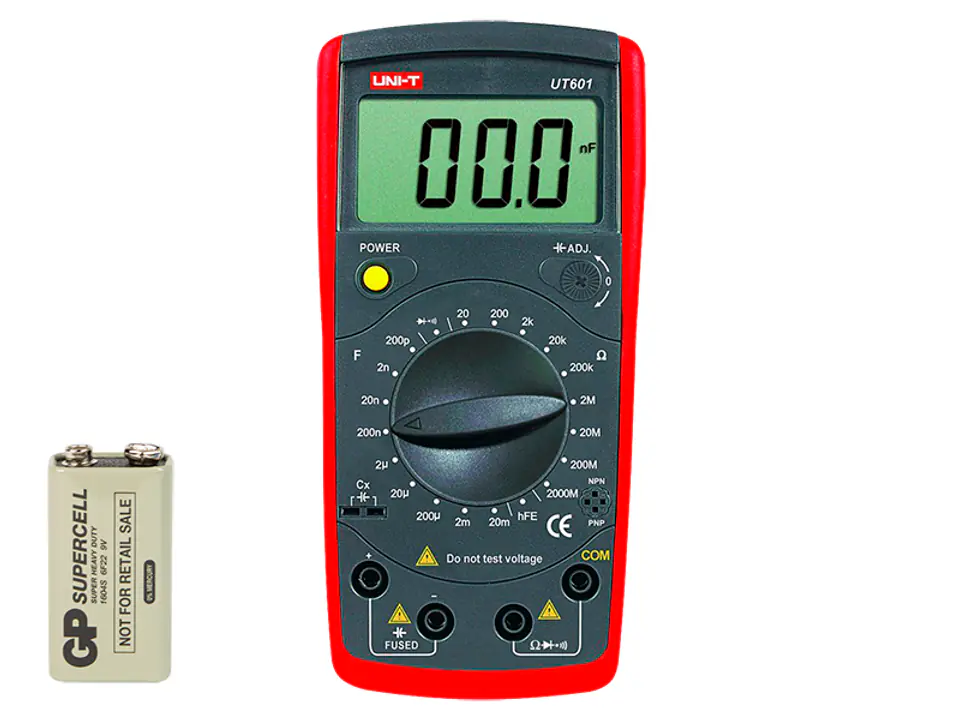

Capacitance and resistance meter designed for testing resistors, capacitors and inductors. The result can be read on a clear display. Operation of the device is extremely simple and intuitive.
Specification:
- Resistance: 20 Ohm/200 Ohm/2 kOhm/20 kOhm/200 kOhm/2 MOhm/20 MOhm/200 MOhm/2000 MOhm; ±(0.8%+1)
- Capacity: 200 pF/2 nF/20 nF/200 nF/2 μF/20 μF/200 μF/2 mF/20 mF; ±(0.5%+10)

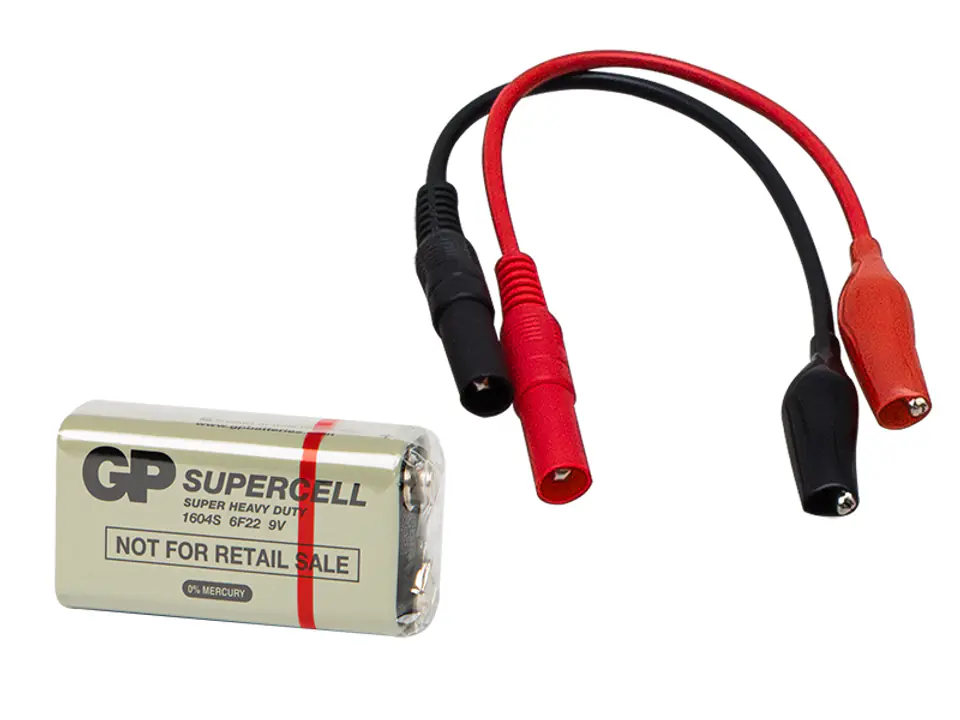

- Power supply: 9 V (6F22)
- Display size: 61 x 32 mm
- Product dimensions: 172 x 83 x 38 mm
- Weight: 310 g
- Measurement: diode test, circuit continuity, transistor test, low battery indicator
