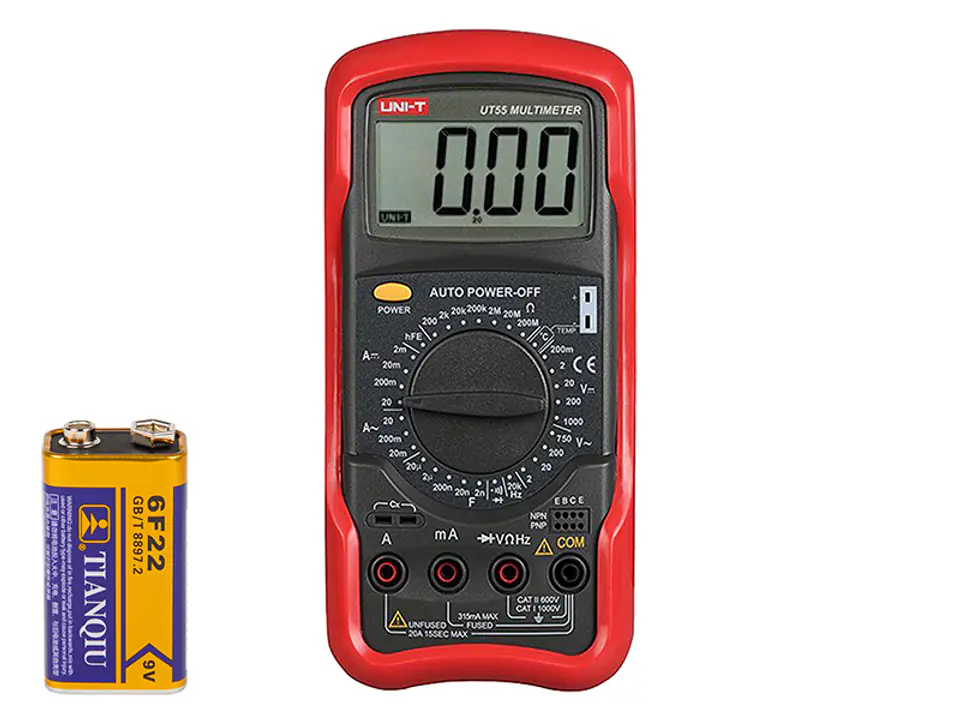

A universal digital meter thanks to which we can measure voltage, current, resistance, frequency, capacitance, temperature and hFE of transistors.
Specification:
- DC voltage measurement: 0.2-1000V in 5 ranges
- AC voltage measurement: 0.2-750V in 4 ranges
- DC current measurement: 2mA-20A in 4 ranges
- AC measurement: 20mA-20A in 3 ranges
- Resistance measurement: 200Ω-200MΩ in 7 ranges
- Frequency measurement: 2kHz-20kHz
- Capacitance measurement: 2nF-20uF in 5 ranges
- Temperature measurement: -20°C~+1000°C
- Transistor hFE measurement: YES
- Diode testing: YES
- Acoustic continuity tester: YES
- Display dimensions: 64x34mm
- Meter dimensions: 190x88x34 mm
- Weight: 540 g
- Basic accuracy: ±(0.5% + 1 digit)
