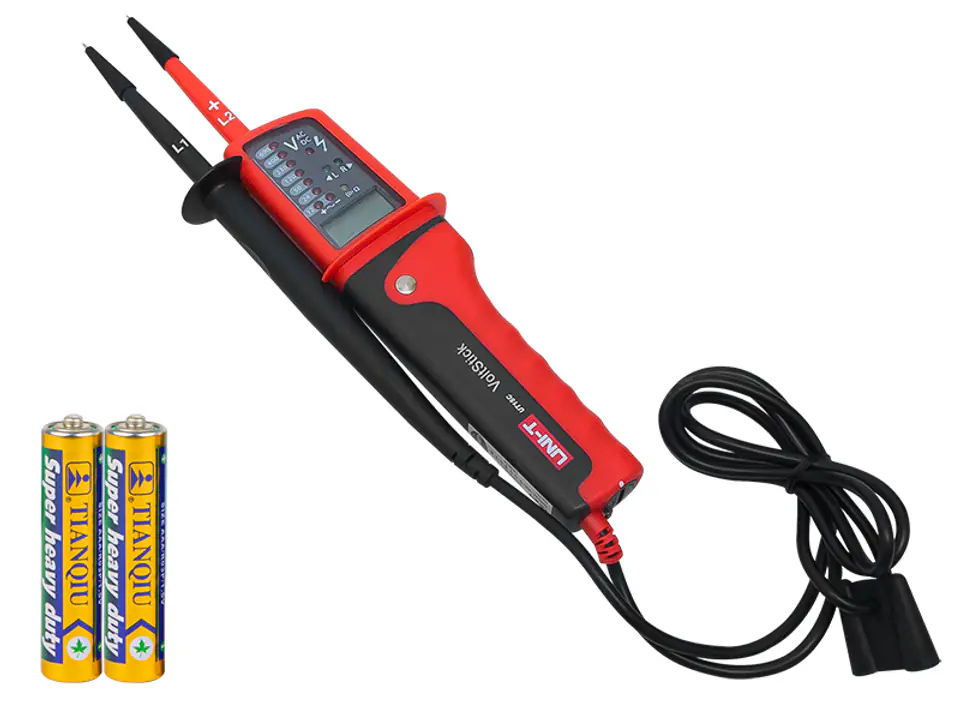

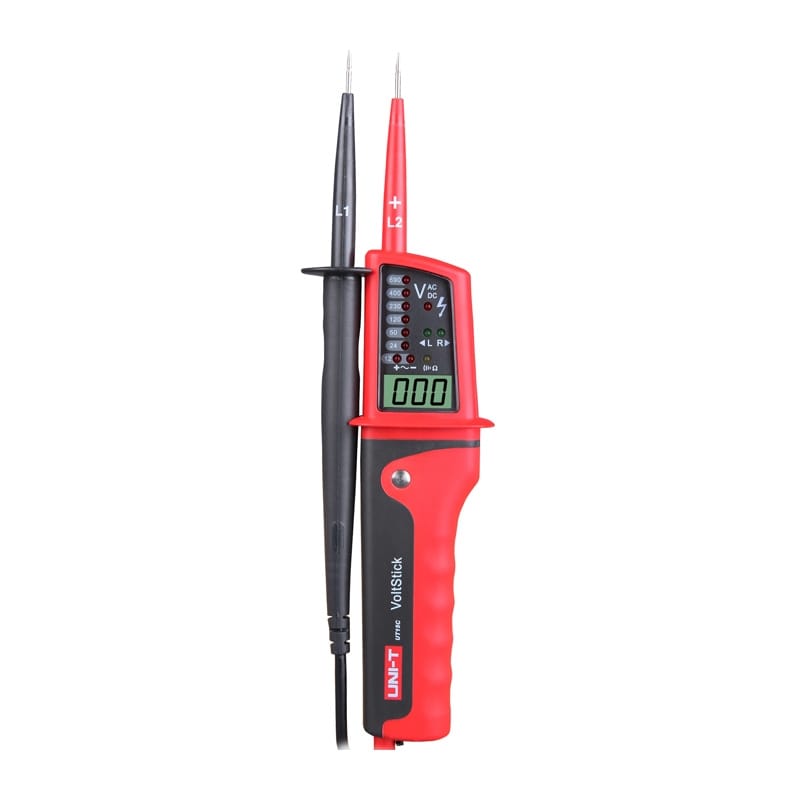

Fully automatic UT15C meter for measuring voltages from 12 to 690 AC/DC. LED flashlight has been integrated into the meter to illuminate the working environment of the L2 (+) probe.
Specification:
- Result display: 12 LED + 3 digit LCD display
- Measuring range: 12~690V AC/DC
- LED indications: 12, 24, 50, 120, 230, 400, 690V AC/DC
- Continuity test for R: < 400kΩ
- Phase shift test: 200~690V (50~60Hz) - 2 pole method
- Safety: EN60529, EN61243, EN 61010-1/EN1010-03/EN61326 CAT IV 600V
- Signaling: optical and acoustic
- Test tips: 3mm and 2mm
- Degree of protection: IP65
- Power supply: 2 batteries 1.5V type AAA, LR 03

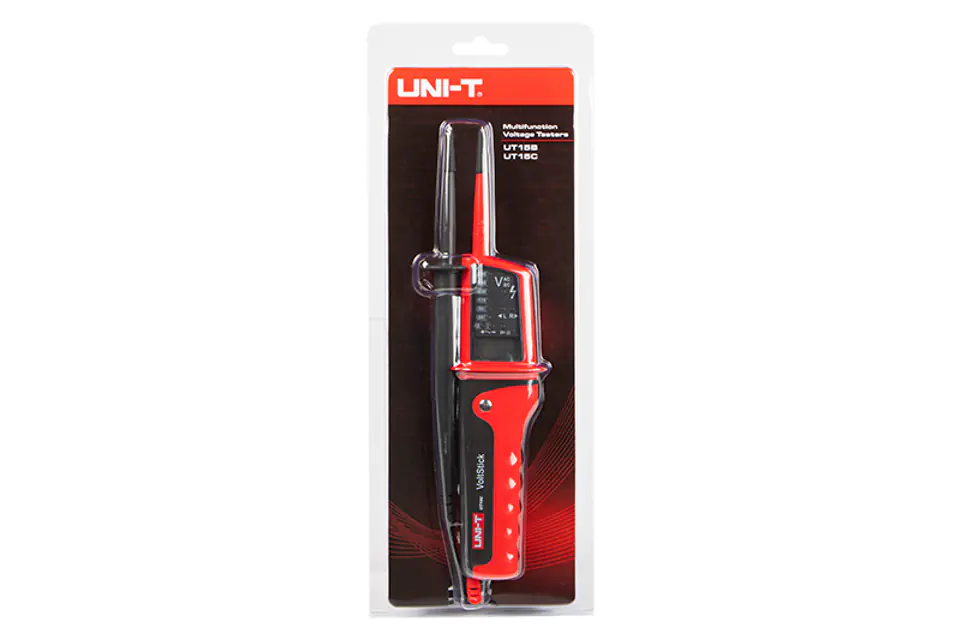

- Packaging: blister with pendant 350 x 127 mm
