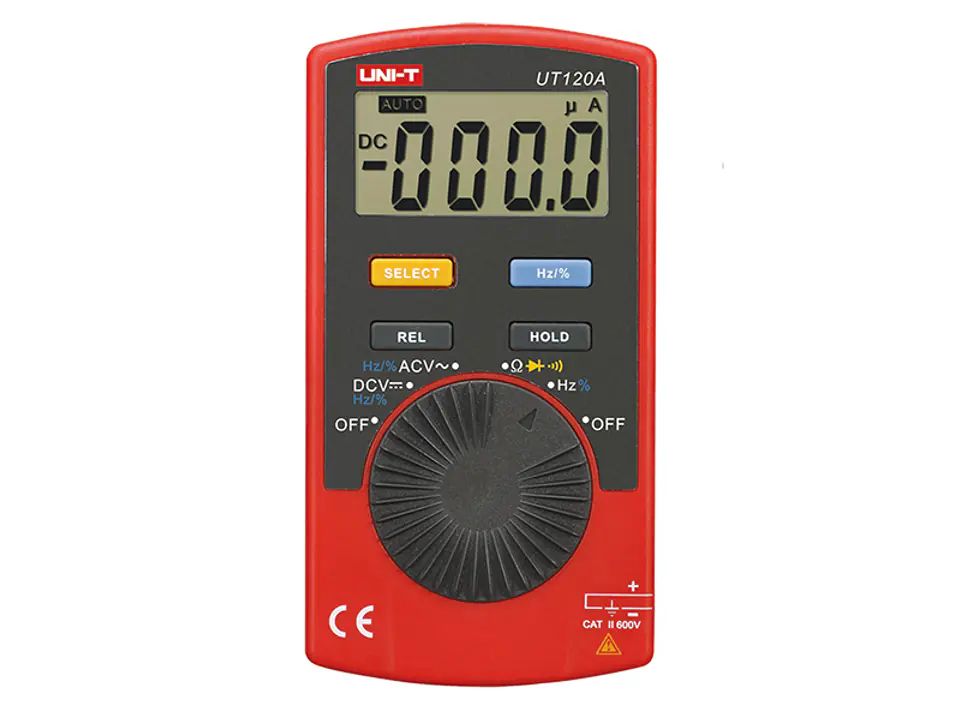

The small, pocket-sized UT120A meter is perfect for not only professionals, but also beginner DIY enthusiasts.
Specification:
- DC voltage: 4V/40V/400V/600V
- AC voltage: 4 V/40 V/400 V/600 V; ±(1.2%+3)
- DC voltage: 400 μA/4 mA/40 mA/400 mA; ±(1%+3)
- AC current: 400 μA/4 mA/40 mA/400 mA; ±(1.5%+5)
- Resistance: 400 Ohm/4 kOhm/40 kOhm/400 kOhm/4 MOhm/40 MOhm; ±(1%+2)
- Frequency: 10Hz-100KHz; ±(0.5%+3)
- DC voltage input impedance: about 10 MOhm
- Auto power off: about 30 minutes
- Circuit continuity: YES
- Low battery indicator: =<2.4V
- Freezing the last indication: YES
- Maximum reading: 3999
- Power supply: 3V battery (CR2032)
- Display size: 43 x 22 mm
- Product dimensions: 110 x 58.2 x 10.8 mm
- Weight: 76 g
