Manufacturer no: 10030590

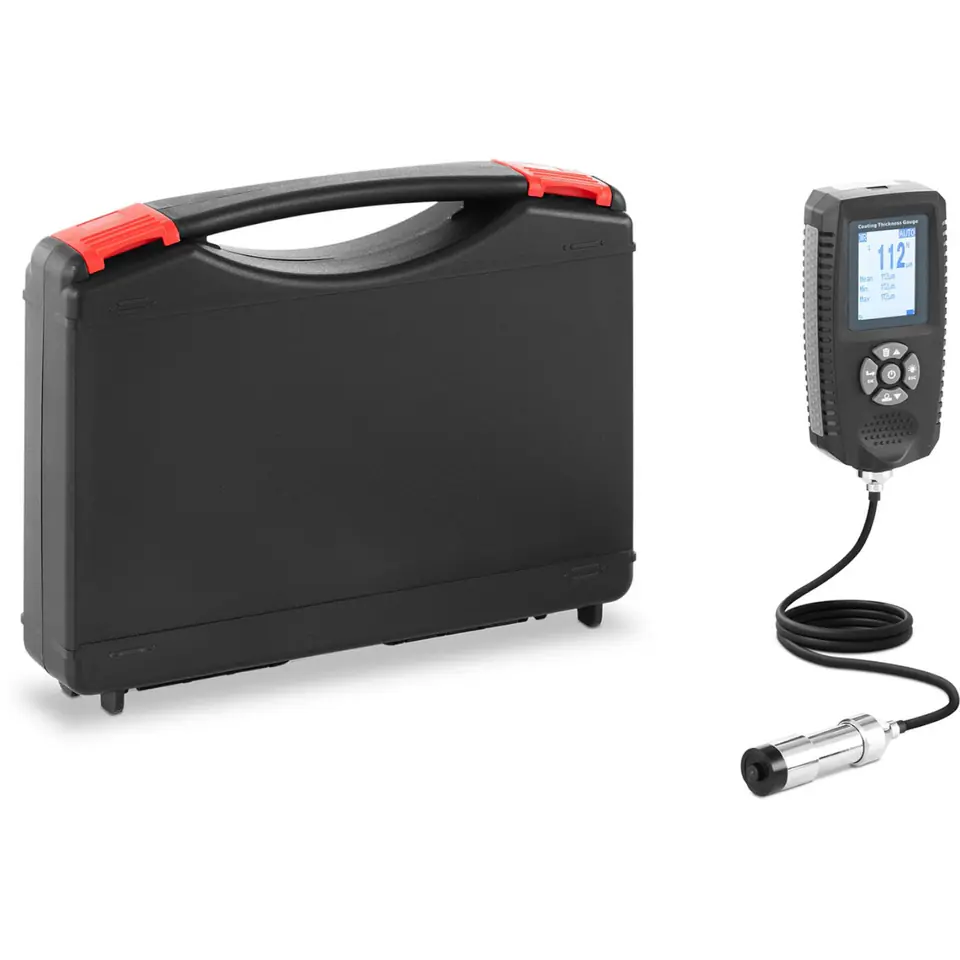

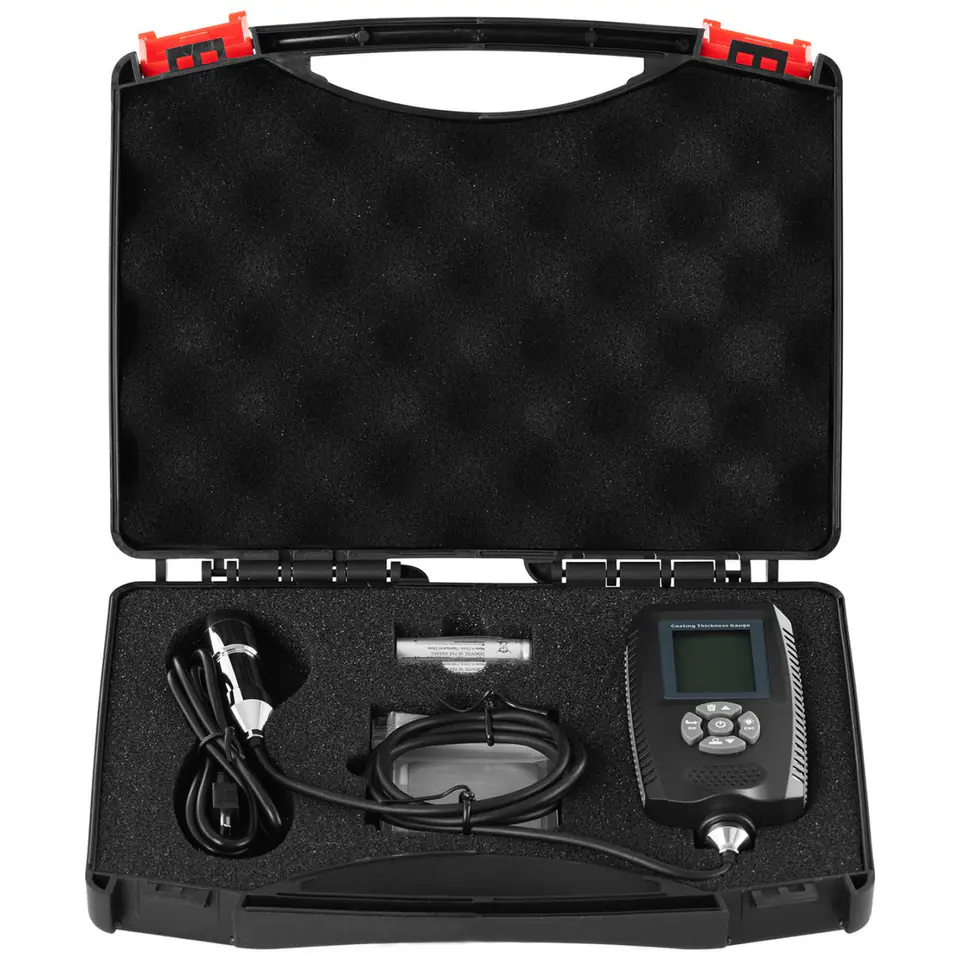

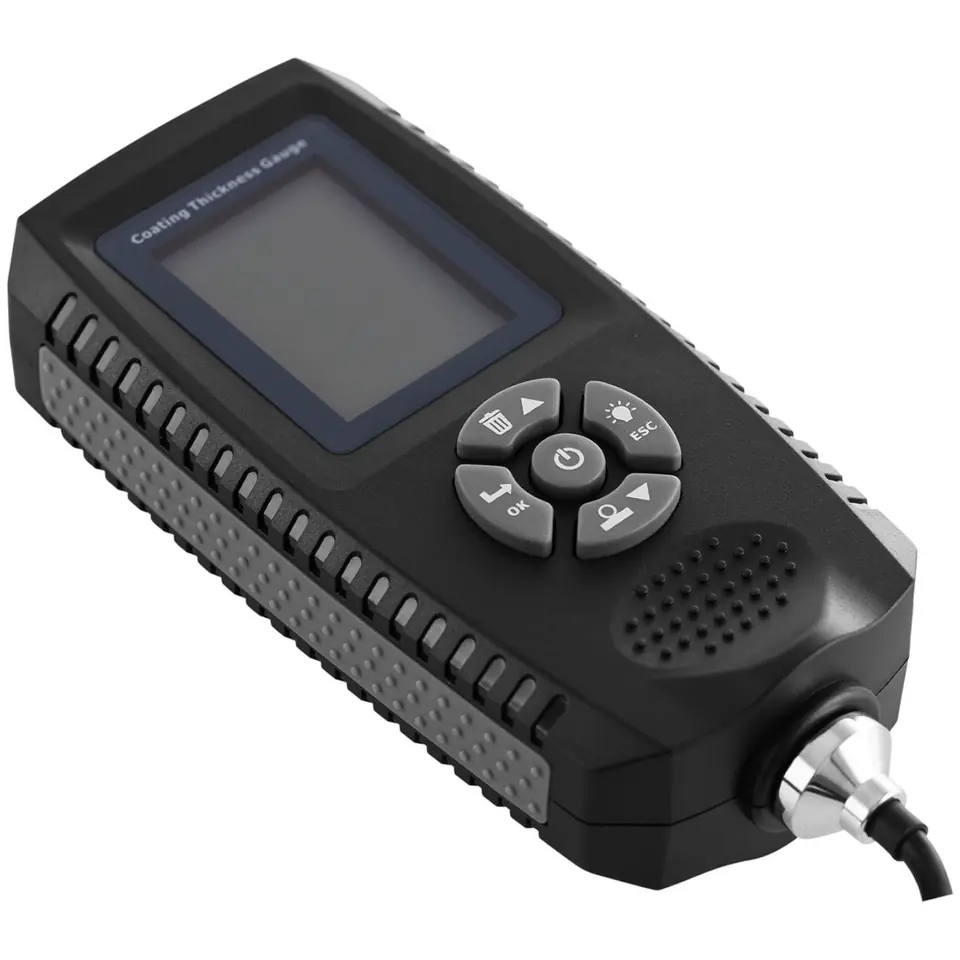

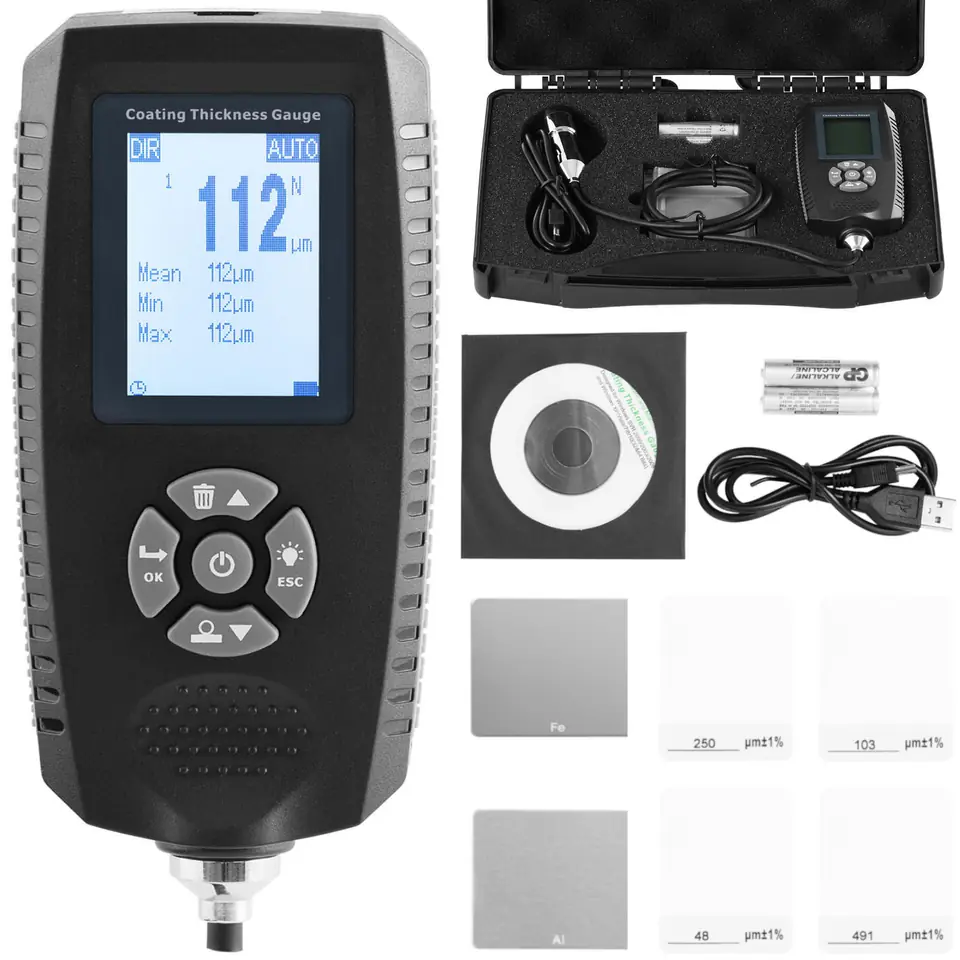

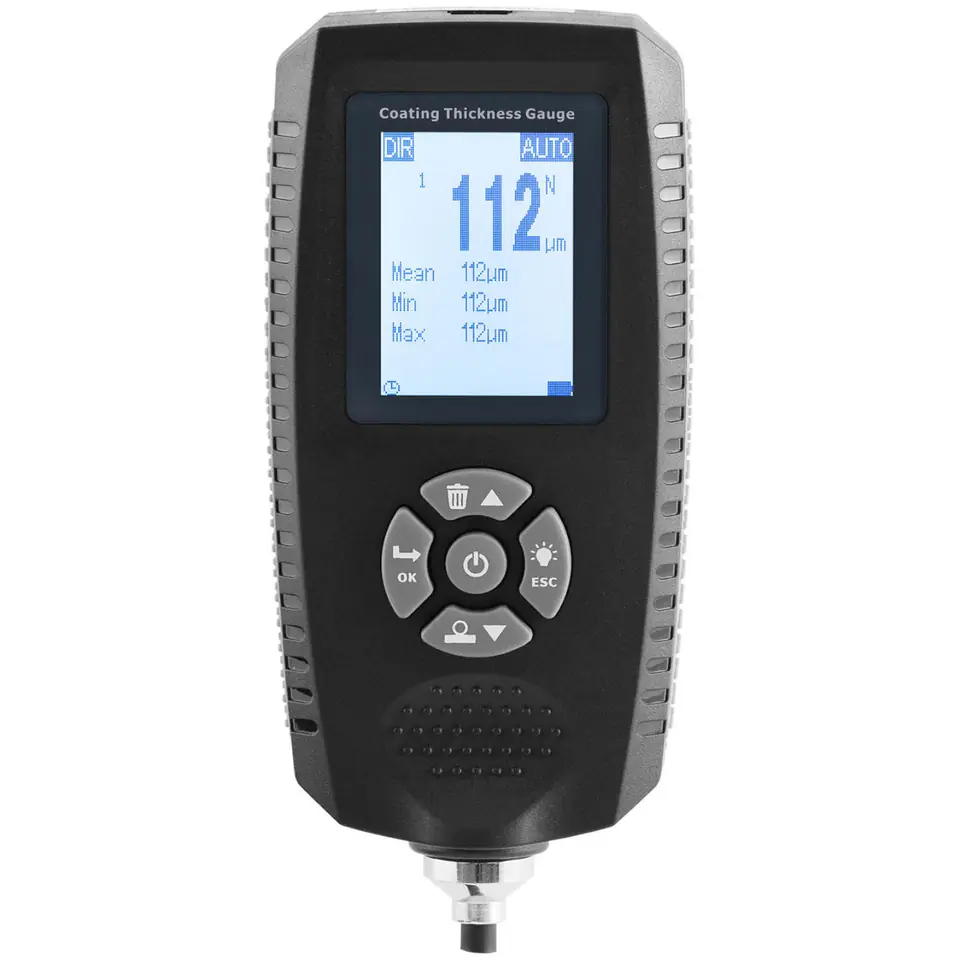

The paint thickness gauge from Steinberg Systems is an indispensable tool in the automotive trade and in the metal and chemical industries. The tester will measure the coating of varnish paint of ferromagnetic and non-magnetizing materials. The precision of the measurements is ±1% + 1 μm. LCD panel with backlight function. The result can be stored in memory up to 2000 results. The measuring range is 0-500 μm. The paint meter works in 2 modes: with ferromagnets using magnetic induction, and with other materials using eddy current. The minimum measuring area shall be Ø20 mm. The minimum radius of curvature for convex surfaces is 5 mm, for concave 25 mm. The whole set is in a suitcase. To connect the hardware to your computer, simply use a USB cable. Powered by 2 x AAA batteries. The equipment shows reliable results in the temperature range of 0~50C and humidity between 20 and 90%..
Product features:
- - Precision ±1% + 1 μm,
- - Memory up to 2000 data,
- - Measuring range 0-500 μm,
- - 2 measurement modes ,
- - Practical suitcase.
- - Model - SBS-CT-500
- - Catalogue number - 10030590
- - Article status - New
- - Housing material - ABS: plastic and silicone
- - Minimum material thickness - 0.2 mm magnetic induction / 0.05 mm eddy current
- - Measurement accuracy - ±1% + 1 μm
- - Resolution - 0.1 μm
- - Display - LCD
- - Ambient temperature - 0~50C
- - Storage temperature - -10~60C
- - Method of connection to a computer - USB
- - Measurement memory capacity - 2000 results
- - Battery type - 2 x AAA
- - Measurement method - Magnetic induction / Eddy current
- - Material selection modes - Magnetic induction / Eddy current
- - Measuring range - 0-500 μm
- - Units of measurement - μm, mm, miles
- - Minimum diameter of the measuring area - Ø20 mm
- - Minimum radius of curvature - 5 mm for convex surfaces / 25 mm for concave surfaces
- - Permissible humidity of the measured surface - 20~90%
- - Mini USB cable length - 0.8 m
- - Dimensions (LxWxH) - 10.5 x 5 x 2.5 cm
- - Weight - 0.2 kg
- - Shipping dimensions (LxWxH) - 25 x 19 x 5 cm
- - Shipping weight - 0.6 kg

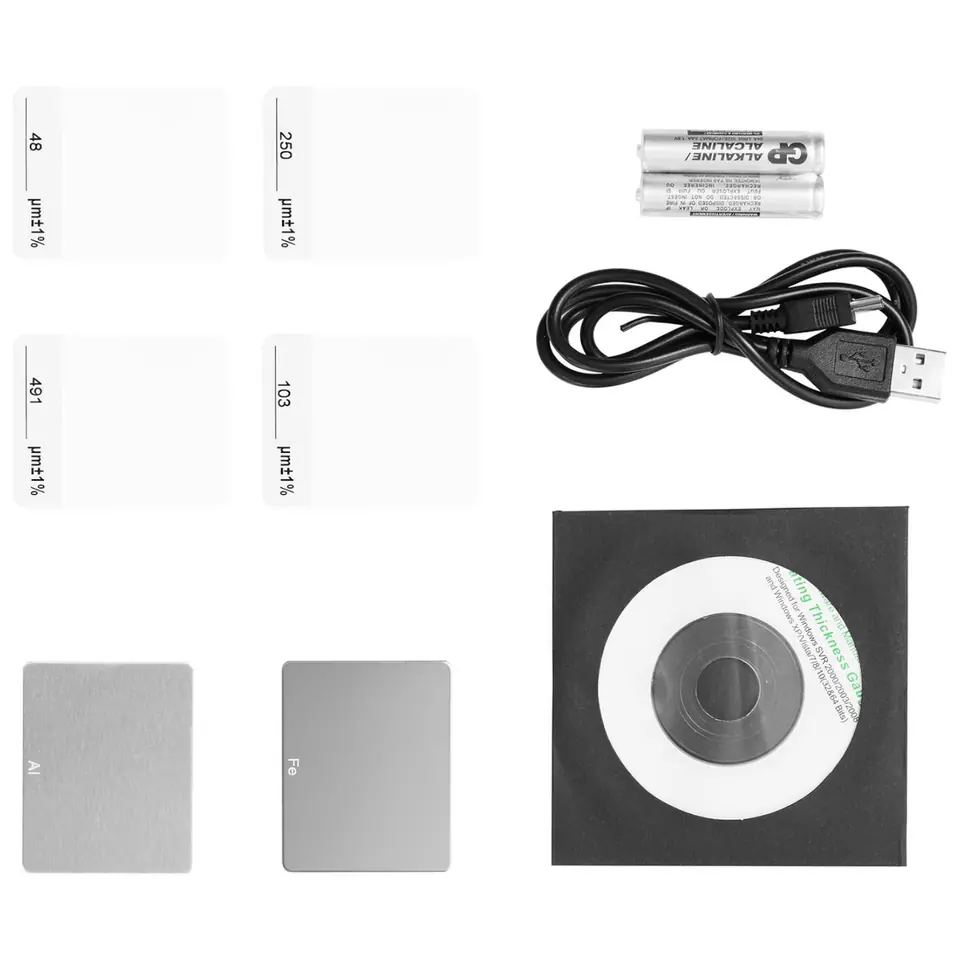

- - Paint thickness gauge,
- - Suitcase,
- - Batteries,
- - Instruction manual.
