MAIN PARAMETERS
Cable Type: Internet/Electrical/Telephone
Maximum telephone line length: 3000 m
Checking circuit continuity and in-line short circuits
Polarization indicator of telephone wire pairs: for ± (5 V~52 V)
Signaling: light and sound
Low battery indicator
Max. receiver current consumption in standby mode: ~10 mA
Max. current consumption of the receiver during operation: <40 mA
Continuous output voltage of the transmitter: ?12 V peak-peak
GENERAL FEATURES

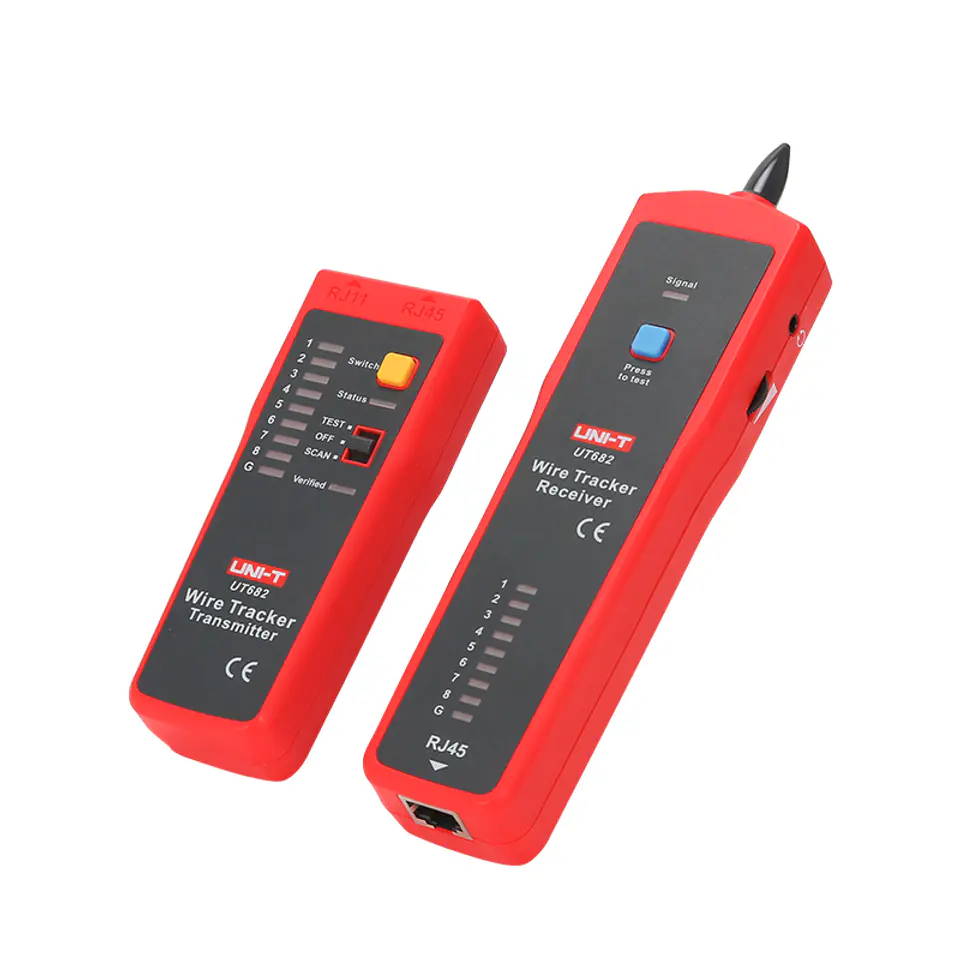

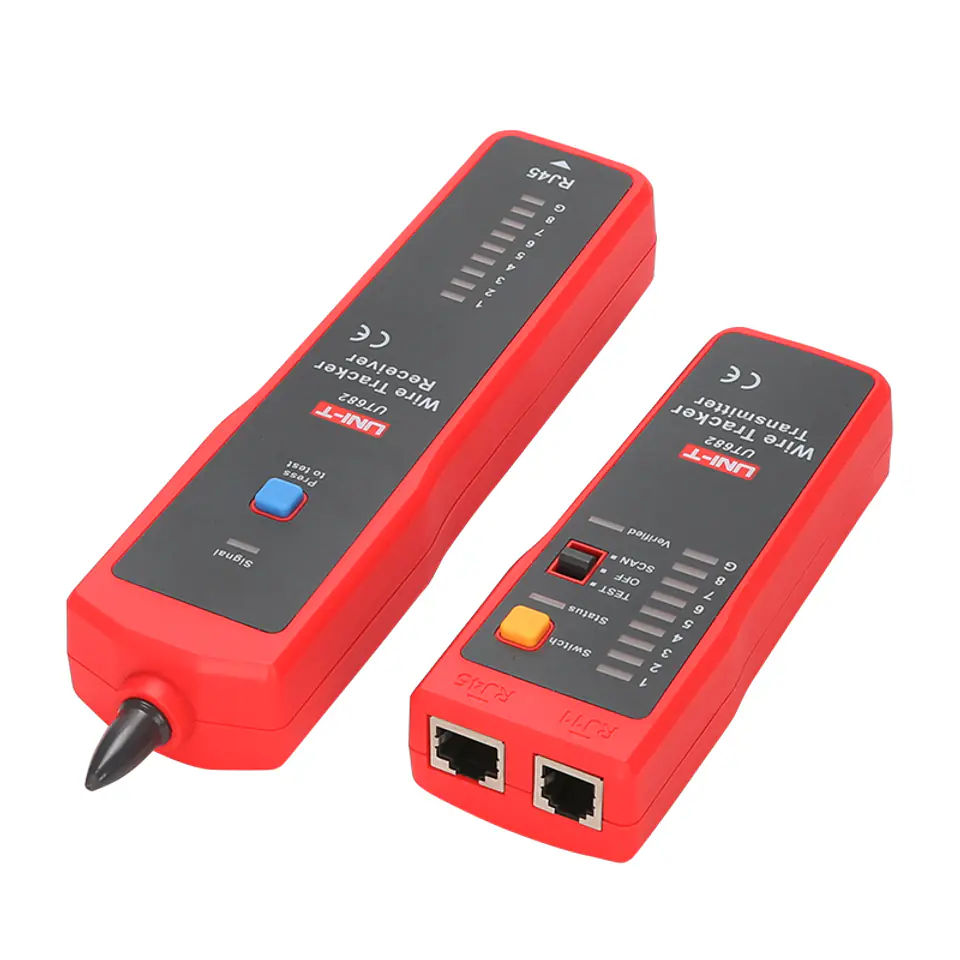

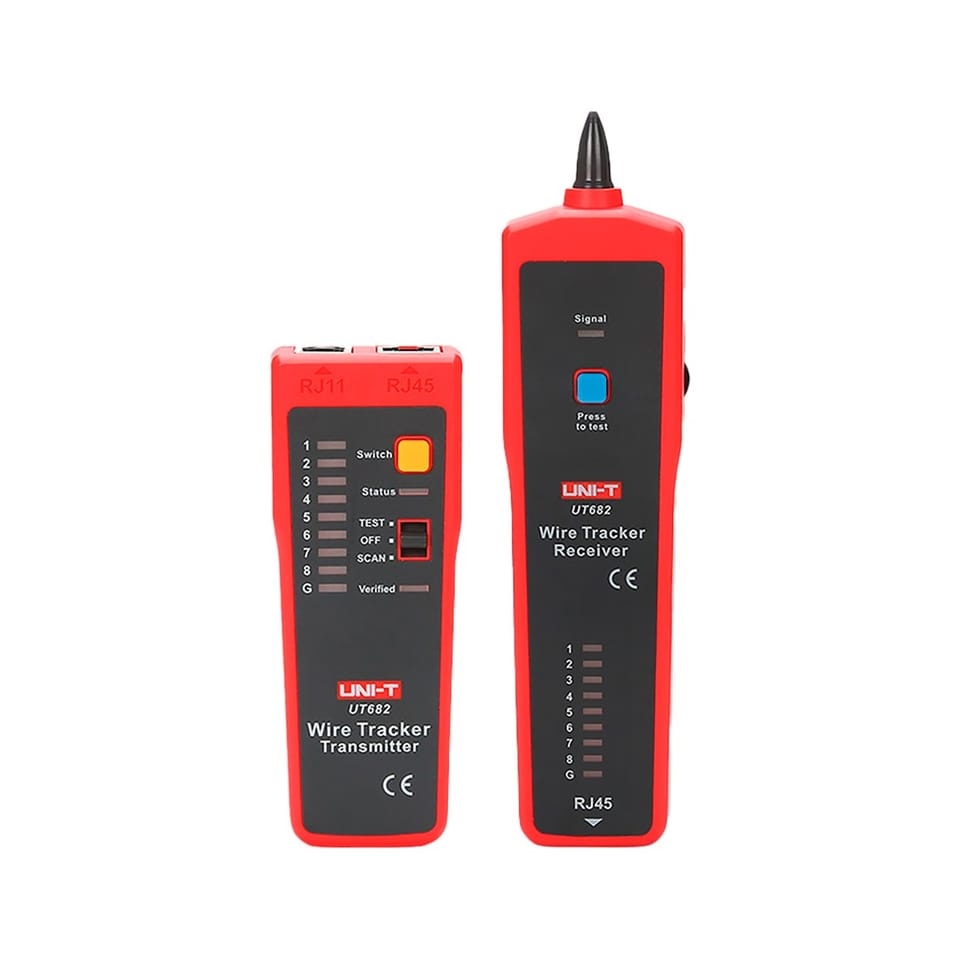

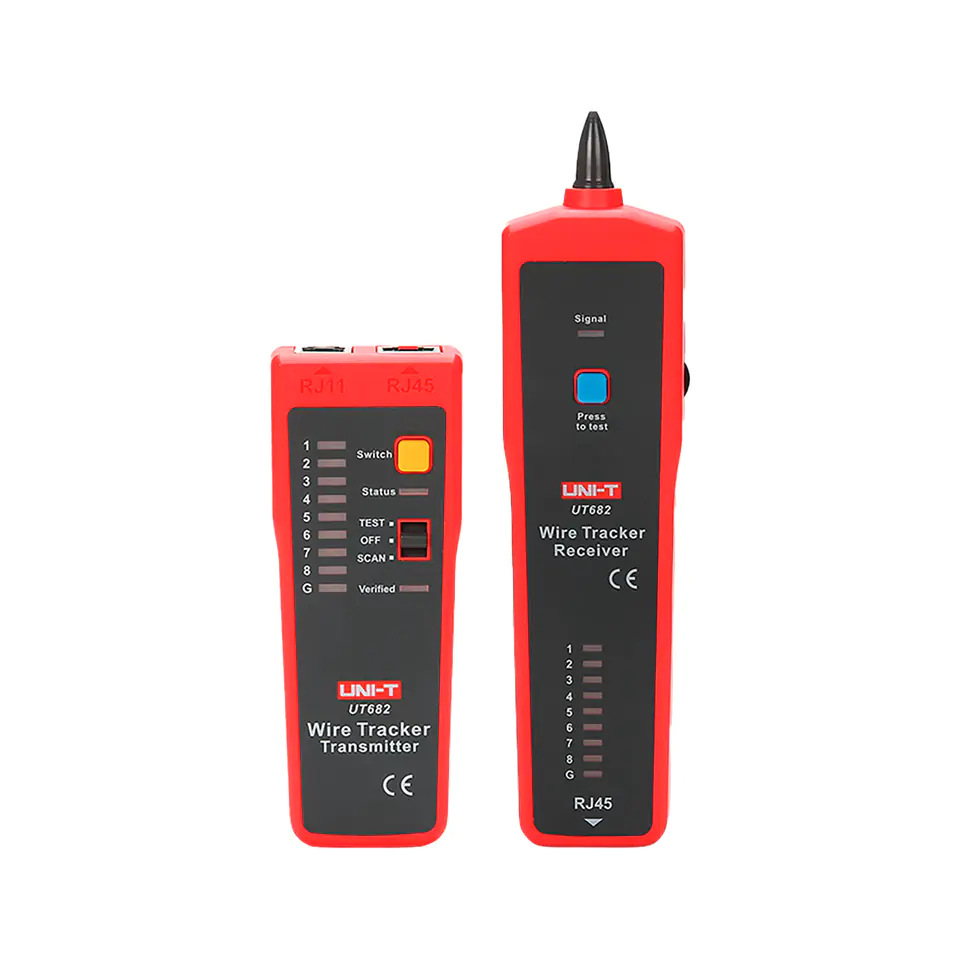

Power supply: transmitter - 9 V battery; receiver - 9 V battery
Product dimensions: transmitter – 74 x 68 x 28 mm; receiver: 208 x 47 x 33 mm
Weight: transmitter – 150 g; receiver – 130 g

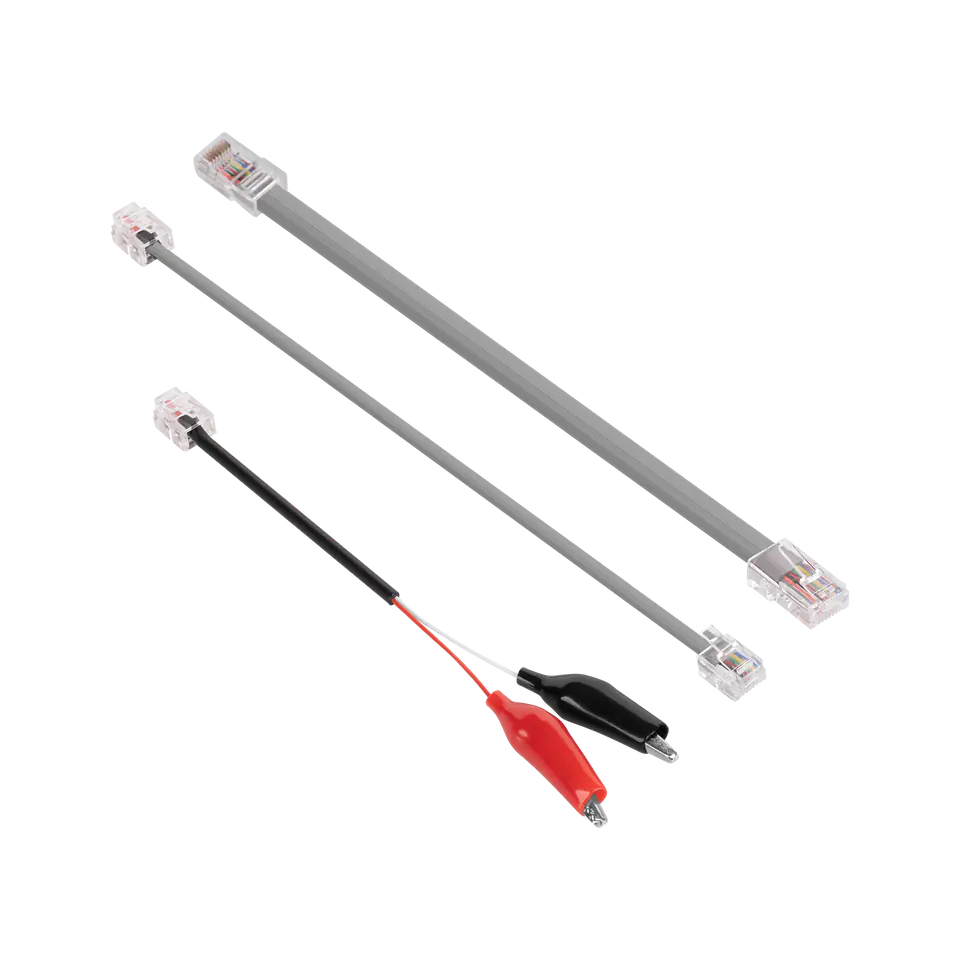

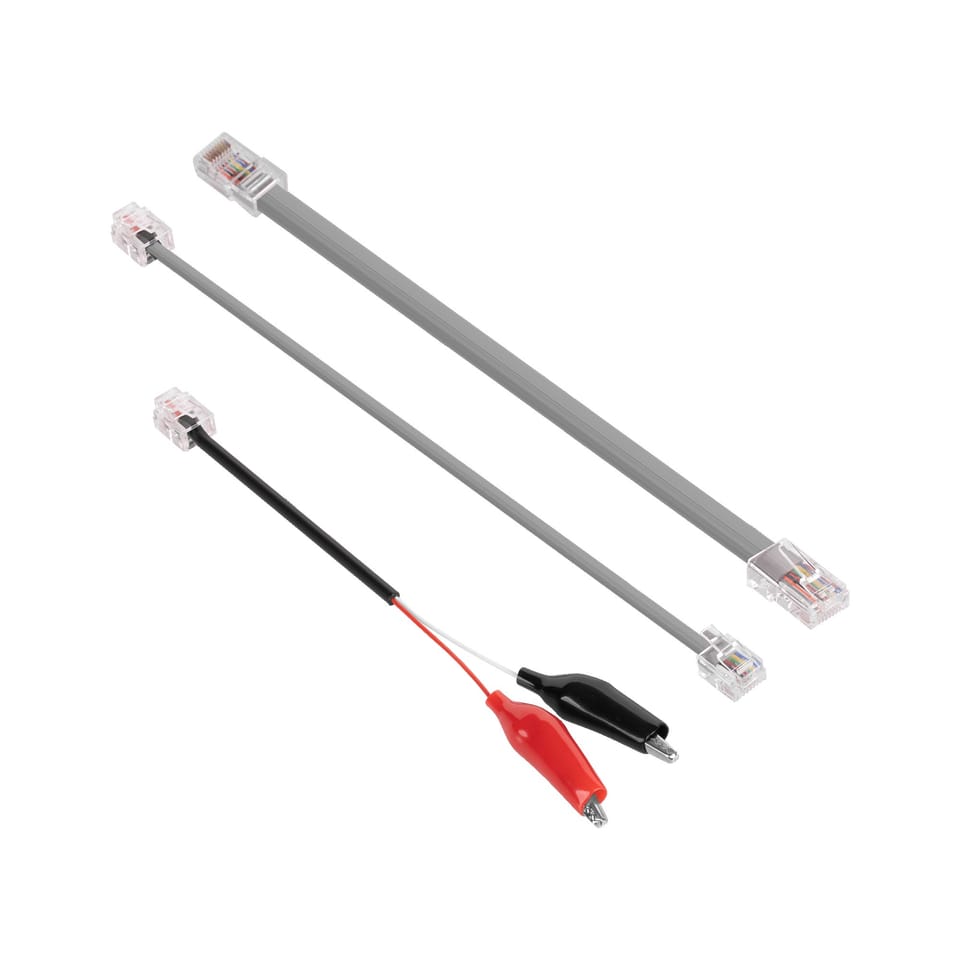

Accessories: batteries, RJ11 cable, RJ11 cable with crocodile clips, RJ45 cable, case
ENVIRONMENTAL
Operating Temperature: 0oC~40oC
Storage Temperature: -10oC~50oC
Operating Humidity: 20%-75%RH
Storage Humidity: 10%~90% RH
Height of use: =< 2000 m
