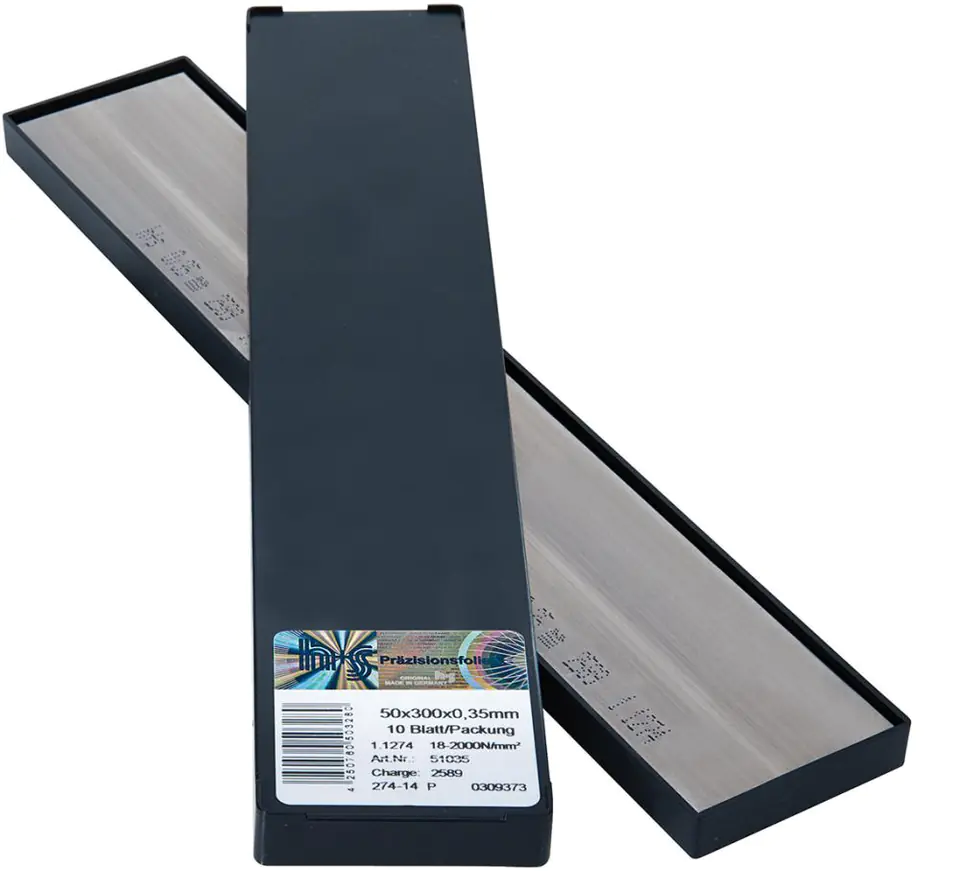

Foils, metal, sheet, set, of steel
Material: metal foils with a thickness tolerance T3, made of hardened spring steel strip 1.1274.
Application: for parts subject to heavy loads due to a carbon content of more than 1 %. For feeler gauges, backing films, springs without the need for corrosion protection.
Note: The material is approved for use on springs in accordance with DIN 17222 (new: DIN EN 10 132-4).
Jump:
0,01*; 0,02*; 0,03; 0,04; 0,05; 0,06; 0,07; 0,08; 0,09; 0,10; 0,15; 0,20; 0,25; 0,30; 0,40; 0,50; 0,60; 0,70; 0,80; 0,90; 1,00
* 0,01 and 0,02 from steel 1.4310. Jump:
0,01*; 0,02*; 0,03; 0,04; 0,05; 0,06; 0,07; 0,08; 0,09; 0,10; 0,15; 0,20; 0,25; 0,30; 0,40; 0,50; 0,60; 0,70; 0,80; 0,90; 1,00
* 0,01 and 0,02 from steel 1.4310.
