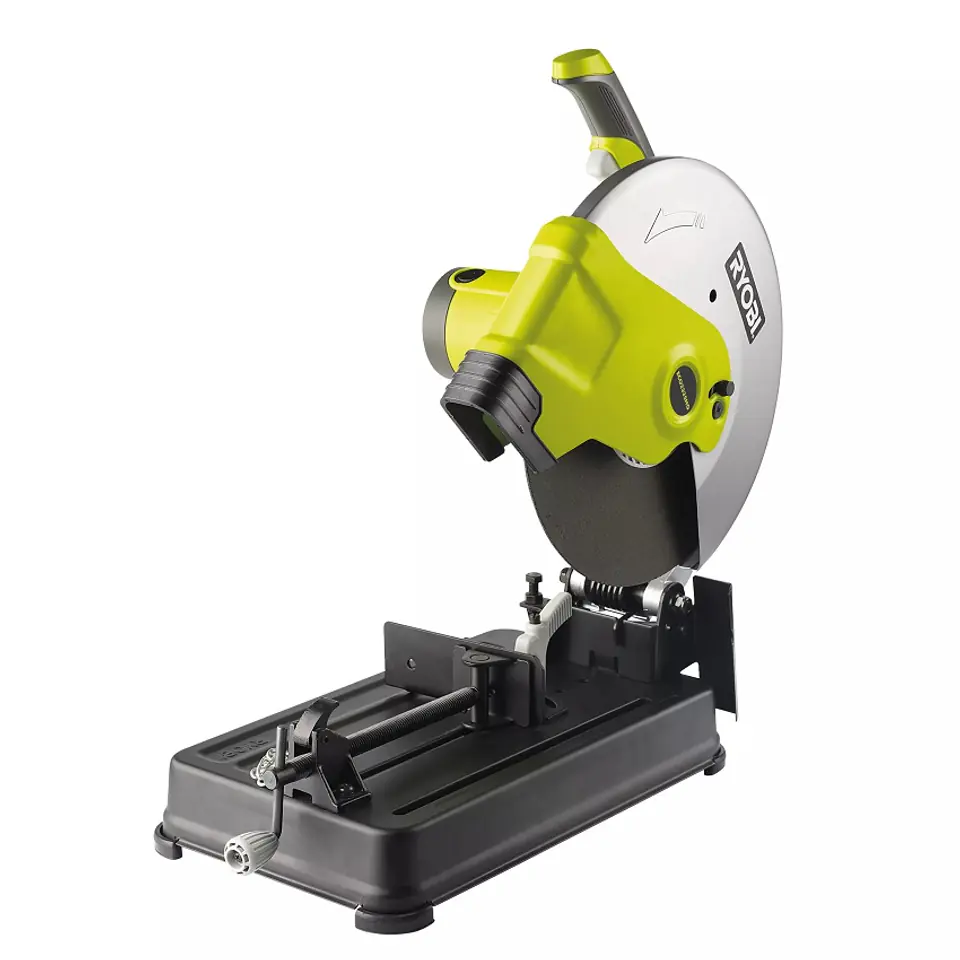

Technical data:
Power: 2300W
No-load speed (rpm): 3800
Dial Bore Diameter (mm): 25.4
Cutting capacity of L 90o and 45o profiles (mm): 90o/45o 137/100mm
Cutting capacity of round pipes (mm): 90o/45o 115mm
Weight (kg): 16
Noise level error (dB(A)): 3.0
Sound pressure level error (dB(A)): 3.0
Sound pressure level (Lpa)(dB(A)): 94.5
Sound Power Level (Lwa)(dB(A)): 108.0
Vibration level (m/s2): 1.6
Cutting range 0-45°
Quick-clamping jaws
Deflector reduces spark flow
Easily adjustable clamping clamp
Oversized cover for added safety
Integrated key magazine
Rubberized foot for greater stability

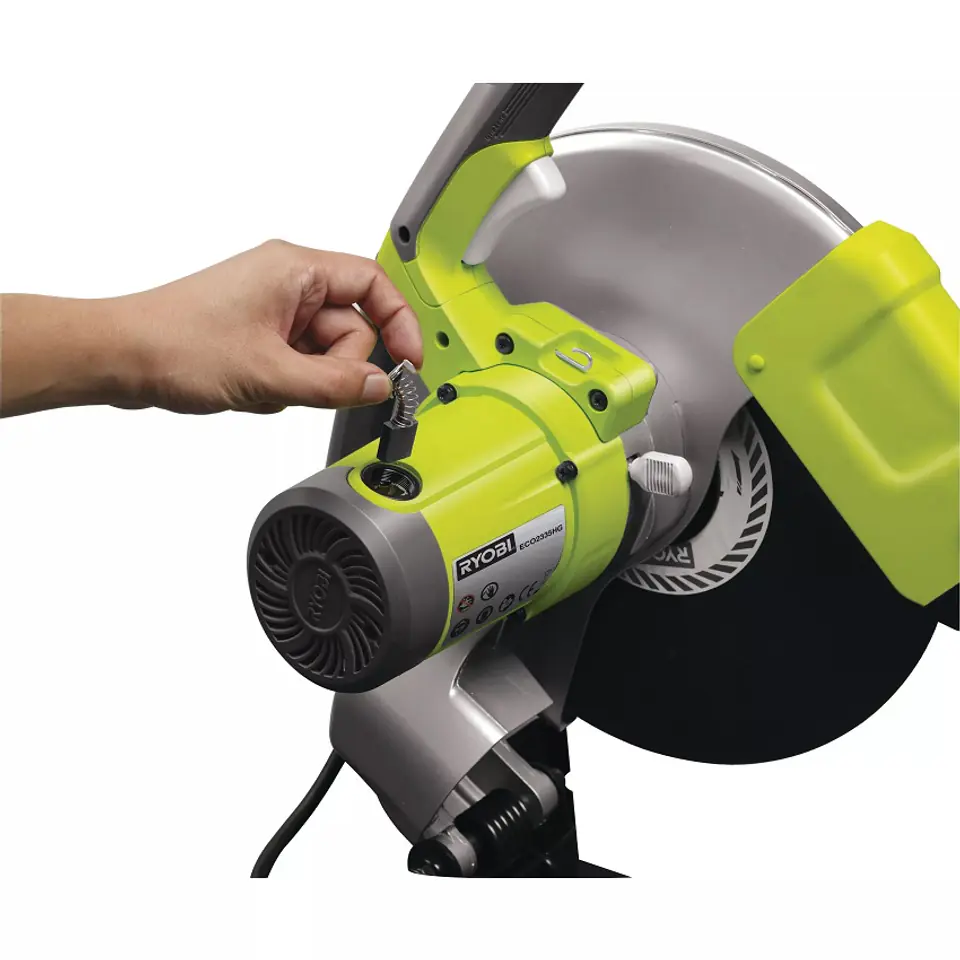

Replaceable carbon brushes
Spindle lock for easy blade replacement
Livetool Indicator™ - blue LED shows when the machine is energized
GripZone™ ergonomic handle with anti-slip coating
Paperboard
Disc 355 mm
Clamp
**
Power: 2300W
No-load speed (rpm): 3800
Dial Bore Diameter (mm): 25.4
Cutting capacity of L 90o and 45o profiles (mm): 90o/45o 137/100mm
Cutting capacity of round pipes (mm): 90o/45o 115mm
Weight (kg): 16
Noise level error (dB(A)): 3.0
Sound pressure level error (dB(A)): 3.0
Sound pressure level (Lpa)(dB(A)): 94.5
Sound Power Level (Lwa)(dB(A)): 108.0
Vibration level (m/s2): 1.6
Cutting range 0-45°
Quick-clamping jaws
Deflector reduces spark flow
Easily adjustable clamping clamp
Oversized cover for added safety
Integrated key magazine
Rubberized foot for greater stability
Replaceable carbon brushes
Spindle lock for easy blade replacement
Livetool Indicator™ - blue LED shows when the machine is energized
GripZone™ ergonomic handle with anti-slip coating
Paperboard
Disc 355 mm
Clamp
**
