MEDIA CONVERTER XFIBER-2-60 SFP ATTE

Name: MEDIA CONVERTER XFIBER-2-60 SFP ATTE
Brand: ATTE
SKU: 522679
Price: 59.35 EUR
Availability: InStock

€59.35

Shipping from warehouse: ⁨H7⁩

Estimated shipping: Tue, Dec 24 - Fri, Dec 27

14 days returnUnconditional return policy

Availability:: large quantity
Brand:: ATTE
Product code:: XFIBER-2-60 / 5902887061332

Specification

Baud::	SFP: 1000 Mbps, LAN: 10/100/1000 Mbps
Connector type::	SFP Port, LAN & PoE Port - RJ45

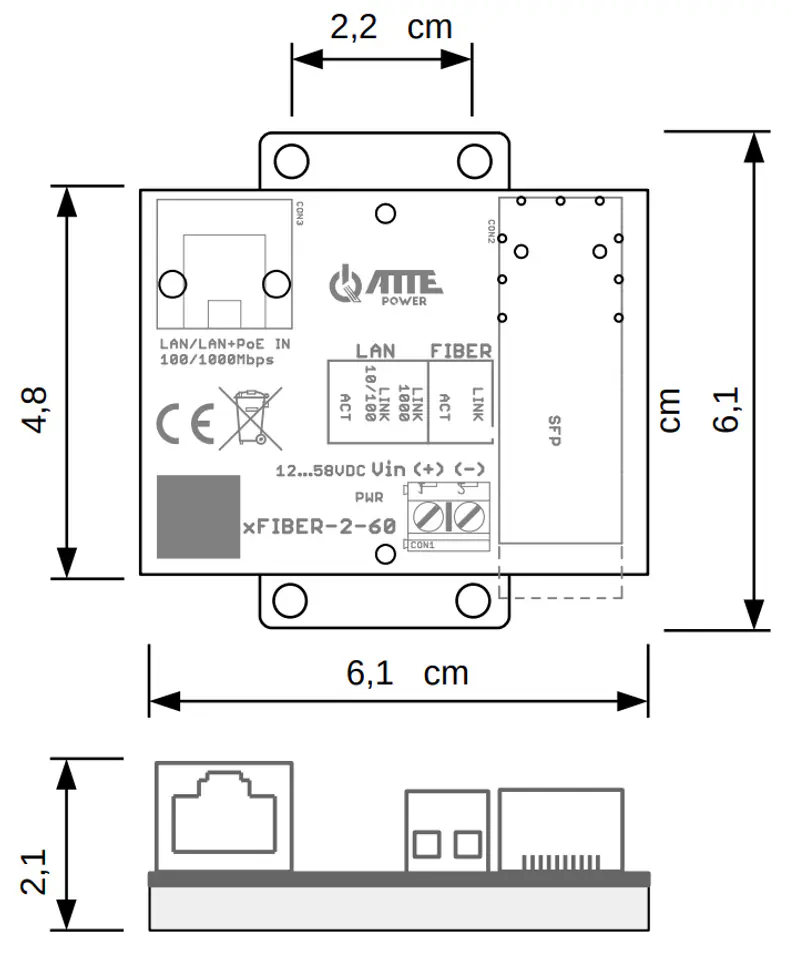

Dimensions::	61 x 61 x 21 mm
Lan port::	1 pc. (RJ-45. UTP/STP) - LAN & PoE
Manufacturer / brand::	ATTE
Operating temperature::	-25 °C ... 65 °C
Power::	35 ... 56 V DC - Passive PoE (LAN port) 12 ... 58 V DC (screw terminals)
Scales::	0.04 kg
Selected features::	(RJ45) 10/100/1000 Mb Auto-Negotiation, Auto MDI/MDIX LEDs indicating correct operation of the device Surge protector Vertical or horizontal mounting
Supported standards::	IEEE 802.3z, IEEE 802.3af
Warranty::	3 years

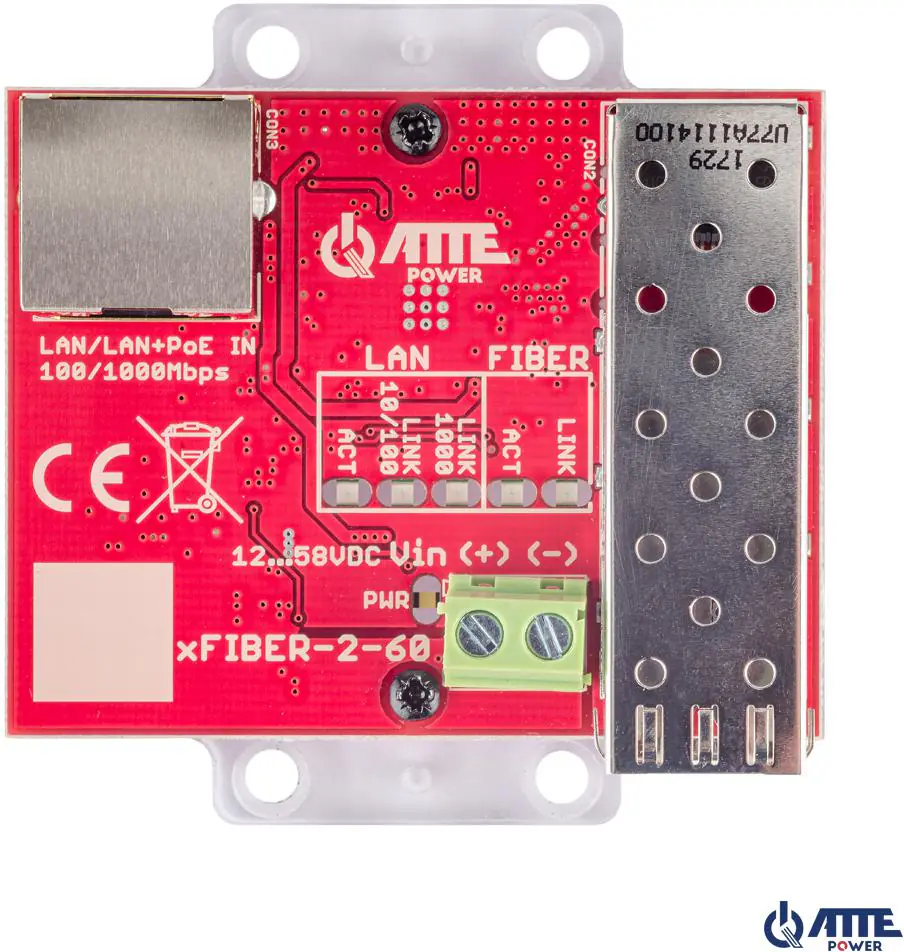

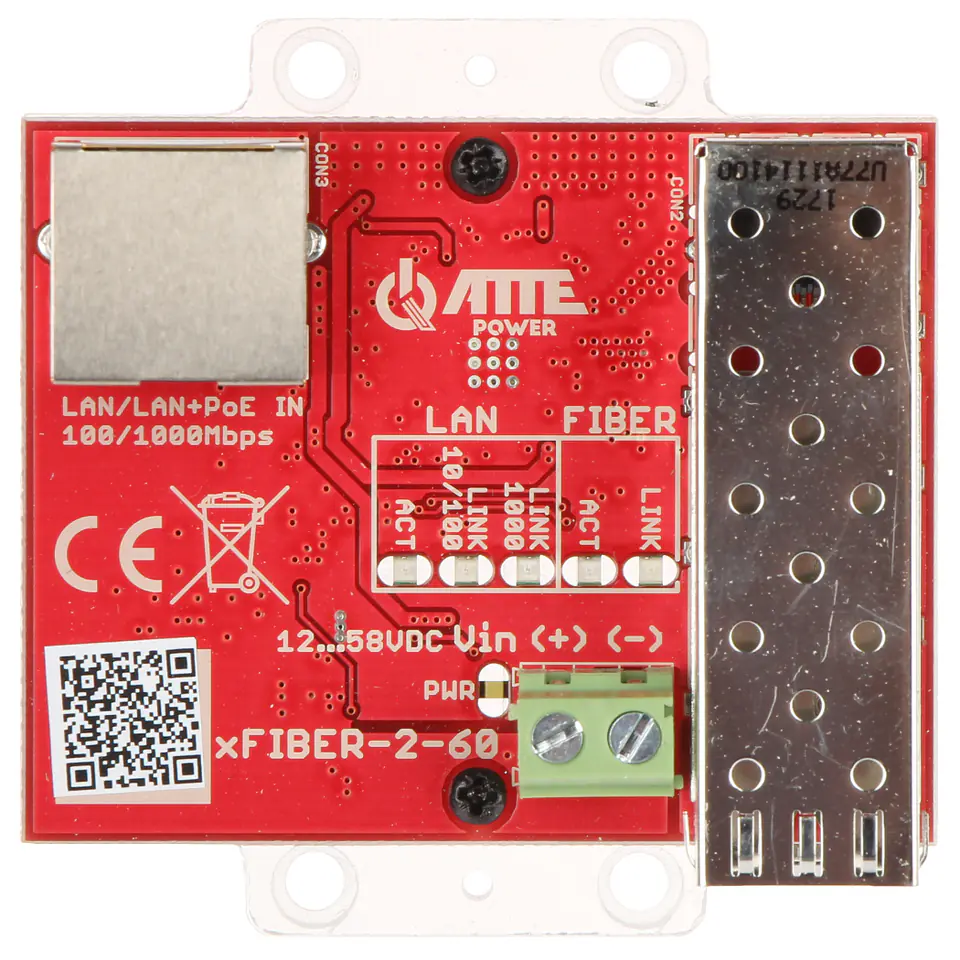

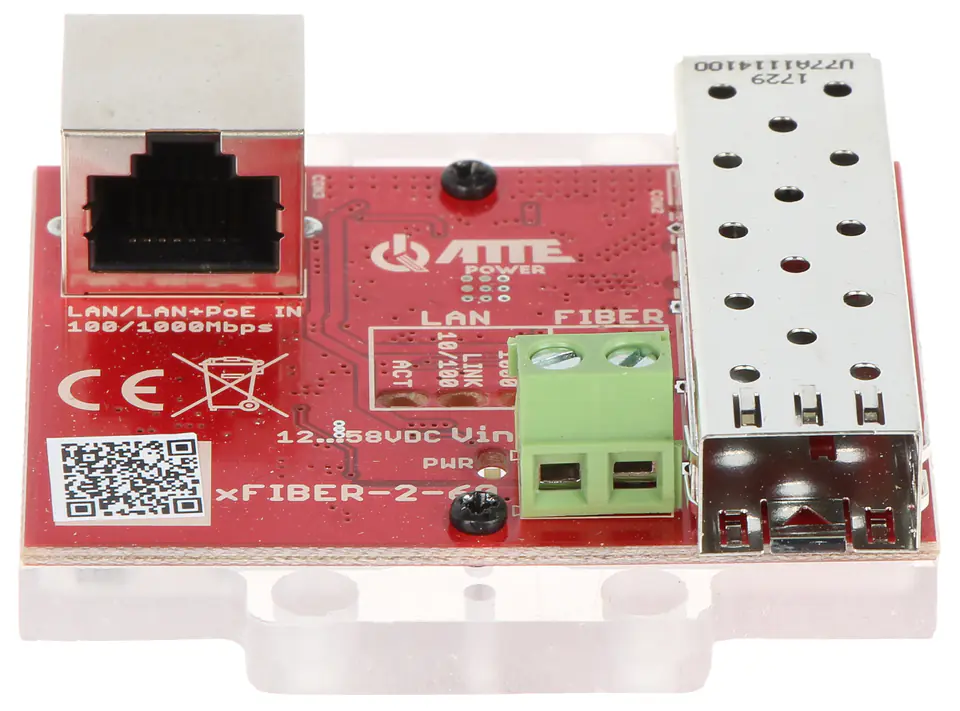

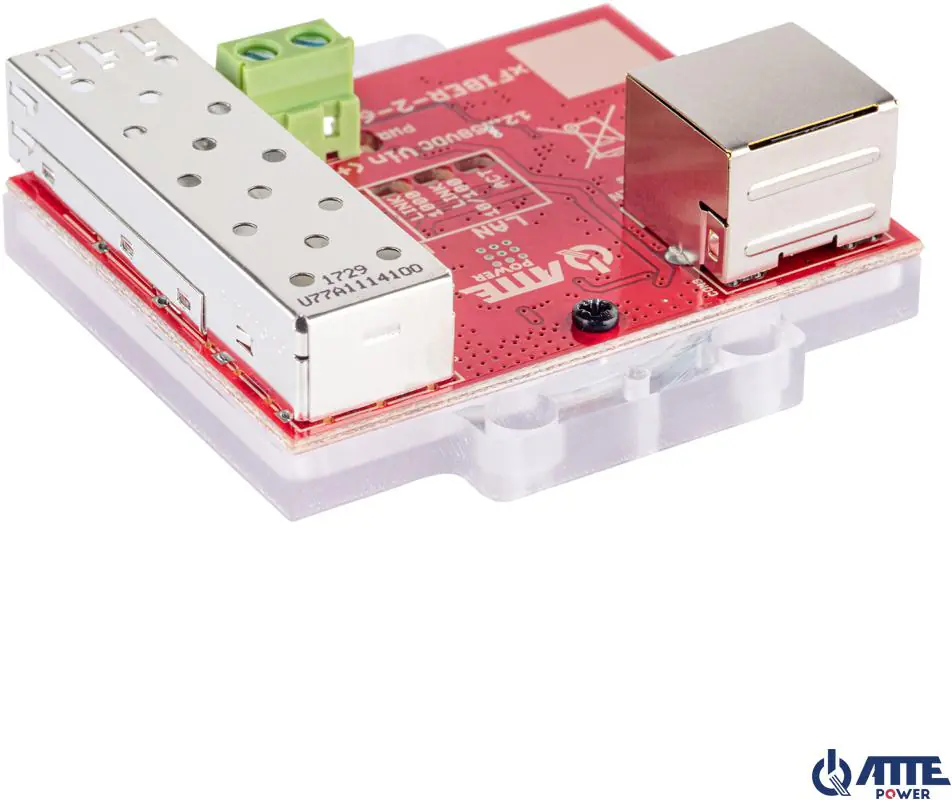

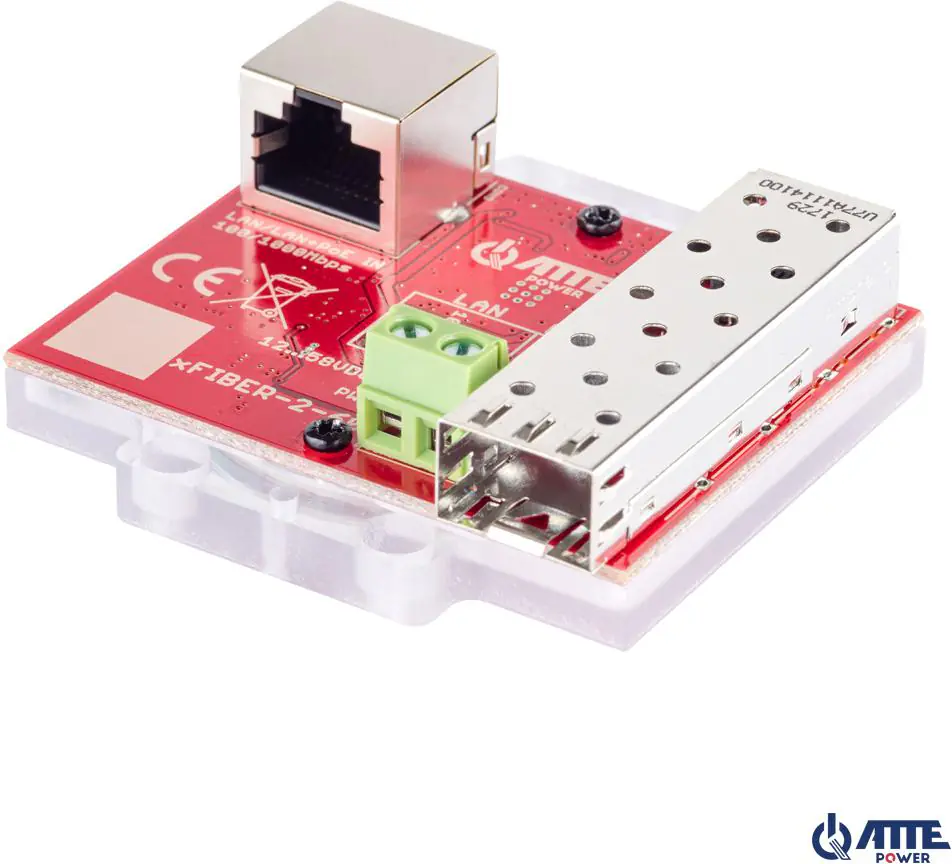

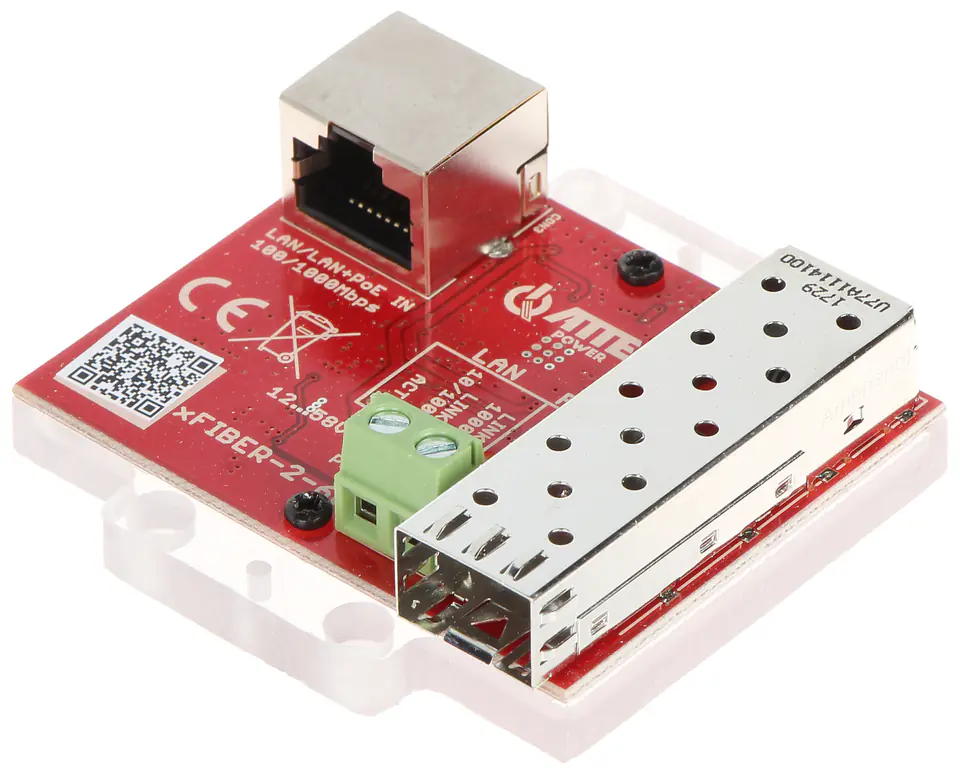

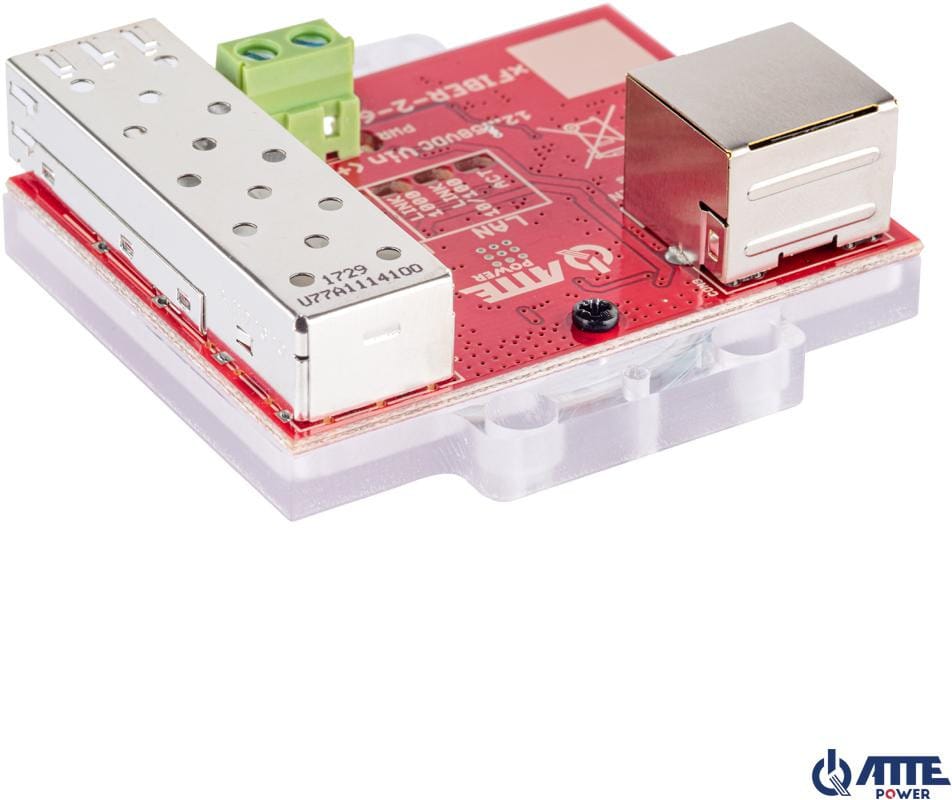

XFIBER-2-60 is a gigabit Ethernet - SFP converter dedicated to IP CCTV systemsUsing any SFP module compatible with the IEEE 802.3 standard, we have the ability to adjust the optical path parameters to the requirements of the installation (e.g. cooperation with single-mode or multimode fibers)

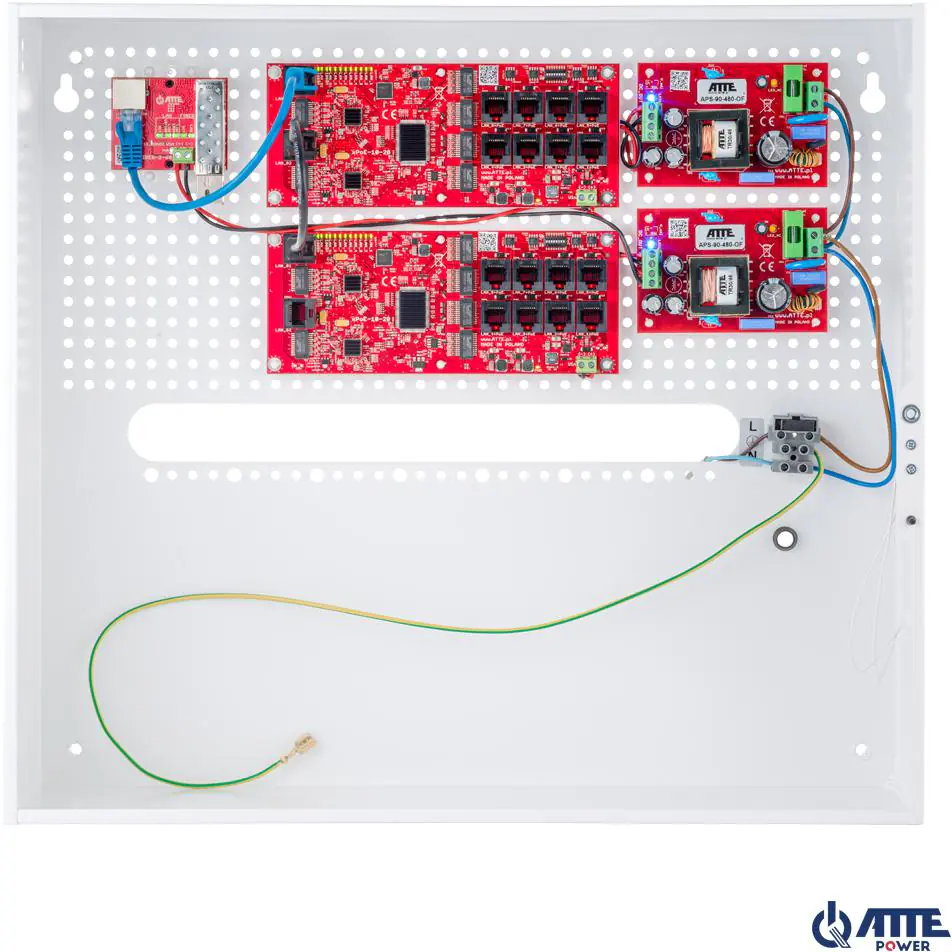

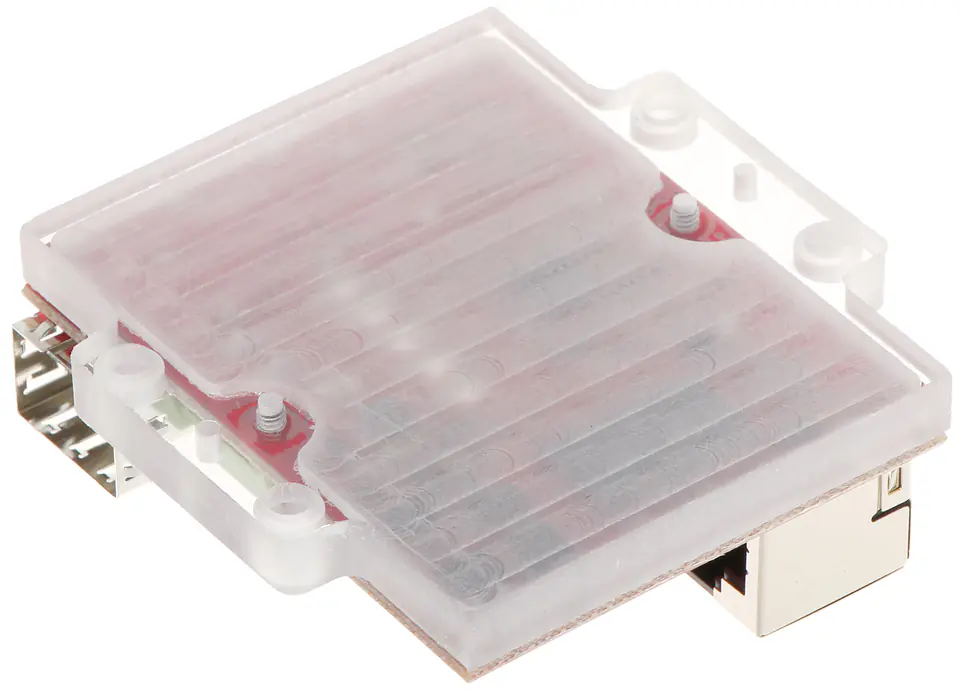

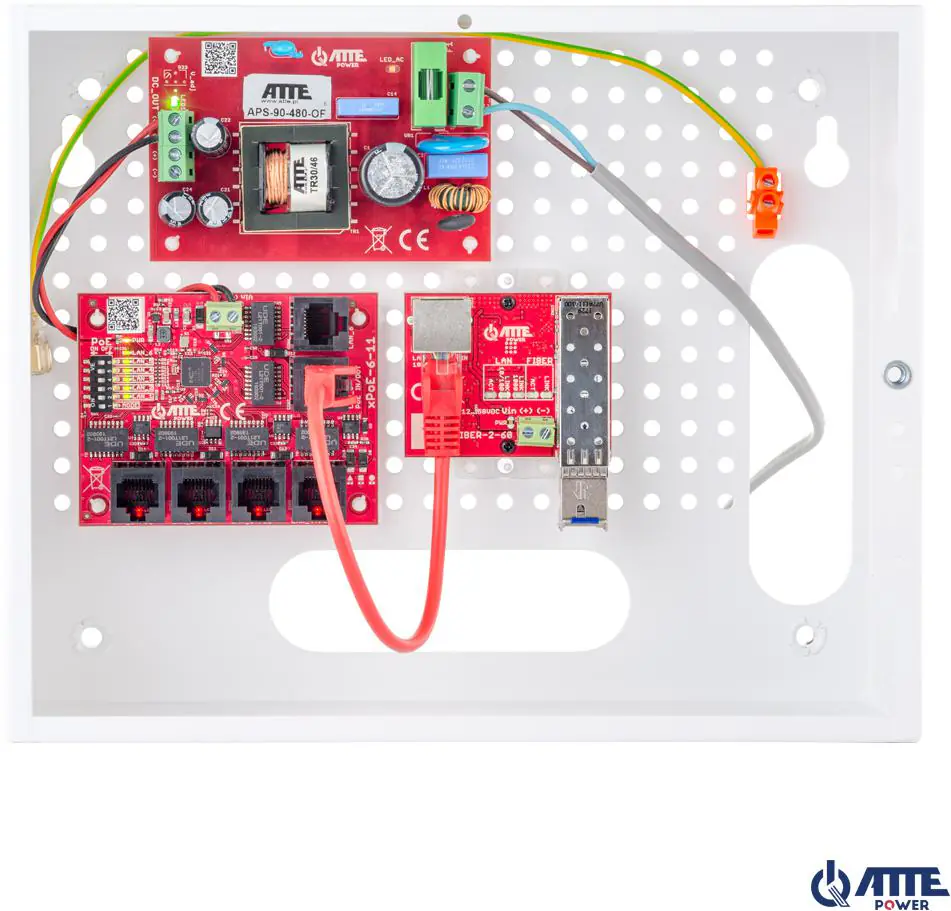

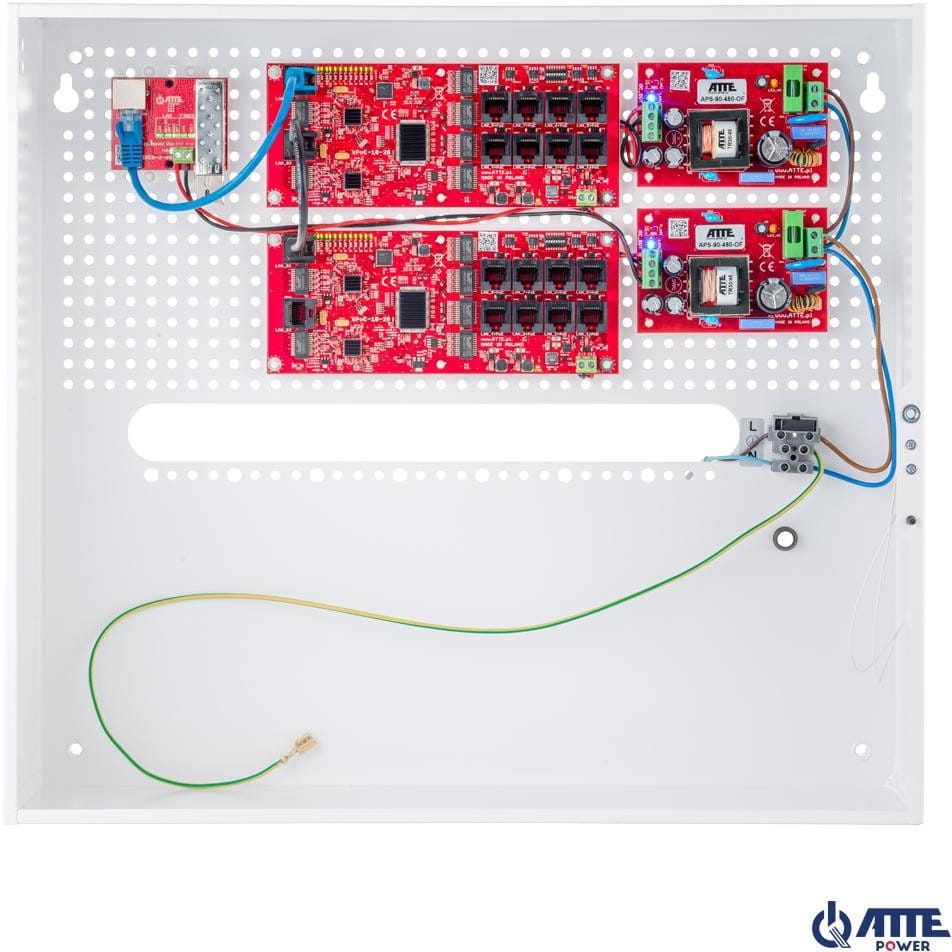

The converter can be powered via a screw connector or directly from a PoE switch operating in the 802.3af or Passive PoE standardThe small dimensions of the device allow for convenient installation in any housing (or in dedicated ABOX housings) or on a mounting plate (10.8 mm raster)

Remark! The SFP port requires the purchase of an SFP module, which is available in our offerThe converter does not work with SFP modules in the IEEE 802.3u 100Base-FX standard

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
