| Baud:: | 10 / 100 / 1000 Mbps |
|---|---|
| Dimensions:: | 105 x 70 x 26 mm - Transmitter or receiver dimensions |
| Lan port:: | 1 pc. (RJ-45. UTP/STP) |
| Manufacturer / brand:: | ULTIMODE |
| Number of fibers:: | 1 pc. |
| Operating temperature:: | 0 °C ... 50 °C |
| Optical connector type:: | SC / PC |
| Optical wavelength:: | 1550 / 1310 nm |

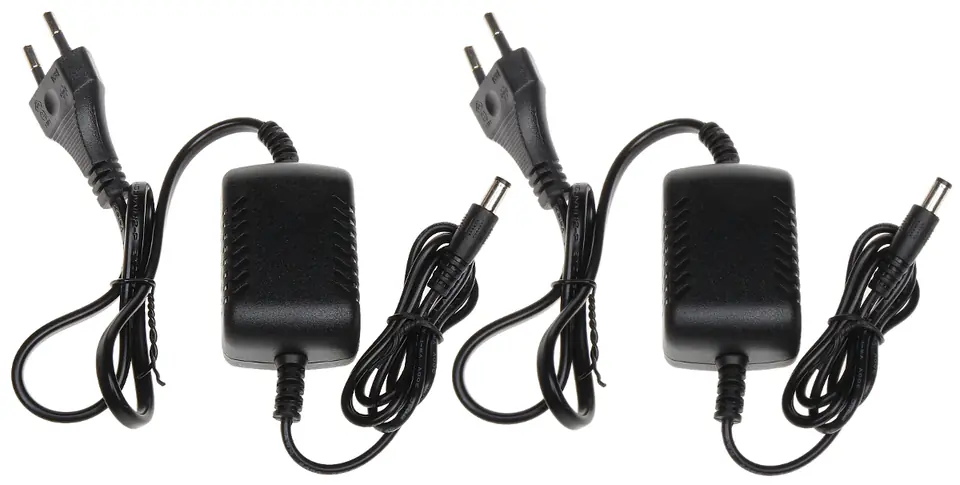

| Power:: | 5 V DC / 1.2 A (power supply included) |
| Scales:: | 0.176 kg |
| Selected features:: | Auto MDI/MDI-X Detection - Automatically Detects Data Transmission Mode Auto Bit Rate Detection Bidirectional Transmission Via Single Fiber LEDs Indicating Correct Device Operation WDM Optical Wavelength Multiplication Technology (Tx 1550nm / Rx 1310nm) |
| Supported standards:: | IEEE 802.3, IEEE 802.3u |
| Transmission range:: | 20 km - Single-mode fiber |
| Warranty:: | 2 years |

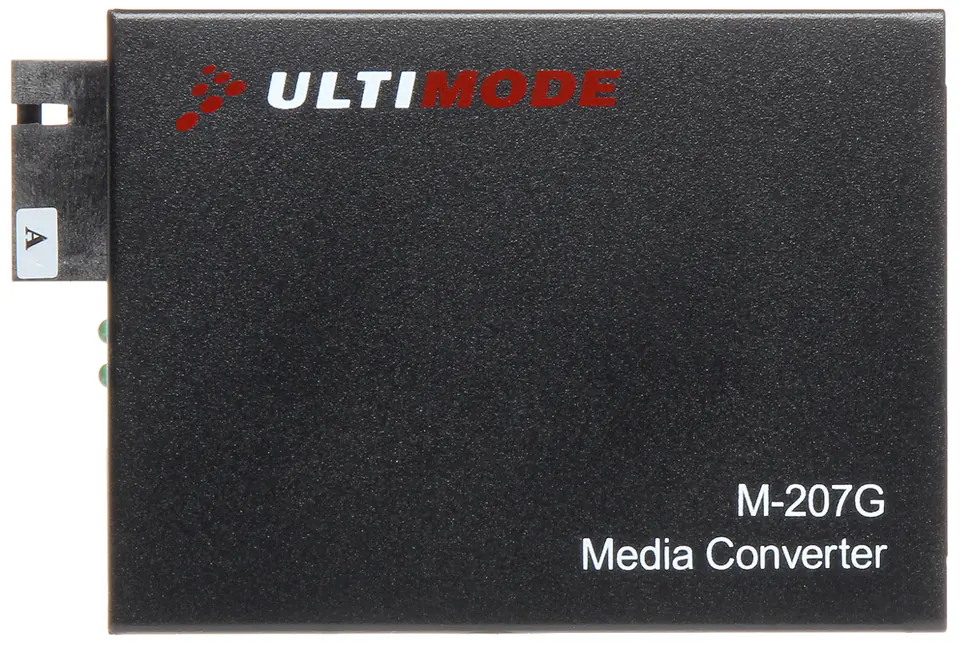

The M-207G converter allows you to change the conductive medium of the data stream from a standard STP/UTP cable to a single-mode fiber optic cable

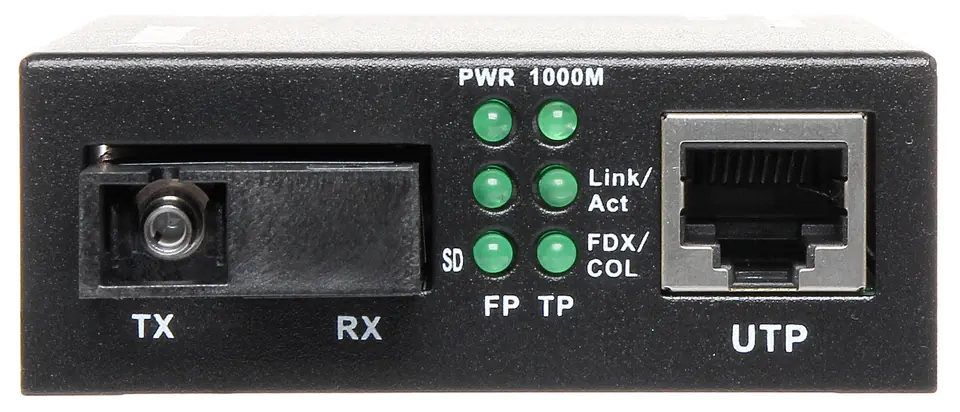

Device equipped with SC connector for reliable connectionsThe optical signal is transmitted and received in the II and III transmission window 1310/1550 nm
